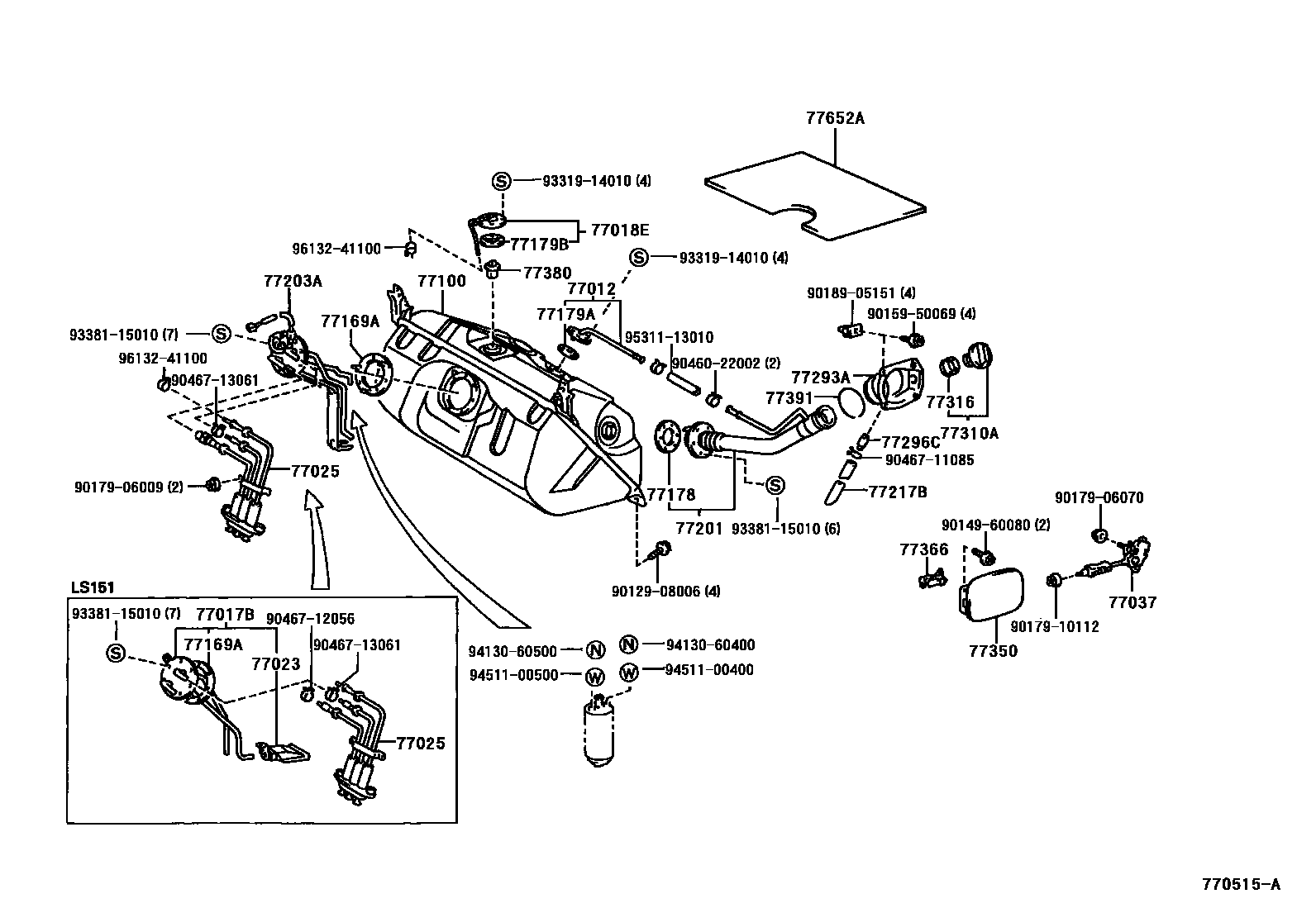

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-30080iJZS155,UZS15#..A,C,E,F199508-199909

main77012-30090iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)199508

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-30200iLS151199508

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-30070iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)199508

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-31020iLS151199508

77025TUBE SUB-ASSY, FUEL MAIN & RETURN, REAR

main77025-30250iGS151,JZS15#..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TWC)199508-199808

main77025-30260iLS151199508

main77025-30290iGS151..HTWC199808

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77030-30080iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)199508-200108

main77030-30090iJZS155,UZS15#..A,C,E,F199508-199909

main77037-30030iGS151..LPGTE199512-200102

77100TANK ASSY, FUEL

main77001-30430iJZS155..A,E199707-199909

main77001-30460iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)199508

main77001-30470iUZS15#199707-199909

main77001-30480iGS151..LPGTE199512-199707

main77001-30481iGS151..LPGTE199707-200102

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14010iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)199508

main77169-50020iJZS155,UZS15#..A,C,E,F199707-199909

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77169-14010iJZS155,UZS15#..A,C,E,F199508-199909

main77178-20010iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)199508

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-20040iGS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC199508

77179BGASKET, FUEL TANK EVAPORATION VENT TUBE

main77179-26010iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)199508

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-30240iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)199508

main77201-30280iJZS155,UZS15#..A,C,E,F199508-199909

main77201-30330iGS151..LPGTE199512-200102

77203ATUBE SUB-ASSY, FUEL SUCTION

main23206-50060iJZS155..A,E199707-199909

main77203-30070iJZS155,157..ROY,ROYG,ROYT199508

main77203-30080iGS151,JZS151,153..HTWC,TWC199508-199808

main77203-30120iUZS15#199707-199909

main77203-30150iGS151..HTWC199808

77217BHOSE, FUEL TANK INLET

main77217-30060iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)199508

main77217-30080iJZS155,UZS15#..A,C,E,F199508-199909

main77217-30090iGS151..LPGTE199512-200102

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-30030iGS151,JZS15#,LS151,UZS15#..HT199508

main77293-30040iGS151,JZS151,153,155,LS151..SED..(HTWC,TDE,TWC)199512

77296PLATE, FUEL TUBE GROMMET SUPPORT

main77296-30060×2iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

77296CPLATE, FUEL HOSE GROMMET SUPPORT

main77296-22070iGS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC199508

77310ACAP ASSY, FUEL TANK

main77310-12150iLS151199803

main77310-16011iGS151,JZS15#,UZS15#..HTWC,TWC199508-199803

main77310-32011iLS151199508-199803

main77310-48010iGS151,JZS15#,UZS15#..HTWC,TWC199803

77316GASKET, FUEL TANK CAP

main77316-16010iGS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC199508

77350LID ASSY, FUEL FILLER OPENING

main77350-30280iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

main77350-30290iJZS155,UZS15#..A,C,E,F199508-199909

main77350-30300iGS151,JZS151,153,155,LS151..SED199512

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30010iGS151,JZS15#,LS151,UZS15#..HT199508-199909

main77360-30020iGS151,JZS151,153,155,LS151..SED199512

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)199508

77391RING, FUEL INLET BOX

main77391-22020iGS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC199508

77652ACUSHION, FUEL TANK, NO.2

main77652-30040×2iJZS155,UZS15#..A,C,E,F199508-199909

main77652-30050iJZS15#,LS151..HT..(ROY,ROYT)199508-199909

9012908006

main90129-08006

9014960080

main90149-60080

9015950069

main90159-50069

9017906009

main90179-06009

9017906070

main90179-06070

9017910112

main90179-10112

9018905151

main90189-05151

9046022002

main90460-22002

9046711085

main90467-11085

9046712056

main90467-12056

9046713061

main90467-13061

9331914010

main93319-14010

9338115010

main93381-15010

9413060400

main94130-60400

9413060500

main94130-60500

9451100400

main94511-00400

9451100500

main94511-00500

9531113010

main95311-13010

9613241100

main96132-41100

43 parts on this diagram · 6 diagrams in section
