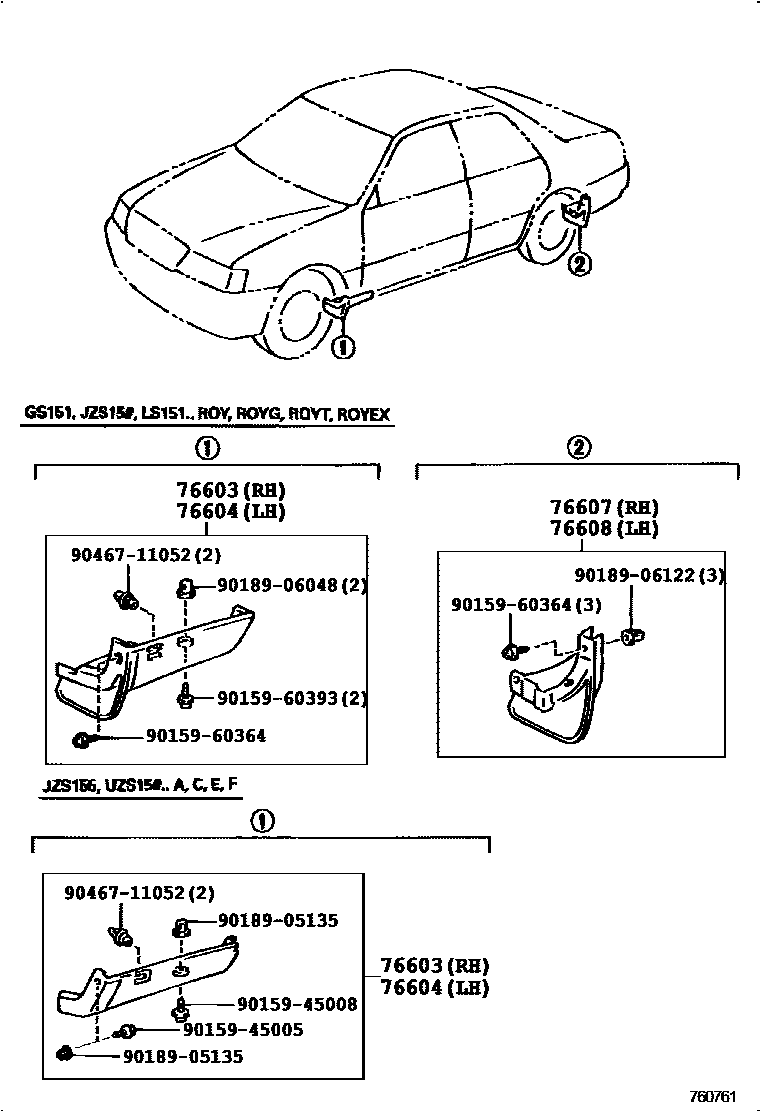

MUDGUARD & SPOILER

0001 1 0002 1

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-39035iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

main76603-39045iJZS155,UZS15#..A,C,E,F199508-199909

main76621-39385iGS151,JZS151,153,155,LS151..SED199512

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-39035iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

main76604-39045iJZS155,UZS15#..A,C,E,F199508-199909

main76622-39385iGS151,JZS151,153,155,LS151..SED199512

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-39455iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

main76625-39465iGS151,JZS151,153,155,LS151..SED199512

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-39455iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

main76626-39465iGS151,JZS151,153,155,LS151..SED199512

9015945005

main90159-45005

9015945008

main90159-45008

9015960364

main90159-60364

9015960393

main90159-60393

9018905135

main90189-05135

9018906048

main90189-06048

9018906122

main90189-06122

9046711052

main90467-11052

12 parts on this diagram · 2 diagrams in section
