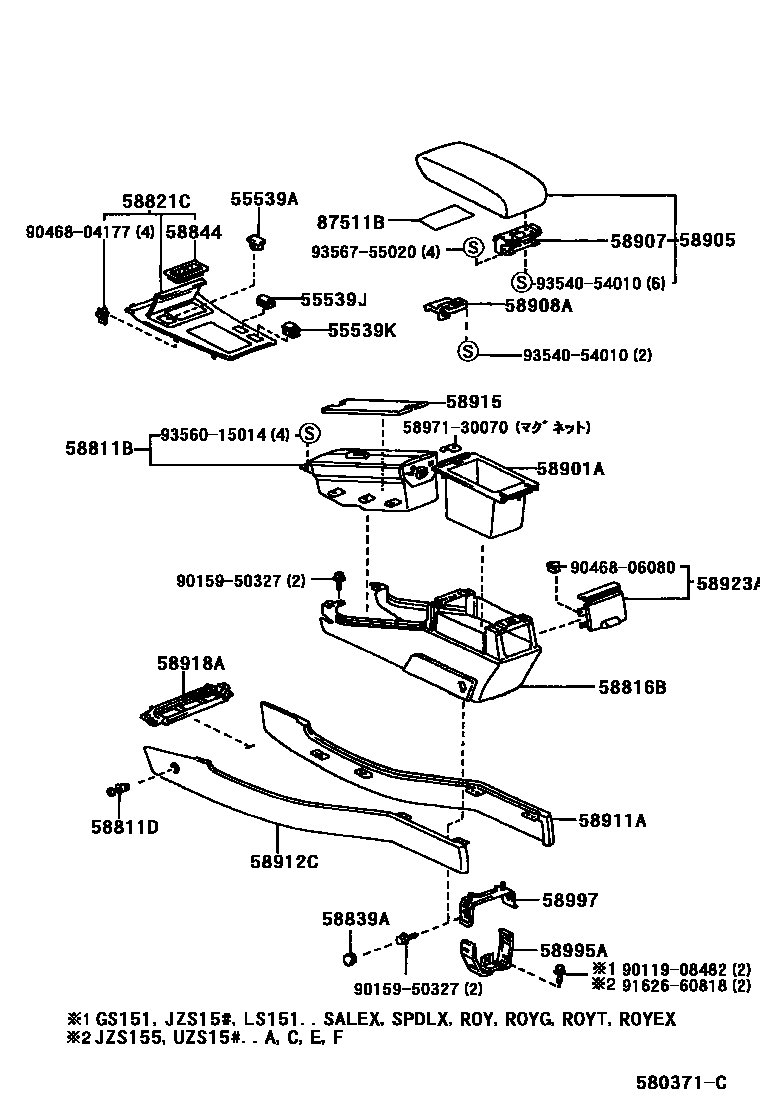

CONSOLE BOX & BRACKET

0001 1 0003 1 0004 1

55539ACOVER, SPARE SWITCH HOLE

main55539-30080-C0iGS151,JZS157,UZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(A,E,ROY,ROYEX,ROYT)199508-200108

BLACK,TRIM1#,4#

55539JCOVER, SPARE SWITCH HOLE

main55539-30130iJZS151,155,LS151,UZS155,157..A,C,E,F,ROY,ROYG,ROYT; JZS151..ROYEX; LS151..ROYEX199508-199707

main55539-30140iJZS151..ROYEX; JZS151..SALEX;LS151..ROYEX,SPDLX199508

main55539-30150iGS151,JZS151,153..ROYEX199804-199903

55539KCOVER, SPARE SWITCH HOLE

main55539-30130iGS151..LPGTE..NOB;GS151..ROYEX,SALEX199508-199707

main55539-30140iGS151..4FC..(ROYEX,SALEX,SPDLX)199508

main55539-30150iGS151..LPGTE..NOB;GS151..ROY,ROYEX,SALEX199707

58811BBOX, CONSOLE

main58801-30220-B0iGS151,JZS151,153,155,LS151..ATM..(ROYEX,ROYT,SALEX,SPDLX)199707-200108

DK.BLUE GRAY,TRIM1#

main58801-30220-B1iJZS155,UZS15#..A,C,E,F199508-199707

BLUE GRAY,TRIM1#

main58801-30220-E0iJZS155,UZS15#..A,C,E,F199508-199707

QUARTZ,TRIM4#

main58801-30220-E1iGS151,JZS151,153,LS151..4FC..(ROYEX,SALEX,SPDLX)199707-200108

ANTELOPE,TRIM4#

main58801-30230iGS151,JZS151,153..ROYEX199804-199903

58811DCLIP(FOR CONSOLE BOX)

main90467-08182-B2×2iGS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)199508-200108

DK.BLUE GRAY,TRIM1#

main90467-08182-B3×2iJZS155,UZS15#..A,C,E,F199508-199909

BLUE GRAY,TRIM1#

main90467-08182-C0×2iGS151,JZS15#,LS151..SED..4FC..(ROY,SALEX,SPDLX)199512-199707

BLACK,TRIM10,4#

main90467-08182-E0×2iJZS155,UZS15#..A,C,E,F199508-199909

QUARTZ,TRIM4#

main90467-08182-E1×2iGS151..LPGTE..WIB;GS151..4FC..SPDLX..HTWC;JZS15#,LS151..SED..(ROY,SALEX,SPDLX); GS151..SALEX;GS151..LPGTE..NOB199512-199707

ANTELOPE,TRIM4#,40; ANTELOPE,TRIM40

58816BINSERT, CONSOLE BOX

main58816-30060-B0iGS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)199508-200108

DK.BLUE GRAY,TRIM1#

main58816-30060-B1iJZS155,UZS15#..A,C,E,F199508-199707

BLUE GRAY,TRIM1#

main58816-30060-E0iJZS155,UZS15#..A,C,E,F199508-199707

QUARTZ,TRIM4#

main58816-30060-E1iGS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)199508-200108

ANTELOPE,TRIM4#

58821CPANEL, CONSOLE, UPPER

main58804-30190iJZS151,155..SED..ROY; JZS155..SED..ROYG199512-199707

main58804-30200iJZS151,155..SED..ROY; JZS155..SED..ROYG199512-199707

main58804-30210iJZS151..ROYEX; JZS155..HT;JZS151..ROY,ROYT;JZS155..SED..ROY; LS151,UZS15#..C,F,ROY; LS151..ROYEX199508-199707

main58804-30220iGS151..ROYEX,SALEX;GS151,JZS151,153..(ROYEX,SPDLX)..(LPGTE,TWC); JZS155..HT;JZS155..SED..ROY;GS151,JZS151,153..ROY,ROYT199508-199707

main58804-30230iJZS151..ROYEX,SALEX199508

main58804-30240iGS151,JZS151,153..4FC..(ROYEX,SALEX,SPDLX)199508

main58804-30340iUZS151,155;JZS151,155,LS151..SED..(ROY,ROYG)199707

main58804-30350iJZS151,153..SED..ROY199707

main58804-30360iJZS155..HT;JZS155..SED..ROY;JZS151,LS151,UZS15#..C,F,ROY,ROYEX,ROYT199707

main58804-30370iGS151..ROYEX199810

58839ACOVER, CONSOLE BOX HOLE

main58917-30100-B0×2iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-200108

DARK BLUE GRAY,TRIM1#

main58917-30100-B1×2iJZS155,UZS15#..A,C,E,F199508-199707

BLUE GRAY,TRIM1#

main58917-30100-E0×2iJZS155,UZS15#..A,C,E,F199508-199707

QUARTZ,TRIM4#

main58917-30100-E1×2iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-200108

ANTELOPE,TRIM4#

58844BEZEL, CONSOLE BOX

main58844-30060iUZS151,155;JZS151,155,LS151..SED..(ROY,ROYG)199508-199609

main58844-30080iJZS153..SALEX;JZS153,155..HT;JZS155..SED..ROY;GS151,JZS151,157,LS151,UZS15#..ATM199508

58901ABOX SUB-ASSY, CONSOLE, REAR

main58811-30310iGS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)199707

main58912-30150iGS151..5F199512-199909

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-30390-B0iGS151..5F199512-199909

DK.BLUE GRAY,TRIM1#

main58905-30390-E0iGS151..5F199512-199909

ANTELOPE,TRIM4#

main58905-30400-B2iGS151,JZS15#,LS151..ROY,ROYG; GS151..LPGTE..NOB;GS151,JZS151,153,LS151..ROYEX199508-199707

main58905-30400-E2iGS151,JZS15#,LS151..ROY,ROYG,ROYT; GS151..LPGTE..NOB;GS151,JZS151,153,LS151..ROYEX199508-199707

main58905-30410-B1iJZS151,155..ROYT199508-199707

DK. BLUE GRAY,TRIM1#

main58905-30440-B0iGS151,JZS151,153,LS151..4FC..(ROYEX,SALEX,SPDLX)199508-200108

main58905-30440-E0iGS151,JZS151,153,LS151..4FC..(ROYEX,SALEX,SPDLX)199508-200108

main58905-30450-B0iJZS155,UZS15#..A,C,E,F199508-199707

LT. BLUISH GRAY,TRIM1#

main58905-30450-E0iJZS155,UZS15#..A,C,E,F199508-199707

QUARTZ,TRIM4#

main58905-30470-B0iUZS151,155199611-199707

main58905-30480-B0iGS151..LPGTE..NOB;GS151..ROY,ROYEX,SALEX;JZS15#,LS151..ROY,ROYEX,ROYG199707-200108

main58905-30480-E0iGS151..LPGTE..NOB;GS151..ROY,ROYEX,SALEX;JZS15#,LS151..ROY,ROYEX,ROYG,ROYT199707-200108

main58905-30490-B0iJZS151,155..ROYT199707-199909

DARK BLUE GRAY,TRIM1#

main58905-30500-B2iJZS155,UZS15#..A,C,E,F199707-199909

BLUE GRAY,TRIM1#

main58905-30500-E1iJZS155,UZS15#..A,C,E,F199707-199909

QUARTZ,TRIM4#

main58905-30510-B1iJZS155,UZS15#..A,C,F199707-199909

main58905-30510-E0iUZS157199810-199903

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-30100iGS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)199707

main58907-30110iGS151..5F199512-199909

main58907-30130iJZS155,UZS15#..A,C,E,F199707-199909

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-32020iGS151..5F199512

main58908-50010iJZS155,UZS15#..A,C,E,F199707

58911APANEL, BOX SIDE, NO.1

main58911-30130-B0iGS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)199508-200108

DK.BLUE GRAY,TRIM1#

main58911-30130-B1iJZS155,UZS15#..A,C,E,F199508-199707

BLUE GRAY,TRIM1#

main58911-30130-E0iJZS155,UZS15#..A,C,E,F199508-199707

QUARTZ,TRIM4#

main58911-30130-E1iGS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)199508-200108

ANTELOPE,TRIM4#

main58911-30140-B0iJZS155,UZS15#..A,C,E,F199707-199909

BLUE GRAY,TRIM1#

main58911-30140-E0iJZS155,UZS15#..A,C,E,F199707-199909

QUARTZ,TRIM4#

58912CPANEL, BOX SIDE, NO.2

main58912-30170-B0iGS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)199508-200108

DK.BLUE GRAY,TRIM1#

main58912-30170-B1iJZS155,UZS15#..A,C,E,F199508-199707

BLUE GRAY,TRIM1#

main58912-30170-E0iJZS155,UZS15#..A,C,E,F199508-199707

QUARTZ,TRIM4#

main58912-30170-E1iGS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)199508-200108

ANTELOPE,TRIM4#

main58912-30180-B0iJZS155,UZS15#..A,C,E,F199707-199909

BLUE GRAY,TRIM1#

main58912-30180-E0iJZS155,UZS15#..A,C,E,F199707-199909

QUARTZ,TRIM4#

58915PANEL, BOX BOTTOM

main58915-30050iGS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)199707

58918ABRACKET, BOX SUPPORT

main58918-30040iGS151,JZS15#,LS151,UZS15#..ATM199508

58923APANEL, CONSOLE REAR END

main58903-30110iGS151..LPGTE..NOB;GS151,JZS151,LS151..ROYEX; JZS151..ROYT;LS151..HT..ROY; LS151..SED..WIB;GS151,JZS151,155..ROY,ROYG199508-199707

main58903-30120-B0iJZS153..SALEX;GS151,JZS151,LS151..ROYEX,SALEX,SPDLX199508-200108

main58903-30120-E0iJZS153..SALEX;GS151,JZS151,LS151..ROYEX,SALEX,SPDLX199508-200108

main58903-30130iJZS153,LS151..HT;GS151..LPGTE..NOB;GS151,JZS151,155..ROYEX,ROYT199508-199707

main58903-30140-B0iGS151..SPDLX..HTWC199512-199909

main58903-30140-E0iGS151..LPGTE..NOB;GS151,JZS151,153,LS151..ROYEX199508-200102

ANTELOPE,TRIM4#

main58903-30150iJZS155,UZS15#..A,C,E,F199508-199707

main58903-30160-B0iJZS155,UZS15#..A,C,E,F199707-199909

BLUE GRAY,TRIM1#

main58903-30160-E0iJZS155,UZS15#..A,C,E,F199707-199909

QUARTZ,TRIM4#

main58903-30170iJZS151..ROYEX199904-199909

main58903-30180iGS151,JZS151,153..ROYEX199804-199903

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-30130iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main58995-30140iJZS155,UZS15#..A,C,E,F199508-199707

main58995-30170iJZS155,UZS15#..A,C,E,F199707-199909

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-30070iGS151,JZS15#,LS151,UZS15#..ATM199508-199707

87511BPLATE, SEAT HEATER CAUTION

main87511-24010iUZS151199609-199707

5897130070LOCK, CONSOLE COMPARTMENT DOOR

main58971-30070

9011908482

main90119-08482

9015950327

main90159-50327

9046804177

main90468-04177

9046806080

main90468-06080

9162660818

main91626-60818

9354054010

main93540-54010

9356015014

main93560-15014

9356755020

main93567-55020

30 parts on this diagram · 3 diagrams in section
