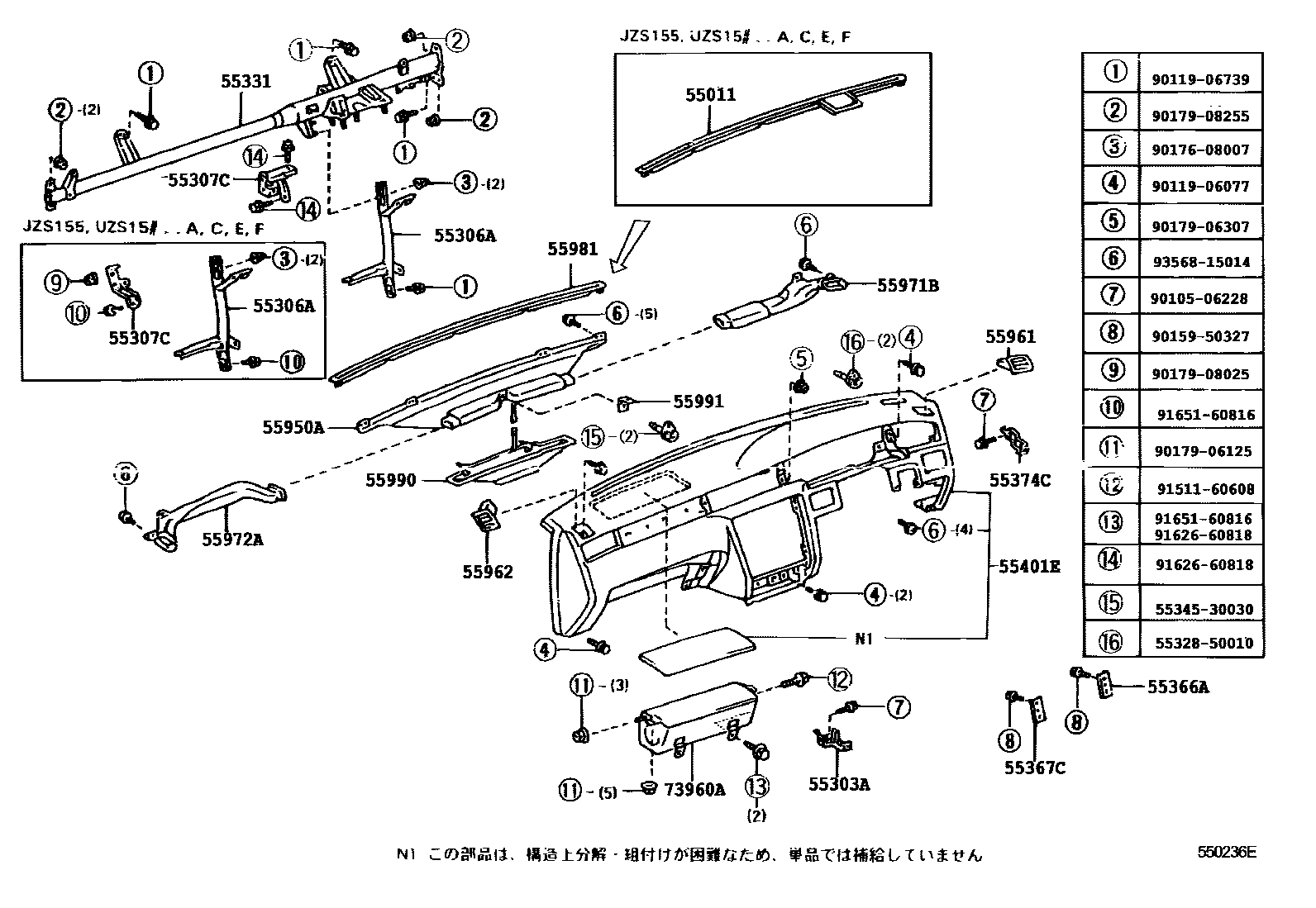

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55011GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD

main55011-30010-B1iJZS155,UZS15#..A,C,E,F199508

DK.BLUE GRAY,TRIM1#

main55011-30010-E1iJZS155,UZS15#..A,C,E,F199508

ANTELOPE,TRIM4#

55303ASTAY SUB-ASSY, INSTRUMENT PANEL

main55303-30170iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main55303-30180iJZS155,UZS15#..A,C,E,F199508-199909

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-30240iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199707

main55306-30250iJZS155,UZS15#..A,C,E,F199508-199909

main55306-30290iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199707

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-30190iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199707

main55307-30220iJZS153199512-199707

main55307-30290iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199707

main55307-30300iJZS153,157199707

main55352-30160iJZS155,UZS151,157..A,C,E,F199508-199909

main55352-30170iUZS155199511-199909

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-30120iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)199508

main55330-30130iGS151..LPGTE199909-200102

main55330-30140iJZS155,UZS15#..A,C,E,F199508-199707

main55330-30190iGS151..ROY,SPDLX199512-199707

main55330-30210iJZS155,UZS15#..A,C,E,F199707-199909

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-30190iGS151,JZS15#,LS151,UZS15#199508

55367CBRACKET, RADIO TUNER MOUNTING, NO.3

main55367-30040iGS151,JZS15#,LS151,UZS15#199508

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-30180iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

main55374-30190iJZS155,UZS15#..A,C,E,F199508-199909

main55374-30200iGS151,JZS151,153,155,LS151..SED199512

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-30440-B0iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)199508-199707

DK.BLUE GRAY,TRIM1#

main55401-30440-E0iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)199508-199707

ANTELOPE,TRIM4#

main55401-30450-B0iGS151..SPDLX..HTWC199512-199909

main55401-30450-E0iGS151..LPGTE199512-200102

ANTELOPE,TRIM4#

main55401-30460-B0iJZS155,UZS15#..A,C,E,F199508-199707

DK.BLUE GRAY,TRIM1#

main55401-30460-E0iJZS155,UZS15#..A,C,E,F199508-199707

ANTELOPE,TRIM4#

main55401-30570-B0iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)199707-200108

DK.BLUE GRAY,TRIM1#

main55401-30570-E0iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)199707-200108

ANTELOPE,TRIM4#

main55401-30580-B0iJZS155,UZS15#..A,C,E,F199707-199909

DK. BLUE GRAY,TRIM1#

main55401-30580-E0iJZS155,UZS15#..A,C,E,F199707-199909

ANTELOPE,TRIM4#

55950ANOZZLE ASSY, DEFROSTER

main55950-30120iGS151,JZS15#,LS151,UZS15#199508

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-30100-B0iGS151,JZS15#,LS151,UZS15#199508-200108

DK.BLUE GRAY,TRIM1#

main55961-30100-E0iGS151,JZS15#,LS151,UZS15#199508-200108

ANTELOPE,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-30080-B0iGS151,JZS15#,LS151,UZS15#199508-200108

DK.BLUE GRAY,TRIM1#

main55962-30080-E0iGS151,JZS15#,LS151,UZS15#199508-200108

ANTELOPE,TRIM4#

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-30110iGS151,JZS15#,LS151,UZS15#199508

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-30110iGS151,JZS15#,LS151,UZS15#199508

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-30080iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

55990NOZZLE ASSY, CENTER DEFROSTER

main55990-30010iGS151,JZS15#,LS151,UZS15#199508

55991BRACKET, DEFROSTER DUCT, NO.1

main55991-30050iGS151,JZS15#,LS151,UZS15#199508

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0W110iGS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC199508-199707

main73960-0W170iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)199707-199709

main73960-0W240iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)199709-199909

main73960-30020iJZS155,UZS15#..A,C,E,F199707-199909

5532850010PIN, INSTRUMENT PANEL, NO.1

main55328-50010

5534530030GARNISH, GLOVE COMPARTMENT, UPPER

main55345-30030

9010506228

main90105-06228

9011906077

main90119-06077

9011906739

main90119-06739

9015950327

main90159-50327

9017608007

main90176-08007

9017906125

main90179-06125

9017906307

main90179-06307

9017908025

main90179-08025

9017908255

main90179-08255

9151160608

main91511-60608

9162660818

main91626-60818

9165160816

main91651-60816

9356815014

main93568-15014

33 parts on this diagram · 2 diagrams in section
