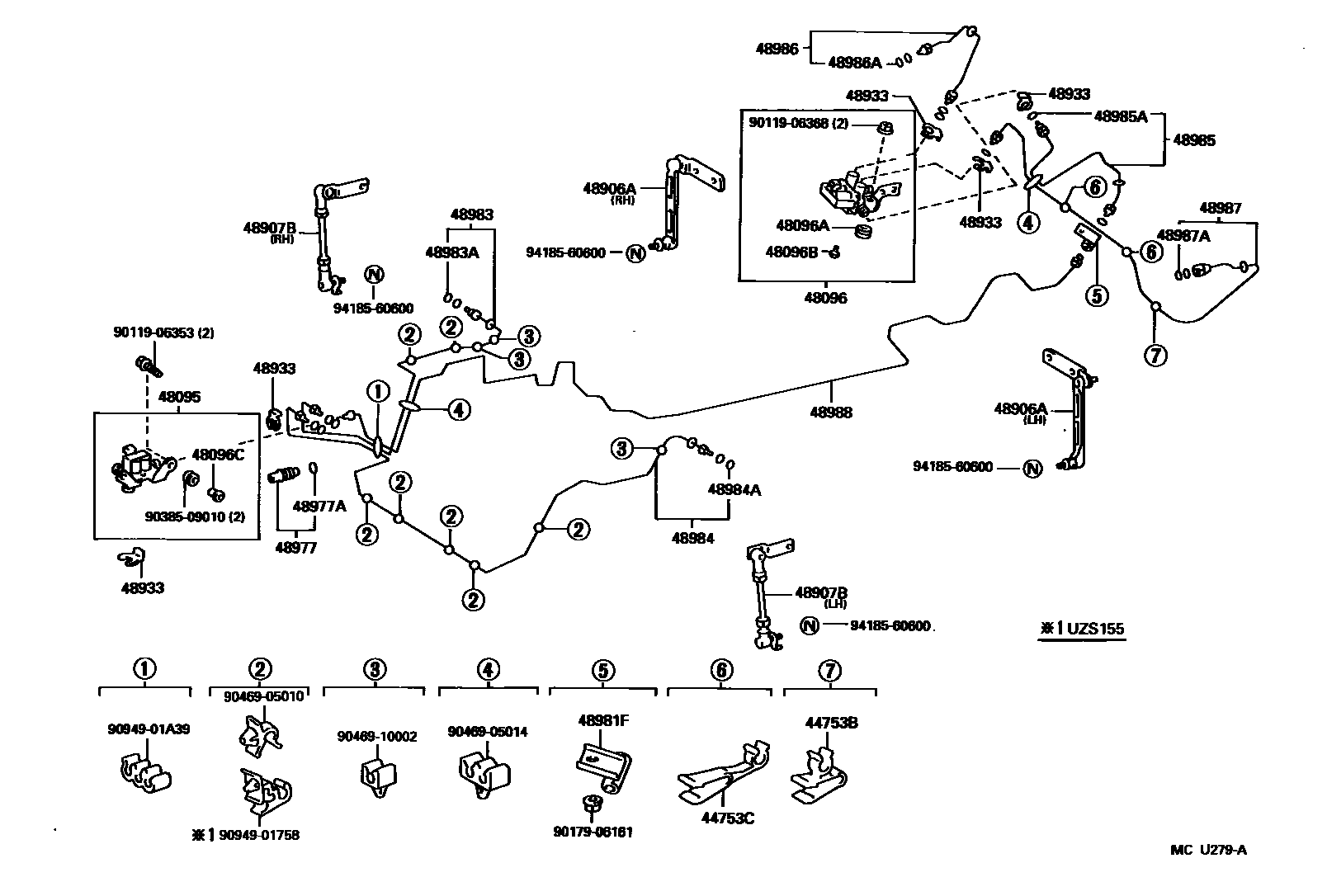

HEIGHT CONTROL (AUTO-LEVELER)
44753BCLAMP, HEIGHT CONTROL TUBE, NO.1
44753CCLAMP, HEIGHT CONTROL TUBE, NO.2
48095VALVE SUB-ASSY, HEIGHT CONTROL, NO.1
48096VALVE SUB-ASSY, HEIGHT CONTROL, NO.2
48096ABUSH, NO.2(FOR HEIGHT CONTROL VALVE)
48096BCUSHION, NO.2(FOR HEIGHT CONTROL VALVE)
48096CSPACER, NO.2(FOR HEIGHT CONTROL VALVE)
48906ALINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR
48907BLINK SUB-ASSY, HEIGHT CONTROL SENSOR, FRONT
48933HOLDER, AIR CONNECTOR CLIP
48977UNION, HEIGHT CONTROL
48977ARING, O(FOR HEIGHT CONTROL UNION)
48981FWAY, NO.1(FOR HEIGHT CONTROL TUBE)
48983TUBE, HEIGHT CONTROL, NO.3
48983ARING, O(FOR HEIGHT CONTROL TUBE NO.3)
48984TUBE, HEIGHT CONTROL, NO.4
48984ARING, O(FOR HEIGHT CONTROL TUBE NO.4)
48985TUBE, HEIGHT CONTROL, NO.5
48985ARING, O(FOR HEIGHT CONTROL TUBE NO.5)
48986TUBE, HEIGHT CONTROL, NO.6
48986ARING, O(FOR HEIGHT CONTROL NO.6 TUBE)
48987TUBE, HEIGHT CONTROL, NO.7
48987ARING, O(FOR HEIGHT CONTROL NO.7 TUBE)
48988TUBE, HEIGHT CONTROL, NO.8
9011906353
main90119-06353
9011906368
main90119-06368
9017906161
main90179-06161
9038509010
main90385-09010
9046905010
main90469-05010
9046905014
main90469-05014
9046910002
main90469-10002
9094901758
main90949-01758
9094901A39
main90949-01A39
9418560600
main94185-60600
34 parts on this diagram · 3 diagrams in section
