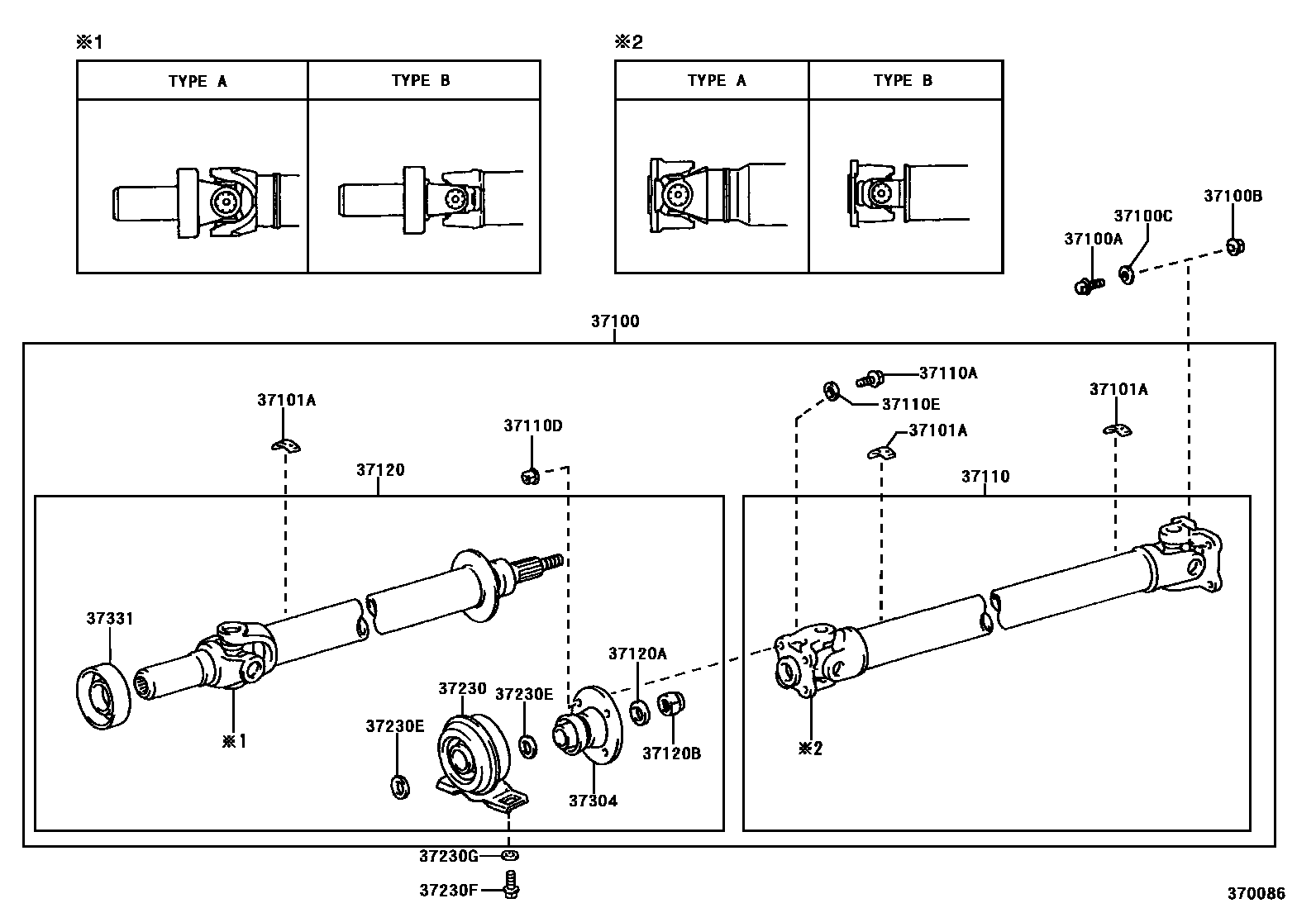

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1REAR 0002 1REAR 0003 1FRONT

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-30410iUZS151,157199508-199707

main37100-30420iJZS155..A,E199508-199909

main37100-30540iUZS155199511-199909

main37100-30560iJZS155..ROY,ROYG,ROYT199508-199707

sub37100-30561

main37100-30561iJZS155..ROY,ROYG,ROYT199707

main37100-30580iJZS151199508-199808

sub37100-30690

main37100-30600iGS151..4FC199508-199808

main37100-30610iGS151..5F199512-199808

main37100-30620iLS151199508-199909

main37100-30630iJZS153,157199512

main37100-30650iUZS151,157199707-199909

main37100-30690iJZS151199808

main37100-30700iGS151..4FC199808

main37100-30710iGS151..5F199808-199909

37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90101-08082iJZS153,157199508-199808

main90105-10085iJZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199909

main90105-10466iGS151,JZS151,155199909

main90105-12264iJZS155,UZS15#..4FC..(A,C,E,F)199508-199909

main90105-12265iUZS151,157199707-199909

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90170-08015iGS151,JZS153199508-199808

main90178-10007iGS151,JZS151,155199909

main90179-10059iJZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199909

main90179-12128iJZS155,UZS15#..A,C,E,F199508-199909

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90204-10002iJZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199909

sub90560-10H00

main90560-10102iGS151,JZS151,155199909

main90560-12059iJZS155,UZS15#..A,C,E,F199508-199909

main94512-00800iJZS153,157199508-199808

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iJZS151199508

main90937-01132iJZS151199508

main90937-01136iJZS151199508

main90937-01136iGS151,JZS153,157,LS151199508

main90937-01140iGS151,JZS153,157,LS151199508

main90937-01140iJZS151199508

main90937-01147iJZS151199508

main90937-01147iJZS151199508

main90937-01148iJZS151199508

main90937-01148iGS151,JZS153,157,LS151199508

main90937-01149iJZS151199508

main90937-01149iJZS151199508

main90937-01150iJZS151199508

main90937-01150iJZS151199508

main90937-01151iJZS151199508

main90937-01151iJZS151199508

main90937-01152iGS151,JZS153,157,LS151199508

main90937-01152iGS151,JZS153,157,LS151199508

main90937-01153iGS151,JZS153,157,LS151199508

main90937-01153iJZS151199508

main90937-01154iJZS151199508

main90937-01154iGS151,JZS153,157,LS151199508

main90937-01155iGS151,JZS153,157,LS151199508

main90937-01155iGS151,JZS153,157,LS151199508

main90937-01156iJZS151199508

main90937-01156iJZS151199508

main90937-01157iGS151,JZS153,157,LS151199508

main90937-01157iJZS151199508

main90937-01158iJZS151199508

main90937-01158iGS151,JZS153,157,LS151199508

main90937-01311iGS151,JZS153,157,LS151199508

main90937-01311iGS151,JZS153,157,LS151199508

main90937-01312iJZS151199508

main90937-01312iJZS151199508

main90937-01313iGS151,JZS153,157,LS151199508

main90937-01313iGS151,JZS153,157,LS151199508

main90937-01314iJZS151199508

main90937-01314iJZS151199508

main90937-01338iJZS151199508

main90937-01338iJZS151199508

main90937-01339iJZS151199508

main90937-01339iJZS155..ROY,ROYG,ROYT199508

main90937-01340iJZS155..ROY,ROYG,ROYT199508

main90937-01340iJZS155..ROY,ROYG,ROYT199508

main90937-01343iJZS155,UZS15#..A,C,E,F199508-199909

main90937-01344iJZS155,UZS15#..A,C,E,F199508-199909

main90937-01345iJZS155,UZS15#..A,C,E,F199508-199909

main90937-01346iJZS155,UZS15#..A,C,E,F199508-199909

main90937-01347iJZS155,UZS15#..A,C,E,F199508-199909

main90937-01348iJZS155,UZS15#..A,C,E,F199508-199909

main90937-01349iJZS155,UZS15#..A,C,E,F199508-199909

main90937-01350iJZS155,UZS15#..A,C,E,F199508-199909

main90937-01351iJZS155,UZS15#..A,C,E,F199508-199909

main90937-01352iJZS155,UZS15#..A,C,E,F199508-199909

main90937-01353iJZS155,UZS15#..A,C,E,F199508-199909

main90937-01354iJZS155,UZS15#..A,C,E,F199508-199909

main90937-01355iJZS155..ROY,ROYG,ROYT199508

main90937-01355iJZS151199508

main90937-01356iJZS151199508

main90937-01356iJZS155..ROY,ROYG,ROYT199508

main90937-01357iJZS151199508

main90937-01357iJZS155..ROY,ROYG,ROYT199508

main90937-01358iJZS155..ROY,ROYG,ROYT199508

main90937-01358iJZS151199508

main90937-01359iJZS151199508

main90937-01359iJZS155..ROY,ROYG,ROYT199508

main90937-01360iJZS155..ROY,ROYG,ROYT199508

main90937-01360iJZS151199508

main90937-01361iJZS155..ROY,ROYG,ROYT199508

main90937-01361iJZS151199508

main90937-01362iJZS151199508

main90937-01362iJZS151199508

main90937-01363iJZS151199508

main90937-01363iJZS155..ROY,ROYG,ROYT199508

main90937-01364iJZS151199508

main90937-01364iJZS151199508

main90937-01365iJZS155..ROY,ROYG,ROYT199508

main90937-01365iJZS151199508

main90937-01366iJZS155,UZS15#..A,C,E,F199508-199909

main90937-01385iJZS155..ROY,ROYG,ROYT199508

main90937-01385iJZS155..ROY,ROYG,ROYT199508

main90937-01386iJZS155..ROY,ROYG,ROYT199508

main90937-01386iJZS151199508

main90937-01444iJZS155,UZS15#..A,C,E,F199508-199909

main90937-01445iJZS155,UZS15#..A,C,E,F199508-199909

main90937-01446iJZS155,UZS15#..A,C,E,F199508-199909

main90937-01447iJZS155,UZS15#..A,C,E,F199508-199909

main90937-01448iJZS155,UZS15#..A,C,E,F199508-199909

main90937-01449iJZS155,UZS15#..A,C,E,F199508-199909

main90937-01452iJZS155,UZS15#..A,C,E,F199508-199909

37110SHAFT ASSY, PROPELLER

main37110-30240iJZS155..ROY,ROYG,ROYT199508-200106

sub37110-30241

main37110-30241iJZS155200106-200108

main37110-30250iJZS151199508-199808

sub37110-30330

main37110-30260iLS151199508-200108

main37110-30260iJZS151199508-200108

main37110-30270iGS151199508-199808

main37110-30280iJZS153,157199512-200108

main37110-30290iJZS155..ROY,ROYG,ROYT199511-199705

sub37110-30240

main37110-30330iJZS151199808-200108

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08082iGS151,JZS153199508-199808

main90105-10085iGS151,JZS151199508-199909

main90105-10466iJZS151,155199909

37110DNUT (FOR PROPELLER SHAFT)

main90170-08015iGS151,JZS153199508-199808

main90178-10007iJZS151199909

main90179-10059iJZS151199909

main90179-10059iJZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199909

37110EWASHER (FOR PROPELLER SHAFT)

main90204-10002iJZS151199909

sub90560-10H00

main90204-10002iJZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199909

sub90560-10H00

main90560-10102iJZS155199909

main94512-00800iGS151,JZS153199508-199808

37120SHAFT ASSY, PROPELLER INTERMEDIATE

main37120-22850iGS151..5F199808-199909

main37120-22880iGS151..4FC199808

main37120-30520iJZS151199508-199707

main37120-30520iJZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX199707

main37120-30540iJZS151199508-199707

sub37120-30520

main37120-30550iGS151..4FC199508-199808

main37120-30560iGS151..5F199512-199808

main37120-30570iLS151199508-199909

main37120-30580iJZS153,157199512

37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)

main90201-18182iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)

main90179-18009iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-30130iUZS155199511-199909

main37230-30150iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199602

sub37230-30151

main37230-30151iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199602-199607

sub37230-30152

main37230-30152iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199607

main37230-30160iJZS155,UZS151,157..A,C,E,F199508-199909

37230EWASHER, NO.1 (FOR CENTER SUPPORT BEARING)

main90201-25006iJZS151199508-199808

main90201-26005iGS151,JZS153199508-199808

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10133iJZS155,UZS15#..A,C,E,F199508-199909

main90119-10217iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199909

main90119-10902iGS151,JZS15#199909

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10008iGS151,JZS151,155,LS151,UZS15#199508

main90201-10017iGS151,JZS15#,LS151,UZS15#199508

main90201-10033iGS151,JZS15#,LS151,UZS15#199508

main90201-10034iGS151,JZS15#,LS151,UZS15#199508

main90201-10035iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90201-10106iGS151,JZS151,155,LS151,UZS15#199508

37304FLANGE SUB-ASSY, UNIVERSAL JOINT

main37304-22013iGS151,JZS153199508-199808

sub37304-28010

main37304-35041iJZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199808

37331COVER, SLIDING SHAFT DUST

main37331-24010iJZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main37331-30010iGS151199508

main37331-30020iJZS153,157199512

18 parts on this diagram · 3 diagrams in section
