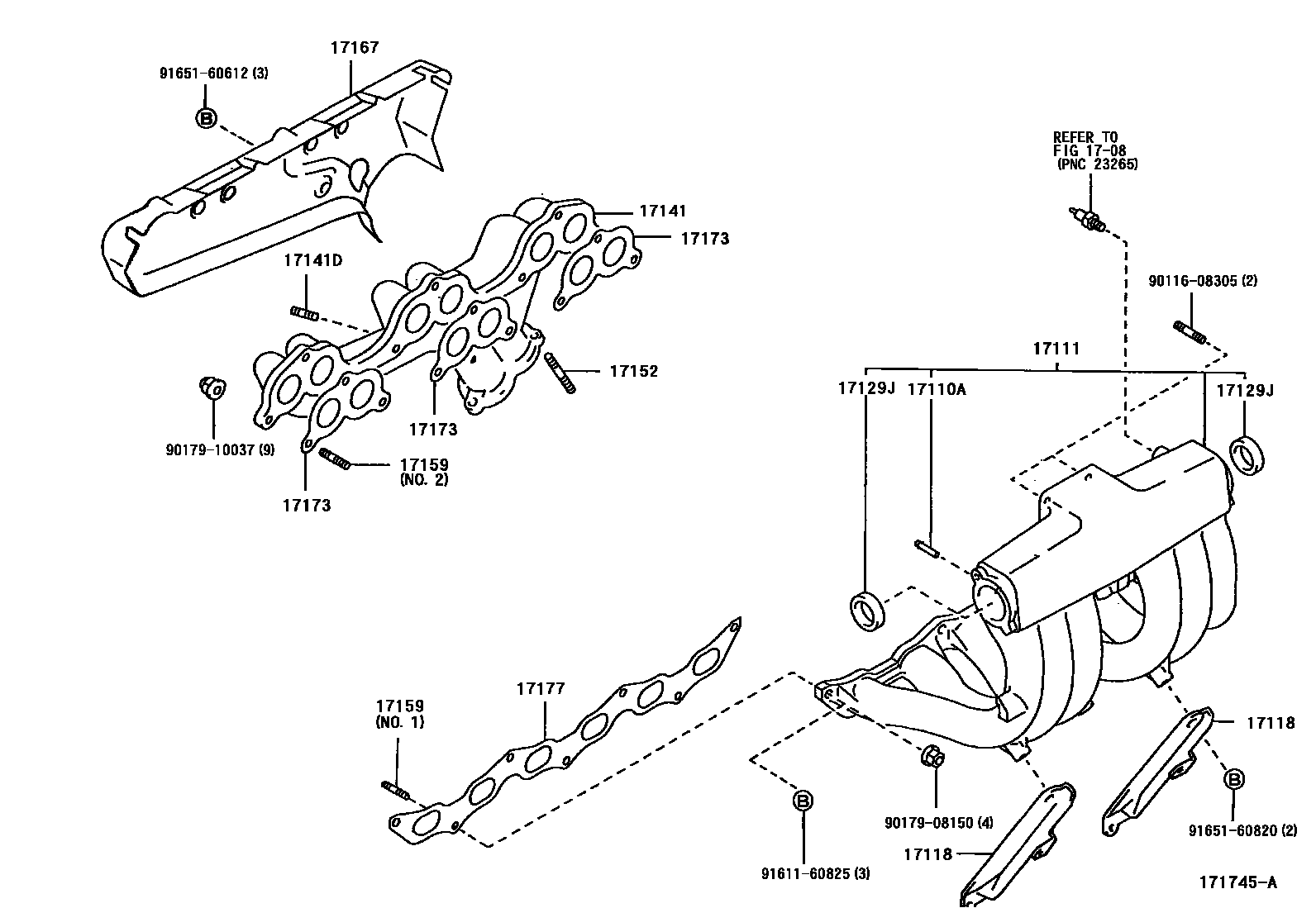

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 12JZGE*(W) 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

1708VACUUM PIPING

→ Go to FIG 17-08

17110AUNION, VACUUM HOSE

main90406-06002i1GFE..GS151199508-199808

17111MANIFOLD, INTAKE

main17101-50010i1UZFE..UZS15#199707

main17101-54092i2LTE..LS151199508-199909

main17101-70080i1GFE..GS151199508-199808

main17101-70100i1GFE..GS151199909

main17101-79015i1GGPE..GS151199512-200102

main17111-46021i1JZGE..JZS151,153199508-199609

main17111-46060i2JZGE..JZS155199508-199708

main17111-46070i1JZGE..JZS151,153199609-199909

main17111-46100i2JZGE..JZS155,157199708-199909

main17111-50020i1UZFE..UZS15#199508-199707

17118STAY, MANIFOLD

main17118-46042i1JZGE,2JZGE..JZS15#199909

main17118-54040i2LTE..LS151199508-199909

main17118-70100×2i1GFE..GS151199508-199808

main17118-70110i1GFE..GS151199808-199909

17129TANK, INTAKE AIR SURGE

main17109-46010i1JZGE..JZS151,153199508-199609

main17109-46040i2JZGE..JZS155199508-199708

main17109-46080i1JZGE..JZS151,153199909

main17109-46090i2JZGE..JZS155,157199708-199908

main17109-46091i2JZGE..JZS155199909

main17109-50030i1UZFE..UZS15#199508-199707

17129JPLUG, TIGHT(FOR INTAKE AIR SURGE TANK)

main96411-43000i1GGPE..GS151199512-200102

main96411-44000×2i1GFE..GS151199508-199808

17141MANIFOLD, EXHAUST

main17141-46020i1JZGE..JZS151,153199508-199609

main17141-46060i1JZGE..JZS151,153199909

main17141-46080i2JZGE..JZS155199909

main17141-54100i2LTE..LS151199508-199909

main17141-70070i1GFE..GS151199508-199808

main17141-70080i1GGPE..GS151199512-200102

main17141-70090i1GFE..GS151199808-199909

17141DBOLT, STUD(FOR OXYGEN SENSOR)

main90116-08128×2i1G#..GS151199508-199909

main90126-08001×2i1JZGE..JZS151,153199508-199609

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10088×3i2LTE..LS151199508-199909

main90116-10146×3i1JZGE..JZS151,153; 2JZGE..JZS155199508-199609

main90126-10006×3i1UZFE..UZS151,157199508

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08220×2i2LTE..LS151199508-199909

main90116-08225×7i1GGPE..GS151199512-200102

main90116-08281×4i1GFE..GS151199508-199808

main90116-10063×9i1G#..GS151199508-199808

main90116-10140×4i2LTE..LS151199508-199909

main90116-10205×8i1GFE..GS151199808-199909

main90126-10014×8i1JZGE,2JZGE..JZS15#199508-199909

main90126-10015×16i1UZFE..UZS15#199508

main92132-C0832×2i1GFE..GS151199808-199909

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-46010i1JZGE..JZS151,153199508-199609

main17167-46060i2JZGE..JZS155199508-199702

main17167-46061i2JZGE..JZS155199702-199909

main17167-46070i1JZGE,2JZGE..JZS151,153,157199609-199909

main17167-50060i1UZFE..UZS155199511

main17167-50080i1UZFE..UZS151,157199508

main17167-54100i2LTE..LS151199508-199909

main17167-70040i1G#..GS151199508-199808

main17167-70050i1GFE..GS151199909

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-46020×2i1JZGE,2JZGE..JZS15#199508-199909

main17173-50010i1UZFE..UZS151,157199508-199709

main17173-50011i1UZFE..UZS151,157199709

main17173-50020i1UZFE..UZS155199511-199707

main17173-50021i1UZFE..UZS155199707

main17173-54050i2LTE..LS151199508-199909

main17173-70020×3i1GFE..GS151199508-199808

main17173-70031×3i1GGPE..GS151199512-200102

main17173-70050×2i1GFE..GS151199909

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-50011×2i1UZFE..UZS15#199508-199707

main17171-50020×2i1UZFE..UZS15#199707

main17177-46010i1JZGE..JZS151,153199508-199609

main17177-46050i2JZGE..JZS155199508-199609

main17177-46060i1JZGE,2JZGE..JZS15#199609-199909

main17177-54021i2LTE..LS151199508-199909

main17177-70040i1GFE..GS151199508-199808

main17177-70050×6i1GFE..GS151199808-199909

main17177-88302i1GGPE..GS151199512-200102

9011608305

main90116-08305

9017908150

main90179-08150

9017910037

main90179-10037

9161160825

main91611-60825

9165160612

main91651-60612

9165160820

main91651-60820

19 parts on this diagram · 14 diagrams in section
