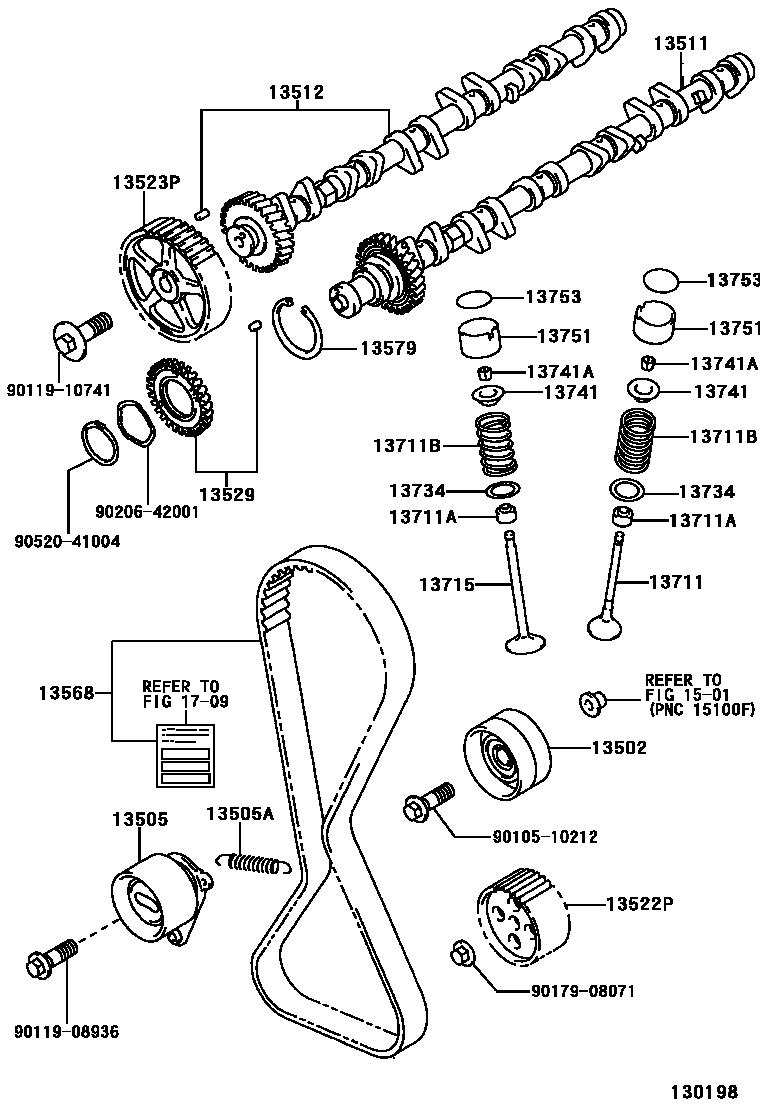

CAMSHAFT & VALVE
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13505ASPRING, TENSION(FOR IDLER)
13511CAMSHAFT
2JZGE *(W)
13512CAMSHAFT, NO.2
13522PPULLEY, PUMP DRIVE SHAFT
13523PPULLEY, CAMSHAFT TIMING
13529GEAR, CAMSHAFT SUB
13568BELT, TIMING
13579WASHER, CAMSHAFT TIMING GEAR BOLT
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
1501ENGINE OIL PUMP
1709CAUTION PLATE & NAME PLATE (ENGINE)
9010510212
main90105-10212
9011908936
main90119-08936
9011910741
main90119-10741
9017908071
main90179-08071
9020642001
main90206-42001
9052041004
main90520-41004
27 parts on this diagram · 7 diagrams in section
