ENGINE OVERHAUL GASKET KIT

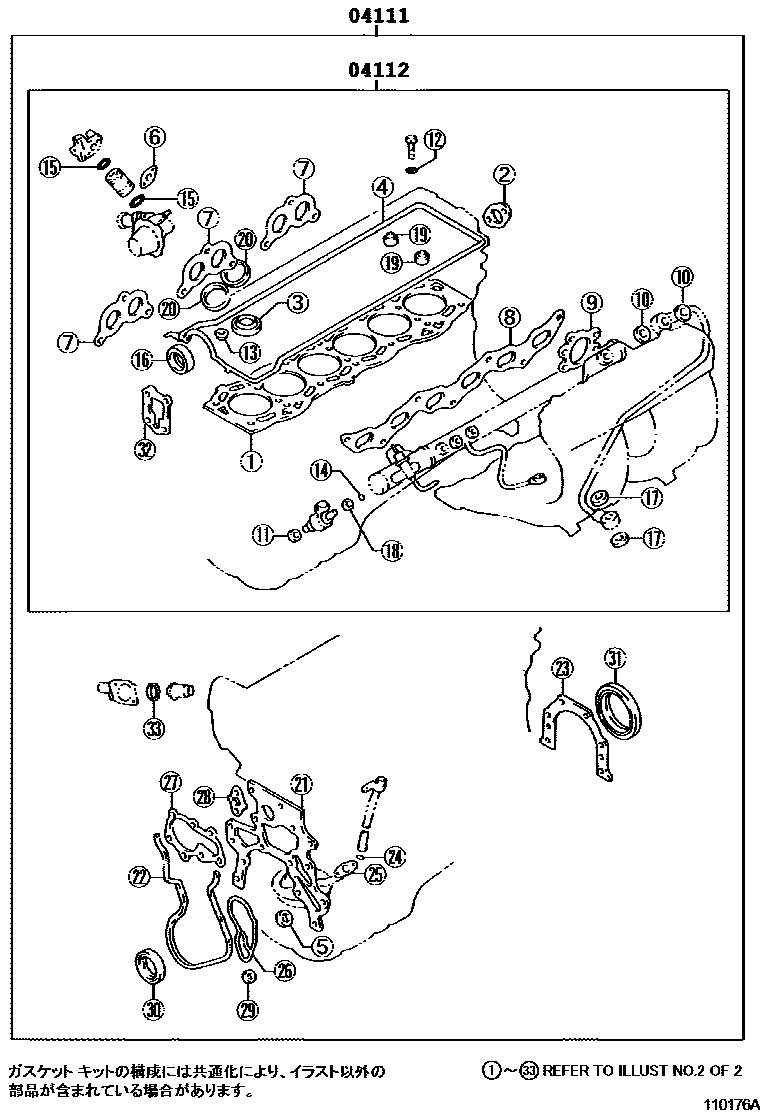

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-46025i199508-199608
sub04111-46026
main04111-46026i199608-199609
main04111-46100i199508-199609
main04111-46101i199609-199707
sub04111-46102
main04111-46102i199707
main04111-46120i199609-199707
sub04111-46123
main04111-46121i199707-199805
sub04111-46122
main04111-46122i199805
sub04111-46123
main04111-46130i199711-199808
2JZGE *(W)
main04111-46130i199808-199909
main04111-50062i199508-199509
sub04111-50063
main04111-50063i199509-199707
sub04111-50064
main04111-50083i199511-199705
sub04111-50084
main04111-50084i199705-199707
sub04111-50085
main04111-50110i199707-199711
sub04111-50111
main04111-50111i199711-199808
sub04111-50112
main04111-50112i199808
sub04111-50113
main04111-54103i199508-199705
sub04111-54104
main04111-54104i199705
main04111-70062i199508-199808
main04111-70082i199512-200102
sub04111-70083
main04111-70090i199808
sub04111-70091
04112GASKET KIT, ENGINE VALVE GRIND
main04112-46024i199508-199608
sub04112-46025
main04112-46025i199608-199609
main04112-46100i199508-199609
main04112-46101i199609-199707
sub04112-46102
main04112-46102i199707
main04112-46120i199609-199707
sub04112-46123
main04112-46121i199707-199805
sub04112-46122
main04112-46122i199805
sub04112-46123
main04112-46130i199808-199909
main04112-46130i199711-199808
2JZGE *(W)
main04112-50062i199508-199509
sub04112-50063
main04112-50063i199509-199707
sub04112-50064
main04112-50083i199511-199705
sub04112-50084
main04112-50084i199705-199707
sub04112-50085
main04112-50110i199707-199808
sub04112-50111
main04112-50111i199808
sub04112-50112
main04112-54101i199508-199705
sub04112-54102
main04112-54102i199707
sub04112-54103
main04112-70061i199508-199808
main04112-70080i199512-200102
sub04112-70081
main04112-70090i199808
sub04112-70091

2 parts on this diagram · 16 diagrams in section
