HEATING & AIR CONDITIONING - COMPRESSOR

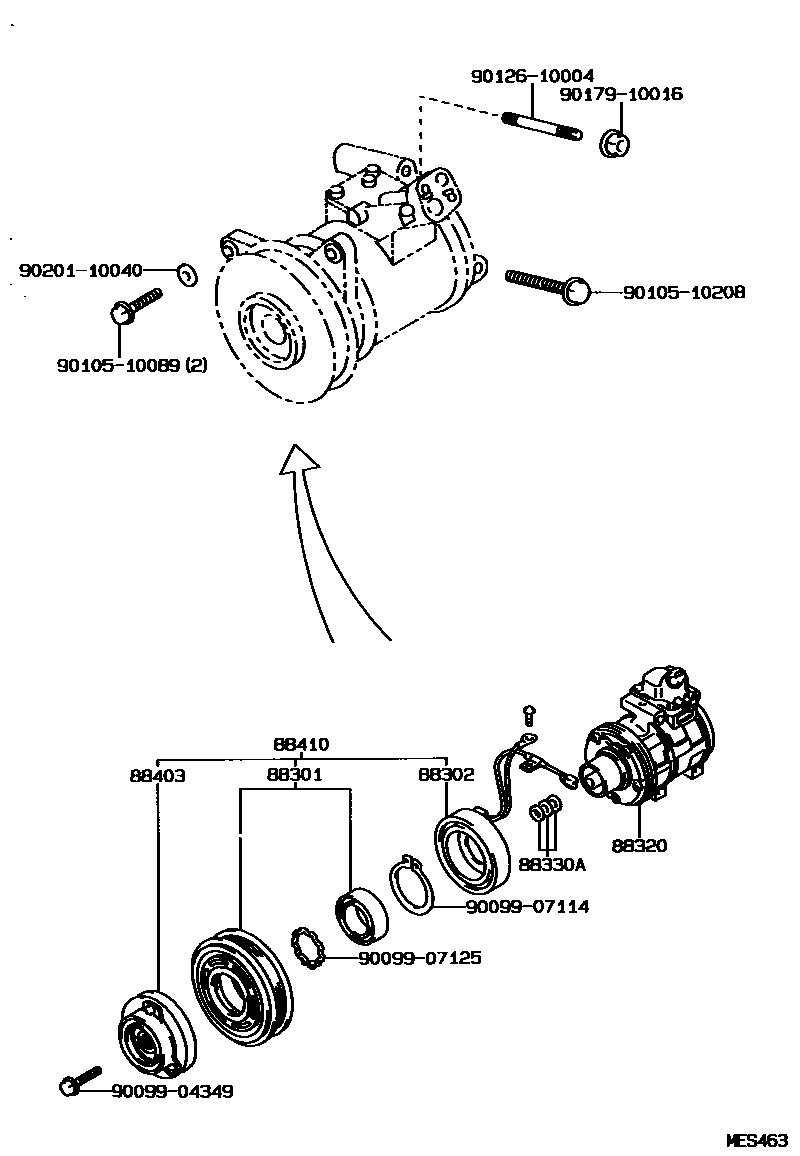

Parts diagram

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12160i199308-199508

main88412-30410i199110-199508

main88412-30430i199110-199508

main88412-30450i199210-199508

main88412-50030i199110-199308

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-2B040i199308-199508

main88411-30540i199110-199308

main88411-30560i199110-199508

main88411-3A010i199308-199508

main88411-3A030i199308-199508

main88411-50010i199110-199308

main88411-50030i199210-199308

88320COMPRESSOR ASSY, COOLER

main88320-30550i199110-199308

main88320-30630i199110-199308

main88320-30640i199110-199301

main88320-30641i199301-199308

main88320-30651i199308-199508

main88320-30670i199110-199308

main88320-3A010i199308-199508

main88320-3A020i199308-199508

main88320-3A040i199308-199508

main88320-3A070i199308-199412

main88320-3A071i199412-199508

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i199110-199508

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011i199110-199308

main88403-30290i199308-199508

main88403-3A060i199110-199308

88410CLUTCH ASSY, MAGNET

main88410-30670i199110-199308

main88410-30710i199308-199508

main88410-30740i199110-199308

main88410-30760i199210-199308

main88410-3A010i199308-199508

main88410-3A020i199308-199508

main88410-3A040i199308-199508

main88410-3A050i199308-199508

main88410-3A060i199308-199508

main88410-50020i199110-199308

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125

9010510089

main90105-10089

9010510208

main90105-10208

9012610004

main90126-10004

9017910016

main90179-10016

9020110040

main90201-10040

14 parts on this diagram · 4 diagrams in section
