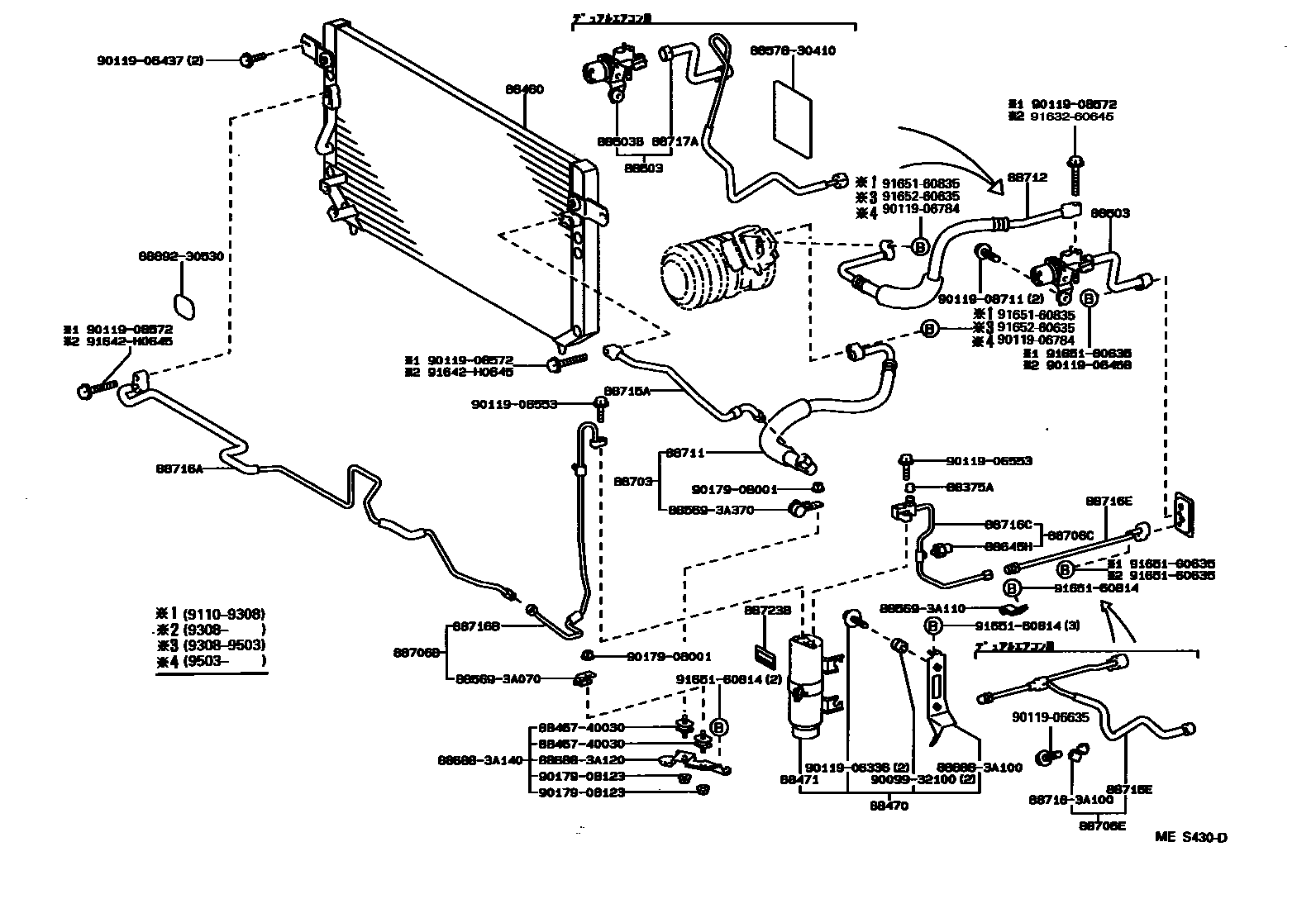

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1���� 0002 1���� 0003 1���� 0004 1���� 0005 1���� 0006 1�� 0007 1�� 0008 1

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-20010iJZS147,149,UZS14#199110-199308

main88375-24010iJZS141,143,145,LS141199110-199308

main88375-30280iGS141,JZS14#,LS141,UZS14#199308-199508

88460CONDENSER ASSY, COOLER

main88460-30610iJZS141,143,145,LS141199110-199308

main88460-30650iGS141,JZS141,143,145,LS141199308-199508

main88460-30760iJZS147,149,UZS14#199308-199508

88470RECEIVER & DRYER ASSY, COOLER

main88470-30490iJZS141,143,145,LS141199110-199308

main88470-30520iGS141,JZS141,143,145,LS141199308-199508

88471TANK, RECEIVER AIR CONDITIONER

main88471-30350iJZS14#,LS141,UZS14#199110-199308

main88471-30370iGS141,JZS14#,LS141,UZS14#199308-199508

88503REGULATOR ASSY, PRESSURE

main88503-30461iJZS141,143,LS141..ROYT,SALEX,SSL199110-199308

main88503-30520iJZS147199308-199508

main88503-30530iJZS147199210-199308

main88503-30540iJZS141,143,145..ROY,ROYG; JZS141,143,LS141..ROYT,SALEX,SSL199110-199308

main88503-30590iJZS147199210-199308

main88503-30620iJZS147; JZS149199308-199508

main88503-30630iGS141,JZS141,143,LS141..ROYT,SALEX,SSL; JZS141,143..ROY199308-199508

main88503-30640iGS141,JZS141,143,LS141..ROYT,SALEX,SSL; JZS141,143,145..ROY,ROYG199308-199508

88503BREGULATOR SUB-ASSY, PRESSURE

main88503-30471iJZS141,143,145,LS141199110-199308

main88503-30650iGS141,JZS141,143,145,LS141199308-199508

88645HSWITCH, PRESSURE NO.1

main88645-20040iJZS147,149199110-199308

main88645-22070iJZS141,143,145199402-199508

main88645-22080iGS141199402-199508

main88645-30281iLS141199110-199308

88706C TUBE

main88645-30310iLS141199110-199308

88706B TUBE

main88645-30340iGS141,JZS14#199308-199402

main88645-30380iUZS14#199308-199508

main88645-50010iJZS141,143,145199110-199308

88703HOSE SUB-ASSY, DISCHARGE

main88703-30390iJZS147,149199110-199308

main88703-30400iUZS141199110-199308

main88703-30420iJZS147,149199308-199508

main88703-30440iLS141199110-199308

main88703-30490iJZS141,143,145199110-199308

main88703-30510iUZS143,145199210-199308

main88703-30520iUZS143,145199308-199508

main88703-30530iUZS141,147199308-199508

main88703-30540iLS141199308-199508

main88703-30550iGS141199308-199508

main88703-30580iJZS141,143,145199308-199508

88706BTUBE SUB-ASSY, LIQUID, B

main88706-30250iJZS141,143,145199110-199308

main88706-30360iLS141199110-199209

PLANT NO.A21-A26

main88706-30410iLS141199110-199209

PLANT NO.M21-M22

main88706-30470iJZS147,149199110-199308

main88706-30480iUZS14#199110-199308

main88706-30490iJZS147,149199308-199508

main88706-30610iUZS14#199308-199508

main88706-30670iGS141,JZS141,143,145199308-199508

main88706-30720iLS141199308-199508

88706CTUBE SUB-ASSY, LIQUID, C

main88706-30370iLS141199110-199209

PLANT NO.A21-A26

main88706-30380iLS141199110-199209

PLANT NO.M21-M22

main88706-30440iJZS141,143,145199110-199209

PLANT NO.A21-A26

main88706-30450iJZS141,143,145199110-199209

PLANT NO.M21-M22

main88706-30660iGS141199308-199508

main88706-30680iJZS141,143,145199308-199508

88706ETUBE SUB-ASSY, LIQUID, E

main88706-30320iJZS141,143,145,LS141199110-199308

main88706-30500iJZS149,UZS141199110-199308

main88706-30510iJZS147,UZS147199308-199508

main88706-30530iUZS143,145199210-199308

main88706-30560iJZS147199210-199308

main88706-30570iJZS147,UZS147; JZS149,UZS141199308-199508

main88706-30620iGS141,JZS141,143,145,LS141199308-199508

main88706-30640iUZS143,145199308-199508

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-30770iJZS147,149199110-199308

main88711-30780iUZS141199110-199308

main88711-30810iLS141199110-199308

main88711-30860iJZS141,143,145199110-199308

main88711-30890iUZS143,145199210-199308

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-3A120iLS141199110-199210

main88712-3A121iLS141199210-199308

main88712-3A230iJZS147,149199110-199308

main88712-3A240iUZS141199110-199308

main88712-3A260iJZS141,143,145199110-199308

main88712-3A380iUZS143,145199210-199308

main88712-3A400iUZS141,147199308-199508

main88712-3A420iUZS143,145199308-199508

main88712-3A430iGS141199308-199508

main88712-3A460iJZS141,143,145199308-199311

main88712-3A461iJZS141,143,145199311-199508

main88712-3A570iJZS147,149199308-199508

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-30430iJZS141,143,145199110-199308

main88715-30440iJZS147,149,UZS14#199110-199308

main88715-30450iJZS147,149,UZS14#199308-199508

main88715-30480iLS141199110-199308

main88715-30530iGS141199308-199508

main88715-30540iJZS141,143,145199308-199508

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88726-3A420iLS141199110-199308

main88726-3A430iJZS141,143,145199110-199308

main88726-3A480iUZS141199210-199308

main88726-3A750iLS141199308-199508

main88726-3A780iGS141199308-199508

main88726-3A790iJZS141,143,145199308-199508

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88726-3A100iJZS141,143,145199110-199308

main88726-3A330iLS141199209-199308

main88726-3A380iLS141199110-199209

PLANT NO.M21-M22

main88726-3A450iJZS147,149,UZS14#199110-199308

main88726-3A460iJZS147,149,UZS14#199308-199508

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88726-3A110iJZS141,143,145199110-199209

PLANT NO.A21-A26

main88726-3A250iJZS141,143,145199110-199209

PLANT NO.M21-M22

main88726-3A310iLS141199110-199209

PLANT NO.A21-A26

main88726-3A320iLS141199110-199209

PLANT NO.M21-M22

main88726-3K050iLS141199308-199508

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88726-3A050iGS141,JZS141,143,LS141..ROYT,SALEX,SSL; JZS141,143,145..ROY,ROYG199110-199508

main88726-3A070iJZS141,143,LS141..ROYT,SALEX,SSL199110-199308

main88726-3A440iJZS147,149,UZS141199110-199308

main88726-3A620iUZS143,145199210-199308

main88726-3A720iGS141,JZS141,143,LS141..ROYT,SALEX,SSL; JZS141,143..ROY199308-199508

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88727-3A260iJZS141,143,145,LS141199110-199308

main88727-3A430iGS141,JZS141,143,145,LS141199308-199508

88723BLABEL, COOLER SERVICE CAUTION

main88723-20030iGS141,JZS14#,LS141,UZS14#199308-199410

main88723-28120iJZS141,143,145,149,UZS14#..A,B,C,ROY,ROYG; JZS141,143,147,LS141..A,ROYT,SALEX,SSL199110-199308

main88723-30010iJZS141,143,147,LS141..A,ROYT,SALEX,SSL199110-199308

main88723-50140iGS141,JZS14#,LS141,UZS14#199410-199508

8846740030CUSHION, COOLER CONDENSER, NO.1

main88467-40030

885693A070CLAMP (FOR COOLER RELAY)

main88569-3A070

885693A110CLAMP (FOR COOLER RELAY)

main88569-3A110

885693A370CLAMP (FOR COOLER RELAY)

main88569-3A370

8857830410PAKING, COOLER AIR DUCT

main88578-30410

886883A100BRACKET, COOLER DIAPHRAGM

main88688-3A100

886883A120BRACKET, COOLER DIAPHRAGM

main88688-3A120

886883A140BRACKET, COOLER DIAPHRAGM

main88688-3A140

887183A100PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-3A100

8889230530BRACKET, COOLER EVAPORATOR MOUNTING

main88892-30530

9009932100

main90099-32100

9011906336

main90119-06336

9011906437

main90119-06437

9011906458

main90119-06458

9011906553

main90119-06553

9011906635

main90119-06635

9011906784

main90119-06784

9011908572

main90119-08572

9011908711

main90119-08711

9017908001

main90179-08001

9017908123

main90179-08123

9163260645

main91632-60645

91642H0645

main91642-H0645

9165160635

main91651-60635

9165160814

main91651-60814

9165160835

main91651-60835

91651G0635

main91651-G0635

9165260635

main91652-60635

48 parts on this diagram · 8 diagrams in section
