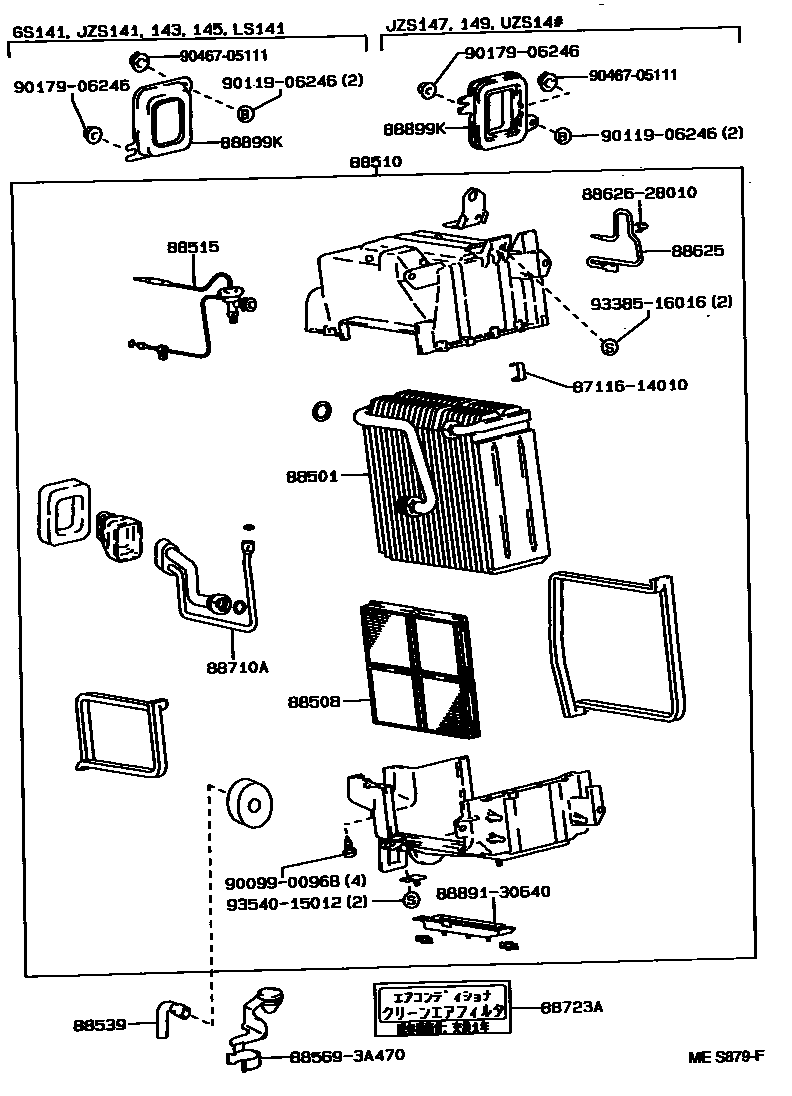

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1���� 0002 1�� 0003 1���� DEALER OPT 0004 1

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-30680iJZS14#,LS141,UZS14#199110-199308

main88501-30700iGS141,JZS14#,LS141,UZS14#199308-199506

main88501-30701iGS141,JZS14#,LS141,UZS14#199506-199508

88508FILTER SUB-ASSY, CLEAN AIR

main88508-30020×2iJZS14#,LS141,UZS14#199110-199308

88510UNIT ASSY, COOLER

main88510-3A480iJZS147,149199110-199308

main88510-3A490iUZS14#199110-199308

main88510-3A500iJZS141,143,145,LS141199110-199308

main88510-3A510iJZS147,149199308-199508

main88510-3A720iJZS147,149199110-199308

main88510-3A730iUZS14#199110-199308

main88510-3A750iJZS141,143,145,LS141199110-199308

main88510-3A840iUZS14#199308-199508

main88510-3A850iUZS14#199308-199508

main88510-3A870iGS141,JZS141,143,145,LS141199308-199508

main88510-3F100iGS141,JZS141,143,145,LS141199308-199508

main88510-3F160iJZS147,149199308-199508

88515VALVE, COOLER EXPANSION

main88515-30411iJZS14#,LS141199110-199308

main88515-30421iUZS14#199110-199308

main88515-30430iGS141,JZS14#,LS141199308-199508

main88515-30470iUZS14#199308-199508

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-30610iGS141,JZS141,143,145,LS141199110-199508

main88539-30650iJZS147,149,UZS141,147199110-199508

main88539-30720iUZS143,145199210-199508

88625THERMISTOR, COOLER, NO.1

main88625-3A020iGS141,JZS14#,LS141,UZS14#199110-199508

88710ATUBE ASSY, AIR CONDITIONER

main88710-30500iJZS147,149199110-199308

main88710-30510iUZS14#199110-199308

main88710-30520iJZS141,143,145,LS141199110-199308

main88710-30530iJZS147,149199308-199508

main88710-30790iUZS14#199308-199508

main88710-3A030iGS141,JZS141,143,145,LS141199308-199508

88723ALABEL, COOLER SERVICE CAUTION

main88723-30070iJZS14#,LS141,UZS14#199110-199308

88899KPLATE, COVER

main88899-30660iGS141,JZS141,143,145,LS141199110-199508

main88899-30750iJZS147,149,UZS14#199110-199508

8711614010SPRING, HEATER CASE FASTENING

main87116-14010

885693A470CLAMP (FOR COOLER RELAY)

main88569-3A470

8862628010CASE, BLOWER DRIVE SHAFT BEARING

main88626-28010

8889130640PACKING (FOR COOLER)

main88891-30640

9009900968

main90099-00968

9011906246

main90119-06246

9017906246

main90179-06246

9046705111

main90467-05111

9338516016

main93385-16016

9354015012

main93540-15012

19 parts on this diagram · 4 diagrams in section
