HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1�-����� 0002 1�-�����-� 0003 1�-�����-�

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-30310iGS141,JZS14#,LS141,UZS14#199110-199508

87106ASERVO SUB-ASSY, DAMPER

main87106-30170iJZS147,149,UZS14#199110-199508

FRESH-RECIRC

main87106-30180iGS141,JZS14#,LS141,UZS14#199110-199508

main87106-30190iJZS147,149,UZS14#199110-199508

main87106-30200iGS141,JZS14#,LS141,UZS14#199110-199508

BI-LEVEL

main87106-30210iJZS145,147,149,UZS14#199110-199508

REAR HEAT

main87106-30220iUZS141199210-199308

main87106-30230iGS141,JZS141,143,LS141199110-199508

FRESH-RECIRC

main87106-30240iJZS145199110-199508

FRESH-RECIRC

main87106-30250iGS141,JZS141,143,145,LS141199110-199508

87121ABRACKET, HEATER

main87121-30030iJZS147,149,UZS14#199110-199508

main87121-30040iGS141,JZS141,143,145,LS141199110-199508

87130BLOWER ASSY, HEATER, FRONT

main87130-30500iJZS147,149,UZS14#199110-199508

main87130-30510iUZS141199210-199308

main87130-30520iGS141,JZS141,143,LS141199110-199508

main87130-30530iJZS145199110-199508

87165CONTROL, BLOWER MOTOR, NO.1

main87165-30010iJZS147,149,UZS14#199110-199508

main87165-30020iGS141,JZS141,143,145,LS141199110-199508

87165ACONTROL, BLOWER MOTOR, NO.2

main87165-30050iGS141,JZS14#,LS141,UZS14#199110-199508

87165BCONTROL, BLOWER MOTOR, NO.3

main87165-30060iGS141,JZS14#,LS141,UZS14#199110-199508

9015960008

main90159-60008

9015960220

main90159-60220

9165560616

main91655-60616

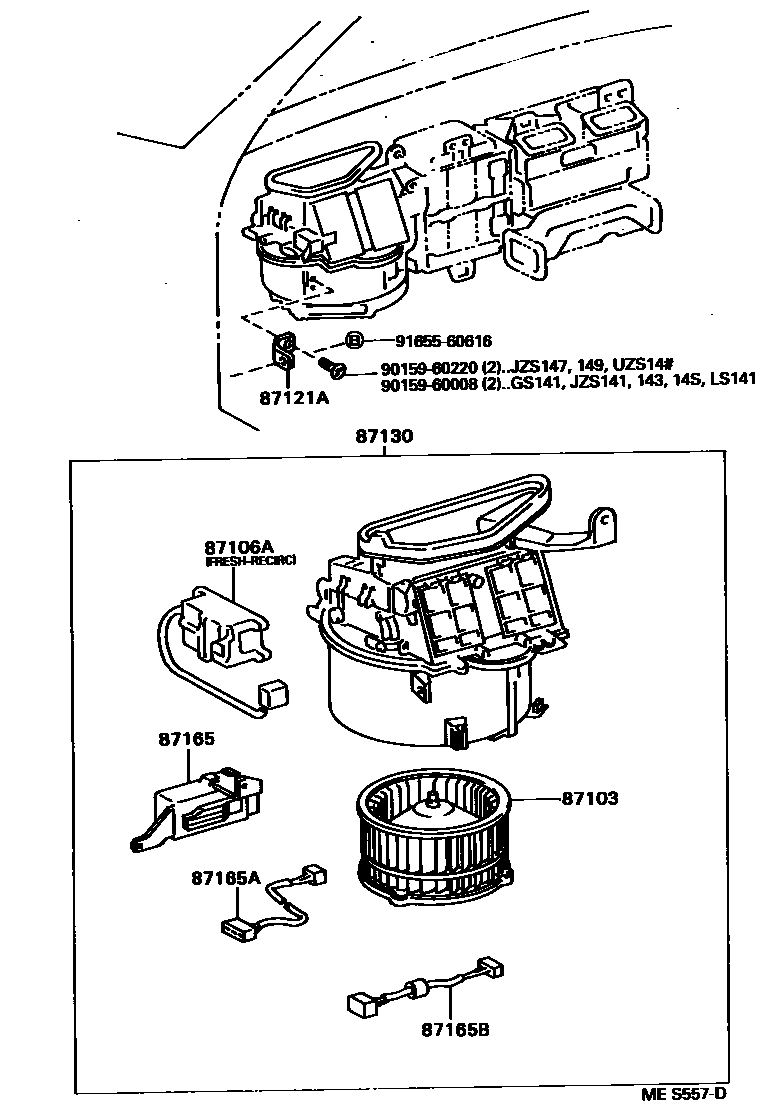

10 parts on this diagram · 3 diagrams in section
