RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

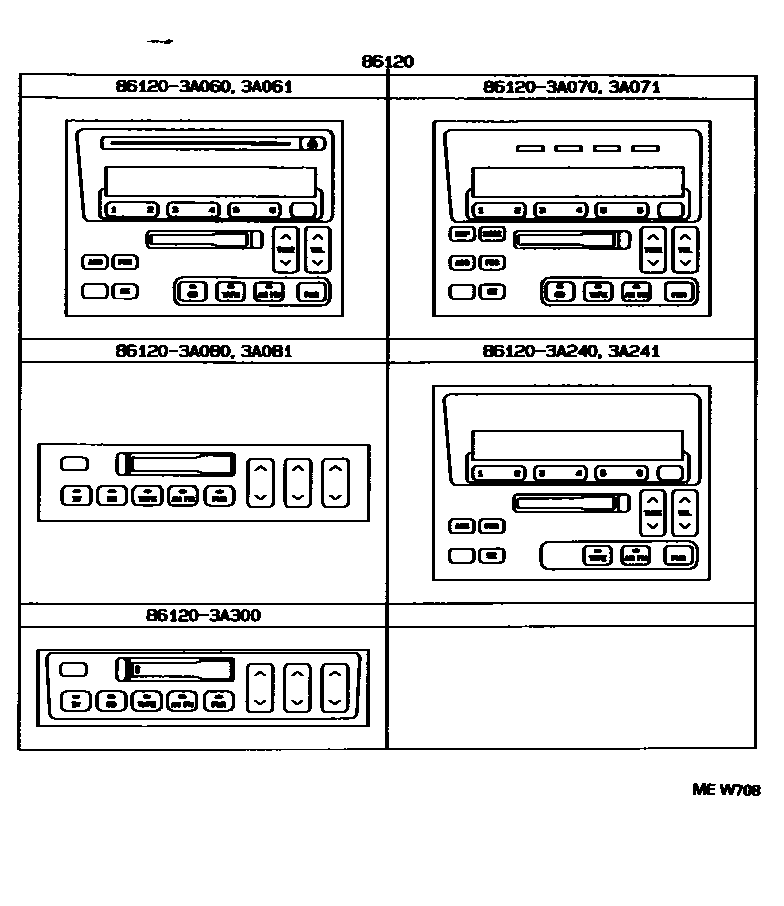

86120RECEIVER ASSY, RADIO

main86120-3A060iJZS147199210-199308

main86120-3A061iJZS147,UZS147; JZS149,UZS141,143,145199308-199508

main86120-3A070iJZS147,149,UZS14#199110-199308

main86120-3A071iJZS147,149,UZS14#199308-199508

main86120-3A080iJZS149,UZS14#199110-199308

main86120-3A081iJZS149,UZS141,143,145199308-199508

main86120-3A100iJZS141,143,145..ROY,ROYG; JZS141,143,LS141..ROYT,SALEX199210-199308

main86120-3A101iJZS141,143,145..ROY,ROYG; JZS141,143,LS141..ROYT,SALEX199308-199508

main86120-3A110iJZS141,143,145..ROY,ROYG,ROYT199110-199308

main86120-3A111iJZS141,143,145..ROY,ROYG,ROYT199308-199508

main86120-3A120iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199210-199508

main86120-3A140iJZS141,143,145..ROY,ROYG,ROYT199110-199308

main86120-3A141iJZS143,145..4FC199308-199508

main86120-3A240iJZS147; UZS141199210-199308

main86120-3A241iJZS147,UZS147; JZS149,UZS141,143,145199308-199508

main86120-3A300iJZS147,149,UZS14#199308-199508

main86120-3A320iJZS141,143,145..ROY,ROYG,ROYT199308-199508

1 parts on this diagram · 8 diagrams in section
