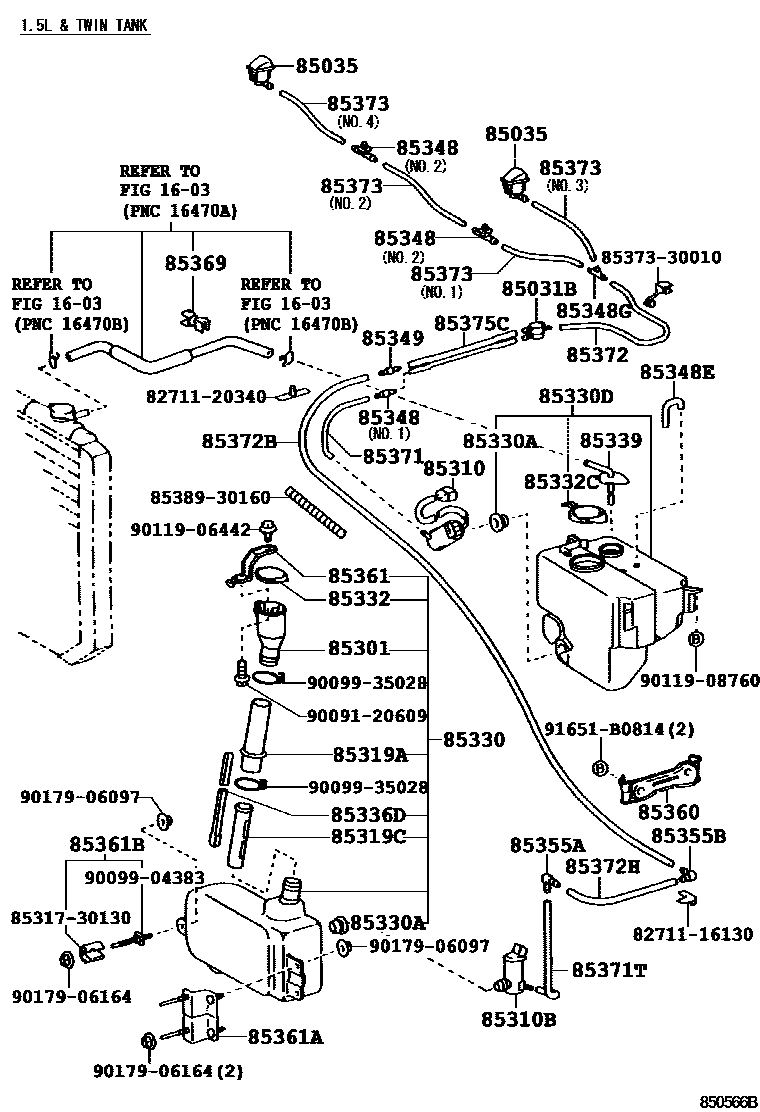

WINDSHIELD WASHER

0001 1 0002 1 0003 1����� ���

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

85031BVALVE SUB-ASSY, WASHER

main85375-30240iGS141,JZS141,143,145,LS141199110-199508

main85375-50040iJZS147,149,UZS14#199110-199508

85035NOZZLE SUB-ASSY, WASHER

main85381-30010-A0×2iJZS141,143,LS141..ROYT,SSL199206-199210

GRAY PEARL MICA,29T

main85381-30010-A1×2iJZS141,143,145,LS141199210-199308

SUPER WHITE 4,050

main85381-30010-A2×2iGS141199502-199508

main85381-30010-A3×2iJZS141..ROYT199501-199508

main85381-30010-B0×2iJZS141,143,145,LS141199110-199308

BL.GRAY ME,182

main85381-30010-B1×2iGS141,JZS141,143,145,LS141199308-199508

DK.BL.GRAY ME,183

main85381-30010-C0×2iJZS141,143,145,LS141..4FC199110-199210

BLACK,202

main85381-30010-G0×2iJZS141,143,145,LS141199210-199308

DK.GREEN M,6K2

main85381-30010-H0×2iJZS141,143,145,LS141199204-199305

DK.TORQUOISE MC,742

main85381-30010-J0×2iJZS141,143,145,LS141..ROY,ROYG,SSL199206-199210

DK.BLUE MICA FP,8J5

main85381-30020-A0×2iGS141,JZS141,143,145199308-199508

WARM GRAY PEARL MICA,046 ,29T

main85385-30010-A0×2iJZS147,149,UZS14#199110-199508

WARM GRAY PM,046

main85385-30010-A1×2iUZS141199205-199209

main85385-30010-B0×2iJZS147,149,UZS14#199110-199308

DK.BL.GRAY ME,183

main85385-30010-B1×2iJZS147,149,UZS14#199308-199508

SILVER ME,199

main85385-30010-C0×2iJZS147,149,UZS14#199110-199508

BLACK,202

main85385-30010-D0×2iJZS147,149,UZS14#199110-199308

DK.MAOVE MIO,3K8

main85385-30010-G0×2iJZS147,149,UZS14#199110-199308

DK.GREEN M,6K2

main85385-30010-G1×2iJZS147,149,UZS14#199308-199508

BL.GREEN MIO.,6M2

main85385-30010-H0×2iJZS143..ROY199205-199209

main85385-30010-J0×2iJZS147,149,UZS14#199110-199508

DK.BLUE MCFP,8J5

85301INLET SUB-ASSY, WASHER

main85301-30010iJZS147,149,UZS14#199110-199404

main85301-30011iJZS147,149,UZS14#199404-199508

main85318-30140iGS141,JZS141,143,145,LS141199110-199508

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20210iJZS147,149,UZS14#199110-199508

main85330-30190iGS141,JZS141,143,145,LS141199110-199508

main85330-30210iJZS141,143,145,LS141199110-199308

85310BMOTOR & PUMP ASSY, WINDSHIELD WASHER

main85310-20190iGS141,JZS14#,LS141,UZS14#199110-199402

main85330-30210iGS141,JZS141,143,145,LS141199402-199508

main85330-30220iGS141,JZS141,143,145,LS141199402-199508

main85340-30140iGS141,JZS141,143,145,LS141199308-199402

85319AHOSE, INLET

main85319-30130iGS141,JZS141,143,145,LS141199110-199508

85319CHOSE, WASHER

main85319-30110iGS141,JZS141,143,145,LS141199110-199508

85330JAR ASSY, WINDSHIELD WASHER

main85315-30130iGS141,JZS141,143,145,LS141199110-199508

main85315-30140iGS141,JZS141,143,145,LS141199110-199508

main85315-30160iJZS147,149,UZS14#199110-199508

main85315-30170iJZS147,149,UZS14#199110-199508

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089×2iGS141,JZS14#,LS141,UZS14#199110-199508

85330DJAR ASSY, WASHER

main85315-30150iGS141,JZS141,143,145,LS141199110-199508

main85315-30180iJZS147,149,UZS14#199110-199508

main85331-30280iGS141,JZS141,143,145,LS141199110-199508

85332CAP, WINDSHIELD WASHER JAR

main85316-30130iGS141,JZS141,143,145,LS141199110-199508

main85316-30140iGS141,JZS141,143,145,LS141199110-199508

main85332-22031iJZS147,149,UZS14#199110-199508

85332CCAP, FRONT WASHER TANK

main85316-20350iGS141,JZS141,143,145,LS141199208-199508

main85316-30150iJZS141,143,145,LS141199110-199208

main85316-34050iGS141,JZS141,143,145,LS141199308-199508

main85332-12650iJZS141,143,145,LS141199110-199308

main85332-30180iJZS147,149,UZS14#199110-199308

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30130iGS141,JZS141,143,145,LS141199110-199508

85339CAP SUB-ASSY, RESERVE TANK

main85339-30280iGS141,JZS141,143,145,LS141199110-199508

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22470iGS141,JZS14#,LS141,UZS14#199110-199508

main85375-10260×2iJZS147,149,UZS14#199110-199508

main85375-17050×2iGS141,JZS141,143,145,LS141199110-199508

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85334-30280iGS141,JZS141,143,145,LS141199110-199508

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-14390iGS141,JZS141,143,145,LS141199110-199508

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22470iJZS141,143,145,LS141; JZS147,149,UZS14#199110-199308

85355AJOINT, WINDSHIELD WASHER ELBOW

main85375-24100iGS141,JZS141,143,145,LS141199110-199508

85355BJOINT, ELBOW NO.2

main85355-14040iGS141,JZS141,143,145,LS141199110-199508

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-30270iGS141,JZS141,143,145,LS141199110-199508

85361HOLDER, WINDSHIELD WASHER

main85337-30130iGS141,JZS141,143,145,LS141199110-199508

main85361-30300iJZS147,149,UZS14#199110-199508

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-30140×2iGS141,JZS141,143,145,LS141199110-199508

85361BBRACKET, WINDSHIELD WASHER, NO.2

main85338-30140iGS141,JZS141,143,145,LS141199110-199508

85369CLAMP

main85369-30270iGS141,JZS141,143,145,LS141199110-199508

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iGS141,JZS141,143,145,LS141199110-199508

main90099-33299iJZS149,UZS141199110-199210

main90446-07001iJZS147,149,UZS14#199210-199508

85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)

main90099-33075iGS141,JZS141,143,145,LS141199110-199508

main90099-33080iGS141,JZS141,143,145,LS141199110-199508

main90099-33334iJZS147,149,UZS14#199110-199508

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iJZS147,149,UZS14#199110-199508

main90099-33088iJZS141,143,145,LS141199110-199111

main90099-33299iJZS141,143,145,LS141199110-199308

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33075iGS141,JZS141,143,145,LS141199110-199508

main90099-33080iGS141,JZS141,143,145,LS141199110-199508

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33075iGS141,JZS141,143,145,LS141199110-199508

main90099-33299iGS141,JZS141,143,145,LS141199110-199508

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iGS141,JZS141,143,145,LS141; JZS147,149,UZS14#199110-199508

main90099-33723iGS141,JZS141,143,145,LS141199110-199508

85375CHOSE, WINDSHIELD WASHER (OIL REMOVING NO.2)

main85375-30120iGS141,JZS141,143,145,LS141199110-199508

8271116130WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16130

8271120340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20340

8531730130WIRING ASSY, WASHER

main85317-30130

8537330010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-30010

8538930160PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-30160

9009120609

main90091-20609

9009904383

main90099-04383

9009935028

main90099-35028

9011906442

main90119-06442

9011908760

main90119-08760

9017906097

main90179-06097

9017906164

main90179-06164

91651B0814

main91651-B0814

46 parts on this diagram · 3 diagrams in section
