AIR BAG

0001 1 0002 1

89170SENSOR ASSY, AIRBAG

main89170-30020iJZS147,149,UZS14#199110-199308

main89170-30030iJZS141,143,145,LS141199110-199308

main89170-30070iJZS147,149,UZS147..A,C; JZS149,UZS141,143,145..B,C199308-199508

main89170-30080iJZS147,149,UZS14#199308-199508

main89170-30090iGS141,JZS141,143,145,LS141199308-199508

89173SENSOR, AIRBAG, FRONT

main89173-30010iJZS141,143,145,LS141199110-199308

main89173-30020iJZS141,143,145,LS141199110-199308

main89173-39035iJZS147,149,UZS14#199110-199308

main89173-39045iJZS147,149,UZS14#199110-199308

89174SENSOR, AIRBAG

main89174-39015iJZS141,143,145,LS141199110-199308

main89174-39025iJZS141,143,145,LS141199110-199308

89178BRACKET, AIRBAG, NO.2

main89178-30010iJZS141,143,LS141; JZS145199110-199210

main89178-30021iGS141,JZS141,143,145,LS141199210-199508

9009250801

main90092-50801

9014980023

main90149-80023

9014980027

main90149-80027

9165160814

main91651-60814

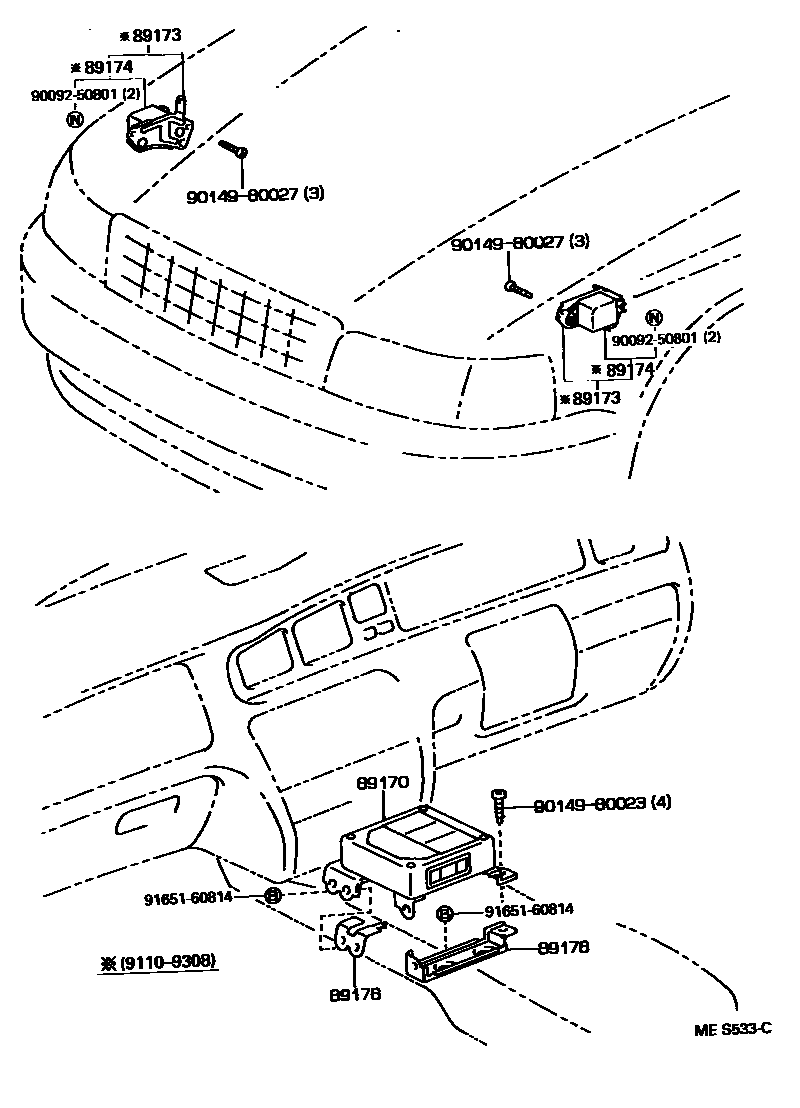

8 parts on this diagram · 2 diagrams in section
