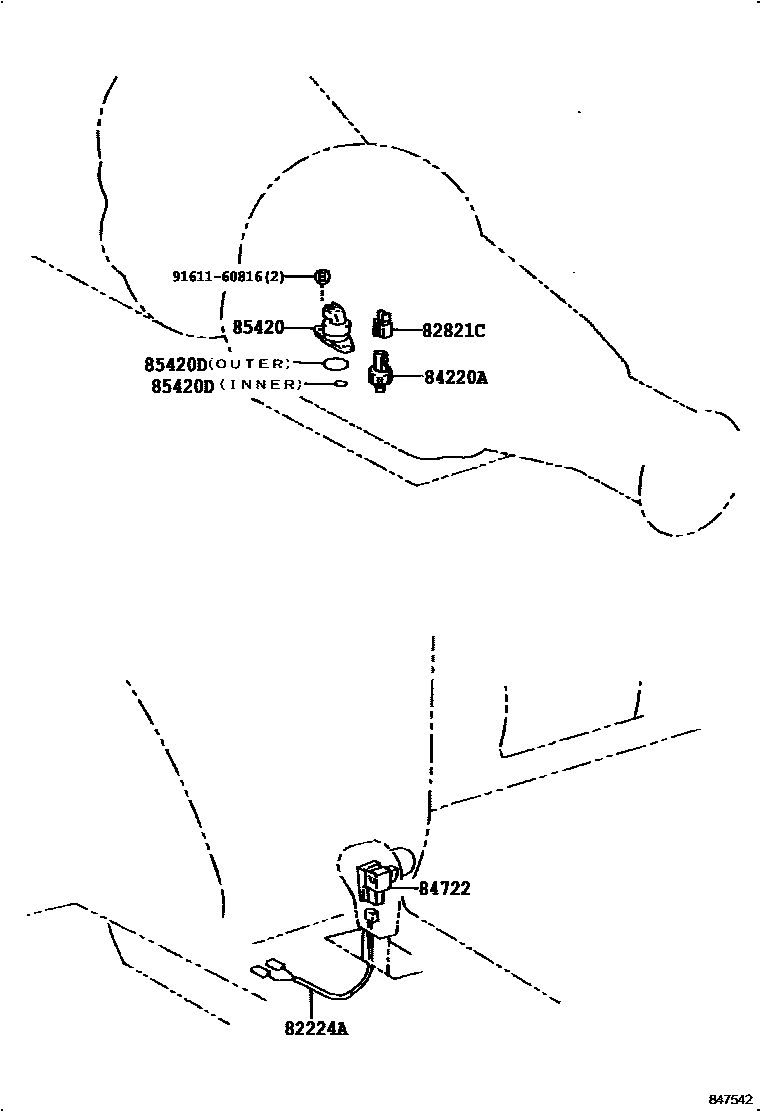

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1 0004 1 0005 1

82224AWIRE, OVERDRIVE

main82224-30010iJZS147,149,UZS141,147199110-199508

main82224-30020iGS141,JZS141,143,145,LS141199110-199508

main82224-30040iUZS143,145199210-199508

82821CCOVER, CONNECTOR

main82821-30401iJZS143,UZS141..C,ROYT199110-199210

84220ASWITCH ASSY, TRANSMISSION POSITION INDICATOR

main83531-12010iGS141199308

84722SWITCH, TRANSMISSION CONTROL

main84722-30170-B0iGS141,JZS14#,LS141,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main84722-30170-E1iJZS14#,LS141,UZS141..4FC199110-199210

DK.ROSE,TRIM4#

main84722-30170-J0iGS141,JZS141,143,145,149,LS141,UZS141,143,145..A,B,C,ROY,ROYG,SALEX,SSL199110-199408

DK.BLUE,TRIM8#

85420SOLENOID ASSY, TRANSMISSION

main85420-22080×2iJZS141,LS141199110-199308

SHIFT

main85420-30110iJZS141,LS141199110-199308

LOCK UP,AISIN

main85420-30120iJZS141,LS141199110-199308

LOCK UP,NIPPONDENSO

main85420-30160iGS141199308

main85420-30170iJZS143..ROYT199110-199205

main85420-30190iJZS143,145,147,149..4FC199308-199508

LOCK UP SOLENOID

main85420-30200×2iJZS141,LS141199308

SHIFT SOLENOID

main85420-30220iJZS141,LS141199308

LOCK UP SOLENOID

main85420-50020×2iJZS143,145,149,UZS141..4FC; JZS143..ROYT199110-199205

SHIFT

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×3iJZS141,LS141; JZS143,145,147,149,UZS14#199205-199502

main90301-11001iGS141199308

main90301-23001iGS141199308

9161160816

main91611-60816

7 parts on this diagram · 5 diagrams in section
