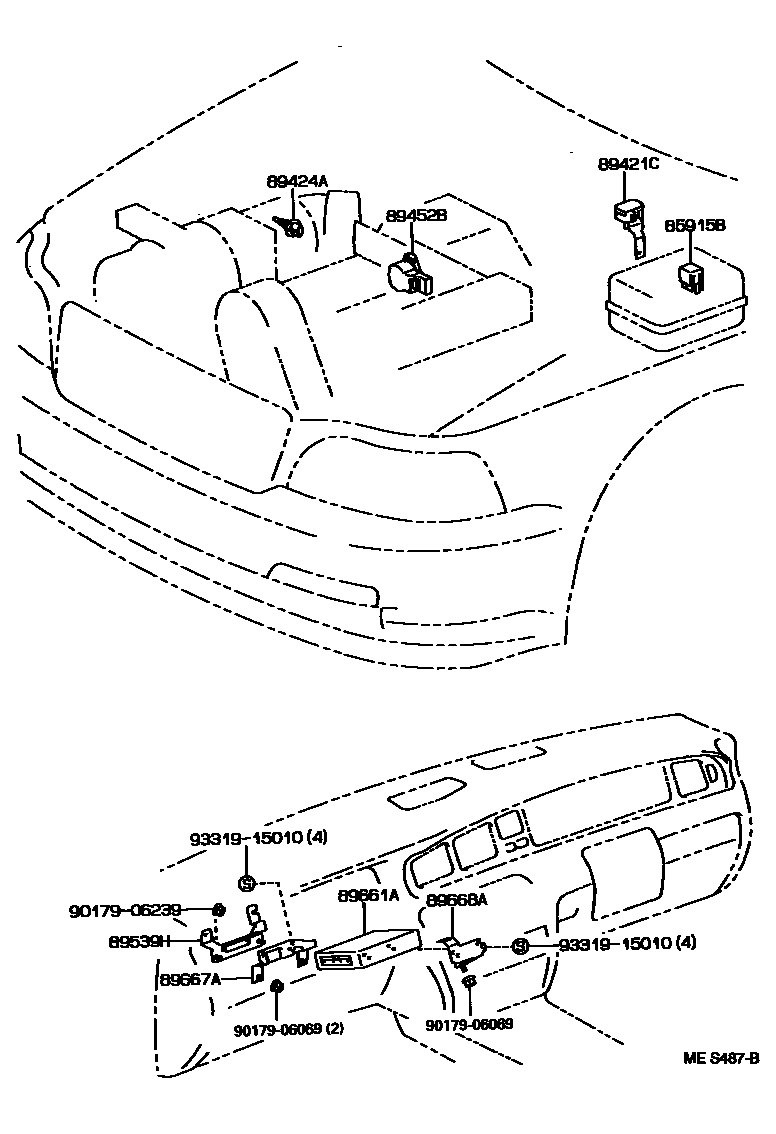

ELECTRONIC CONTROLED DIESEL (ECD)

85915BRELAY, MAIN (FOR DIESEL TURBO)

main85915-30050iLS141199110-199308

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89420-30080iLS141199110

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-12010iLS141199110

89452BSENSOR, THROTTLE POSITION

main89452-12040iLS141199110-199401

main89452-22090iLS141199401-199405

main89452-28090iLS141199405

89539HBRACKET, COMPUTER

main89539-30070iLS141199110-199508

89661ACOMPUTER, ENGINE CONTROL

main89661-30640iLS141199110-199112

main89661-30641iLS141199112-199308

main89661-30720iLS141199308-199407

main89661-30721iLS141199407-199508

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-30130iLS141199110-199508

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-30110iLS141199110-199508

9017906069

main90179-06069

9017906239

main90179-06239

9331915010

main93319-15010

11 parts on this diagram · 1 diagram in section
