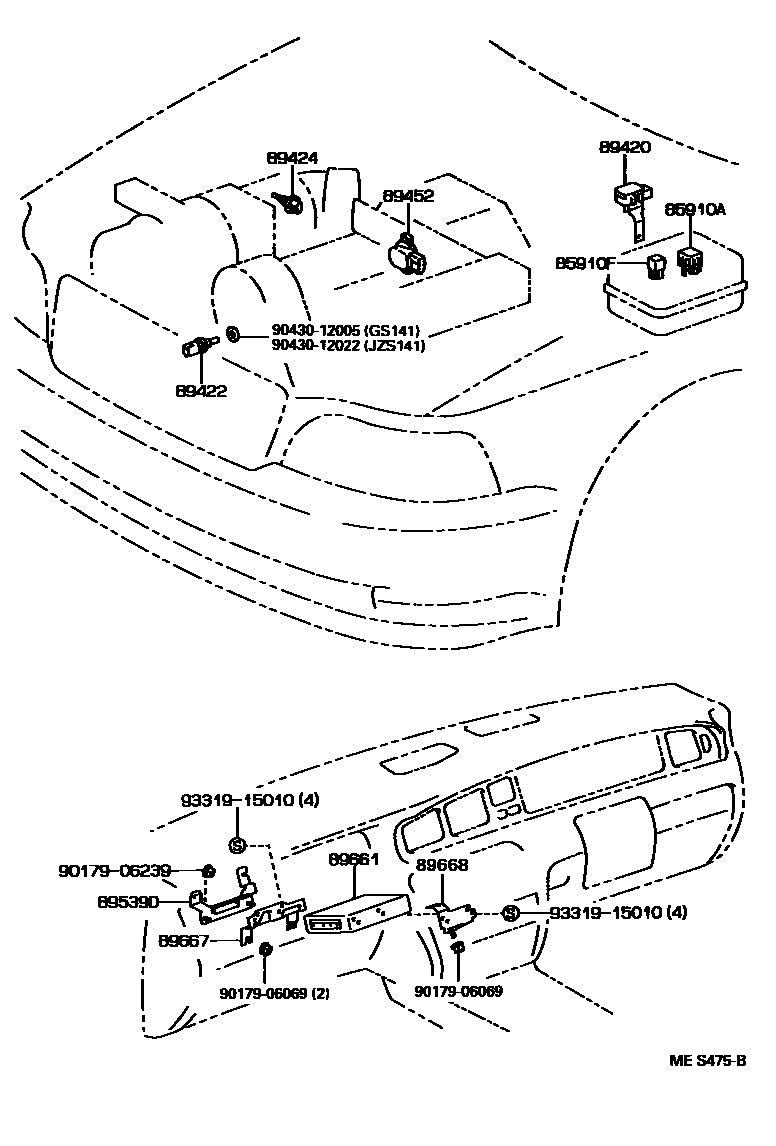

ELECTRONIC FUEL INJECTION SYSTEM
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89420SENSOR ASSY, VACUUM
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89539DBRACKET, COMPUTER
89661COMPUTER, ENGINE CONTROL
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9017906069
main90179-06069
9017906239
main90179-06239
9043012005
main90430-12005
9043012022
main90430-12022
9331915010
main93319-15010
15 parts on this diagram · 5 diagrams in section
