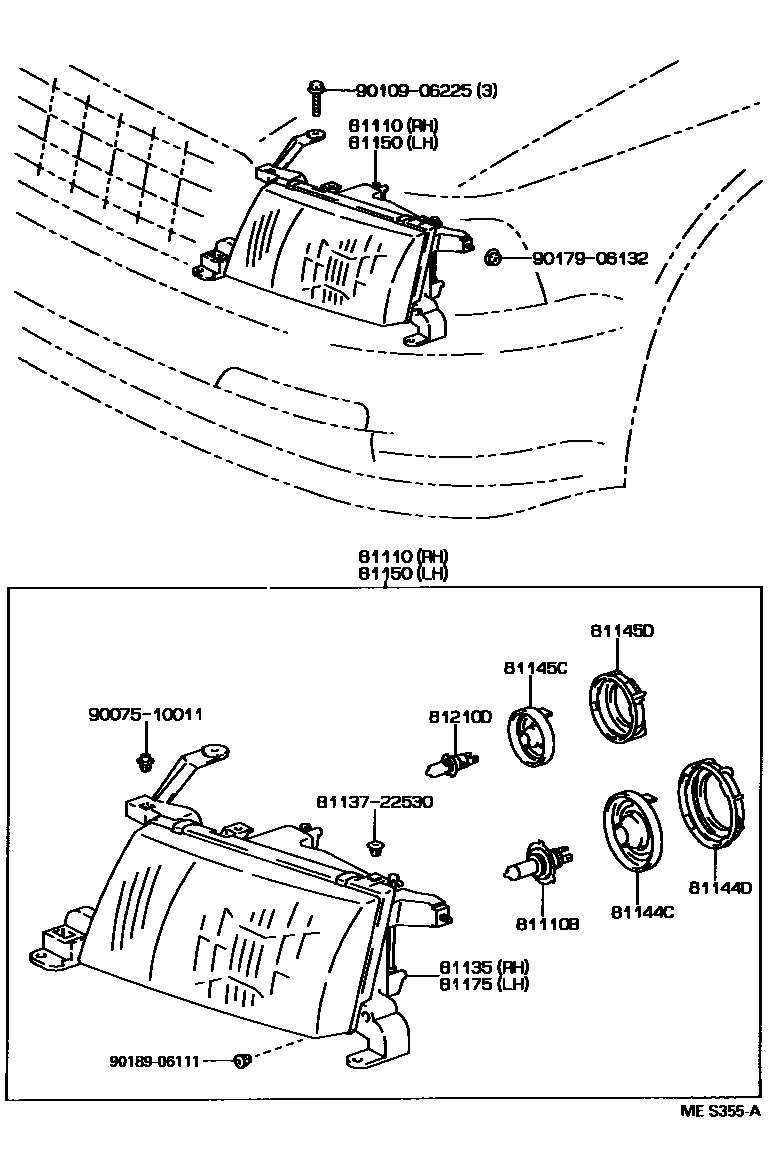

HEADLAMP

0001 1 0002 1

81110HEADLAMP ASSY, RH

main81110-30710iJZS141,143,145,LS141199110-199308

main81110-3A250iGS141,JZS141,143,145,LS141199308-199508

main81120-30700iJZS149,UZS141199110-199206

main81120-30701iJZS147,149,UZS14#199206-199302

main81120-30702iJZS147,149,UZS14#199302-199508

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2iJZS14#,LS141,UZS14#199110-199306

main90981-22004×2iGS141,JZS14#,LS141,UZS14#199306-199508

81135UNIT ASSY, HEADLAMP, RH

main81130-30700iJZS149,UZS141199110-199206

main81130-30701iJZS147,149,UZS14#199206-199508

main81130-30710iJZS141,143,145,LS141199110-199308

main81130-3A250iGS141,JZS141,143,145,LS141199308-199508

81144CCOVER, HEADLAMP SOCKET

main90075-99058×2iGS141,JZS14#,LS141,UZS14#199110-199508

81144DCAP, HEADLAMP LOCKING

main90075-99057×2iGS141,JZS14#,LS141,UZS14#199110-199508

81145CCOVER, HEADLAMP SOCKET, NO.2

main90075-99072×2iGS141,JZS14#,LS141,UZS14#199110-199508

81145DCAP, HEADLAMP LOCKING NO.2

main90075-99073×2iGS141,JZS14#,LS141,UZS14#199110-199508

81150HEADLAMP ASSY, LH

main81150-3A020iJZS141,143,145,LS141199110-199308

main81150-3A250iGS141,JZS141,143,145,LS141199308-199508

main81160-3A010iJZS149,UZS141199110-199206

main81160-3A011iJZS147,149,UZS14#199206-199302

main81160-3A012iJZS147,149,UZS14#199302-199508

81175UNIT ASSY, HEADLAMP, LH

main81170-3A010iJZS149,UZS141199110-199206

main81170-3A011iJZS147,149,UZS14#199206-199508

main81170-3A020iJZS141,143,145,LS141199110-199308

main81170-3A250iGS141,JZS141,143,145,LS141199308-199508

81210DBULB, FOG LAMP

main90981-13027×2iJZS14#,LS141,UZS14#199110-199308

main90981-13070×2iGS141,JZS14#,LS141,UZS14#199308-199508

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9007510011

main90075-10011

9010906225

main90109-06225

9017906132

main90179-06132

9018906111

main90189-06111

15 parts on this diagram · 2 diagrams in section
