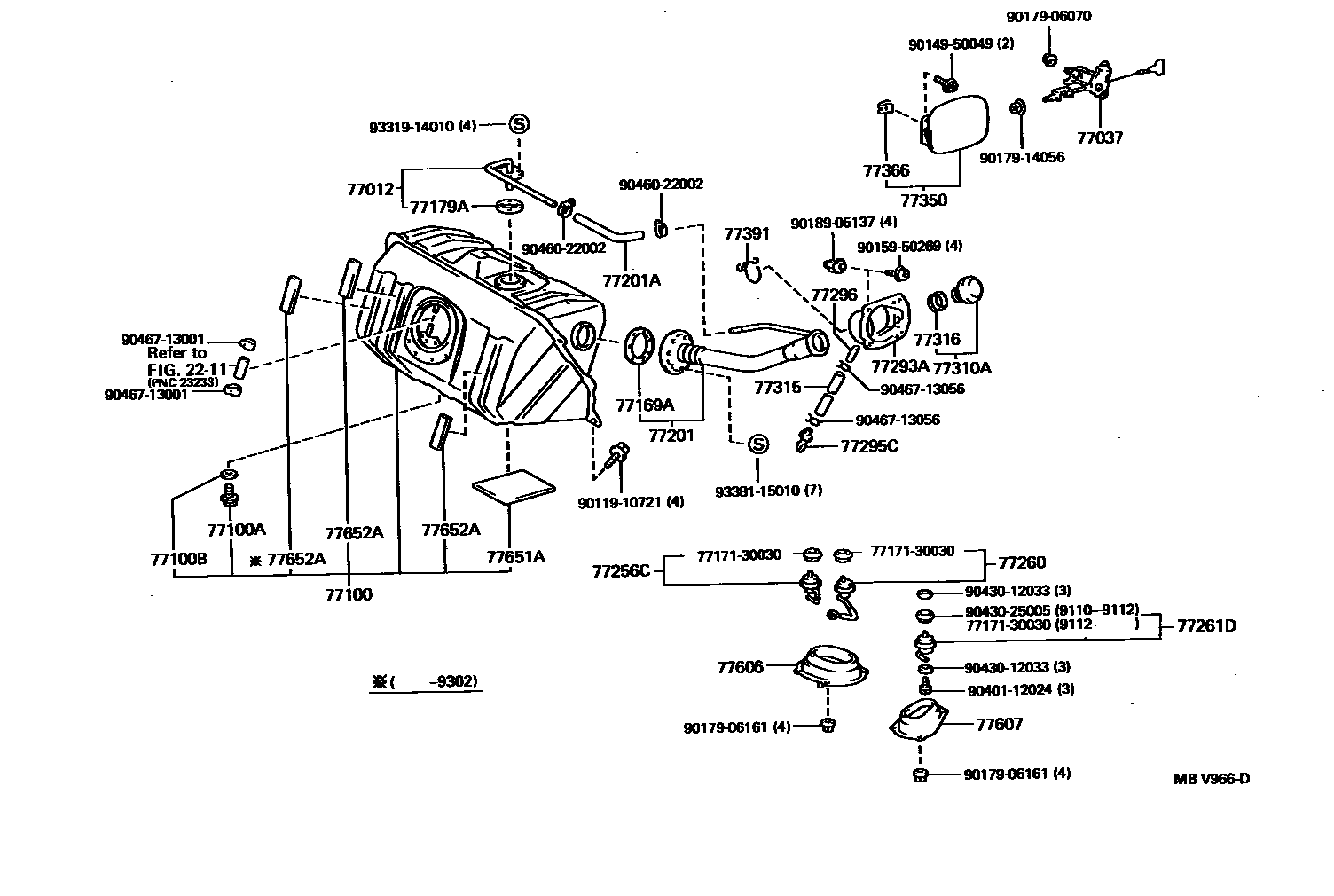

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

2211

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-30080iJZS147,149,UZS14#199110-199508

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77030-30040iJZS147,149,UZS14#199110-199308

main77030-30060iJZS147,149,UZS14#199308-199508

main77037-90K00iGS141,JZS141,143,145,LS141199110-199508

77100TANK ASSY, FUEL

main77001-30410iJZS147,149,UZS14#199110-199308

sub77001-30430

main77001-30420iJZS147,149,UZS14#199110-199308

sub77001-30430

main77001-30430iJZS147,149,UZS14#199308-199508

main77001-30927iGS141,JZS141,143,145,LS141199110-199508

77100APLUG(FOR FUEL TANK)

main90105-12116iJZS141,143,145,LS141199110-199308

77100BGASKET(FOR FUEL TANK)

main90430-12245iJZS141,143,145,LS141199110-199308

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14010iJZS147,149,LS141,UZS14#199110-199508

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-16010iGS141,JZS141,143,145,LS141199110-199508

main77179-20040iJZS147,149,UZS14#199110-199508

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-30210iGS141,JZS141,143,145,LS141199110-199508

main77201-30250iJZS147,149,UZS14#199110-199508

main77201-30300iGS141,JZS141,143,145,LS141199110-199508

sub77201-30210

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main95311-13026iJZS147,149,UZS14#199110-199508

77256CTUBE, FUEL RETURN, NO.2

main77208-24010iJZS149,UZS141199110-199112

sub77208-30040

main77208-30040iJZS147,149,UZS14#199112-199508

main77256-30210iGS141,JZS141,143,145199110-199508

main77256-30280iLS141199110-199508

77260HOSE ASSY, FUEL MAIN

main77260-24010iJZS149,UZS141199110-199112

sub77260-30010

main77260-30010iJZS147,149,UZS14#199112-199508

77261DTUBE, FUEL TANK TO CANISTER

main77028-30080iJZS149,UZS141199110-199112

sub77028-30081

main77028-30081iJZS147,149,UZS14#199112-199508

main77261-30080iGS141,JZS141,143,145199110-199508

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-30010iJZS147,149,UZS14#199110-199508

77295CGROMMET, FUEL TUBE

main77295-30020iGS141,JZS141,143,145,LS141199110-199508

main77295-50010iJZS147,149,UZS14#199110-199508

77296PLATE, FUEL TUBE GROMMET SUPPORT

main77296-30020iGS141,JZS141,143,145,LS141199110-199508

main77296-30030iJZS147,149,UZS14#199110-199508

77310ACAP ASSY, FUEL TANK

main77310-16011iGS141,JZS14#,UZS14#199110-199508

sub77310-12140

main77310-32011iLS141199110-199508

77315HOSE, FUEL FILLER OPENING

main77217-30070iJZS147,149,UZS14#199111-199508

main90446-12028iJZS149,UZS141199110-199111

77316GASKET, FUEL TANK CAP

main77316-16010iGS141,JZS14#,LS141,UZS14#199110-199508

77350LID ASSY, FUEL FILLER OPENING

main77350-30210iJZS147,149,UZS14#199110-199508

main77350-30220iJZS141,143,145,LS141199110-199308

main77350-30270iGS141,JZS141,143,145,LS141199308-199508

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-35010iGS141,JZS14#,LS141,UZS14#199110-199508

77391RING, FUEL INLET BOX

main77391-30010iJZS147,149,UZS14#199110-199508

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-30150iJZS147,149,UZS14#199110-199508

77607CASE SUB-ASSY, FUEL TANK COVER VENT, LH

main77607-30010iJZS147,149,UZS14#199110-199508

77651ACUSHION, FUEL TANK, NO.1

main77651-30070iGS141,JZS141,143,145,LS141199110-199508

main77651-30080iJZS147,149,UZS14#199110-199508

77652ACUSHION, FUEL TANK, NO.2

main77652-30030iGS141,JZS141,143,145,LS141199110-199508

main77652-30040iJZS147,149,UZS14#199110-199508

7717130030GASKET, FUEL TANK TUBE, NO.1

main77171-30030

9011910721

main90119-10721

9014950049

main90149-50049

9015950269

main90159-50269

9017906070

main90179-06070

9017906161

main90179-06161

9017914056

main90179-14056

9018905137

main90189-05137

9040112024

main90401-12024

9043012033

main90430-12033

9043025005

main90430-25005

9046022002

main90460-22002

9046713001

main90467-13001

9046713056

main90467-13056

9331914010

main93319-14010

9338115010

main93381-15010

42 parts on this diagram · 8 diagrams in section
