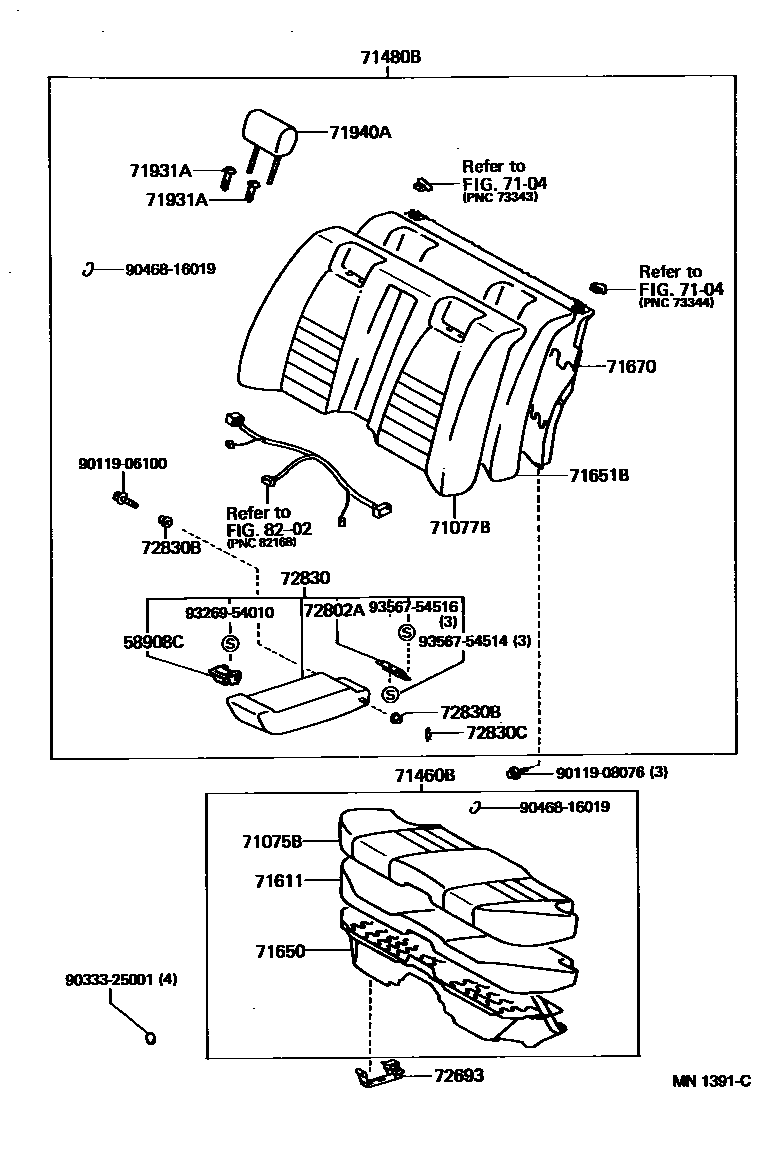

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

58908CLOCK SUB-ASSY, REAR SEAT ARMREST

main72809-30020iJZS149,UZS141199110-199210

main72809-30021iJZS147,149,UZS14#199210-199508

main72809-30040-B0iJZS141,143,145,LS141..ROY,ROYG,SALEX; JZS143..ROYT199210-199508

main72809-30040-E0iJZS141,143,145,LS141..ROY,ROYG,SALEX199110-199508

QUARTZ,TRIM4#

main72809-30040-J0iJZS141,143,145,LS141..ROY,ROYG,SALEX199110-199508

DK.BLUE,TRIM8#

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-30590-B1iJZS147,UZS147199408-199508

SHADOW GRAY,TRIM1#

main71065-30590-E1iJZS147,UZS147199408-199508

QUARTZ,TRIM4#

main71065-30600-B0iJZS141,LS141..SSL199206-199308

main71065-30600-E0iJZS141,143..ROY199110-199210

QUARTZ,TRIM4#

main71065-30600-J0iJZS141,LS141..SSL199206-199308

main71065-30601-B2iJZS141,143..ROY,ROYT199308-199508

SHADOW GRAY,TRIM1#

main71065-30601-E1iGS141,JZS141,LS141..SALEX,SSL199308-199502

main71065-30601-J1iJZS141,143..ROY199308-199508

DK.BLUE,TRIM8#

main71065-30610-B0iJZS143..ROYT199210-199308

main71065-30611-B2iJZS143..ROYT199308-199508

main71065-30620-B0iJZS141,LS141..SALEX199110-199308

SHADOW GRAY,TRIM1#

main71065-30620-E0iJZS141,LS141..SALEX199110-199308

QUARTZ,TRIM4#

main71065-30620-J0iJZS141,LS141..SALEX199110-199308

DK.BLUE,TRIM8#

main71065-30621-B1iJZS141,LS141..SALEX199308-199508

SHADOW GRAY,TRIM1#

main71065-30621-E1iJZS141,LS141..SALEX199308-199508

QUARTZ,TRIM4#

main71065-30621-J1iJZS141,LS141..SALEX199308-199508

DK.BLUE,TRIM8#

main71065-30630-B0iJZS141,LS141..SSL199110-199308

SHADOW GRAY,TRIM1#

main71065-30630-E0iJZS141,LS141..SSL199110-199308

QUARTZ,TRIM4#

main71065-30630-J0iJZS141,LS141..SSL199110-199308

DK.BLUE,TRIM8#

main71065-30631-B2iGS141,JZS141,LS141..SSL199308-199508

SHADOW GRAY,TRIM1#

main71065-30631-E2iGS141,JZS141,LS141..SSL199308-199508

QUARTZ,TRIM4#

main71065-30631-J2iGS141,JZS141,LS141..SSL199308-199508

DK.BLUE,TRIM8#

main71065-30880-B0iJZS147,UZS147199308-199408

SHADOW GRAY,TRIM1#

main71065-30880-E0iJZS147,UZS147199308-199408

QUARTZ,TRIM4#

main71075-3A020-E0iJZS141,LS141..SSL199305-199307

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-3A680-B1iJZS147,UZS147199408-199508

SHADOW GRAY,TRIM1#

main71077-3A680-E1iJZS147,UZS147199408-199508

QUARTZ,TRIM4#

main71077-3A690-B0iJZS141,143..ROY199110-199210

SHADOW GRAY,TRIM1#

main71077-3A690-E0iJZS141,143..ROY199110-199210

QUARTZ,TRIM4#

main71077-3A690-J0iJZS141,LS141..SSL199206-199308

main71077-3A691-B2iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71077-3A691-E1iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71077-3A691-J1iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71077-3A700-B0iJZS143..ROYT199110-199210

SHADOW GRAY,TRIM1#

main71077-3A701-B2iJZS143..ROYT199308-199508

main71077-3A710-B0iJZS141,LS141..SALEX199110-199308

SHADOW GRAY,TRIM1#

main71077-3A710-E0iJZS141,LS141..SALEX199110-199308

QUARTZ,TRIM4#

main71077-3A710-J0iJZS141,LS141..SALEX199110-199308

DK.BLUE,TRIM8#

main71077-3A711-B1iJZS141,LS141..SALEX199308-199508

SHADOW GRAY,TRIM1#

main71077-3A711-E1iJZS141,LS141..SALEX199308-199508

QUARTZ,TRIM4#

main71077-3A711-J1iJZS141,LS141..SALEX199308-199508

DK.BLUE,TRIM8#

main71077-3A720-B0iJZS141,LS141..SSL199110-199308

SHADOW GRAY,TRIM1#

main71077-3A720-E0iJZS141,LS141..SSL199110-199308

QUARTZ,TRIM4#

main71077-3A720-J0iJZS141,LS141..SSL199110-199308

DK.BLUE,TRIM8#

main71077-3A721-B2iGS141,JZS141,LS141..SSL199308-199508

SHADOW GRAY,TRIM1#

main71077-3A721-E2iGS141,JZS141,LS141..SSL199308-199508

QUARTZ,TRIM4#

main71077-3A721-J2iGS141,JZS141,LS141..SSL199308-199508

DK.BLUE,TRIM8#

main71077-3F070-B0iJZS147,UZS147199308-199408

SHADOW GRAY,TRIM1#

main71077-3F070-E0iJZS147,UZS147199308-199408

QUARTZ,TRIM4#

main71077-3F100-E0iJZS141,LS141..SSL199305-199307

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-3A170-B0iJZS143..ROYT199110-199210

***,SHADOW GRAY,TRIM1#

main71460-3A171-B2iJZS143..ROYT199308-199508

main71460-3A240-B0iJZS147,UZS147199308-199408

***,SHADOW GRAY,TRIM1#

main71460-3A240-E0iJZS147,UZS147199308-199408

***,QUARTZ,TRIM4#

main71560-30790-B1iJZS147,UZS147199408-199508

***,SHADOW GRAY,TRIM1#

main71560-30790-E1iJZS147,UZS147199408-199508

***,QUARTZ,TRIM4#

main71560-30800-B0iJZS141,LS141..SSL199206-199308

main71560-30800-E0iJZS141,143..ROY,ROYT199210-199308

***,QUARTZ,TRIM4#

main71560-30800-J0iJZS141,LS141..SSL199206-199308

main71560-30801-B2iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71560-30801-E1iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71560-30801-J1iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71560-30810-B0iJZS141,LS141..SALEX199110-199308

***,SHADOW GRAY,TRIM1#

main71560-30810-E0iJZS141,LS141..SALEX199110-199308

***,QUARTZ,TRIM4#

main71560-30810-J0iJZS141,LS141..SALEX199110-199308

***,DK.BLUE,TRIM8#

main71560-30820-B0iJZS141,LS141..SSL199110-199308

***,SHADOW GRAY,TRIM1#

main71560-30820-E0iJZS141,LS141..SSL199110-199308

***,QUARTZ,TRIM4#

main71560-30820-J0iJZS141,LS141..SSL199110-199308

***,DK.BLUE,TRIM8#

main71560-30821-B2iGS141,JZS141,LS141..SSL199308-199508

***,SHADOW GRAY,TRIM1#

main71560-30821-E2iGS141,JZS141,LS141..SSL199308-199508

***,QUARTZ,TRIM4#

main71560-30821-J2iGS141,JZS141,LS141..SSL199308-199508

***,DK.BLUE,TRIM8#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-3A810-B0iJZS141,143..ROY199110-199308

***,SHADOW GRAY,TRIM1#

main71480-3A810-E0iJZS141,143..ROY199110-199308

***,QUARTZ,TRIM4#

main71480-3A810-J0iJZS141,143..ROY199110-199308

***,DK.BLUE,TRIM8#

main71480-3A811-B1iJZS141,143..ROY199308-199508

***,SHADOW GRAY,TRIM1#

main71480-3A811-E1iJZS141,143..ROY199308-199508

***,QUARTZ,TRIM4#

main71480-3A811-J1iJZS141,143..ROY199308-199508

***,DK.BLUE,TRIM8#

main71480-3A820-B0iJZS141,LS141..SALEX199110-199308

***,SHADOW GRAY,TRIM1#

main71480-3A820-E0iJZS141,LS141..SALEX199110-199308

***,QUARTZ,TRIM4#

main71480-3A820-J0iJZS141,LS141..SALEX199110-199308

***,DK.BLUE,TRIM8#

main71480-3A821-B1iJZS141,LS141..SALEX199308-199508

***,SHADOW GRAY,TRIM1#

main71480-3A821-E1iJZS141,LS141..SALEX199308-199508

***,QUARTZ,TRIM4#

main71480-3A821-J1iJZS141,LS141..SALEX199308-199508

***,DK.BLUE,TRIM8#

main71480-3A840-B1iJZS147,UZS147199408-199508

***,SHADOW GRAY,TRIM1#

main71480-3A840-E1iJZS147,UZS147199408-199508

***,QUARTZ,TRIM4#

main71480-3F150-B0iJZS143..ROYT199210-199308

main71480-3F151-B2iJZS143..ROYT199308-199508

main71480-3F160-B0iJZS141,LS141..SSL199110-199308

***,SHADOW GRAY,TRIM1#

main71480-3F160-E0iJZS141,LS141..SSL199110-199308

***,QUARTZ,TRIM4#

main71480-3F160-J0iJZS141,LS141..SSL199110-199308

***,DK.BLUE,TRIM8#

main71480-3F161-B2iGS141,JZS141,LS141..SSL199308-199508

***,SHADOW GRAY,TRIM1#

main71480-3F161-E2iGS141,JZS141,LS141..SSL199308-199508

***,QUARTZ,TRIM4#

main71480-3F161-J2iGS141,JZS141,LS141..SSL199308-199508

***,DK.BLUE,TRIM8#

main71480-3F200-B0iJZS141,143..ROYT199210-199308

***,SHADOW GRAY,TRIM1#

main71480-3F200-E0iJZS141,LS141..SSL199206-199308

main71480-3F200-J0iJZS141,LS141..SSL199206-199308

main71480-3F201-B2iGS141; JZS141,LS141..SSL199502-199508

main71480-3F201-E1iGS141; JZS141,LS141..SSL199502-199508

main71480-3F201-J1iGS141; JZS141,LS141..SSL199502-199508

main71480-3F240-B0iJZS147,UZS147199308-199408

***,SHADOW GRAY,TRIM1#

main71480-3F240-E0iJZS147,UZS147199308-199408

***,QUARTZ,TRIM4#

main71480-3F300-B0iJZS141,LS141..SALEX199308-199508

main71480-3F300-E0iJZS141,LS141..SALEX199308-199508

main71480-3F300-J0iJZS141,LS141..SALEX199308-199508

71611PAD, REAR SEAT CUSHION

main71611-30680iGS141,JZS141,143,LS141199110-199508

main71611-30750iJZS147,UZS147199308-199508

71650SPRING ASSY, REAR SEAT CUSHION

main71650-30420iJZS141,143,LS141199110-199208

main71650-30421iGS141,JZS141,143,LS141199208-199508

main71650-30490iJZS147,UZS147199308-199508

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-30760iGS141,JZS141,143,LS141199110-199508

main71651-30850iJZS147,UZS147199308-199508

71670SPRING ASSY, REAR SEATBACK(FOR BENCH SEAT)

main71670-30550iJZS141,143,LS141199110-199308

main71670-30551iGS141,JZS141,143,LS141199308-199508

main71670-30630iJZS147,UZS147199308-199508

71931ASUPPORT, REAR SEAT HEADREST

main71930-12070-B2×2iJZS14#,LS141,UZS14#..A,B,C,ROY,ROYG,SALEX,SSL; JZS141,143..ROYT; JZS143..ROYT199210-199308

main71930-12070-E0×2iGS141,JZS141,143,147,LS141,UZS147; JZS145,149,UZS141,143,145; JZS147,UZS147; UZS141,143,145199308-199508

main71930-12070-J0×2iJZS141,143,145,149,LS141,UZS14#..A,B,C,ROY,ROYG,SALEX,SSL; JZS149,UZS14#..B,C199110-199308

main71931-12040-B2×2iJZS14#,LS141,UZS14#..A,B,C,ROY,ROYG,SALEX,SSL; JZS141,143..ROYT; JZS143..ROYT199210-199308

main71931-12040-E0iGS141,JZS141,143,147,LS141,UZS147; JZS145,149,UZS141,143,145; JZS147,UZS147; UZS141,143,145199308-199508

main71931-12040-J0×2iJZS141,143,145,149,LS141,UZS14#..A,B,C,ROY,ROYG,SALEX,SSL; JZS149,UZS14#..B,C199110-199308

main71990-30030iUZS141,143,145199308-199508

71940AHEADREST ASSY, REAR SEAT

main71940-30340-B0iJZS149,UZS14#..B,C; JZS149,UZS143,145..B,C199110-199308

main71940-30340-E0×2iJZS149,UZS14#..B,C; JZS149,UZS143,145..B,C199110-199308

main71940-30340-J0×2iUZS141199210-199308

DK.BLUE,TRIM8#

main71940-30341-B0×2iJZS149,UZS143,145..B,C; UZS141199308-199408

main71940-30341-E0×2iJZS149,UZS143,145..B,C; UZS141199308-199408

main71940-30341-J0×2iJZS147,UZS147; JZS149,UZS141; UZS143,145199408-199508

main71940-30350-B0×2iJZS149,UZS141,143,145..B,C199110-199508

main71940-30350-E0×2iJZS149,UZS141,143,145..B,C199110-199508

main71940-30360-B0iJZS149,UZS14#..B,C199110-199308

main71940-30360-E0iJZS149,UZS14#..B,C199110-199308

main71940-30360-J0iJZS149,UZS14#..B,C199110-199308

main71940-30361-B0iUZS141,143,145199308-199508

main71940-30361-E0iUZS141,143,145199308-199508

main71940-30361-J0iUZS141,143,145199308-199508

main71940-30370-B0×2iJZS147,149,UZS143,145; UZS141199210-199308

main71940-30370-E0×2iJZS147,149,UZS143,145; UZS141199210-199308

main71940-30370-J0×2iJZS149,UZS141199110-199210

DK.BLUE,TRIM8#

main71940-30371-B0×2iJZS147,UZS147; JZS149199308-199408

main71940-30371-E0×2iJZS147,UZS147; JZS149199308-199408

main71940-30371-J0×2iJZS149199308-199408

DK.BLUE,TRIM8#

main71940-30380-B0×2iJZS145199110-199308

main71940-30380-E0×2iJZS145199110-199308

main71940-30380-J0×2iJZS145199110-199308

main71940-30381-B1×2iJZS145199308-199508

main71940-30381-E1×2iJZS145199308-199508

main71940-30381-J1×2iJZS145199308-199508

main71940-30390-B0×2iJZS141,143,145..ROY,ROYG199110-199308

SHADOW GRAY,TRIM1#

main71940-30390-E0×2iJZS141,143,145..ROY,ROYG199110-199308

QUARTZ,TRIM4#

main71940-30390-J0×2iJZS141,143,145..ROY,ROYG199110-199308

DK.BLUE,TRIM8#

main71940-30391-B2×2iJZS141,143..ROY; JZS145199308-199508

SHADOW GRAY,TRIM1#

main71940-30391-E2iJZS141,143..ROY; JZS145199308-199508

QUARTZ,TRIM4#

main71940-30391-J2×2iJZS141,143..ROY; JZS145199308-199508

DK.BLUE,TRIM8#

main71940-30400-B0×2iJZS143..ROYT199210-199308

main71940-30401-B0iJZS143..ROYT199308-199508

main71940-30410-B0×2iJZS141,LS141..SALEX199110-199308

SHADOW GRAY,TRIM1#

main71940-30410-E0×2iJZS141,LS141..SALEX199110-199308

QUARTZ,TRIM4#

main71940-30410-J0×2iJZS141,LS141..SALEX199110-199308

DK.BLUE,TRIM8#

main71940-30411-B0iJZS141,LS141..SALEX199308-199508

SHADOW GRAY,TRIM1#

main71940-30411-E0iJZS141,LS141..SALEX199308-199508

QUARTZ,TRIM4#

main71940-30411-J0iJZS141,LS141..SALEX199308-199508

DK.BLUE,TRIM8#

main71940-30450-B1iJZS141,LS141..SSL199206-199308

main71940-30450-E0iJZS141,LS141..SSL199206-199308

main71940-30450-J0iJZS141,LS141..SSL199206-199308

main71940-30451-B2iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71940-30451-E1iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71940-30451-J1iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71940-30490-B0×2iJZS141,LS141..SSL199110-199308

SHADOW GRAY,TRIM1#

main71940-30490-E0×2iJZS141,LS141..SSL199110-199308

QUARTZ,TRIM4#

main71940-30490-J0×2iJZS141,LS141..SSL199110-199308

DK.BLUE,TRIM8#

main71940-30491-B0iGS141,JZS141,LS141..SSL199308-199508

SHADOW GRAY,TRIM1#

main71940-30491-E0iGS141,JZS141,LS141..SSL199308-199508

QUARTZ,TRIM4#

main71940-30491-J0iGS141,JZS141,LS141..SSL199308-199508

DK.BLUE,TRIM8#

main71940-30550-B0iJZS147,UZS147199308-199408

SHADOW GRAY,TRIM1#

main71940-30550-E0iJZS147,UZS147199308-199408

QUARTZ,TRIM4#

main71940-30580-E0×2iJZS141,LS141..SSL199305-199307

72693HOOK, REAR SEAT CUSHION LOCK

main72693-30011×2iGS141,JZS141,143,LS141199110-199502

main72693-32020×2iJZS147,UZS147199308-199508

72802AHINGE SUB-ASSY, ARMREST CONSOLE

main72802-30020iJZS141,143,145,LS141..ROY,ROYG,ROYT,SALEX199110-199210

main72802-30030iJZS147,149,UZS14#199110-199508

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-30640-B0iJZS147; JZS149,UZS143,145199210-199308

main72830-30640-E0iJZS147; JZS149,UZS143,145199210-199308

main72830-30640-J0iJZS149,UZS141199110-199210

DK.BLUE,TRIM8#

main72830-30641-B0iJZS147,UZS147; JZS149199308-199408

main72830-30641-E0iJZS147,UZS147; JZS149199308-199408

main72830-30641-J0iUZS143,145199408-199508

DK.BLUE,TRIM8#

main72830-30650-B0iJZS149,UZS143,145..B,C199110-199308

main72830-30650-E0iJZS149,UZS143,145..B,C199110-199308

main72830-30650-J0iUZS141199205-199209

main72830-30651-B0iJZS147,UZS147; JZS149,UZS141; UZS143,145199408-199508

main72830-30651-E0iJZS149,UZS143,145..B,C; UZS141199308-199408

main72830-30651-J0iJZS147,UZS147; JZS149,UZS141; UZS143,145199408-199508

main72830-30660-B0iJZS149,UZS141,143,145..B,C199110-199508

main72830-30660-E0iJZS149,UZS141,143,145..B,C199110-199508

main72830-30680-B1iJZS147,UZS147199408-199508

SHADOW GRAY,TRIM1#

main72830-30680-E1iJZS147,UZS147199408-199508

QUARTZ,TRIM4#

main72830-30720-B1iJZS141,LS141..SALEX199110-199308

SHADOW GRAY,TRIM1#

main72830-30720-E1iJZS141,LS141..SALEX199110-199308

QUARTZ,TRIM4#

main72830-30720-J1iJZS141,LS141..SALEX199110-199308

DK.BLUE,TRIM8#

main72830-30721-B0iJZS141,LS141..SALEX199308-199508

SHADOW GRAY,TRIM1#

main72830-30721-E0iJZS141,LS141..SALEX199308-199508

QUARTZ,TRIM4#

main72830-30721-J0iJZS141,LS141..SALEX199308-199508

DK.BLUE,TRIM8#

main72830-30730-B0iJZS145199110-199308

main72830-30730-E0iJZS145199110-199308

main72830-30730-J0iJZS145199110-199308

main72830-30731-B0iJZS145199308-199508

main72830-30731-E0iJZS145199308-199508

main72830-30731-J0iJZS145199308-199508

main72830-30750-B0iJZS141,LS141..SSL199110-199308

SHADOW GRAY,TRIM1#

main72830-30750-E0iJZS141,LS141..SSL199110-199308

QUARTZ,TRIM4#

main72830-30750-J0iJZS141,LS141..SSL199110-199308

DK.BLUE,TRIM8#

main72830-30751-B0iGS141,JZS141,LS141..SSL199308-199508

SHADOW GRAY,TRIM1#

main72830-30751-E0iGS141,JZS141,LS141..SSL199308-199508

QUARTZ,TRIM4#

main72830-30751-J0iGS141,JZS141,LS141..SSL199308-199508

DK.BLUE,TRIM8#

main72830-30923-B0iJZS149,UZS14#..B,C199110-199308

main72830-30923-E0iJZS149,UZS14#..B,C199110-199308

main72830-30923-J0iJZS149,UZS14#..B,C199110-199308

main72830-30928-B0iUZS141,143,145199308-199508

main72830-30928-E0iUZS141,143,145199308-199508

main72830-30928-J0iUZS141,143,145199308-199508

main72830-3A040-B0iJZS147; UZS141199210-199308

main72830-3A040-E0iJZS147; UZS141199210-199308

main72830-3A060-B0iJZS143..ROYT199110-199210

SHADOW GRAY,TRIM1#

main72830-3A061-B0iJZS143..ROYT199308-199508

main72830-3A070-B0iJZS141,143..ROY199110-199308

SHADOW GRAY,TRIM1#

main72830-3A070-E0iJZS141,143..ROY199110-199308

QUARTZ,TRIM4#

main72830-3A070-J0iJZS141,143..ROY199110-199308

DK.BLUE,TRIM8#

main72830-3A071-B1iJZS141,143..ROY; JZS141,LS141..SALEX199308-199508

main72830-3A071-E1iJZS141,143..ROY; JZS141,LS141..SALEX199308-199508

main72830-3A071-J1iJZS141,143..ROY; JZS141,LS141..SALEX199308-199508

main72830-3A090-B0iJZS141,143..ROY; JZS145199110-199308

main72830-3A090-E0iJZS141,143..ROY; JZS145199110-199308

main72830-3A090-J0iJZS141,143..ROY; JZS145199110-199308

main72830-3A091-B2iJZS145199308-199508

SHADOW GRAY,TRIM1#

main72830-3A091-E2iJZS145199308-199508

QUARTZ,TRIM4#

main72830-3A091-J2iJZS145199308-199508

DK.BLUE,TRIM8#

main72830-3A110-B1iJZS141,143..ROYT199210-199308

SHADOW GRAY,TRIM1#

main72830-3A110-E0iJZS141,143..ROYT199210-199308

QUARTZ,TRIM4#

main72830-3A110-J0iJZS141,LS141..SSL199206-199308

main72830-3A111-B2iGS141; JZS141,LS141..SSL199502-199508

main72830-3A111-E1iGS141; JZS141,LS141..SSL199502-199508

main72830-3A111-J1iGS141; JZS141,LS141..SSL199502-199508

main72830-3A130-B0iJZS147,UZS147199308-199408

SHADOW GRAY,TRIM1#

main72830-3A130-E0iJZS147,UZS147199308-199408

QUARTZ,TRIM4#

72830BBUSH(FOR REAR SEAT CENTER ARMREST)

main90386-06002×2iGS141,JZS141,143,145,LS141199110-199508

72830CCLIP, REAR SEAT CENTER ARMREST

main90468-12070iGS141,JZS141,143,145,LS141199110-199508

8202WIRING & CLAMP

→ Go to FIG 82-02

9011906100

main90119-06100

9011908076

main90119-08076

9033325001

main90333-25001

9046816019

main90468-16019

9326954010

main93269-54010

9356754514

main93567-54514

9356754516

main93567-54516

25 parts on this diagram · 6 diagrams in section
