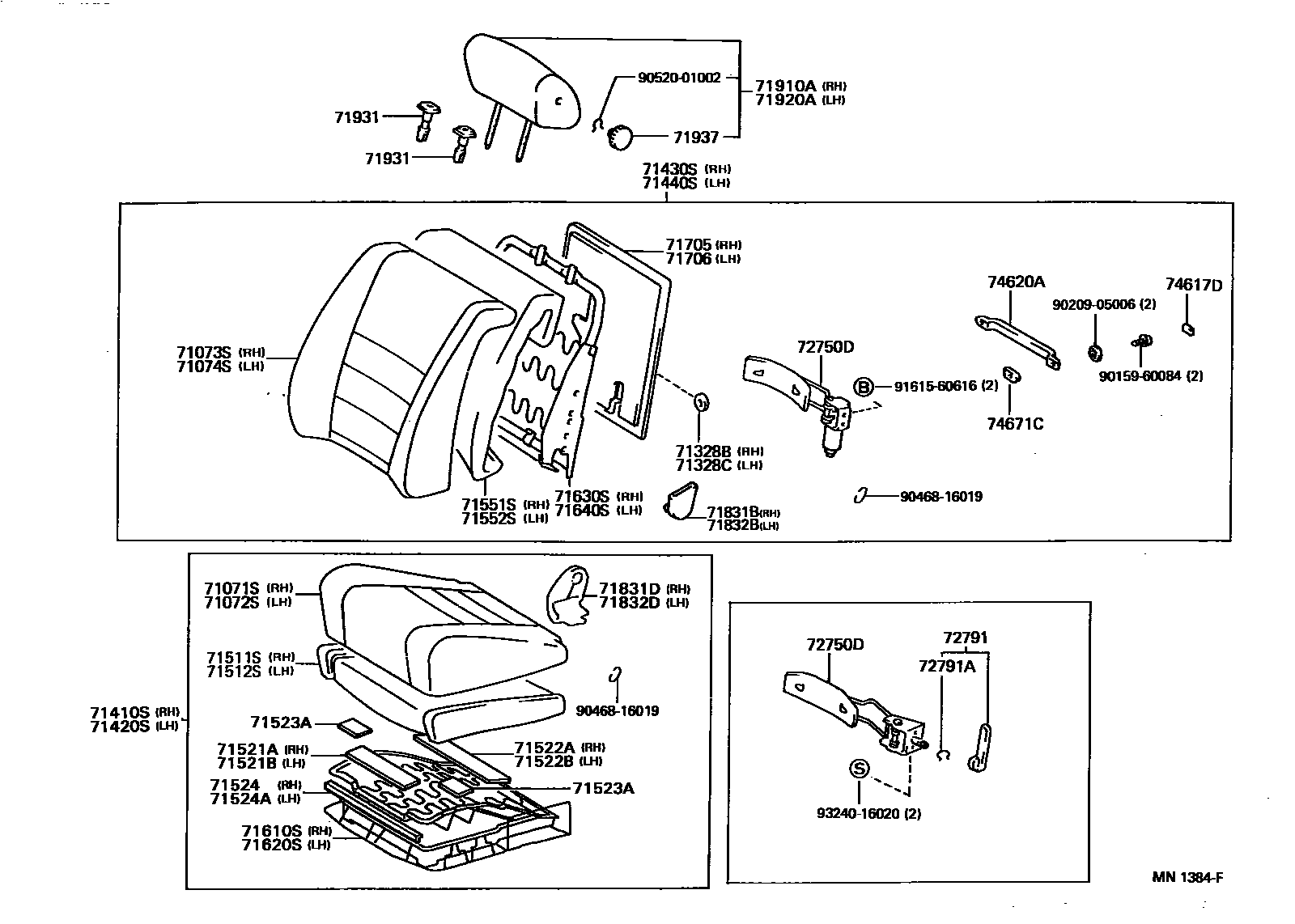

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1RH �-� 0004 1LH �-� 0005 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-3F190-B0iUZS141199110-199210

main71071-3F190-E0iUZS141199210-199308

QUARTZ,TRIM4#

main71071-3F190-J0iUZS141199210-199308

DK.BLUE,TRIM8#

main71071-3F191-B3iJZS149..B; UZS141199308-199408

main71071-3F191-E3iJZS149..B; UZS141199308-199408

main71071-3F191-J2iUZS143,145199308-199508

main71071-3F200-B0iJZS149,UZS14#..B,C199110-199308

main71071-3F200-E0iJZS149,UZS14#..B,C199110-199308

main71071-3F201-B3iJZS149,UZS141,143,145..B,C199308-199508

main71071-3F201-E3iJZS149,UZS141,143,145..B,C199308-199508

main71071-3F210-B0iJZS147,149,UZS143,145; UZS141199210-199308

main71071-3F210-E0iJZS147,149,UZS143,145; UZS141199210-199308

main71071-3F210-J0iJZS149,UZS141199110-199210

DK.BLUE,TRIM8#

main71071-3F211-B3iUZS143,145199408-199508

SHADOW GRAY,TRIM1#

main71071-3F211-E3iUZS143,145199408-199508

QUARTZ,TRIM4#

main71071-3F211-J2iJZS149,UZS143,145199308-199408

DK.BLUE,TRIM8#

main71071-3F240-B0iJZS141..ROYT199210-199308

main71071-3F240-E0iJZS141,143,145..ROY,ROYG199110-199308

QUARTZ,TRIM4#

main71071-3F240-J0iJZS141,143,145..ROY,ROYG199110-199308

DK.BLUE,TRIM8#

main71071-3F241-B3iJZS141,143..ROYT199308-199502

main71071-3F241-E2iJZS141,143,145..ROY,ROYG199308-199508

QUARTZ,TRIM4#

main71071-3F241-J2iJZS141,143,145..ROY,ROYG199308-199508

DK.BLUE,TRIM8#

main71071-3F250-B0iJZS145199110-199210

main71071-3F250-E0iJZS145199210-199308

main71071-3F250-J0iJZS145199210-199308

main71071-3F251-B2iJZS145199308-199508

main71071-3F251-E2iJZS145199308-199508

main71071-3F251-J2iJZS145199308-199508

main71071-3F260-B0iJZS141,LS141..SALEX199110-199308

SHADOW GRAY,TRIM1#

main71071-3F260-E0iJZS141,LS141..SALEX199110-199308

QUARTZ,TRIM4#

main71071-3F260-J0iJZS141,LS141..SALEX199110-199308

DK.BLUE,TRIM8#

main71071-3F261-B1iJZS141,LS141..SALEX199308-199508

SHADOW GRAY,TRIM1#

main71071-3F261-E1iJZS141,LS141..SALEX199308-199508

QUARTZ,TRIM4#

main71071-3F261-J1iJZS141,LS141..SALEX199308-199508

DK.BLUE,TRIM8#

main71071-3F280-B0iJZS141,LS141..SSL199110-199308

SHADOW GRAY,TRIM1#

main71071-3F280-E0iJZS141,LS141..SSL199110-199308

QUARTZ,TRIM4#

main71071-3F280-J0iJZS141,LS141..SSL199110-199308

DK.BLUE,TRIM8#

main71071-3F281-B2iGS141,JZS141,LS141..SSL199308-199508

SHADOW GRAY,TRIM1#

main71071-3F281-E2iGS141,JZS141,LS141..SSL199308-199508

QUARTZ,TRIM4#

main71071-3F281-J2iGS141,JZS141,LS141..SSL199308-199508

DK.BLUE,TRIM8#

main71071-3F290-B0iJZS143..ROYT199210-199308

main71071-3F291-B2iJZS143..ROYT199308-199508

main71071-3F360-B0iJZS141,143..ROYT199210-199308

SHADOW GRAY,TRIM1#

main71071-3F360-E0iJZS141,LS141..SSL199206-199308

main71071-3F360-J0iJZS141,LS141..SSL199206-199308

main71071-3F361-B2iGS141,JZS141,LS141..SALEX,SSL; JZS141,143..ROYT199308-199508

main71071-3F361-E1iGS141,JZS141,LS141..SALEX,SSL; JZS141,143..ROYT199308-199508

main71071-3F361-J1iGS141,JZS141,LS141..SALEX,SSL199308-199508

main71071-3F720-E0iJZS141,LS141..SSL199305-199307

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-3A490-B0iUZS141199210-199308

SHADOW GRAY,TRIM1#

main71072-3A490-E0iUZS141199205-199209

main71072-3A490-J0iUZS141199210-199308

DK.BLUE,TRIM8#

main71072-3A491-B3iJZS149..B; UZS141199308-199408

main71072-3A491-E3iJZS149..B; UZS141199308-199408

main71072-3A491-J2iJZS149..B; UZS141199308-199408

main71072-3A500-B0iJZS149,UZS141..B,C199110-199308

main71072-3A500-E0iJZS149,UZS141..B,C199110-199308

main71072-3A501-B3iJZS149,UZS141..B,C199308-199508

main71072-3A501-E3iJZS149,UZS141..B,C199308-199508

main71072-3A510-B0iJZS147,149; UZS141199210-199308

main71072-3A510-E0iJZS147,149; UZS141199210-199308

main71072-3A510-J0iJZS149199210-199308

DK.BLUE,TRIM8#

main71072-3A511-B3iJZS147,149,UZS147199308-199408

SHADOW GRAY,TRIM1#

main71072-3A511-E3iJZS147,149,UZS147199308-199408

QUARTZ,TRIM4#

main71072-3A511-J2iJZS149199308-199408

DK.BLUE,TRIM8#

main71072-3A560-B0iJZS143,145..4FC199210-199308

SHADOW GRAY,TRIM1#

main71072-3A560-E0iJZS141..ROY; JZS143,145..4FC199110-199308

main71072-3A560-J0iJZS141..ROY; JZS143,145..4FC199110-199308

main71072-3A561-B3iJZS141..ROY; JZS143,145..4FC199308-199508

main71072-3A561-E2iJZS141..ROY; JZS143,145..4FC199308-199508

main71072-3A561-J2iJZS141..ROY; JZS143,145..4FC199308-199508

main71072-3A570-B0iJZS145199110-199308

main71072-3A570-E0iJZS145199110-199308

main71072-3A570-J0iJZS145199110-199308

main71072-3A571-B2iJZS145199308-199508

main71072-3A571-E2iJZS145199308-199508

main71072-3A571-J2iJZS145199308-199508

main71072-3A580-B0iJZS141..ROY199110-199210

SHADOW GRAY,TRIM1#

main71072-3A580-E0iJZS143..ROY199205-199209

main71072-3A580-J0iJZS143..ROY199205-199209

main71072-3A581-B3iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71072-3A581-E2iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71072-3A581-J2iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71072-3A590-B0iJZS141,LS141..SALEX199110-199308

SHADOW GRAY,TRIM1#

main71072-3A590-E0iJZS141,LS141..SALEX199110-199308

QUARTZ,TRIM4#

main71072-3A590-J0iJZS141,LS141..SALEX199110-199308

DK.BLUE,TRIM8#

main71072-3A591-B2iJZS141,LS141..SALEX199308-199508

SHADOW GRAY,TRIM1#

main71072-3A591-E2iJZS141,LS141..SALEX199308-199508

QUARTZ,TRIM4#

main71072-3A591-J2iJZS141,LS141..SALEX199308-199508

DK.BLUE,TRIM8#

main71072-3A600-B0iJZS141,LS141..SSL199110-199308

SHADOW GRAY,TRIM1#

main71072-3A600-E0iJZS141,LS141..SSL199110-199308

QUARTZ,TRIM4#

main71072-3A600-J0iJZS141,LS141..SSL199110-199308

DK.BLUE,TRIM8#

main71072-3A601-B2iGS141,JZS141,LS141..SSL199308-199508

SHADOW GRAY,TRIM1#

main71072-3A601-E2iGS141,JZS141,LS141..SSL199308-199508

QUARTZ,TRIM4#

main71072-3A601-J2iGS141,JZS141,LS141..SSL199308-199508

DK.BLUE,TRIM8#

main71072-3A610-B0iJZS143..ROYT199210-199308

main71072-3A611-B3iJZS143..ROYT199308-199508

main71072-3A860-B0iUZS143,145199210-199308

main71072-3A860-E0iUZS143,145199210-199308

main71072-3A860-J0iUZS143,145199210-199308

main71072-3A861-B3iUZS143,145199308-199508

main71072-3A861-E3iUZS143,145199308-199508

main71072-3A861-J2iUZS143,145199308-199508

main71072-3F060-B0iUZS143,145199210-199308

main71072-3F060-E0iUZS143,145199210-199308

main71072-3F061-B3iUZS143,145199308-199508

main71072-3F061-E3iUZS143,145199308-199508

main71072-3F070-B0iUZS143,145199210-199308

SHADOW GRAY,TRIM1#

main71072-3F070-E0iUZS143,145199210-199308

QUARTZ,TRIM4#

main71072-3F070-J0iUZS143,145199210-199308

DK.BLUE,TRIM8#

main71072-3F071-B3iUZS143,145199308-199508

SHADOW GRAY,TRIM1#

main71072-3F071-E3iUZS143,145199308-199508

QUARTZ,TRIM4#

main71072-3F071-J2iUZS143,145199308-199508

DK.BLUE,TRIM8#

main71072-3F141-B0iUZS143,145199308-199508

main71072-3F141-E1iUZS143,145199308-199508

main71072-3F141-J1iUZS143,145199308-199508

main71072-3F180-E0iJZS141,LS141..SSL199305-199307

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-3A840-B0iUZS141199110-199210

main71073-3A840-E0iUZS141199210-199308

QUARTZ,TRIM4#

main71073-3A840-J0iUZS141199205-199209

main71073-3A841-B3iJZS149..B; UZS141199308-199408

main71073-3A841-E3iJZS149..B; UZS141199308-199408

main71073-3A841-J2iJZS149..B; UZS141199308-199408

main71073-3A850-B0iJZS149,UZS14#..B,C199110-199308

main71073-3A850-E0iJZS149,UZS14#..B,C199110-199308

main71073-3A851-B3iJZS149,UZS141,143,145..B,C199308-199508

main71073-3A851-E3iJZS149,UZS141,143,145..B,C199308-199508

main71073-3A860-B0iJZS147,149,UZS143,145; UZS141199210-199308

main71073-3A860-E0iJZS149,UZS141199110-199210

QUARTZ,TRIM4#

main71073-3A860-J0iJZS149,UZS141199110-199210

DK.BLUE,TRIM8#

main71073-3A861-B3iUZS143,145199408-199508

SHADOW GRAY,TRIM1#

main71073-3A861-E3iJZS147,149,UZS145,147199308-199408

QUARTZ,TRIM4#

main71073-3A861-J2iUZS143,145199408-199508

DK.BLUE,TRIM8#

main71073-3A890-B0iJZS141..ROYT199210-199308

main71073-3A890-E0iJZS141..ROYT199210-199308

main71073-3A890-J0iJZS141,143,145..ROY,ROYG199110-199308

DK.BLUE,TRIM8#

main71073-3A891-B3iJZS141,143,145..ROY,ROYG199308-199508

SHADOW GRAY,TRIM1#

main71073-3A891-E2iJZS141..ROYT;GS141,JZS143..ROYT,SSL199502-199508

main71073-3A891-J2iGS141199502-199508

main71073-3F010-B0iJZS145199110-199210

main71073-3F010-E0iJZS145199210-199308

main71073-3F010-J0iJZS145199110-199210

main71073-3F011-B2iJZS145199308-199508

main71073-3F011-E2iJZS145199308-199508

main71073-3F011-J2iJZS145199308-199508

main71073-3F020-B0iJZS141,LS141..SALEX199110-199308

SHADOW GRAY,TRIM1#

main71073-3F020-E0iJZS141,LS141..SALEX199110-199308

QUARTZ,TRIM4#

main71073-3F020-J0iJZS141,LS141..SALEX199110-199308

DK.BLUE,TRIM8#

main71073-3F021-B1iJZS141,LS141..SALEX199308-199508

SHADOW GRAY,TRIM1#

main71073-3F021-E1iJZS141,LS141..SALEX199308-199508

QUARTZ,TRIM4#

main71073-3F021-J1iJZS141,LS141..SALEX199308-199508

DK.BLUE,TRIM8#

main71073-3F040-B0iJZS141,LS141..SSL199110-199308

SHADOW GRAY,TRIM1#

main71073-3F040-E0iJZS141,LS141..SSL199110-199308

QUARTZ,TRIM4#

main71073-3F040-J0iJZS141,LS141..SSL199110-199308

DK.BLUE,TRIM8#

main71073-3F041-B2iGS141,JZS141,LS141..SSL199308-199508

SHADOW GRAY,TRIM1#

main71073-3F041-E2iGS141,JZS141,LS141..SSL199308-199508

QUARTZ,TRIM4#

main71073-3F041-J2iGS141,JZS141,LS141..SSL199308-199508

DK.BLUE,TRIM8#

main71073-3F050-B0iJZS143..ROYT199210-199308

main71073-3F051-B2iJZS143..ROYT199308-199508

main71073-3F110-B0iJZS141,LS141..SSL199206-199308

main71073-3F110-E0iJZS141,143..ROYT199210-199308

QUARTZ,TRIM4#

main71073-3F110-J0iJZS141,LS141..SSL199206-199308

main71073-3F111-B2iGS141,JZS141,LS141..SALEX,SSL; JZS141,143..ROYT199308-199508

main71073-3F111-E1iGS141,JZS141,LS141..SALEX,SSL; JZS141,143..ROYT199308-199508

main71073-3F111-J1iGS141,JZS141,LS141..SALEX,SSL199308-199508

main71073-3F460-E0iJZS141,LS141..SSL199305-199307

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-3A400-B0iUZS141199210-199308

SHADOW GRAY,TRIM1#

main71074-3A400-E0iUZS141199210-199308

QUARTZ,TRIM4#

main71074-3A400-J0iUZS141199205-199209

main71074-3A401-B3iJZS147,149,UZS141,147; UZS143,145199408-199508

main71074-3A401-E3iJZS147,149,UZS141,147; UZS143,145199408-199508

main71074-3A401-J2iJZS149,UZS143,145..B,C; UZS141199308-199408

main71074-3A410-B0iJZS149,UZS14#..B,C199110-199308

main71074-3A410-E0iJZS149,UZS14#..B,C199110-199308

main71074-3A411-B3iJZS149,UZS141,143,145..B,C199308-199508

main71074-3A411-E3iJZS149,UZS141,143,145..B,C199308-199508

main71074-3A420-B0iJZS147,149,UZS143,145; UZS141199210-199308

main71074-3A420-E0iJZS147,149,UZS143,145; UZS141199210-199308

main71074-3A420-J0iJZS149,UZS141199110-199210

DK.BLUE,TRIM8#

main71074-3A421-B3iUZS143,145199408-199508

SHADOW GRAY,TRIM1#

main71074-3A421-E3iUZS143,145199408-199508

QUARTZ,TRIM4#

main71074-3A421-J2iUZS143,145199408-199508

DK.BLUE,TRIM8#

main71074-3A430-B0iJZS149,UZS14#..B,C199110-199308

main71074-3A430-E0iJZS149,UZS14#..B,C199110-199308

main71074-3A430-J0iJZS149,UZS14#..B,C199110-199308

main71074-3A431-B3iUZS141,143,145199308-199508

main71074-3A431-E3iUZS141,143,145199308-199508

main71074-3A431-J2iUZS141,143,145199308-199508

main71074-3A470-B0iJZS141..ROY; JZS143,145..4FC199110-199308

main71074-3A470-E0iJZS141..ROY; JZS143,145..4FC199110-199308

main71074-3A470-J0iJZS141..ROY; JZS143,145..4FC199110-199308

main71074-3A471-B2iJZS141..ROY; JZS143,145..4FC199308-199508

main71074-3A471-E2iJZS141..ROY; JZS143,145..4FC199308-199508

main71074-3A471-J2iJZS141..ROY; JZS143,145..4FC199308-199508

main71074-3A480-B0iJZS145199110-199308

main71074-3A480-E0iJZS145199110-199308

main71074-3A480-J0iJZS145199110-199308

main71074-3A481-B2iJZS145199308-199508

main71074-3A481-E2iJZS145199308-199508

main71074-3A481-J2iJZS145199308-199508

main71074-3A490-B0iJZS141..ROY199110-199210

SHADOW GRAY,TRIM1#

main71074-3A490-E0iJZS143..ROYT;JZS141..ROY,ROYT199210-199308

QUARTZ,TRIM4#

main71074-3A490-J0iJZS141,LS141..SSL199206-199308

main71074-3A491-B2iGS141,JZS141,LS141..SALEX,SSL199308-199502

main71074-3A491-E1iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71074-3A491-J1iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71074-3A500-B0iJZS141,LS141..SALEX199110-199308

SHADOW GRAY,TRIM1#

main71074-3A500-E0iJZS141,LS141..SALEX199110-199308

QUARTZ,TRIM4#

main71074-3A500-J0iJZS141,LS141..SALEX199110-199308

DK.BLUE,TRIM8#

main71074-3A501-B1iJZS141,LS141..SALEX199308-199508

SHADOW GRAY,TRIM1#

main71074-3A501-E1iJZS141,LS141..SALEX199308-199508

QUARTZ,TRIM4#

main71074-3A501-J1iJZS141,LS141..SALEX199308-199508

DK.BLUE,TRIM8#

main71074-3A510-B0iJZS141,LS141..SSL199110-199308

SHADOW GRAY,TRIM1#

main71074-3A510-E0iJZS141,LS141..SSL199110-199308

QUARTZ,TRIM4#

main71074-3A510-J0iJZS141,LS141..SSL199110-199308

DK.BLUE,TRIM8#

main71074-3A511-B2iGS141,JZS141,LS141..SSL199308-199508

SHADOW GRAY,TRIM1#

main71074-3A511-E2iGS141,JZS141,LS141..SSL199308-199508

QUARTZ,TRIM4#

main71074-3A511-J2iGS141,JZS141,LS141..SSL199308-199508

DK.BLUE,TRIM8#

main71074-3A520-B0iJZS143..ROYT199110-199210

SHADOW GRAY,TRIM1#

main71074-3A521-B2iJZS143..ROYT199308-199508

main71074-3F050-E0iJZS141,LS141..SSL199305-199307

71328BWASHER, FRONT SEATBACK POCKET SETTING, RH

main71328-30010×2iGS141,JZS141,143,145,LS141199110-199508

71328CWASHER, FRONT SEATBACK POCKET SETTING, LH

main71328-30010×2iGS141,JZS141,143,145,LS141199110-199508

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-3F360-B0iJZS149..B; UZS141199110-199308

main71410-3F360-E0iJZS149..B; UZS141199110-199308

main71410-3F360-J0iJZS149..B; UZS141199110-199308

main71410-3F361-B3iJZS149..B199308-199408

main71410-3F361-E3iUZS141; UZS143,145199308-199508

main71410-3F361-J2iUZS141; UZS143,145199308-199508

main71410-3F370-B0iJZS149,UZS14#..B,C199110-199308

main71410-3F370-E0iJZS149,UZS14#..B,C199110-199308

main71410-3F371-B3iJZS149,UZS141,143,145..B,C199308-199508

main71410-3F371-E3iJZS149,UZS141,143,145..B,C199308-199508

main71410-3F380-B0iJZS149..B199110-199308

main71410-3F380-E0iUZS141199210-199308

***,QUARTZ,TRIM4#

main71410-3F380-J0iJZS149..B199110-199308

main71410-3F381-B3iJZS147,149,UZS141,147199408-199508

***,SHADOW GRAY,TRIM1#

main71410-3F381-E3iJZS147,149,UZS141,147199408-199508

***,QUARTZ,TRIM4#

main71410-3F381-J2iUZS141199308-199408

***,DK.BLUE,TRIM8#

main71410-3F390-B0iJZS147,149,UZS143199110-199308

***,SHADOW GRAY,TRIM1#

main71410-3F390-E0iJZS147,149,UZS143199110-199308

***,QUARTZ,TRIM4#

main71410-3F390-J0iJZS149,UZS143199110-199308

***,DK.BLUE,TRIM8#

main71410-3F391-B3iUZS143199408-199508

***,SHADOW GRAY,TRIM1#

main71410-3F391-E3iUZS143199408-199508

***,QUARTZ,TRIM4#

main71410-3F391-J2iUZS143199408-199508

***,DK.BLUE,TRIM8#

main71410-3F420-B0iJZS141,143,145..ROY,ROYG199110-199308

***,SHADOW GRAY,TRIM1#

main71410-3F420-E0iJZS141..ROYT199210-199308

main71410-3F420-J0iJZS141,143,145..ROY,ROYG199110-199308

***,DK.BLUE,TRIM8#

main71410-3F421-B3iJZS141,143,145..ROY,ROYG199308-199508

***,SHADOW GRAY,TRIM1#

main71410-3F421-E2iJZS141..ROYT;GS141,JZS143..ROYT,SSL199502-199508

main71410-3F421-J2iJZS141,143,145..ROY,ROYG199308-199508

***,DK.BLUE,TRIM8#

main71410-3F430-B0iJZS145199210-199308

main71410-3F430-E0iJZS145199110-199210

main71410-3F430-J0iJZS145199110-199210

main71410-3F431-B2iJZS145199308-199508

main71410-3F431-E2iJZS145199308-199508

main71410-3F431-J2iJZS145199308-199508

main71410-3F450-B0iJZS141,LS141..SALEX199110-199308

***,SHADOW GRAY,TRIM1#

main71410-3F450-E0iJZS141,LS141..SALEX199110-199308

***,QUARTZ,TRIM4#

main71410-3F450-J0iJZS141,LS141..SALEX199110-199308

***,DK.BLUE,TRIM8#

main71410-3F451-B1iJZS141,LS141..SALEX199308-199508

***,SHADOW GRAY,TRIM1#

main71410-3F451-E1iJZS141,LS141..SALEX199308-199508

***,QUARTZ,TRIM4#

main71410-3F451-J1iJZS141,LS141..SALEX199308-199508

***,DK.BLUE,TRIM8#

main71410-3F460-B0iJZS141,LS141..SALEX199110-199308

main71410-3F460-E0iJZS141,LS141..SALEX199110-199308

main71410-3F460-J0iJZS141,LS141..SALEX199110-199308

main71410-3F470-B0iJZS141,LS141..SSL199110-199308

***,SHADOW GRAY,TRIM1#

main71410-3F470-E0iJZS141,LS141..SSL199110-199308

***,QUARTZ,TRIM4#

main71410-3F470-J0iJZS141,LS141..SSL199110-199308

***,DK.BLUE,TRIM8#

main71410-3F471-B2iGS141,JZS141,LS141..SSL199308-199508

***,SHADOW GRAY,TRIM1#

main71410-3F471-E2iGS141,JZS141,LS141..SSL199308-199508

***,QUARTZ,TRIM4#

main71410-3F471-J2iGS141,JZS141,LS141..SSL199308-199508

***,DK.BLUE,TRIM8#

main71410-3F810-B0iJZS143..ROYT199110-199210

***,SHADOW GRAY,TRIM1#

main71410-3F811-B2iJZS143..ROYT199308-199508

main71410-3F860-B0iUZS145199210-199308

***,SHADOW GRAY,TRIM1#

main71410-3F860-E0iUZS141199110-199210

***,QUARTZ,TRIM4#

main71410-3F860-J0iUZS141199110-199210

***,DK.BLUE,TRIM8#

main71410-3F861-B3iUZS145199308-199508

***,SHADOW GRAY,TRIM1#

main71410-3F861-E3iUZS145199308-199508

***,QUARTZ,TRIM4#

main71410-3F861-J2iUZS145199308-199508

***,DK.BLUE,TRIM8#

main71410-3F890-B0iJZS141,143..ROYT199210-199308

***,SHADOW GRAY,TRIM1#

main71410-3F890-E0iJZS141,LS141..SSL199206-199308

main71410-3F890-J0iJZS141,LS141..SSL199206-199308

main71410-3F891-B2iGS141,JZS141,LS141..SALEX,SSL; JZS141,143..ROYT199308-199508

main71410-3F891-E1iGS141,JZS141,LS141..SALEX,SSL; JZS141,143..ROYT199308-199508

main71410-3F891-J1iGS141,JZS141,LS141..SALEX,SSL199308-199508

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-3A540-B0iUZS141199210-199308

***,SHADOW GRAY,TRIM1#

main71420-3A540-E0iJZS149..B199110-199308

main71420-3A540-J0iUZS141199210-199308

***,DK.BLUE,TRIM8#

main71420-3A541-B3iJZS149..B; UZS141199308-199408

main71420-3A541-E3iJZS147,149,UZS141,147199408-199508

***,QUARTZ,TRIM4#

main71420-3A541-J2iJZS149..B; UZS141199308-199408

main71420-3A550-B0iJZS149,UZS141..B,C199110-199308

main71420-3A550-B3iJZS149,UZS141..B,C199308-199508

main71420-3A550-E0iJZS149,UZS141..B,C199110-199308

main71420-3A550-E3iJZS149,UZS141..B,C199308-199508

main71420-3A560-B0iJZS149,UZS141..B,C199110-199308

main71420-3A560-E0iJZS149,UZS141..B,C199110-199308

main71420-3A560-J0iJZS149,UZS141..B,C199110-199308

main71420-3A561-B3iUZS141199308-199508

main71420-3A561-E3iUZS141199308-199508

main71420-3A561-J2iUZS141199308-199508

main71420-3A570-B0iJZS147,149; UZS141199210-199308

main71420-3A570-E0iJZS147,149; UZS141199210-199308

main71420-3A570-J0iJZS149,UZS141199110-199210

***,DK.BLUE,TRIM8#

main71420-3A571-B3iJZS147,149,UZS147199308-199408

***,SHADOW GRAY,TRIM1#

main71420-3A571-E3iJZS147,149,UZS147199308-199408

***,QUARTZ,TRIM4#

main71420-3A571-J2iJZS149199308-199408

***,DK.BLUE,TRIM8#

main71420-3A630-B0iJZS141..ROY; JZS143,145..4FC199110-199308

main71420-3A630-E0iJZS141..ROY; JZS143,145..4FC199110-199308

main71420-3A630-J0iJZS141..ROY; JZS143,145..4FC199110-199308

main71420-3A631-B3iJZS141..ROY; JZS143,145..4FC199308-199508

main71420-3A631-E2iJZS141..ROY; JZS143,145..4FC199308-199508

main71420-3A631-J2iJZS141..ROY; JZS143,145..4FC199308-199508

main71420-3A640-B0iJZS145199110-199308

main71420-3A640-E0iJZS145199110-199308

main71420-3A640-J0iJZS145199110-199308

main71420-3A641-B2iJZS145199308-199508

main71420-3A641-E2iJZS145199308-199508

main71420-3A641-J2iJZS145199308-199508

main71420-3A650-B0iJZS141,LS141..SSL199206-199308

main71420-3A650-E0iJZS141,LS141..SSL199206-199308

main71420-3A650-J0iJZS141,LS141..SSL199206-199308

main71420-3A651-B2iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71420-3A651-E1iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71420-3A651-J1iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71420-3A660-B0iJZS141,LS141..ROY,SALEX199110-199308

***,SHADOW GRAY,TRIM1#

main71420-3A660-E0iJZS141,LS141..ROY,SALEX199110-199308

***,QUARTZ,TRIM4#

main71420-3A660-J0iJZS141,LS141..ROY,SALEX199110-199308

***,DK.BLUE,TRIM8#

main71420-3A661-B2iJZS141,LS141..SALEX199308-199508

***,SHADOW GRAY,TRIM1#

main71420-3A661-E2iJZS141,LS141..SALEX199308-199508

***,QUARTZ,TRIM4#

main71420-3A661-J2iJZS141,LS141..SALEX199308-199508

***,DK.BLUE,TRIM8#

main71420-3A670-B0iJZS141,LS141..SSL199110-199308

***,SHADOW GRAY,TRIM1#

main71420-3A670-E0iJZS141,LS141..SSL199110-199308

***,QUARTZ,TRIM4#

main71420-3A670-J0iJZS141,LS141..SSL199110-199308

***,DK.BLUE,TRIM8#

main71420-3A671-B2iGS141,JZS141,LS141..SSL199308-199508

***,SHADOW GRAY,TRIM1#

main71420-3A671-E2iGS141,JZS141,LS141..SSL199308-199508

***,QUARTZ,TRIM4#

main71420-3A671-J2iGS141,JZS141,LS141..SSL199308-199508

***,DK.BLUE,TRIM8#

main71420-3F080-B0iJZS143..ROYT199110-199210

***,SHADOW GRAY,TRIM1#

main71420-3F081-B3iJZS143..ROYT199308-199508

main71420-3F130-B0iUZS143,145199210-199308

main71420-3F130-E0iUZS143,145199210-199308

main71420-3F130-J0iUZS143,145199210-199308

main71420-3F131-B3iUZS143,145199308-199508

main71420-3F131-E3iUZS143,145199308-199508

main71420-3F131-J2iUZS143,145199308-199508

main71420-3F140-B0iUZS143,145199210-199308

main71420-3F140-E0iUZS143,145199210-199308

main71420-3F141-B3iUZS143,145199308-199508

main71420-3F141-E3iUZS143,145199308-199508

main71420-3F150-B0iUZS143,145199210-199308

***,SHADOW GRAY,TRIM1#

main71420-3F150-E0iUZS143,145199210-199308

***,QUARTZ,TRIM4#

main71420-3F150-J0iUZS143,145199210-199308

***,DK.BLUE,TRIM8#

main71420-3F151-B3iUZS143,145199308-199508

***,SHADOW GRAY,TRIM1#

main71420-3F151-E3iUZS143,145199308-199508

***,QUARTZ,TRIM4#

main71420-3F151-J2iUZS143,145199308-199508

***,DK.BLUE,TRIM8#

main71420-3F190-B0iUZS143,145199210-199308

main71420-3F190-E0iUZS143,145199210-199308

main71420-3F190-J0iUZS143,145199210-199308

main71420-3F191-B3iUZS143,145199308-199508

main71420-3F191-E3iUZS143,145199308-199508

main71420-3F191-J2iUZS143,145199308-199508

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-3F820-B0iJZS149,UZS143,145..B,C199110-199308

main71430-3F820-E0iUZS141199210-199308

***,QUARTZ,TRIM4#

main71430-3F820-J0iJZS149,UZS143,145..B,C199110-199308

main71430-3F821-B3iJZS147,149,UZS141,147; UZS143,145199408-199508

main71430-3F821-E3iJZS147,149,UZS141,147; UZS143,145199408-199508

main71430-3F821-J2iJZS147,149,UZS141,147; UZS143,145199408-199508

main71430-3F830-B0iJZS149,UZS14#..B,C199110-199308

main71430-3F830-E0iJZS149,UZS14#..B,C199110-199308

main71430-3F831-B3iJZS149,UZS141,143,145..B,C199308-199508

main71430-3F831-E3iJZS149,UZS141,143,145..B,C199308-199508

main71430-3F870-B0iJZS141,143,145..ROY,ROYG199110-199308

***,SHADOW GRAY,TRIM1#

main71430-3F870-E0iJZS141,143,145..ROY,ROYG199110-199308

***,QUARTZ,TRIM4#

main71430-3F870-J0iJZS141,143,145..ROY,ROYG199110-199308

***,DK.BLUE,TRIM8#

main71430-3F871-B2iJZS141,143,145..ROY,ROYG199308-199508

***,SHADOW GRAY,TRIM1#

main71430-3F871-E2iJZS141,143,145..ROY,ROYG199308-199508

***,QUARTZ,TRIM4#

main71430-3F871-J2iJZS141,143,145..ROY,ROYG199308-199508

***,DK.BLUE,TRIM8#

main71430-3F880-B0iJZS145199110-199210

main71430-3F880-E0iJZS145199110-199210

main71430-3F880-J0iJZS145199110-199210

main71430-3F881-B2iJZS145199308-199508

main71430-3F881-E2iJZS145199308-199508

main71430-3F881-J2iJZS145199308-199508

main71430-3K010-B0iJZS141,LS141..SALEX199110-199308

***,SHADOW GRAY,TRIM1#

main71430-3K010-E0iJZS141,LS141..SALEX199110-199308

***,QUARTZ,TRIM4#

main71430-3K010-J0iJZS141,LS141..SALEX199110-199308

***,DK.BLUE,TRIM8#

main71430-3K011-B1iJZS141,LS141..SALEX199308-199508

***,SHADOW GRAY,TRIM1#

main71430-3K011-E1iJZS141,LS141..SALEX199308-199508

***,QUARTZ,TRIM4#

main71430-3K011-J1iJZS141,LS141..SALEX199308-199508

***,DK.BLUE,TRIM8#

main71430-3K030-B0iJZS141,LS141..SSL199110-199308

***,SHADOW GRAY,TRIM1#

main71430-3K030-E0iJZS141,LS141..SSL199110-199308

***,QUARTZ,TRIM4#

main71430-3K030-J0iJZS141,LS141..SSL199110-199308

***,DK.BLUE,TRIM8#

main71430-3K031-B2iGS141,JZS141,LS141..SSL199308-199508

***,SHADOW GRAY,TRIM1#

main71430-3K031-E2iGS141,JZS141,LS141..SSL199308-199508

***,QUARTZ,TRIM4#

main71430-3K031-J2iGS141,JZS141,LS141..SSL199308-199508

***,DK.BLUE,TRIM8#

main71430-3K350-B0iJZS143..ROYT199110-199210

***,SHADOW GRAY,TRIM1#

main71430-3K351-B2iJZS143..ROYT199308-199508

main71430-3K370-B0iJZS147,149,UZS143,145; UZS141199210-199308

main71430-3K370-E0iJZS147,149,UZS143,145; UZS141199210-199308

main71430-3K370-J0iJZS149,UZS141199110-199210

***,DK.BLUE,TRIM8#

main71430-3K371-B3iJZS147,149,UZS143,145,147199308-199408

***,SHADOW GRAY,TRIM1#

main71430-3K371-E3iUZS143,145199408-199508

***,QUARTZ,TRIM4#

main71430-3K371-J2iUZS143,145199408-199508

***,DK.BLUE,TRIM8#

main71430-3K540-B0iJZS149..B199110-199308

main71430-3K540-E0iJZS149..B199110-199308

main71430-3K540-J0iJZS149..B199110-199308

main71430-3K550-B0iUZS14#199110-199308

main71430-3K550-E0iUZS14#199110-199308

main71430-3K550-J0iUZS14#199110-199308

main71430-3K551-B3iUZS141,143,145199308-199508

main71430-3K551-E3iUZS141,143,145199308-199508

main71430-3K551-J2iUZS141,143,145199308-199508

main71430-3K600-B0iJZS141,143..ROYT199210-199308

***,SHADOW GRAY,TRIM1#

main71430-3K600-E0iJZS141,143..ROYT199210-199308

***,QUARTZ,TRIM4#

main71430-3K600-J0iJZS141,LS141..SSL199206-199308

main71430-3K601-B2iGS141,JZS141,LS141..SALEX,SSL; JZS141,143..ROYT199308-199508

main71430-3K601-E1iGS141,JZS141,LS141..SALEX,SSL; JZS141,143..ROYT199308-199508

main71430-3K601-J1iGS141,JZS141,LS141..SALEX,SSL199308-199508

main71430-3K610-B0iJZS141..ROYT199210-199308

main71430-3K610-E0iJZS141..ROYT199210-199308

main71430-3K611-B2iJZS141,143..ROYT199308-199502

main71430-3K611-E1iJZS141,143..ROYT199308-199502

main71430-3K611-J0iGS141199502-199508

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-3F680-B0iJZS149,UZS143,145..B,C199110-199308

main71440-3F680-E0iUZS141199210-199308

***,QUARTZ,TRIM4#

main71440-3F680-J0iUZS141199210-199308

***,DK.BLUE,TRIM8#

main71440-3F681-B3iJZS149,UZS143,145..B,C; UZS141199308-199408

main71440-3F681-E3iJZS147,149,UZS141,147; UZS143,145199408-199508

main71440-3F681-J2iJZS149,UZS143,145..B,C; UZS141199308-199408

main71440-3F690-B0iJZS149,UZS14#..B,C199110-199308

main71440-3F690-E0iJZS149,UZS14#..B,C199110-199308

main71440-3F691-B3iJZS149,UZS141,143,145..B,C199308-199508

main71440-3F691-E3iJZS149,UZS141,143,145..B,C199308-199508

main71440-3F700-B0iJZS149,UZS14#..B,C199110-199308

main71440-3F700-E0iJZS149,UZS14#..B,C199110-199308

main71440-3F700-J0iJZS149,UZS14#..B,C199110-199308

main71440-3F701-B3iUZS141,143,145199308-199508

main71440-3F701-E3iUZS141,143,145199308-199508

main71440-3F701-J2iUZS141,143,145199308-199508

main71440-3F710-B0iJZS147,149,UZS143,145; UZS141199210-199308

main71440-3F710-E0iJZS147,149,UZS143,145; UZS141199210-199308

main71440-3F710-J0iJZS149,UZS141199110-199210

***,DK.BLUE,TRIM8#

main71440-3F711-B3iUZS143,145199408-199508

***,SHADOW GRAY,TRIM1#

main71440-3F711-E3iUZS143,145199408-199508

***,QUARTZ,TRIM4#

main71440-3F711-J2iUZS143,145199408-199508

***,SHADOW GRAY,TRIM8#

main71440-3F750-B0iJZS141..ROY; JZS143,145..4FC199110-199308

main71440-3F750-E0iJZS141..ROY; JZS143,145..4FC199110-199308

main71440-3F750-J0iJZS141..ROY; JZS143,145..4FC199110-199308

main71440-3F751-B2iJZS141..ROY; JZS143,145..4FC199308-199508

main71440-3F751-E2iJZS141..ROY; JZS143,145..4FC199308-199508

main71440-3F751-J2iJZS141..ROY; JZS143,145..4FC199308-199508

main71440-3F760-B0iJZS145199110-199308

main71440-3F760-E0iJZS145199110-199308

main71440-3F760-J0iJZS145199110-199308

main71440-3F761-B2iJZS145199308-199508

main71440-3F761-E2iJZS145199308-199508

main71440-3F761-J2iJZS145199308-199508

main71440-3F780-B0iJZS141..ROY199110-199308

***,SHADOW GRAY,TRIM1#

main71440-3F780-E0iJZS141..ROY199110-199308

***,QUARTZ,TRIM4#

main71440-3F780-J0iJZS141..ROY199110-199308

***,DK.BLUE,TRIM8#

main71440-3F781-B1iJZS141..ROY199308-199508

***,SHADOW GRAY,TRIM1#

main71440-3F781-E1iJZS141..ROY199308-199508

***,QUARTZ,TRIM4#

main71440-3F781-J1iJZS141..ROY199308-199508

***,DK.BLUE,TRIM8#

main71440-3F790-B0iJZS141,LS141..SALEX199110-199308

***,SHADOW GRAY,TRIM1#

main71440-3F790-E0iJZS141,LS141..SALEX199110-199308

***,QUARTZ,TRIM4#

main71440-3F790-J0iJZS141,LS141..SALEX199110-199308

***,DK.BLUE,TRIM8#

main71440-3F791-B1iJZS141,LS141..SALEX199308-199508

***,SHADOW GRAY,TRIM1#

main71440-3F791-E1iJZS141,LS141..SALEX199308-199508

***,QUARTZ,TRIM4#

main71440-3F791-J1iJZS141,LS141..SALEX199308-199508

***,DK.BLUE,TRIM8#

main71440-3F810-B0iJZS141,LS141..SSL199110-199308

***,SHADOW GRAY,TRIM1#

main71440-3F810-E0iJZS141,LS141..SSL199110-199308

***,QUARTZ,TRIM4#

main71440-3F810-J0iJZS141,LS141..SSL199110-199308

***,DK.BLUE,TRIM8#

main71440-3F811-B2iGS141,JZS141,LS141..SSL199308-199508

***,SHADOW GRAY,TRIM1#

main71440-3F811-E2iGS141,JZS141,LS141..SSL199308-199508

***,QUARTZ,TRIM4#

main71440-3F811-J2iGS141,JZS141,LS141..SSL199308-199508

***,DK.BLUE,TRIM8#

main71440-3F880-B0iJZS141,143..ROYT199210-199308

***,SHADOW GRAY,TRIM1#

main71440-3F880-E0iJZS141,143..ROYT199210-199308

***,QUARTZ,TRIM4#

main71440-3F880-J0iJZS141,LS141..SSL199206-199308

main71440-3F881-B2iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71440-3F881-E1iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71440-3F881-J1iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71440-3K270-B0iJZS143..ROYT199110-199210

***,SHADOW GRAY,TRIM1#

main71440-3K271-B2iJZS143..ROYT199308-199508

main71440-3K300-B0iJZS141..ROY199110-199308

main71440-3K300-E0iJZS141..ROY199110-199308

main71440-3K300-J0iJZS141..ROY199110-199308

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-30780iJZS147,149,UZS14#199110-199508

main71511-30790iJZS149,UZS141,143,145..B,C199110-199508

main71511-30810iJZS141,143,145,LS141199110-199308

main71511-3A010iJZS141,143..ROYT199308-199502

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-30810iGS141,JZS141,143,145,LS141199110-199508

main71512-30440iUZS141199301-199308

main71512-30441iJZS147,149,UZS14#199308-199508

main71512-30450iJZS149,UZS14#..B,C199110-199308

main71512-30451iJZS149,UZS141,143,145..B,C199308-199508

71521APAD,FRONT SEAT CUSHION SILENCER

main71521-30280iGS141,JZS141,143,145,LS141199110-199508

71521BPAD,FRONT SEAT CUSHION SILENCER

main71521-30280×2iJZS143..ROY199205-199209

71522APAD, FRONT SEAT CUSHION SILENCER, B

main71522-30140iGS141,JZS141,143,145,LS141199110-199508

71522BPAD, FRONT SEAT CUSHION SILENCER, B

main71522-30140iJZS143..ROY199205-199209

71523APAD, FRONT SEAT CUSHION SILENCER, C

main71523-30040×2iGS141,JZS141,143,145,LS141199110-199508

71524PAD, FRONT SEAT CUSHION SILENCER, D

main71524-30060iGS141,JZS141,143,145,LS141199110-199508

71524APAD, FRONT SEAT CUSHION SILENCER, D

main71524-30060iJZS143..ROYT;GS141,JZS141,LS141199110-199508

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-30700iJZS147,149,UZS14#199110-199508

main71551-30710iJZS149,UZS141,143,145..B,C199110-199508

main71551-30730iJZS141..ROYT; JZS143..ROYT199210-199308

main71551-30760iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199210-199508

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-30760iJZS143..ROY199205-199209

main71552-30330iJZS149,UZS141,143,145..B,C199110-199508

main71552-30350iJZS149,UZS14#..B,C199110-199308

main71552-30380iJZS143,145..4FC199110-199508

main71552-30480iJZS147,149,UZS14#199110-199508

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-30600iJZS149199110-199207

main71610-30601iJZS149199207-199210

main71610-30602iJZS147,149,UZS141,143,147199212-199508

main71610-30610iJZS149..B; UZS141199110-199207

main71610-30611iUZS141; UZS143; UZS145199210-199212

main71610-30612iUZS141; UZS143; UZS145199212-199508

main71610-30670iJZS141..ROYT; JZS143..ROYT199210-199308

main71610-30680iJZS145199110-199210

main71610-30690iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199210-199508

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-30270iJZS149,UZS141..B,C199110-199207

main71620-30271iJZS149,UZS141..B,C199207-199212

main71620-30272iUZS141199308-199508

main71620-30320iJZS143,145..4FC199110-199508

main71620-30330iJZS143..ROYT;GS141,JZS141,LS141199110-199508

main71620-30340iJZS149,UZS141199110-199207

main71620-30341iJZS147,149,UZS141199207-199212

main71620-30342iUZS141199301-199308

main71620-30360iUZS143,145199210-199212

main71620-30361iUZS143,145199212-199508

main71620-30370iUZS143,145199210-199212

main71620-30371iUZS143,145199212-199508

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-3A030iJZS147,149,UZS14#199110-199508

main71630-3A160iJZS141..ROYT; JZS143..ROYT199210-199212

main71630-3A170iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199210-199508

main71630-3A200iJZS141..ROYT; JZS143..ROYT199212-199308

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-30680iUZS141199301-199308

main71640-30690iUZS141,143,145199308-199508

main71640-30840iJZS143,145..4FC199110-199508

main71640-30850iJZS141,LS141;JZS143..ROYT199110-199212

main71640-3A010iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199212-199508

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-30280-B0iJZS141,143,145,LS141199210-199308

SHADOW GRAY,TRIM1#

main71705-30280-E0iJZS141,143,145,LS141..4FC199110-199210

QUARTZ,TRIM4#

main71705-30280-J0iJZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199308

DK.BLUE,TRIM8#

main71705-30281-B2iGS141,JZS141,143,145,LS141199308-199508

SHADOW GRAY,TRIM1#

main71705-30281-E1iGS141,JZS141,143,145,LS141199308-199508

QUARTZ,TRIM4#

main71705-30281-J2iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199308-199508

DK. BLUE,TRIM8#

main71705-30350-B0iUZS141199205-199209

main71705-30350-E0iUZS141199210-199308

QUARTZ,TRIM4#

main71705-30350-J0iUZS141199205-199209

main71705-30351-B0iJZS149,UZS143,145..B,C; UZS141199308-199408

main71705-30351-E0iJZS149,UZS143,145..B,C; UZS141199308-199408

main71705-30351-J0iJZS147,149,UZS141,147; UZS143,145199408-199508

main71705-30360-B0iJZS149,UZS14#..B,C199110-199308

main71705-30360-E0iJZS149,UZS14#..B,C199110-199308

main71705-30361-B1iJZS149,UZS141,143,145..B,C199308-199508

main71705-30361-E1iJZS149,UZS141,143,145..B,C199308-199508

main71705-30370-B0iJZS147,149,UZS143,145; UZS141199210-199308

main71705-30370-E0iJZS147,149,UZS143,145; UZS141199210-199308

main71705-30370-J0iJZS149,UZS141199110-199210

DK.BLUE,TRIM8#

main71705-30371-B0iUZS143,145199408-199508

SHADOW GRAY,TRIM1#

main71705-30371-E0iUZS143,145199408-199508

QUARTZ,TRIM4#

main71705-30371-J0iJZS149,UZS143,145199308-199408

DK.BLUE,TRIM8#

main71705-30420-B0iJZS143..ROYT199110-199210

SHADOW GRAY,TRIM1#

main71705-30421-B0iJZS143..ROYT199308-199508

main71705-30450-B0iJZS149,UZS14#..B,C199110-199308

main71705-30450-E0iJZS149,UZS14#..B,C199110-199308

main71705-30450-J0iJZS149,UZS14#..B,C199110-199308

main71705-30451-B0iUZS141,143,145199308-199508

main71705-30451-E0iUZS141,143,145199308-199508

main71705-30451-J0iUZS141,143,145199308-199508

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-30280-B0iJZS141,143,145,LS141199210-199308

SHADOW GRAY,TRIM1#

main71705-30280-E0iJZS141,143,145,LS141199210-199308

QUARTZ,TRIM4#

main71705-30280-J0iJZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199308

DK.BLUE,TRIM8#

main71705-30281-B2iGS141,JZS141,143,145,LS141199308-199508

SHADOW GRAY,TRIM1#

main71705-30281-E1iGS141,JZS141,143,145,LS141199308-199508

QUARTZ,TRIM4#

main71705-30281-J2iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199308-199508

DK. BLUE,TRIM8#

main71705-30350-B0iUZS141199205-199209

main71705-30350-E0iUZS141199205-199209

main71705-30350-J0iUZS141199210-199308

DK.BLUE,TRIM8#

main71705-30351-B0iJZS149..B; UZS141199308-199408

main71705-30351-E0iJZS147,149,UZS141,147199408-199508

QUARTZ,TRIM4#

main71705-30351-J0iJZS149..B; UZS141199308-199408

main71705-30360-B0iJZS149,UZS14#..B,C199110-199308

main71705-30360-E0iJZS149,UZS14#..B,C199110-199308

main71705-30361-B1iJZS149,UZS141,143,145..B,C199308-199508

main71705-30361-E1iJZS149,UZS141,143,145..B,C199308-199508

main71705-30370-B0iJZS147,149,UZS143,145; UZS141199210-199308

main71705-30370-E0iJZS147,149,UZS143,145; UZS141199210-199308

main71705-30370-J0iJZS149,UZS141199110-199210

DK.BLUE,TRIM8#

main71705-30371-B0iJZS147,149,UZS143,145,147199308-199408

SHADOW GRAY,TRIM1#

main71705-30371-E0iJZS147,149,UZS143,145,147199308-199408

QUARTZ,TRIM4#

main71705-30371-J0iUZS143,145199408-199508

DK.BLUE,TRIM8#

main71705-30420-B0iJZS143..ROYT199210-199308

main71705-30421-B0iJZS143..ROYT199308-199508

71831BCOVER, FRONT SEAT HINGE, RH

main71831-30040-B0iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199210-199508

GRAY,TRIM1#

main71831-30040-E1iJZS141,LS141..SALEX,SSL199110-199210

QUARTZ,TRIM4#

main71831-30040-J1iGS141,JZS141,LS141..SALEX,SSL199110-199508

DK.BLUE,TRIM8#

71831DCOVER, FRONT SEAT HINGE, RH

main71831-30030-B0iJZS141,LS141..SALEX,SSL199110-199210

GRAY,TRIM1#

main71831-30030-E0iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199210-199508

QUARTZ,TRIM4#

main71831-30030-J0iGS141,JZS141,LS141..SALEX,SSL199110-199508

DK.BLUE,TRIM8#

71832BCOVER, FRONT SEAT HINGE, LH

main71832-30020-B0iJZS143..ROY199205-199209

main71832-30020-E0iJZS141,LS141199110-199210

QUARTZ,TRIM4#

main71832-30020-J0iGS141,JZS141,LS141..ROY,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

71832DCOVER, FRONT SEAT HINGE, LH

main71832-30010-B0iJZS143..ROY199205-199209

main71832-30010-E0iJZS143..ROYT;GS141,JZS141,LS141199210-199508

QUARTZ,TRIM4#

main71832-30010-J0iGS141,JZS141,LS141..ROY,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

71910AHEADREST ASSY, FRONT SEAT

main71910-30620-B0iUZS141199205-199209

main71910-30620-E0iJZS149,UZS143,145..B,C199110-199308

main71910-30620-J0iUZS141199210-199308

DK.BLUE,TRIM8#

main71910-30630-B0iJZS149,UZS14#..B,C199110-199308

main71910-30630-E0iJZS149,UZS14#..B,C199110-199308

main71910-30640-B0iJZS147,149,UZS143,145; UZS141199210-199308

main71910-30640-E0iJZS147,149,UZS143,145; UZS141199210-199308

main71910-30640-J0iJZS149,UZS141199110-199210

DK.BLUE,TRIM8#

main71910-30650-B0iJZS141,143,145..ROY,ROYG199110-199210

SHADOW GRAY,TRIM1#

main71910-30650-E0iJZS141,143,145..ROY,ROYG,ROYT199210-199308

QUARTZ,TRIM4#

main71910-30650-J0iJZS141,143,145..ROY,ROYG199110-199308

DK.BLUE,TRIM8#

main71910-30660-B0iJZS141,LS141..SALEX199110-199308

SHADOW GRAY,TRIM1#

main71910-30660-E0iJZS141,LS141..SALEX199110-199308

QUARTZ,TRIM4#

main71910-30660-J0iJZS141,LS141..SALEX199110-199308

DK.BLUE,TRIM8#

main71910-30670-B0iJZS141,LS141..SSL199110-199308

SHADOW GRAY,TRIM1#

main71910-30670-E0iJZS141,LS141..SSL199110-199308

QUARTZ,TRIM4#

main71910-30670-J0iJZS141,LS141..SSL199110-199308

DK.BLUE,TRIM8#

main71910-30680-B0iJZS143..ROYT199110-199210

SHADOW GRAY,TRIM1#

main71910-30780-B0iJZS145199110-199210

main71910-30780-E0iJZS145199210-199308

main71910-30780-J0iJZS145199110-199210

main71910-30790-B0iJZS145,149..B,ROYG; UZS141199308-199408

main71910-30790-E0iJZS145; JZS147,149,UZS141,147199408-199508

main71910-30790-J0iJZS145,149..B,ROYG; UZS141199308-199408

main71910-30800-B0iJZS149,UZS141,143,145..B,C199308-199508

main71910-30800-E0iJZS149,UZS141,143,145..B,C199308-199508

main71910-30810-B0iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71910-30810-E0iGS141,JZS141,LS141..SALEX,SSL199308-199502

main71910-30810-J0iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71910-30820-B0iJZS141,LS141..SALEX199308-199508

SHADOW GRAY,TRIM1#

main71910-30820-E0iJZS141,LS141..SALEX199308-199508

QUARTZ,TRIM4#

main71910-30820-J0iJZS141,LS141..SALEX199308-199508

DK.BLUE,TRIM8#

main71910-30830-B0iJZS143..ROYT199308-199508

main71910-30840-B0iGS141,JZS141,LS141..SSL199308-199508

SHADOW GRAY,TRIM1#

main71910-30840-E0iGS141,JZS141,LS141..SSL199308-199508

QUARTZ,TRIM4#

main71910-30840-J0iGS141,JZS141,LS141..SSL199308-199508

DK.BLUE,TRIM8#

main71910-30850-E0iJZS141,LS141..SSL199305-199307

71920AHEADREST ASSY, FRONT SEAT, LH

main71910-30790-B0iJZS145,149,UZS143,145..B,C,ROYG; UZS141199308-199408

main71910-30790-E0iJZS145,149,UZS143,145..B,C,ROYG; UZS141199308-199408

main71910-30790-J0iJZS145,149,UZS143,145..B,C,ROYG; UZS141199308-199408

main71910-30800-B0iJZS149,UZS141,143,145..B,C199308-199508

main71910-30800-E0iJZS149,UZS141,143,145..B,C199308-199508

main71910-30810-B0iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71910-30810-E0iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71910-30810-J0iGS141; JZS141,LS141..SALEX,SSL199502-199508

main71910-30820-B0iJZS141,LS141..SALEX199308-199508

SHADOW GRAY,TRIM1#

main71910-30820-E0iJZS141,LS141..SALEX199308-199508

QUARTZ,TRIM4#

main71910-30820-J0iJZS141,LS141..SALEX199308-199508

DK.BLUE,TRIM8#

main71910-30830-B0iJZS143..ROYT199308-199508

main71910-30840-B0iGS141,JZS141,LS141..SSL199308-199508

SHADOW GRAY,TRIM1#

main71910-30840-E0iGS141,JZS141,LS141..SSL199308-199508

QUARTZ,TRIM4#

main71910-30840-J0iGS141,JZS141,LS141..SSL199308-199508

DK.BLUE,TRIM8#

main71920-30400-B0iUZS141199210-199308

SHADOW GRAY,TRIM1#

main71920-30400-E0iJZS149,UZS143,145..B,C199110-199308

main71920-30400-J0iUZS141199205-199209

main71920-30410-B0iJZS149,UZS14#..B,C199110-199308

main71920-30410-E0iJZS149,UZS14#..B,C199110-199308

main71920-30420-B0iJZS149,UZS14#..B,C199110-199308

main71920-30420-E0iJZS149,UZS14#..B,C199110-199308

main71920-30420-J0iJZS149,UZS14#..B,C199110-199308

main71920-30430-B0iJZS147,149,UZS143,145; UZS141199210-199308

main71920-30430-E0iJZS149,UZS141199110-199210

QUARTZ,TRIM4#

main71920-30430-J0iJZS149,UZS143,145199210-199308

DK.BLUE,TRIM8#

main71920-30440-B0iJZS141,143,145..ROY,ROYG199110-199210

SHADOW GRAY,TRIM1#

main71920-30440-E0iJZS141,143,145..ROY,ROYG199110-199210

QUARTZ,TRIM4#

main71920-30440-J0iJZS141,LS141..SSL199206-199308

main71920-30450-B0iJZS141,LS141..SALEX199110-199308

SHADOW GRAY,TRIM1#

main71920-30450-E0iJZS141,LS141..SALEX199110-199308

QUARTZ,TRIM4#

main71920-30450-J0iJZS141,LS141..SALEX199110-199308

DK.BLUE,TRIM8#

main71920-30460-B0iJZS141,LS141..SSL199110-199308

SHADOW GRAY,TRIM1#

main71920-30460-E0iJZS141,LS141..SSL199110-199308

QUARTZ,TRIM4#

main71920-30460-J0iJZS141,LS141..SSL199110-199308

DK.BLUE,TRIM8#

main71920-30470-B0iJZS143..ROYT199210-199308

main71920-30570-B0iJZS145199110-199308

main71920-30570-E0iJZS145199110-199308

main71920-30570-J0iJZS145199110-199308

main71920-30590-B0iUZS141,143,145199308-199508

main71920-30590-E0iUZS141,143,145199308-199508

main71920-30590-J0iUZS141,143,145199308-199508

main71920-30600-E0iJZS141,LS141..SSL199305-199307

71931SUPPORT, FRONT SEAT HEADREST

main71930-12070-B2iGS141,JZS14#,LS141,UZS14#199110-199508

main71930-12070-E0iGS141,JZS14#,LS141,UZS14#199210-199508

main71930-12070-J0iGS141,JZS141,143,145,149,LS141,UZS141,143,145..A,B,C,ROY,ROYG,SALEX,SSL199110-199408

main71931-12040-B2iGS141,JZS14#,LS141,UZS14#199110-199508

main71931-12040-E0iJZS14#,LS141,UZS141..4FC199110-199210

main71931-12040-J0iGS141,JZS141,143,145,149,LS141,UZS141,143,145..A,B,C,ROY,ROYG,SALEX,SSL199110-199408

71937HANDLE, FRONT SEAT HEADREST REGULATOR

main71937-30010-B0iJZS14#,LS141,UZS14#199110-199308

GRAY,TRIM1#

main71937-30010-E0iJZS14#,LS141,UZS141..4FC199110-199210

QUARTZ,TRIM4#

main71937-30010-J0iJZS141,143,145,149,LS141,UZS14#..A,B,C,ROY,ROYG,SALEX,SSL199110-199308

DK.BLUE,TRIM8#

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-30120iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199210-199407

main72750-30121iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199407-199508

main72750-30160iJZS147,149,UZS14#199110-199508

main72750-30200iJZS141,143,145..ROY,ROYG,ROYT199110-199210

72791LEVER, LUMBAR SUPPORT

main72791-22020-B4iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199210-199508

GRAY,TRIM1#

main72791-22020-E5iJZS141,LS141..SALEX,SSL199110-199210

QUARTZ,TRIM4#

main72791-22020-J1iGS141,JZS141,LS141..SALEX,SSL199110-199508

DARK BLUE,TRIM8#

72791ARING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)

main90520-01002iJZS141,LS141..SALEX,SSL199110-199210

74617DPLUG, ASSIST GRIP

main74617-30020-B2×2iJZS141,143,145..ROY,ROYG199308-199508

GRAY,TRIM1#

main74617-30020-E0×2iJZS141,143,145..ROY,ROYG199308-199508

QUARTZ,TRIM4#

main74617-30020-J0×2iJZS141,143,145..ROY,ROYG199308-199508

DK.BLUE,TRIM8#

main74637-30010-B0iJZS14#,UZS14#..A,B,C,ROY,ROYG199110-199308

main74637-30010-E0iJZS14#,UZS14#..A,B,C,ROY,ROYG199110-199308

main74637-30010-J0iJZS147,149,UZS14#199408-199508

main74638-30010-B0iJZS147,149,UZS14#199308-199508

main74638-30010-E0iJZS147,149,UZS14#199308-199508

main74638-30010-J0iJZS149,UZS141,143,145199308-199408

74620AGRIP ASSY, ASSIST, REAR

main74620-30050-B1iJZS141,143,145..ROY,ROYG199308-199508

GRAY,TRIM1#

main74620-30050-E0iJZS141,143,145..ROY,ROYG199308-199508

QUARTZ,TRIM4#

main74620-30050-J0iJZS141,143,145..ROY,ROYG199308-199508

DK.BLUE,TRIM8#

main74620-30090-B0×2iJZS14#,UZS14#..A,B,C,ROY,ROYG199110-199308

GRAY,TRIM1#

main74620-30090-E0iJZS147,149,UZS143,145,147; UZS141199308-199408

main74620-30090-J0×2iJZS141,143,145,149,UZS14#..A,B,C,ROY,ROYG199110-199308

DK.BLUE,TRIM8#

74671CSUPPORT, ASSIST GRIP

main71183-30040iJZS14#,UZS14#..A,B,C,ROY,ROYG199110-199303

main71184-30040iJZS14#,UZS14#..A,B,C,ROY,ROYG199110-199303

main74671-30010×2iJZS141,143,145..ROY,ROYG199308-199508

9015960084

main90159-60084

9020905006

main90209-05006

9046816019

main90468-16019

9052001002

main90520-01002

9161560616

main91615-60616

9324016020

main93240-16020

47 parts on this diagram · 5 diagrams in section
