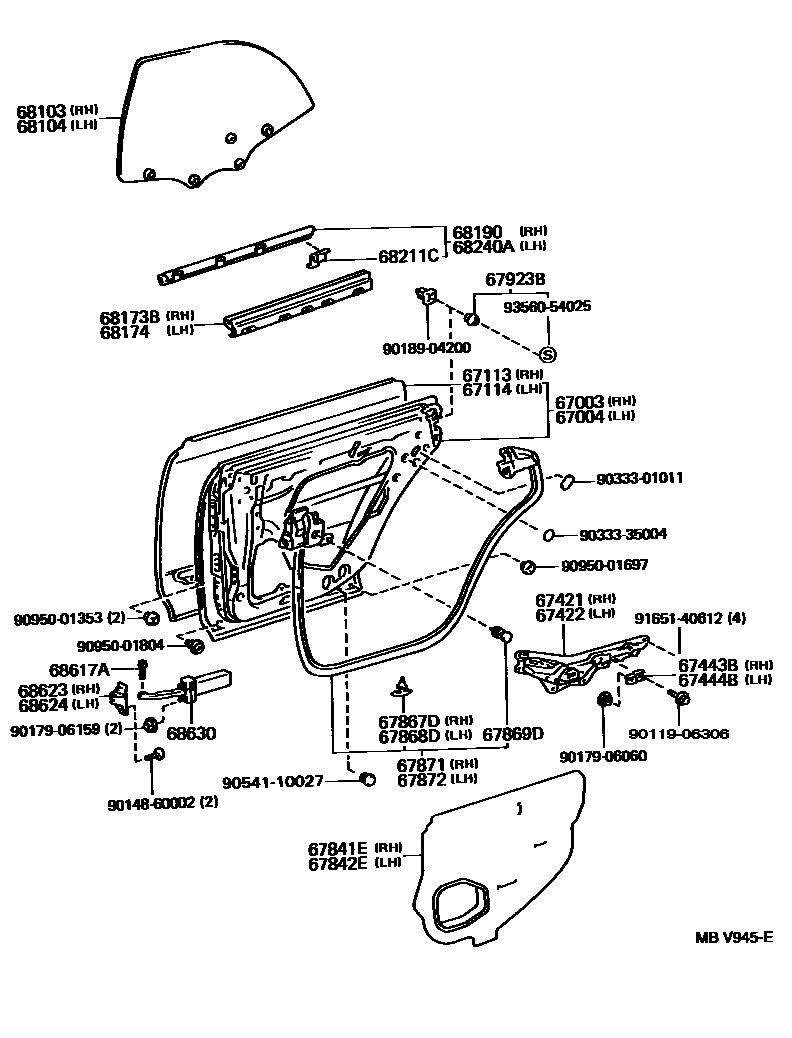

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1 0005 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-30360iJZS147,149,UZS14#199110-199508

main67003-30420iGS141,JZS141,143,145,LS141199110-199508

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-30360iJZS147,149,UZS14#199110-199508

main67004-30420iGS141,JZS141,143,145,LS141199110-199508

67113PANEL, REAR DOOR, OUTER RH

main67113-30260iJZS147,149,UZS14#199110-199508

main67113-30270iGS141,JZS141,143,145,LS141199110-199508

67114PANEL, REAR DOOR, OUTER LH

main67114-30270iJZS147,149,UZS14#199110-199508

main67114-30280iGS141,JZS141,143,145,LS141199110-199508

67421FRAME, REAR DOOR WINDOW, FRONT UPPER RH

main67421-30090iJZS147,149,UZS14#199110-199508

main67421-30100iGS141,JZS141,143,145,LS141199110-199508

67422FRAME, REAR DOOR WINDOW, FRONT UPPER LH

main67422-30090iJZS147,149,UZS14#199110-199508

main67422-30100iGS141,JZS141,143,145,LS141199110-199508

67443BPLATE, REAR DOOR INSIDE PANEL, RH

main67443-32030iGS141,JZS14#,LS141,UZS14#199110-199508

67444BPLATE, REAR DOOR INSIDE PANEL, LH

main67443-32030iGS141,JZS14#,LS141,UZS14#199110-199508

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-30310iJZS147,149,UZS14#199110-199508

main67841-30320iGS141,JZS141,143,145,LS141199110-199508

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-30170iJZS147,149,UZS14#199110-199508

main67842-30180iGS141,JZS141,143,145,LS141199110-199508

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-20160×16iGS141,JZS141,143,145,LS141199209-199508

main67868-16010×15iJZS147,149,UZS14#199211-199508

main67868-20130×16iJZS141,143,145,LS141199110-199209

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-20160×16iGS141,JZS141,143,145,LS141199209-199508

main67868-16010×15iJZS147,149,UZS14#199211-199508

main67868-20130×15iJZS147,149,UZS14#199110-199211

67869DCLIP, DOOR WEATHERSTRIP

main67869-20030×8iJZS147,149,UZS14#199110-199508

main67869-30050×6iGS141,JZS141,143,145,LS141199110-199508

main67869-32010×2iGS141,JZS141,143,145,LS141199110-199508

67871WEATHERSTRIP, REAR DOOR, RH

main67871-30170iJZS147,149,UZS14#199110-199508

main67871-30180iGS141,JZS141,143,145,LS141199110-199508

67872WEATHERSTRIP, REAR DOOR, LH

main67872-30180iJZS147,149,UZS14#199110-199508

main67872-30190iGS141,JZS141,143,145,LS141199110-199508

67923BCUSHION, REAR DOOR STIFFENER, NO.1

main67924-30010×2iGS141,JZS14#,LS141,UZS14#199110-199508

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-30190iJZS149,UZS141,143,145199110-199508

main68103-30220iJZS149,UZS141,143,145199110-199508

main68103-30240iJZS149..B; UZS141199110-199210

main68103-30250iJZS149,UZS143,145..B,C; UZS141199110-199308

main68103-30270iJZS141,143..ROYT199210-199508

main68103-30280iGS141,JZS141,LS141..SSL; JZS141,143,145,LS141..ROY,ROYG,SALEX199110-199508

main68103-30300iJZS145199210-199308

main68103-30310iJZS145199308-199508

main68103-30330iJZS141,143..ROYT199110-199508

main68103-30420iUZS141199210-199308

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-30190iJZS149,UZS141,143,145199110-199508

main68104-30220iJZS149,UZS141,143,145199110-199508

main68104-30240iJZS149,UZS143,145..B,C; UZS141199210-199308

main68104-30250iJZS149,UZS143,145..B,C; UZS141199110-199308

main68104-30270iJZS141,143..ROYT199210-199508

main68104-30280iGS141,JZS141,LS141..SSL; JZS141,143,145,LS141..ROY,ROYG,SALEX199110-199508

main68104-30300iJZS145199110-199210

main68104-30310iJZS145199308-199508

main68104-30330iJZS141,143..ROYT199110-199508

main68104-30420iUZS141199210-199308

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-30070iJZS147,149,UZS14#199110-199508

main68173-30090iGS141,JZS141,143,145,LS141199110-199508

68174WEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-30030iJZS147,149,UZS14#199110-199508

main68174-30040iGS141,JZS141,143,145,LS141199110-199508

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-30170iJZS147,149,UZS14#199110-199508

main68190-30180iGS141,JZS141,143,145,LS141199110-199508

68211CCLIP(FOR REAR DOOR GLASS WEATHERSTRIP)

main68211-30140×6iGS141,JZS141,143,145,LS141; JZS147,149,UZS14#199110-199508

68240AWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH

main68240-30130iGS141,JZS141,143,145,LS141199110-199508

main68240-30150iJZS147,149,UZS14#199110-199508

68617APIN, REAR DOOR CHECK

main68617-50010×2iJZS147,149,UZS14#199110-199508

68623COVER, DOOR CHECK, RH

main68621-30020iGS141,JZS141,143,145,LS141199110-199508

main68623-30030iJZS147,149,UZS14#199110-199508

68624COVER, DOOR CHECK, LH

main68622-30020iGS141,JZS141,143,145,LS141199110-199508

main68624-30030iJZS147,149,UZS14#199110-199508

68630CHECK ASSY, REAR DOOR

main68630-30110iJZS147,149,UZS14#199110-199508

main68630-30120iGS141,JZS141,143,145,LS141199110-199508

main68640-30020iJZS147,149,UZS14#199110-199508

main68640-30030iGS141,JZS141,143,145,LS141199110-199508

9011906306

main90119-06306

9014860002

main90148-60002

9017906060

main90179-06060

9017906159

main90179-06159

9018904200

main90189-04200

9033301011

main90333-01011

9033335004

main90333-35004

9054110027

main90541-10027

9095001353

main90950-01353

9095001697

main90950-01697

9095001804

main90950-01804

9165140612

main91651-40612

9356054025

main93560-54025

40 parts on this diagram · 5 diagrams in section
