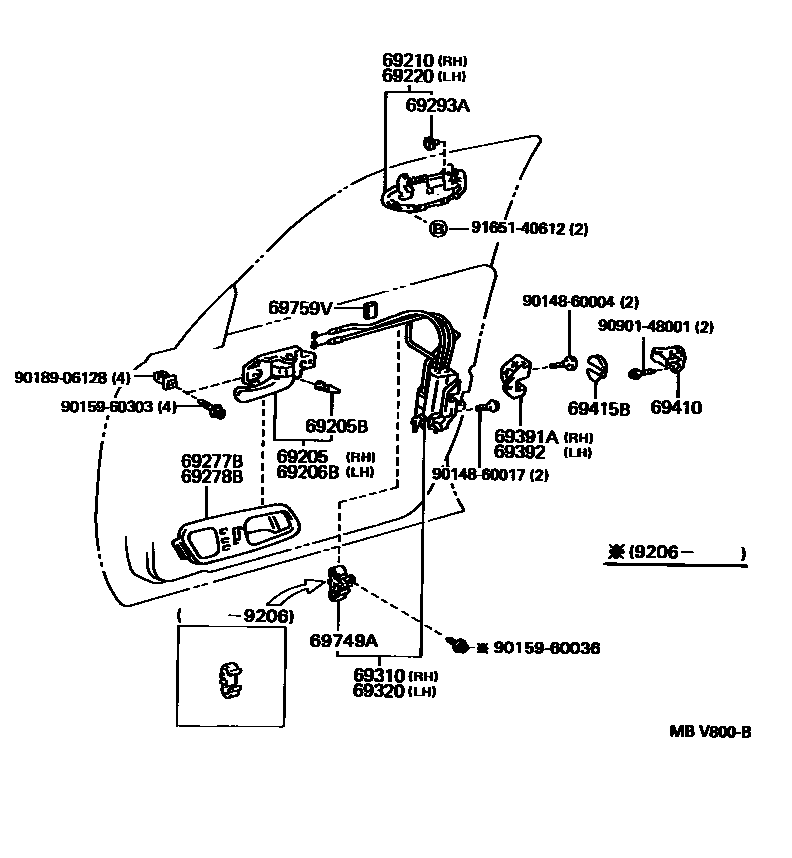

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-30060-B0iJZS141,143,145,LS141199307-199308

SHADOW GRAY,TRIM1#

main69205-30060-E0iJZS14#,LS141,UZS14#199210-199307

QUARTZ,TRIM4#

main69205-30060-J0iJZS141,143,145,149,LS141,UZS14#..A,B,C,ROY,ROYG,SALEX,SSL199110-199307

DK.BLUE,TRIM8#

main69205-30080-B0iGS141,JZS141,143,145,LS141199308-199508

SHADOW GRAY,TRIM1#

main69205-30080-E0iGS141,JZS141,143,145,LS141199308-199508

DK.ROSE,TRIM4#

main69205-30080-J0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199308-199508

DK.BLUE,TRIM8#

main69205-30090-B0iJZS147,149,UZS14#199307-199308

SHADOW GRAY,TRIM1#

main69205-30090-E0iJZS147,149,UZS14#199307-199308

QUARTZ,TRIM4#

main69205-30090-J0iJZS149,UZS14#199307-199308

DK.BLUE,TRIM8#

main69205-30100-B0iJZS147,149,UZS14#199308-199508

SHADOW GRAY,TRIM1#

main69205-30100-E0iJZS147,149,UZS14#199308-199508

DK.ROSE,TRIM4#

main69205-30100-J0iJZS149,UZS141,143,145199308-199408

BLUE,TRIM8#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04018×2iGS141,JZS141,143,145,LS141; JZS147,149,UZS14#199307-199508

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-30060-B0iJZS141,143,145,LS141199307-199308

SHADOW GRAY,TRIM1#

main69206-30060-E0iJZS14#,LS141,UZS141..4FC199110-199210

QUARTZ,TRIM4#

main69206-30060-J0iJZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199307-199308

DK.BLUE,TRIM8#

main69206-30080-B0iGS141,JZS141,143,145,LS141199308-199508

SHADOW GRAY,TRIM1#

main69206-30080-E0iGS141,JZS141,143,145,LS141199308-199508

DK.ROSE,TRIM4#

main69206-30080-J0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199308-199508

DK.BLUE,TRIM8#

main69206-30090-B0iJZS147,149,UZS14#199307-199308

SHADOW GRAY,TRIM1#

main69206-30090-E0iJZS147,149,UZS14#199307-199308

QUARTZ,TRIM4#

main69206-30090-J0iJZS149,UZS14#199307-199308

DK.BLUE,TRIM8#

main69206-30100-B0iJZS147,149,UZS14#199308-199508

SHADOW GRAY,TRIM1#

main69206-30100-E0iJZS147,149,UZS14#199308-199508

DK.ROSE,TRIM4#

main69206-30100-J0iJZS149,UZS141,143,145199308-199408

DK.BLUE,TRIM8#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-30180-A0iJZS147,149,UZS14#199110-199308

WARM GRAY PEARL MICA,046

main69210-30180-A1iUZS141199205-199209

main69210-30180-B0iJZS147,149,UZS14#199110-199308

DK.BL.GRAY ME,183

main69210-30180-C0iJZS147,149,UZS14#199110-199308

BLACK,202

main69210-30180-D0iJZS147,149,UZS14#199110-199308

DK.MAUVE M.I.0,3K8

main69210-30180-G0iJZS147,149,UZS14#199110-199308

DK GREEN M,6K2

main69210-30180-J0iJZS147,149,UZS14#199110-199308

DK.BLUE MICA FP,8J5

main69210-30200-A0iJZS141,143,145..ROY,ROYG199110-199204

WARM GRAY PEARL MICA,046

main69210-30200-A1iJZS141,143,145,LS141..4FC199110-199210

SUPER WHITE 4,050

main69210-30200-B0iJZS141,143,145,LS141199110-199210

BL.GRAY ME,182

main69210-30200-C0iJZS141,143,145,LS141..4FC199110-199210

BLACK,202

main69210-30200-G0iJZS141,143,145,LS141..4FC199110-199210

DK GREEN M,6K2

main69210-30200-H0iJZS143..ROY199205-199209

main69210-30200-J0iJZS141,143,145,LS141..ROY,ROYG,SSL199206-199210

DK.BLUE MICA FP,8J5

main69210-30210iGS141,JZS141,143,145,LS141199210-199508

main69210-30220iJZS147,149,UZS14#199308-199508

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-30160-A0iJZS147,149,UZS14#199110-199308

WARM GRAY PEARL MICA,046

main69220-30160-A1iUZS141199205-199209

main69220-30160-B0iJZS147,149,UZS14#199110-199308

DK.BL.GRAY ME,183

main69220-30160-C0iJZS147,149,UZS14#199110-199308

BLACK,202

main69220-30160-D0iJZS147,149,UZS14#199110-199308

DK.MAUVE M.I.0,3K8

main69220-30160-G0iJZS147,149,UZS14#199110-199308

DK GREEN M,6K2

main69220-30160-J0iJZS147,149,UZS14#199110-199308

DK.BLUE MICA FP,8J5

main69220-30180-A0iJZS141,143,145..ROY,ROYG199110-199204

WARM GRAY PEARL MICA,046

main69220-30180-A1iJZS141,143,145,LS141..4FC199110-199210

SUPER WHITE 4,050

main69220-30180-B0iJZS141,143,145,LS141199110-199210

BL.GRAY ME,182

main69220-30180-C0iJZS141,143,145,LS141..4FC199110-199210

BLACK,202

main69220-30180-G0iJZS141,143,145,LS141..4FC199110-199210

DK GREEN M,6K2

main69220-30180-H0iJZS141,143,145,LS141199204-199210

DK.T0RQU0ISE.MC,742

main69220-30180-J0iJZS141,143,145,LS141..ROY,ROYG,SSL199206-199210

DK.BLUE MICA FP,8J5

main69220-30190iGS141,JZS141,143,145,LS141199210-199508

main69220-30200iJZS147,149,UZS14#199308-199508

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-30080-B0iJZS147,149,UZS141,143,147199210-199508

SHADOW GRAY,TRIM1#

main69277-30080-E0iJZS147,149,UZS141,143,147199210-199508

QUARTZ,TRIM4#

main69277-30080-J0iJZS147,149,UZS141,143,147199408-199508

DK.BLUE,TRIM8#

main69277-30090-B0iUZS141; UZS145199210-199508

main69277-30090-E0iUZS143199308-199508

main69277-30090-J0iUZS141; UZS145199210-199508

main69277-30100-B0iGS141,JZS141,LS141..SALEX,SSL199110-199508

SHADOW GRAY,TRIM1#

main69277-30100-E0iGS141,JZS141,LS141..SALEX,SSL199110-199508

QUARTZ,TRIM4#

main69277-30100-J0iGS141,JZS141,LS141..SALEX,SSL199110-199508

DK.BLUE,TRIM8#

main69277-30110-B0iJZS141,LS141..SALEX199110-199308

main69277-30110-E0iJZS141,143,145..ROY,ROYG,ROYT199210-199508

main69277-30110-J0iJZS141,LS141..SALEX199110-199308

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-30020-B0iJZS147,149,UZS141,143,147199210-199508

SHADOW GRAY,TRIM1#

main69278-30020-E0iJZS149199110-199210

QUARTZ,TRIM4#

main69278-30020-J0iJZS149,UZS141,143199210-199408

DK.BLUE,TRIM8#

main69278-30030-B0iUZS141; UZS145199210-199508

main69278-30030-E0iJZS149..B199408-199508

main69278-30030-J0iUZS141199110-199210

DK.BLUE,TRIM8#

main69278-30040-B0iGS141,JZS141,LS141..SALEX,SSL199110-199508

SHADOW GRAY,TRIM1#

main69278-30040-E0iGS141,JZS141,LS141..SALEX,SSL199110-199508

QUARTZ,TRIM4#

main69278-30040-J0iGS141,JZS141,LS141..SALEX,SSL199110-199508

DK.BLUE,TRIM8#

main69278-30060-B0iJZS141,LS141..SALEX199110-199308

main69278-30060-E0iJZS141,LS141..SALEX199110-199308

main69278-30060-J0iJZS141,143,145..ROY,ROYG199110-199508

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-30030×2iGS141,JZS14#,LS141,UZS14#199110-199508

69310LOCK ASSY, FRONT DOOR, RH

main69030-30640iJZS149,UZS141199110-199206

main69030-30641iJZS147,149,UZS14#199206-199508

main69030-30750iJZS141,143,145,LS141199110-199206

main69030-30751iGS141,JZS141,143,145,LS141199206-199508

69320LOCK ASSY, FRONT DOOR, LH

main69040-30690iJZS149,UZS141199110-199206

main69040-30691iJZS147,149,UZS14#199206-199508

main69040-30710iJZS141,143,145,LS141199110-199206

main69040-30711iGS141,JZS141,143,145,LS141199206-199508

69391ACOVER, FRONT DOOR LOCK, OUTER RH

main69391-30020iJZS147,149,UZS14#199110-199508

main69391-30030iGS141,JZS141,143,145,LS141199110-199508

69392COVER, FRONT DOOR LOCK, OUTER LH

main69392-30020iJZS147,149,UZS14#199110-199508

main69392-30030iGS141,JZS141,143,145,LS141199110-199508

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-30030×2iGS141,JZS14#,LS141,UZS14#199110-199508

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-30010×2iGS141,JZS14#,LS141,UZS14#199110-199508

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-30040iJZS14#,LS141,UZS141199110-199206

main69749-30070×2iGS141,JZS14#,LS141,UZS14#199206-199508

69759VSILENCER, FRONT DOOR LOCK LINK

main69759-30090×2iGS141,JZS14#,LS141,UZS14#199110-199508

9014860004

main90148-60004

9014860017

main90148-60017

9015960036

main90159-60036

9015960303

main90159-60303

9018906128

main90189-06128

9090148001

main90901-48001

9165140612

main91651-40612

23 parts on this diagram · 2 diagrams in section
