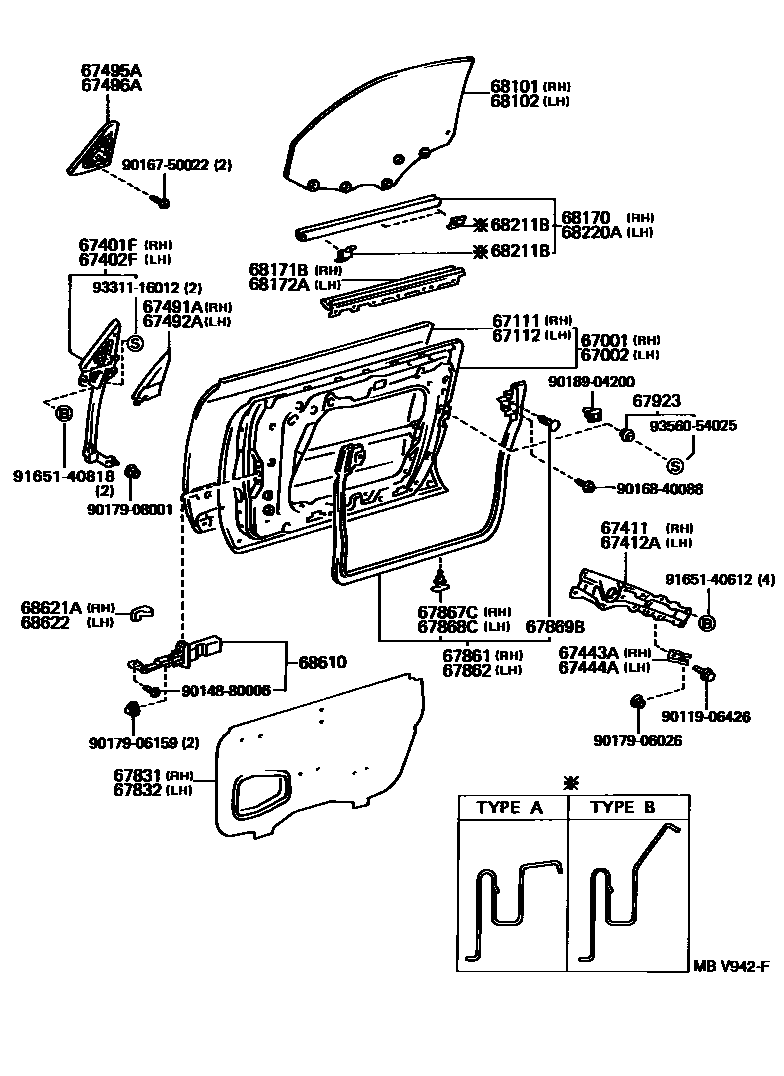

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1 0005 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-30580iJZS147,149,UZS14#199110-199508

main67001-30640iGS141,JZS141,143,145,LS141199110-199508

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-30660iJZS147,149,UZS14#199110-199508

main67002-30720iGS141,JZS141,143,145,LS141199110-199508

67111PANEL, FRONT DOOR, OUTER RH

main67111-30360iJZS147,149,UZS14#199110-199508

main67111-30370iGS141,JZS141,143,145,LS141199110-199508

67112PANEL, FRONT DOOR, OUTER LH

main67112-30420iJZS147,149,UZS14#199110-199508

main67112-30430iGS141,JZS141,143,145,LS141199110-199508

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67503-30010iJZS147,149,UZS14#199110-199508

main67503-30020iGS141,JZS141,143,145,LS141199110-199508

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67504-30010iJZS147,149,UZS14#199110-199508

main67504-30020iGS141,JZS141,143,145,LS141199110-199508

67411FRAME, FRONT DOOR WINDOW, FRONT UPPER RH

main67411-30160iJZS147,149,UZS14#199110-199508

main67411-30170iGS141,JZS141,143,145,LS141199110-199508

67412AFRAME, FRONT DOOR WINDOW, FRONT UPPER LH

main67412-30160iJZS147,149,UZS14#199110-199508

main67412-30170iGS141,JZS141,143,145,LS141199110-199508

67443APLATE, FRONT DOOR WINDOW OPENING, OUTER RH

main67443-32030iGS141,JZS14#,LS141,UZS14#199110-199508

67444APLATE, FRONT DOOR WINDOW OPENING, OUTER LH

main67443-32030iGS141,JZS14#,LS141,UZS14#199110-199508

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-30100iJZS147,149,UZS14#199110-199508

main67491-30110iGS141,JZS141,143,145,LS141199110-199508

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-30100iJZS147,149,UZS14#199110-199508

main67492-30110iGS141,JZS141,143,145,LS141199110-199508

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-30040iJZS147,149,UZS14#199110-199508

main67495-30050iGS141,JZS141,143,145,LS141199110-199508

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-30030iJZS147,149,UZS14#199110-199508

main67496-30040iGS141,JZS141,143,145,LS141199110-199508

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-30330iJZS147,149,UZS14#199110-199508

main67831-30340iGS141,JZS141,143,145,LS141199110-199508

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-30190iJZS147,149,UZS14#199110-199508

main67832-30200iGS141,JZS141,143,145,LS141199110-199508

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-30200iJZS147,149,UZS14#199110-199508

main67861-30210iGS141,JZS141,143,145,LS141199110-199508

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-30200iJZS147,149,UZS14#199110-199508

main67862-30210iGS141,JZS141,143,145,LS141199110-199508

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-20160×17iGS141,JZS141,143,145,LS141199209-199508

main67868-20130×17iJZS14#,LS141,UZS141199110-199209

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-20160×17iGS141,JZS141,143,145,LS141199209-199508

main67868-20130×17iJZS147,149,UZS14#199209-199508

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030×6iJZS147,149,UZS14#199110-199508

main67869-30050×8iJZS141,143,145,LS141199110-199308

main67869-32010×2iJZS141,143,145,LS141199110-199308

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-30010×2iJZS147,149,UZS14#199110-199508

main67923-30020×2iGS141,JZS141,143,145,LS141199110-199508

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-30310iJZS149,UZS141,143,145199110-199508

main68101-30330iJZS149,UZS141,143,145199110-199508

main68101-30370iJZS149..B; UZS141199110-199210

main68101-30380iJZS149,UZS141,143,145..B,C199308-199508

main68101-30400iJZS141,143..ROYT199210-199508

main68101-30410iGS141,JZS141,LS141..SSL; JZS141,143,145,LS141..ROY,ROYG,SALEX199110-199508

main68101-30430iJZS145199110-199210

main68101-30440iJZS145199110-199308

main68101-30460iJZS141,143..ROYT199110-199508

main68101-30570iUZS141199210-199308

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-30310iJZS149,UZS141,143,145199110-199508

main68102-30330iJZS149,UZS141,143,145199110-199508

main68102-30370iJZS149..B; UZS141199110-199210

main68102-30380iJZS149,UZS143,145..B,C; UZS141199110-199308

main68102-30400iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199508

main68102-30410iGS141,JZS141,LS141..SSL; JZS141,143,145,LS141..ROY,ROYG,SALEX199110-199508

main68102-30430iJZS145199210-199308

main68102-30440iJZS145199308-199508

main68102-30460iJZS141,143..ROYT199110-199508

main68102-30570iJZS147,UZS147199210-199508

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-30230iJZS147,149,UZS14#199110-199508

main68170-30240iGS141,JZS141,143,145,LS141199110-199508

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-30070iJZS147,149,UZS14#199110-199508

main68171-30090iGS141,JZS141,143,145,LS141199110-199508

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-30030iJZS147,149,UZS14#199110-199508

main68172-30040iGS141,JZS141,143,145,LS141199110-199508

68211BCLIP(FOR FRONT DOOR GLASS WEATHERSTRIP)

main68211-30140×4iJZS149,UZS141199110-199205

main68212-30010×4iGS141,JZS141,143,145,LS141199110-199508

68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH

main68220-30190iJZS147,149,UZS14#199110-199508

main68220-30200iGS141,JZS141,143,145,LS141199110-199508

68610CHECK ASSY, FRONT DOOR

main68610-30080iJZS147,149,UZS14#199110-199508

main68610-30090iGS141,JZS141,143,145,LS141199110-199508

main68620-30020iJZS147,149,UZS14#199110-199508

main68620-30030iGS141,JZS141,143,145,LS141199110-199508

68621ACOVER, FRONT DOOR CHECK, RH

main68621-30020iGS141,JZS14#,LS141,UZS14#199110-199508

68622COVER, FRONT DOOR CHECK, LH

main68622-30020iGS141,JZS14#,LS141,UZS14#199110-199508

9011906426

main90119-06426

9014880006

main90148-80006

9016750022

main90167-50022

9016840088

main90168-40088

9017906026

main90179-06026

9017906159

main90179-06159

9017908001

main90179-08001

9018904200

main90189-04200

9165140612

main91651-40612

9165140818

main91651-40818

9331116012

main93311-16012

9356054025

main93560-54025

44 parts on this diagram · 5 diagrams in section
