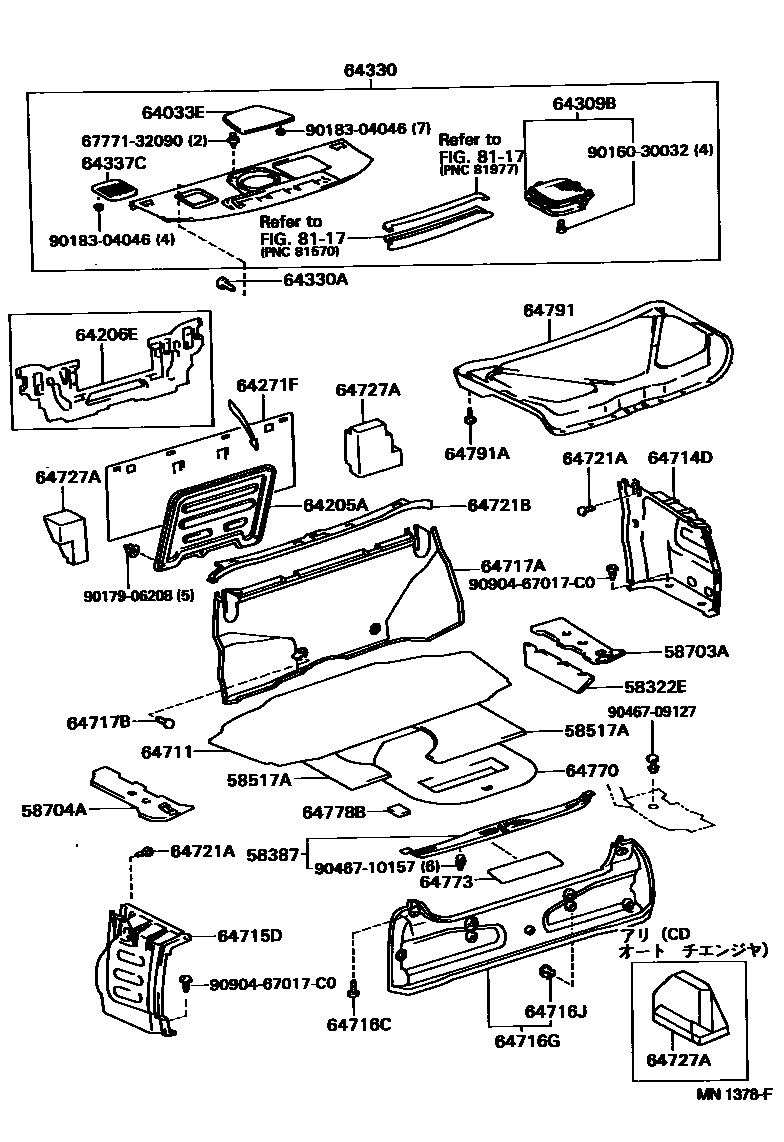

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58322EINSULATOR, REAR FLOOR HEAT, NO.2

main58322-30040iGS141,JZS141,143,145,LS141199110-199508

58387PLATE, REAR FLOOR FINISH

main58387-30030-C0iJZS147; JZS149,UZS14#199110-199308

GRAPHITE,TRIM1#,4#; GRAPHITE,TRIM1#,4#,8#

main58387-30040-C0iJZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199308

GRAPHITE,TRIM1#,4#,8#

main58387-30060-C0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL; JZS141,143..ROYT199308-199508

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

main58387-30070-C0iJZS147,UZS147; JZS149,UZS141,143,145199308-199408

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

58517AMAT, REAR FLOOR, NO.2

main58517-30020iJZS141,143,145,LS141..4FC; JZS143..ROYT199210-199308

main58518-30050iJZS141,143,145,LS141..4FC; JZS143..ROYT199210-199308

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-30050iGS141,JZS141,143,145,LS141199110-199508

main58703-30060iJZS141,143,145..ROY,ROYG,ROYT199110-199206

main58703-30100iJZS147,149,UZS14#199110-199508

main58703-30110iJZS147,UZS147; JZS149,UZS141,143,145199308-199508

main58773-30070iJZS141..ROYT199210-199308

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-30070iGS141,JZS141,143,145,LS141199110-199508

64033EGRILLE SUB-ASSY, REAR SPEAKER

main64033-30020-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main64033-30020-E0iJZS147,149,UZS14#199110-199508

QUARTZ,TRIM4#

main64033-30020-J0iJZS147,149,UZS14#199408-199508

DK.BLUE,TRIM8#

main64033-30030-B0iJZS141,143,145,LS141..ROY,ROYG,ROYT,SALEX199110-199508

SHADOW GRAY,TRIM1#

main64033-30030-E0iJZS141,143,145,LS141..ROY,ROYG,SALEX199110-199210

QUARTZ,TRIM4#

main64033-30030-J0iJZS141,143,145,LS141..ROY,ROYG,SALEX199110-199508

DK.BLUE,TRIM8#

64205ACOVER SUB-ASSY, ROOM PARTITION

main64205-30020iGS141,JZS141,143,145,LS141199110-199508

main64205-30040iJZS147,149,UZS14#199110-199308

main64275-30030iJZS147,UZS147199308-199508

64206EPANEL SUB-ASSY, ROOM PARTITION

main64206-30011iGS141,JZS141,143,LS141199110-199508

main64206-30021iJZS145199110-199508

64271FTRIM, ROOM PARTITION

main64271-30120iGS141,JZS141,143,145,LS141199110-199508

main64271-30150iJZS147,149,UZS14#199110-199308

main64271-30170iJZS147,149,UZS14#199308-199508

64309BPOCKET SUB-ASSY, PACKAGE TRAY TRIM

main64309-30010-B0iJZS147,UZS147; JZS149,UZS141,143,145199308-199508

main64309-30010-E0iJZS147199210-199308

main64309-30010-J0iJZS149,UZS141,143,145199110-199508

DK.BLUE,TRIM8#

main64309-30020-B0iGS141,JZS141,143,145,LS141199110-199508

SHADOW GRAY,TRIM1#

main64309-30020-E0iGS141,JZS141,143,145,LS141199210-199508

QUARTZ,TRIM4#

main64309-30020-J0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

main64309-30040-B0iJZS147; UZS141199210-199308

main64309-30040-E0iJZS147,UZS147199210-199508

QUARTZ,TRIM4#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-3A010-B0iJZS147,UZS147199210-199508

main64330-3A010-E0iJZS149,UZS141,143,145199110-199508

QUARTZ,TRIM4#

main64330-3A010-J0iJZS147,UZS147199408-199508

main64330-3A020-B0iJZS141,143..ROYT; JZS141,LS141..SALEX199308-199508

main64330-3A020-E0iJZS141,143..ROYT; JZS141,LS141..SALEX199308-199508

main64330-3A020-J0iJZS141,LS141..SALEX199308-199508

main64330-3A030-B0iJZS141,143..ROY; JZS141,143..ROYT; JZS141,LS141..SALEX199308-199508

main64330-3A030-E0iJZS141,143..ROY; JZS141,143..ROYT; JZS141,LS141..SALEX199308-199508

main64330-3A030-J0iJZS141,143..ROY; JZS141,LS141..SALEX199308-199508

main64330-3A040-B1iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199210-199508

SHADOW GRAY,TRIM1#

main64330-3A040-E1iJZS141,LS141..SALEX,SSL199110-199210

QUARTZ,TRIM4#

main64330-3A040-J1iGS141,JZS141,LS141..SALEX,SSL199110-199508

DK.BLUE,TRIM8#

main64330-3A050-B1iJZS141,LS141..SALEX,SSL199110-199210

main64330-3A050-E1iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199210-199508

main64330-3A050-J1iGS141,JZS141,LS141..SALEX,SSL199110-199508

main64330-3A160-B0iJZS147,UZS147199210-199508

SHADOW GRAY,TRIM1#

main64330-3A160-E0iUZS141199210-199308

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-05022-B0×3iGS141,JZS141,143,145,149,LS141,UZS14#..B,C,ROY,ROYG,SALEX,SSL; JZS141,143..ROYT; JZS147,149..A199408-199508

SHADOW GRAY,SHADOW GRAY,TRIM1#,4#,8#; SHADOW GRAY,TRIM1#,4#; SHADOW GRAY,TRIM1#,4#,8#

main90467-06055-B0×3iJZS147; JZS149,UZS14#199303-199308

SHADOW GRAY,TRIM1#,4#; SHADOW GRAY,TRIM1#,4#,8#

64337CGARNISH, PACKAGE TRAY TRIM

main64337-30140-B0iGS141,JZS14#,LS141,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main64337-30140-E0iGS141,JZS14#,LS141,UZS14#199210-199508

QUARTZ,TRIM4#

main64337-30140-J0iGS141,JZS14#,LS141,UZS14#..A,B,C,ROY,ROYG,SALEX,SSL199408-199508

DK.BLUE,TRIM8#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-30290-C1iJZS147; JZS149,UZS14#199110-199308

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

main64711-30291-C1iJZS147,UZS147; JZS149,UZS141,143,145199308-199311

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

main64711-30292-C1iJZS147,UZS147; JZS149,UZS141,143,145199311-199408

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

main64711-30300-C1iJZS147199210-199308

main64711-30301-C1iJZS147,UZS147; JZS149,UZS141,143,145199308-199311

main64711-30302-C1iJZS147,UZS147199311-199408

main64711-30310-C1iJZS141,143..ROYT199210-199308

BLACK,TRIM1#,4#

main64711-30311-C1iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL; JZS141,143..ROYT199308-199311

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

main64711-30312-C1iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL; JZS141,143..ROYT199311-199508

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

main64711-30320-C1iJZS141..ROYT; JZS143..ROYT199210-199308

main64711-30321-C1iJZS141,143..ROYT; JZS141..ROY; JZS143,145..4FC199308-199311

main64711-30322-C1iJZS141,143..ROYT; JZS141..ROY; JZS143,145..4FC199311-199508

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64071-30010-C0iJZS147; JZS149,UZS14#..B,C; JZS149..A199110-199308

main64071-30020-C0iJZS141,143..ROYT199210-199308

main64071-30040-C0iJZS141,143,145..ROY,ROYG; JZS141,143..ROYT199308-199508

main64714-30120-C1iJZS147,UZS147; JZS149,UZS141,143,145199110-199408

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

main64714-30140-C1iJZS149,UZS14#..B,C; JZS149..A199110-199308

main64714-30150-C1iJZS141,143..ROYT199210-199308

BLACK,TRIM1#,4#

main64714-30170-C1iJZS141,143,145..ROY,ROYG199110-199308

main64714-30220-C0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL; JZS141,143..ROYT199308-199508

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

main64714-30240-C0iJZS143,145..4FC199308-199508

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-30140-C1iJZS147,UZS147; JZS149,UZS141,143,145199110-199408

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

main64715-30150-C1iJZS141,143..ROYT199210-199308

BLACK,TRIM1#,4#

main64715-30200-C0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL; JZS141,143..ROYT199308-199508

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05105-C0×7iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL; JZS141,143..ROYT199306-199404

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

main90467-05125-C0×7iGS141,JZS141,143,145,149,LS141,UZS141,143,145..A,B,C,ROY,ROYG,SALEX,SSL; JZS141,143,147,UZS147..A,C,ROYT199404-199408

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

main90904-67017-C0×7iJZS147,UZS147; JZS149,UZS141,143,145199110-199404

GRAPHITE,TRIM1#,4#; GRAPHITE,TRIM1#,4#,8#

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-30140-C1iJZS147,UZS147; JZS149,UZS141,143,145199110-199408

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

main64716-30150-C1iJZS141,143..ROYT199210-199308

BLACK,TRIM1#,4#

main64716-30180-C0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL; JZS141,143..ROYT199308-199405

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

main64716-30181-C0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL; JZS141,143..ROYT199405-199508

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

64716JPLUG, HOLE(FOR LUGGAGE COMPARTMENT REAR COVER)

main90950-01436-C1×4iJZS147,UZS147; JZS149,UZS141,143,145199405-199408

GRAPHITE,TRIM1#,4#; GRAPHITE,TRIM1#,4#,8#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-30180-C1iJZS147,UZS147199308-199408

main64717-30190-C1iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL; JZS141,143..ROYT199210-199508

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

main64717-30250-C0iJZS147,UZS147199210-199408

BLACK,TRIM1#,4#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-05105-C0×2iJZS141,143..ROYT199210-199306

BLACK,TRIM1#,4#

main90467-05125-C0×2iJZS147,UZS147; JZS149,UZS141,143,145199404-199408

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

main90467-07121-C0×2iJZS141,143,145,LS141..ROY,ROYG,SALEX,SSL; JZS141,143..ROYT199306-199308

BLACK,TRIM1#,4#&050 ,202 ,6K2 ,8J5; BLACK,TRIM1#,4#,8#&050 ,202 ,6K2 ,8J5

main90904-67017-C0×2iJZS147,UZS147; JZS149,UZS141,143,145199110-199404

GRAPHITE,TRIM1#,4#; GRAPHITE,TRIM1#,4#,8#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-05105-C0×5iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL; JZS141,143,145..ROY,ROYG; JZS141,143..ROYT; JZS143,145..4FC199308-199404

main90467-05125-C0×7iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL; JZS141,143,145..ROY,ROYG; JZS141,143..ROYT; JZS143,145..4FC; JZS149,UZS141,143,145199404-199508

main90904-67017-C0×4iJZS149,UZS14#..B,C; JZS149..A199110-199308

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main64721-30060-C1iJZS147,UZS147199408-199508

main64721-30080-C1iJZS141,143,145,LS141..4FC; JZS143..ROYT199110-199210

BLACK,TRIM1#; BLACK,TRIM1#,4#,8#

main64721-30090-C0iJZS147,UZS147199408-199508

BLACK,TRIM1#,4#,8#

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-30030iJZS141..ROY; JZS143,145199110-199210

main64727-30040iJZS149,UZS14#199110-199308

main64727-30080iJZS143..ROYT199210-199508

main64727-30090iJZS141,LS141..SALEX; JZS141..ROYT199308-199508

64770COVER ASSY, SPARE WHEEL

main64770-30071iGS141,JZS141,143,145,LS141199110-199508

main64770-30080iJZS147,149,UZS14#199110-199508

main64770-30090iGS141,JZS14#,LS141,UZS141,147199110-199508

64773COVER, SPARE WHEEL, NO.2

main64773-30020iGS141,JZS141,143,145,LS141199110-199508

64778BPROTECTOR, SPARE WHEEL

main64778-14020×3iGS141,JZS141,143,145,LS141199110-199312

main64778-30010×3iGS141,JZS141,143,145,LS141199312-199508

64791COVER, BACK DOOR TRIM

main64791-30030-C1iJZS147,UZS147; JZS149,UZS141,143,145199110-199408

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

main64791-30040-C1iJZS141,143..ROYT199210-199308

BLACK,TRIM1#,4#

main64791-30060-C0iGS141,JZS141,143,LS141..ROY,SALEX,SSL; JZS141,143..ROYT; JZS145199308-199508

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

64791ACLIP(FOR BACK DOOR TRIM)

main90467-05105-C0×13iJZS145; JZS147,UZS147; JZS149,UZS141,143,145199110-199404

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

main90467-05125-C0×13iGS141,JZS141,143,LS141..ROY,SALEX,SSL; JZS141,143..ROYT; JZS145199404-199508

8117CENTER STOP LAMP

→ Go to FIG 81-17

6777132090WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32090

9016030032

main90160-30032

9017906208

main90179-06208

9018304046

main90183-04046

9046709127

main90467-09127

9046710157

main90467-10157

9090467017C0

main90904-67017C0

37 parts on this diagram · 2 diagrams in section
