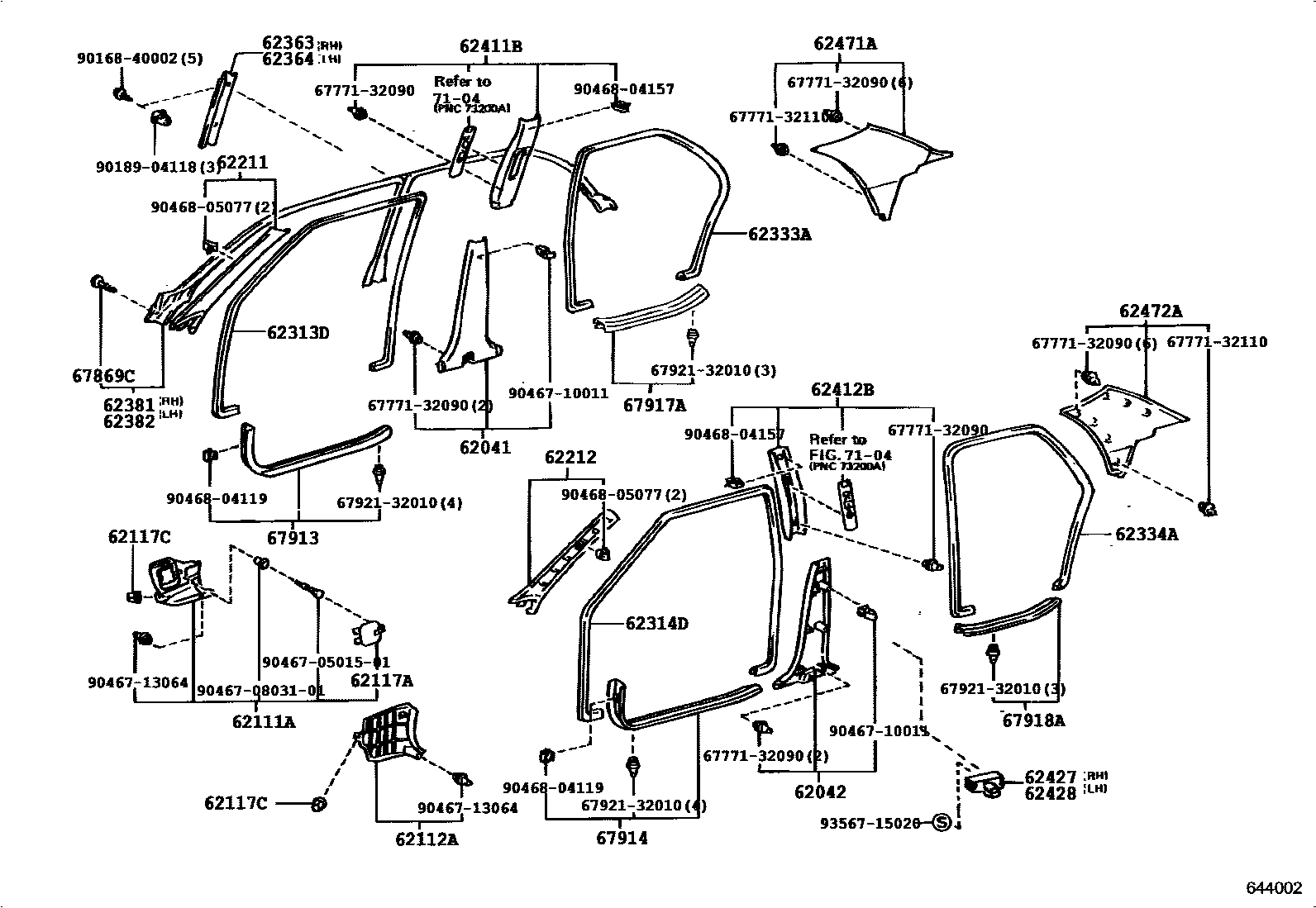

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62041PANEL SUB-ASSY, CENTER PILLAR GARNISH, LOWER RH

main62041-30070-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main62041-30070-E0iJZS147,149,UZS14#199110-199508

QUARTZ,TRIM4#

main62041-30070-J0iJZS147,149,UZS14#199408-199508

DK.BLUE,TRIM8#

main62041-30080-B0iJZS141,143,145,LS141199110-199308

SHADOW GRAY,TRIM1#

main62041-30080-E0iJZS141,143,145,LS141..4FC199110-199210

QUARTZ,TRIM4#

main62041-30080-J0iJZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199308

DK.BLUE,TRIM8#

main62041-30081-B0iGS141,JZS141,143,145,LS141199308-199508

SHADOW GRAY,TRIM1#

main62041-30081-E0iGS141,JZS141,143,145,LS141199308-199508

QUARTZ,TRIM4#

main62041-30081-J0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199308-199508

DK.BLUE,TRIM8#

62042PANEL SUB-ASSY, CENTER PILLAR GARNISH, LOWER LH

main62042-30070-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main62042-30070-E0iJZS147,149,UZS14#199110-199508

QUARTZ,TRIM4#

main62042-30070-J0iJZS147,149,UZS14#199408-199508

DK.BLUE,TRIM8#

main62042-30080-B0iJZS141,143,145,LS141199110-199308

SHADOW GRAY,TRIM1#

main62042-30080-E0iJZS141,143,145,LS141199210-199308

QUARTZ,TRIM4#

main62042-30080-J0iJZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199308

DK.BLUE,TRIM8#

main62042-30081-B0iGS141,JZS141,143,145,LS141199308-199508

SHADOW GRAY,TRIM1#

main62042-30081-E0iGS141,JZS141,143,145,LS141199308-199508

QUARTZ,TRIM4#

main62042-30081-J0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199308-199508

DK.BLUE,TRIM8#

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-30410-B0iJZS145199308-199508

main62101-30410-E0iJZS145199308-199508

main62101-30410-J0iJZS145199110-199308

main62101-30420-B0iJZS141,143,145..ROY,ROYG,ROYT199110-199508

SHADOW GRAY,TRIM1#

main62101-30420-E0iJZS141,143,145..ROY,ROYG199110-199210

QUARTZ,TRIM4#

main62101-30420-J0iJZS141,143,145..ROY,ROYG199110-199508

DK.BLUE,TRIM8#

main62101-30430-B0iGS141,JZS141,LS141..SALEX,SSL199110-199508

SHADOW GRAY,TRIM1#

main62101-30430-E0iGS141,JZS141,LS141..SALEX,SSL199110-199508

QUARTZ,TRIM4#

main62101-30430-J0iGS141,JZS141,LS141..SALEX,SSL199110-199508

DK.BLUE,TRIM8#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-30390-B0iJZS145199308-199508

main62102-30390-E0iJZS145199110-199308

main62102-30390-J0iJZS145199308-199508

main62102-30400-B0iGS141,JZS141,LS141..SALEX,SSL199308-199508

main62102-30400-E0iJZS141,LS141..SSL199305-199307

main62102-30400-J0iJZS141,LS141..SSL199206-199308

main62102-30410-B0iGS141,JZS141,LS141..SALEX,SSL199110-199508

SHADOW GRAY,TRIM1#

main62102-30410-E0iGS141,JZS141,LS141..SALEX,SSL199110-199508

QUARTZ,TRIM4#

main62102-30410-J0iGS141,JZS141,LS141..SALEX,SSL199110-199508

DK.BLUE,TRIM8#

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-30070-B0iJZS147,149,UZS14#199110-199308

GRAY,TRIM1#

main62117-30070-E0iJZS147,149,UZS14#199408-199508

QUARTZ,TRIM4#

main62117-30070-J0iJZS149,UZS14#199110-199308

DK.BLUE,TRIM8#

main62117-30100-B0iGS141,JZS141,143,145,LS141199110-199508

GRAY,TRIM1#

main62117-30100-E0iGS141,JZS141,143,145,LS141199210-199508

QUARTZ,TRIM4#

main62117-30100-J0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-06120×2iGS141,JZS141,143,145,LS141199203-199508

main90467-06147×2iJZS141,143,145,LS141199110-199203

62211GARNISH, FRONT PILLAR, RH

main62210-30120-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main62210-30120-E0iJZS147,149,UZS14#199110-199508

QUARTZ,TRIM4#

main62210-30120-J0iJZS147,149,UZS14#199408-199508

DK.BLUE,TRIM8#

main62210-30130-B0iJZS141,LS141..SSL199206-199308

main62210-30130-E0iJZS141,LS141..SSL199305-199307

main62210-30130-J0iJZS141,LS141..SSL199206-199308

main62210-30140-B1iGS141,JZS141,LS141..SALEX,SSL199110-199508

SHADOW GRAY,TRIM1#

main62210-30140-E1iGS141,JZS141,LS141..SALEX,SSL199110-199508

QUARTZ,TRIM4#

main62210-30140-J1iGS141,JZS141,LS141..SALEX,SSL199110-199508

DK.BLUE,TRIM8#

62212GARNISH, FRONT PILLAR, LH

main62220-30120-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main62220-30120-E0iJZS147,149,UZS14#199110-199508

QUARTZ,TRIM4#

main62220-30120-J0iJZS147,149,UZS14#199408-199508

DK.BLUE,TRIM8#

main62220-30130-B0iJZS141,143,145..ROY,ROYG,ROYT199110-199508

SHADOW GRAY,TRIM1#

main62220-30130-E0iJZS141,LS141..SSL199206-199308

main62220-30130-J0iJZS141,143,145..ROY,ROYG199110-199508

DK.BLUE,TRIM8#

main62220-30140-B1iGS141,JZS141,LS141..SALEX,SSL199110-199508

SHADOW GRAY,TRIM1#

main62220-30140-E1iGS141,JZS141,LS141..SALEX,SSL199110-199508

QUARTZ,TRIM4#

main62220-30140-J1iGS141,JZS141,LS141..SALEX,SSL199110-199508

DK.BLUE,TRIM8#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-30130-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main62313-30130-E0iJZS147,149,UZS14#199110-199508

QUARTZ,TRIM4#

main62313-30130-J0iJZS149,UZS141,143,145199110-199408

DK.BLUE,TRIM8#

main62313-30140-B0iJZS141,LS141..SSL199206-199308

main62313-30140-E0iJZS141,143,145..ROY,ROYG199110-199210

QUARTZ,TRIM4#

main62313-30140-J0iJZS141,LS141..SSL199206-199308

main62313-30170-B0iGS141,JZS141,LS141..SALEX,SSL199110-199508

SHADOW GRAY,TRIM1#

main62313-30170-E0iGS141,JZS141,LS141..SALEX,SSL199110-199508

QUARTZ,TRIM4#

main62313-30170-J0iGS141,JZS141,LS141..SALEX,SSL199110-199508

DK.BLUE,TRIM8#

62314DTRIM, FRONT DOOR OPENING, LH

main62314-30050-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main62314-30050-E0iJZS147,149,UZS14#199110-199508

QUARTZ,TRIM4#

main62314-30050-J0iJZS147,149,UZS14#199408-199508

DK.BLUE,TRIM8#

main62314-30060-B0iGS141,JZS141,LS141..SALEX,SSL199308-199508

main62314-30060-E0iJZS141,143,145..ROY,ROYG199110-199210

QUARTZ,TRIM4#

main62314-30060-J0iJZS141,LS141..SSL199206-199308

main62314-30090-B0iGS141,JZS141,LS141..SALEX,SSL199110-199508

SHADOW GRAY,TRIM1#

main62314-30090-E0iGS141,JZS141,LS141..SALEX,SSL199110-199508

QUARTZ,TRIM4#

main62314-30090-J0iGS141,JZS141,LS141..SALEX,SSL199110-199508

DK.BLUE,TRIM8#

62333ATRIM, REAR DOOR OPENING, RH

main62333-30080-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main62333-30080-E0iJZS147,149,UZS14#199110-199508

QUARTZ,TRIM4#

main62333-30080-J0iJZS147,149,UZS14#199408-199508

DK.BLUE,TRIM8#

main62333-30090-B0iJZS141,143,145..ROY,ROYG,ROYT199110-199508

SHADOW GRAY,TRIM1#

main62333-30090-E0iJZS141,143,145..ROY,ROYG,ROYT199210-199508

QUARTZ,TRIM4#

main62333-30090-J0iJZS141,LS141..SSL199206-199308

main62333-30120-B0iGS141,JZS141,LS141..SALEX,SSL199110-199508

SHADOW GRAY,TRIM1#

main62333-30120-E0iGS141,JZS141,LS141..SALEX,SSL199110-199508

QUARTZ,TRIM4#

main62333-30120-J0iGS141,JZS141,LS141..SALEX,SSL199110-199508

DK.BLUE,TRIM8#

62334ATRIM, REAR DOOR OPENING, LH

main62334-30020-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main62334-30020-E0iJZS147,149,UZS14#199110-199508

QUARTZ,TRIM4#

main62334-30020-J0iJZS147,149,UZS14#199408-199508

DK.BLUE,TRIM8#

main62334-30030-B0iGS141,JZS141,LS141..SALEX,SSL199308-199508

main62334-30030-E0iJZS141,143,145..ROY,ROYG199110-199210

QUARTZ,TRIM4#

main62334-30030-J0iGS141,JZS141,LS141..SALEX,SSL199308-199508

main62334-30060-B0iGS141,JZS141,LS141..SALEX,SSL199110-199508

SHADOW GRAY,TRIM1#

main62334-30060-E0iGS141,JZS141,LS141..SALEX,SSL199110-199508

QUARTZ,TRIM4#

main62334-30060-J0iGS141,JZS141,LS141..SALEX,SSL199110-199508

DK.BLUE,TRIM8#

62363RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR RH

main62363-30040iJZS147,149,UZS14#199110-199508

main62363-30050iGS141,JZS141,143,145,LS141199110-199508

62364RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR LH

main62364-30040iJZS147,149,UZS14#199110-199508

main62364-30050iGS141,JZS141,143,145,LS141199110-199508

62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH

main62381-30080iJZS147,149,UZS14#199110-199508

main62381-30090iGS141,JZS141,143,145,LS141199110-199508

62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH

main62382-30080iJZS147,149,UZS14#199110-199508

main62382-30090iGS141,JZS141,143,145,LS141199110-199508

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-30270-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main62410-30270-E0iJZS147,149,UZS14#199110-199508

QUARTZ,TRIM4#

main62410-30270-J0iJZS147,149,UZS14#199408-199508

DK.BLUE,TRIM8#

main62410-30280-B0iGS141,JZS141,LS141..SALEX,SSL199308-199508

main62410-30280-E0iGS141,JZS141,LS141..SALEX,SSL199308-199508

main62410-30280-J0iGS141,JZS141,LS141..SALEX,SSL199308-199508

main62410-30290-B1iGS141,JZS141,LS141..SALEX,SSL199110-199508

SHADOW GRAY,TRIM1#

main62410-30290-E1iGS141,JZS141,LS141..SALEX,SSL199110-199508

QUARTZ,TRIM4#

main62410-30290-J1iGS141,JZS141,LS141..SALEX,SSL199110-199508

DK.BLUE,TRIM8#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-30260-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main62420-30260-E0iJZS147,149,UZS14#199110-199508

QUARTZ,TRIM4#

main62420-30260-J0iJZS147,149,UZS14#199408-199508

DK.BLUE,TRIM8#

main62420-30270-B0iJZS141,LS141..SSL199206-199308

main62420-30270-E0iJZS141,143,145..ROY,ROYG,ROYT199210-199508

QUARTZ,TRIM4#

main62420-30270-J0iJZS141,143,145..ROY,ROYG199110-199508

DK.BLUE,TRIM8#

main62420-30280-B1iGS141,JZS141,LS141..SALEX,SSL199110-199508

SHADOW GRAY,TRIM1#

main62420-30280-E1iGS141,JZS141,LS141..SALEX,SSL199110-199508

QUARTZ,TRIM4#

main62420-30280-J1iGS141,JZS141,LS141..SALEX,SSL199110-199508

DK.BLUE,TRIM8#

62427BRACKET, CENTER PILLAR GARNISH, RH

main62427-30050iGS141,JZS141,143,145,LS141199110-199508

62428BRACKET, CENTER PILLAR GARNISH, LH

main62427-30050iGS141,JZS141,143,145,LS141199110-199508

62471AGARNISH, ROOF SIDE, INNER RH

main62470-30340-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main62470-30340-E0iJZS147,149,UZS14#199110-199508

QUARTZ,TRIM4#

main62470-30340-J0iJZS147,149,UZS14#199408-199508

DK.BLUE,TRIM8#

main62470-30350-B0iJZS141,LS141..SSL199206-199308

main62470-30350-E0iJZS141,LS141..SSL199305-199307

main62470-30350-J0iGS141,JZS141,LS141..SALEX,SSL199308-199508

main62470-30360-B1iGS141,JZS141,LS141..SALEX,SSL199110-199508

SHADOW GRAY,TRIM1#

main62470-30360-E1iGS141,JZS141,LS141..SALEX,SSL199110-199508

QUARTZ,TRIM4#

main62470-30360-J1iGS141,JZS141,LS141..SALEX,SSL199110-199508

DK.BLUE,TRIM8#

62472AGARNISH, ROOF SIDE, INNER LH

main62480-30300-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main62480-30300-E0iJZS147,149,UZS14#199110-199508

QUARTZ,TRIM4#

main62480-30300-J0iJZS149,UZS141,143,145199110-199408

DK.BLUE,TRIM8#

main62480-30310-B0iJZS141,LS141..SSL199206-199308

main62480-30310-E0iJZS141,143,145..ROY,ROYG199110-199210

QUARTZ,TRIM4#

main62480-30310-J0iJZS141,LS141..SSL199206-199308

main62480-30320-B1iGS141,JZS141,LS141..SALEX,SSL199110-199508

SHADOW GRAY,TRIM1#

main62480-30320-E1iGS141,JZS141,LS141..SALEX,SSL199110-199508

QUARTZ,TRIM4#

main62480-30320-J1iGS141,JZS141,LS141..SALEX,SSL199110-199508

DK.BLUE,TRIM8#

67869CCLIP, ROOF SIDE RAIL WEATHERSTRIP

main67869-20030×12iJZS147,149,UZS14#199110-199508

FR,CTR

main67869-30060×2iJZS147,149,UZS14#199110-199508

main67869-32010×4iGS141,JZS141,143,145,LS141199110-199508

main67869-32020×12iGS141,JZS141,143,145,LS141199110-199508

FR,CTR

67913PLATE, FRONT DOOR SCUFF, RH

main67913-30170-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main67913-30170-E0iJZS147,149,UZS14#199110-199508

QUARTZ,TRIM4#

main67913-30170-J0iJZS149,UZS141,143,145199110-199408

DK.BLUE,TRIM8#

main67913-30200-B0iGS141,JZS141,143,145,LS141199110-199508

SHADOW GRAY,TRIM1#

main67913-30200-E0iGS141,JZS141,143,145,LS141199210-199508

QUARTZ,TRIM4#

main67913-30200-J0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-30170-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main67914-30170-E0iJZS147,149,UZS14#199110-199508

QUARTZ,TRIM4#

main67914-30170-J0iJZS147,149,UZS14#199408-199508

DK.BLUE,TRIM8#

main67914-30200-B0iGS141,JZS141,143,145,LS141199110-199508

SHADOW GRAY,TRIM1#

main67914-30200-E0iGS141,JZS141,143,145,LS141199210-199508

QUARTZ,TRIM4#

main67914-30200-J0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

67917APLATE, REAR DOOR SCUFF, RH

main67917-30120-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main67917-30120-E0iJZS147,149,UZS14#199110-199508

QUARTZ,TRIM4#

main67917-30120-J0iJZS147,149,UZS14#199408-199508

DK.BLUE,TRIM8#

main67917-30130-B0iGS141,JZS141,143,145,LS141199110-199508

SHADOW GRAY,TRIM1#

main67917-30130-E0iGS141,JZS141,143,145,LS141199210-199508

QUARTZ,TRIM4#

main67917-30130-J0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

67918APLATE, REAR DOOR SCUFF, LH

main67918-30100-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main67918-30100-E0iJZS147,149,UZS14#199110-199508

QUARTZ,TRIM4#

main67918-30100-J0iJZS149,UZS141,143,145199110-199408

DK.BLUE,TRIM8#

main67918-30110-B0iGS141,JZS141,143,145,LS141199110-199508

SHADOW GRAY,TRIM1#

main67918-30110-E0iJZS141,143,145,LS141..4FC199110-199210

QUARTZ,TRIM4#

main67918-30110-J0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

6777132090WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32090

6777132110WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32110

6792132010RETAINER, FRONT DOOR SCUFF PLATE

main67921-32010

9016840002

main90168-40002

9018904118

main90189-04118

904670501501

main90467-0501501

904670803101

main90467-0803101

9046710011

main90467-10011

9046713064

main90467-13064

9046804119

main90468-04119

9046804157

main90468-04157

9046805077

main90468-05077

9356715020

main93567-15020

41 parts on this diagram · 2 diagrams in section
