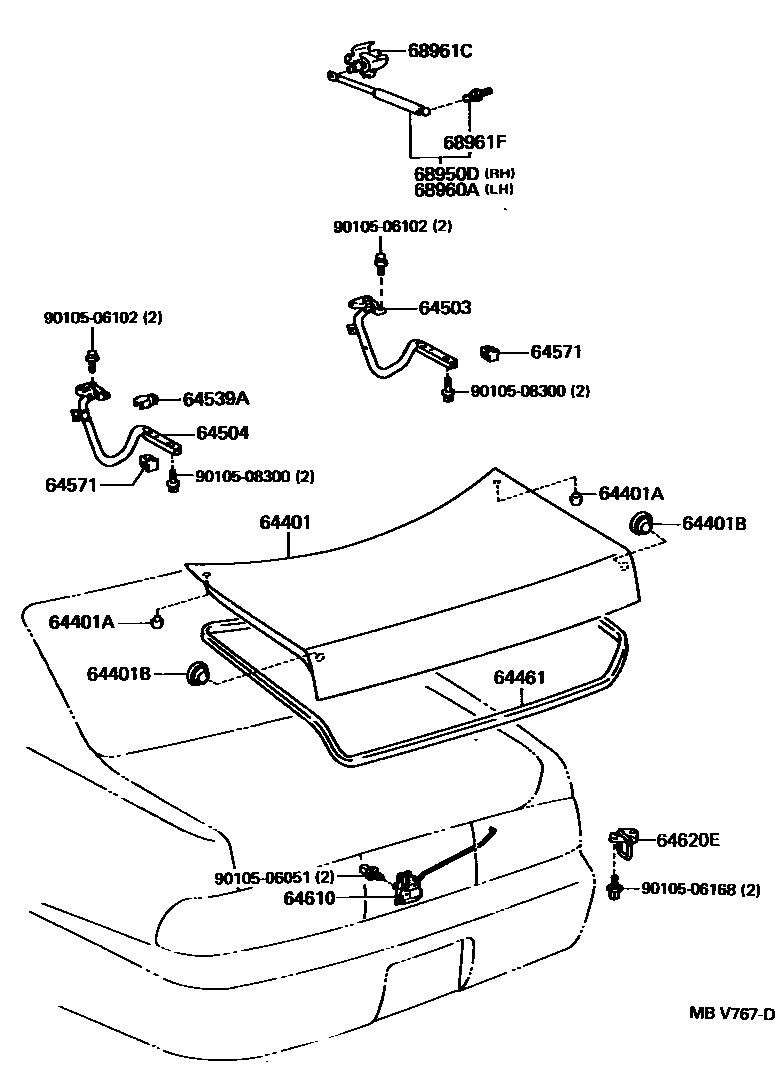

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-30760iJZS141,143,145,LS141199110-199308

main64401-30810iJZS147,149,UZS14#199110-199508

main64401-30840iGS141,JZS141,143,145,LS141199308-199508

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06041×2iJZS147,149,UZS14#199110-199401

main90541-06056×2iJZS147,149,UZS14#199401-199508

main90541-08018×2iGS141,JZS141,143,145,LS141199110-199401

main90950-01354×2iGS141,JZS141,143,145,LS141199401-199508

64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90950-01545×2iJZS141,143,145,LS141; JZS147,149,UZS14#199110-199306

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-30200iJZS147,149,UZS14#199110-199508

main64461-30210iJZS141,143,145,LS141199110-199308

main64461-30240iGS141,JZS141,143,145,LS141199308-199508

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64510-30130iJZS147,149,UZS14#199110-199508

main64510-30190iGS141,JZS141,143,145,LS141199110-199508

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64520-30080iJZS147,149,UZS14#199110-199508

main64520-30130iGS141,JZS141,143,145,LS141199110-199508

64539APLATE, LUGGAGE DOOR HINGE ARM

main64539-24020×2iJZS14#,LS141,UZS14#199110-199308

64571COVER, LUGGAGE COMPARTMENT DOOR HINGE

main64571-30040×2iGS141,JZS141,143,LS141199110-199508

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-30040iJZS147,149,UZS14#199110-199508

main64600-30051iJZS141,143,145,LS141199110-199308

main64600-30090iGS141,JZS141,143,145,LS141199308-199508

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-24020iGS141,JZS14#,LS141,UZS14#199110-199508

68950DSTAY ASSY, LUGGAGE DOOR, RH

main64530-39015iJZS147,149,UZS14#199308-199508

main64530-39075iGS141,JZS141,143,145,LS141199110-199508

68960ASTAY ASSY, LUGGAGE DOOR, LH

main64540-39015iJZS147,149,UZS14#199110-199308

main64540-39075iGS141,JZS141,143,145,LS141199110-199508

68961CBOLT, LUGGAGE DOOR STAY

main64127-30100iJZS141,143,145,LS141199110-199308

main64127-30110iJZS147; JZS149,UZS14#199110-199308

main64128-30040iGS141,JZS141,143,145,LS141199308-199508

LH

68961FBOLT, BACK DOOR STAY

main68961-10030×6iGS141,JZS141,143,145,LS141; JZS147,149,UZS14#199308-199508

9010506051

main90105-06051

9010506102

main90105-06102

9010506168

main90105-06168

9010508300

main90105-08300
