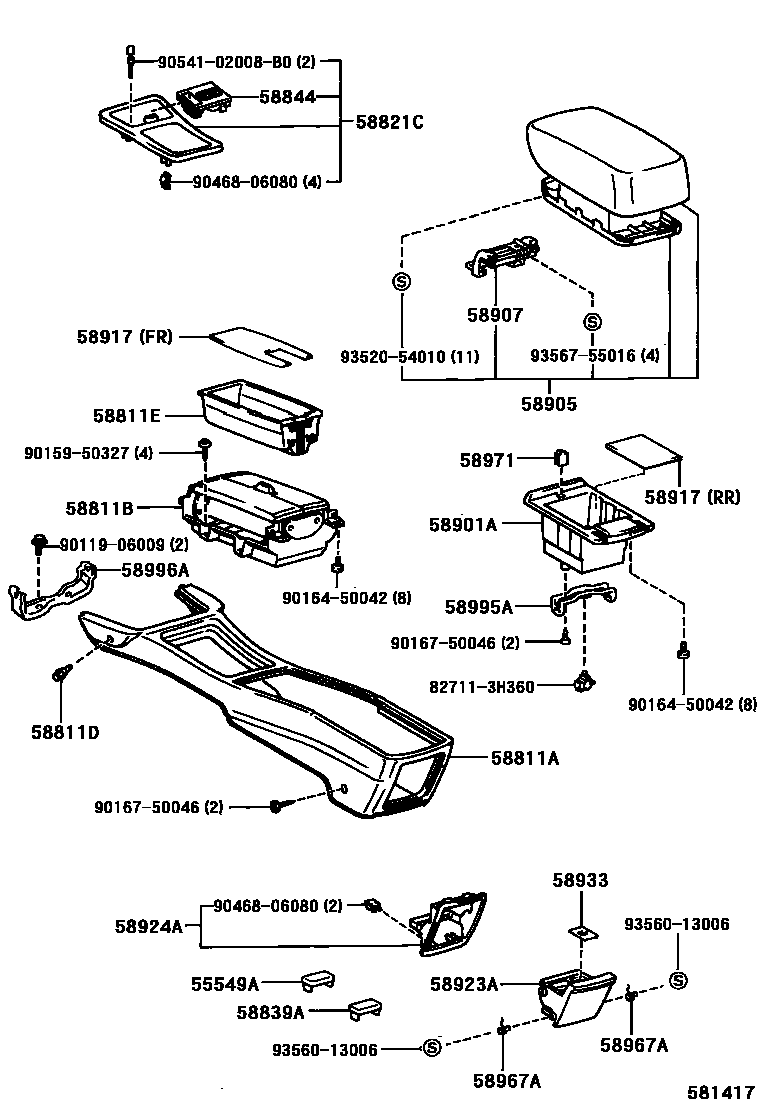

CONSOLE BOX & BRACKET

0001 1 0002 1

55549ACOVER, REAR COOLER SWITCH HOLE

main55549-30100iJZS141,143,LS141..ROYT,SALEX,SSL199110-199508

58811ABOX, CONSOLE, FRONT

main58802-30050-B0iGS141,JZS141,143,145,LS141199110-199508

SHADOW GRAY,TRIM1#

main58802-30050-E0iJZS141,143,145,LS141..4FC199110-199508

QUARTZ,TRIM4#

main58802-30050-J0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

main58811-30260-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main58811-30260-E0iJZS147,149,UZS14#199110-199508

QUARTZ,TRIM4#

main58811-30260-J0iJZS149,UZS141,143,145199110-199508

DK.BLUE,TRIM8#

58811BBOX, CONSOLE

main58801-30190-B0iGS141,JZS141,143,145,LS141199110-199508

SHADOW GRAY,TRIM1#

sub58801-30190

main58801-30190-E0iGS141,JZS141,143,145,LS141199110-199508

QUARTZ,TRIM4#

sub58801-30190

main58801-30190-J0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

sub58801-30190

58811DCLIP(FOR CONSOLE BOX)

main90467-07129iGS141,JZS141,143,145,LS141199110-199508

main90467-07129iJZS141,LS141..SSL199206-199308

main90467-08175iJZS147,149,UZS14#199110-199508

58811EBOX, CONSOLE, UPPER

main58811-30270iJZS141,143,145,LS141199110-199308

main58811-30271iGS141,JZS141,143,145,LS141199308-199508

sub58811-30270

58821CPANEL, CONSOLE, UPPER

main58804-30080iJZS147,149,UZS141199110-199308

sub58804-30081

main58804-30081iJZS147,149,UZS141,147199308-199508

sub58804-30091

sub58844-30080

main58804-30090iJZS149,UZS141..B,C199110-199308

sub58804-30091

main58804-30091iUZS141199308-199508

main58804-30100iGS141,JZS141,LS141..SALEX,SSL199110-199508

main58804-30120iJZS141,LS141..SALEX199110-199308

main58804-30120iJZS141,143..ROY,ROYT199110-199508

main58804-30130iJZS143..ROY199110-199308

sub58804-30120

sub58844-30090

main58804-30130iJZS143..ROY199110-199308

sub58804-30120

sub58844-30090

main58804-30130iJZS145199110-199508

sub58804-30120

sub58844-30090

main58804-30140iUZS143,145199210-199308

sub58804-30141

main58804-30141iUZS143,145199308-199508

sub58804-30151

sub58844-30080

main58804-30150iUZS143,145199210-199308

sub58804-30151

main58804-30151iUZS143,145199308-199508

58839ACOVER, CONSOLE BOX HOLE

main55549-30100iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199110-199508

58844BEZEL, CONSOLE BOX

main58844-30060iUZS141,143,145199110-199508

main58844-30080iGS141,JZS141,143,147,149,LS141,UZS14#199110-199508

main58844-30090iJZS141..ROY199110-199308

main58844-30090iJZS145199110-199508

58901ABOX SUB-ASSY, CONSOLE, REAR

main58912-30130iGS141,JZS141,143,145,LS141199110-199508

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-30240-B0iJZS147,149,UZS143,145199210-199308

sub58905-30241

main58905-30240-B0iJZS149,UZS141199110-199308

SHADOW GRAY,TRIM1#

sub58905-30241

main58905-30240-E0iUZS141199110-199308

QUARTZ,TRIM4#

sub58905-30241

main58905-30240-E0iUZS141199210-199308

sub58905-30241

main58905-30240-J0iJZS149,UZS143,145199110-199308

DK.BLUE,TRIM8#

sub58905-30241

main58905-30241-B0iUZS143,145199308-199508

SHADOW GRAY,TRIM1#

sub58905-30241

sub58905-30261

main58905-30241-E0iJZS147,149,UZS147199308-199508

QUARTZ,TRIM4#

sub58905-30241

sub58905-30261

main58905-30241-J0iUZS143,145199308-199508

DK. BLUE,TRIM8#

sub58905-30241

sub58905-30261

main58905-30250-B0iJZS149,UZS14#..B,C199110-199308

sub58905-30251

main58905-30250-E0iJZS149,UZS14#..B,C199110-199308

sub58905-30251

main58905-30251-B0iJZS149,UZS141,143,145..B,C199308-199508

sub58905-30251

main58905-30251-E0iJZS149,UZS141,143,145..B,C199308-199508

sub58905-30251

main58905-30260-B0iUZS141199210-199308

SHADOW GRAY,TRIM1#

sub58905-30261

main58905-30260-B0iJZS149,UZS143,145..B,C199110-199308

sub58905-30261

main58905-30260-B0iUZS141199110-199210

sub58905-30261

main58905-30260-E0iJZS149,UZS143,145..B,C199110-199308

sub58905-30261

main58905-30260-E0iUZS141199110-199210

sub58905-30261

main58905-30260-E0iUZS141199210-199308

QUARTZ,TRIM4#

sub58905-30261

main58905-30260-J0iJZS149,UZS143,145..B,C199110-199308

sub58905-30261

main58905-30260-J0iUZS141199210-199308

DK.BLUE,TRIM8#

sub58905-30261

main58905-30260-J0iUZS141199110-199210

sub58905-30261

main58905-30261-B0iUZS141199308-199508

SHADOW GRAY,TRIM1#

sub58905-30261

main58905-30261-B0iUZS143,145199308-199508

sub58905-30261

main58905-30261-B0iJZS149..B199308-199408

sub58905-30261

main58905-30261-E0iJZS147,149,UZS141,147199308-199508

QUARTZ,TRIM4#

sub58905-30261

main58905-30261-E0iUZS143,145199308-199508

sub58905-30261

main58905-30261-E0iUZS141199308-199408

sub58905-30261

main58905-30261-J0iJZS147,149,UZS141,147199308-199508

DK. BLUE,TRIM8#

sub58905-30261

main58905-30261-J0iUZS141199308-199408

sub58905-30261

main58905-30261-J0iUZS143,145199308-199508

sub58905-30261

main58905-30270-B0iJZS141,143,145..ROY,ROYG,ROYT199110-199308

SHADOW GRAY,TRIM1#

main58905-30270-B0iJZS141,LS141..SSL199206-199308

main58905-30270-E0iJZS141,143,145..ROY,ROYG,ROYT199110-199308

QUARTZ,TRIM4#

main58905-30270-E0iJZS141,LS141..SSL199206-199308

main58905-30270-J0iJZS141,143,145..ROY,ROYG199110-199308

DK.BLUE,TRIM8#

main58905-30270-J0iJZS141,LS141..SSL199206-199308

main58905-30280-B0iGS141,JZS141,LS141..SALEX,SSL199110-199508

SHADOW GRAY,TRIM1#

main58905-30280-E0iGS141,JZS141,LS141..SALEX,SSL199110-199508

QUARTZ,TRIM4#

main58905-30280-J0iGS141,JZS141,LS141..SALEX,SSL199110-199508

DK.BLUE,TRIM8#

main58905-30290-B0iJZS143..ROYT199110-199210

SHADOW GRAY,TRIM1#

main58905-30290-B0iJZS143..ROYT199210-199508

main58905-30300-B0iJZS145199110-199508

main58905-30300-E0iJZS145199110-199508

main58905-30300-J0iJZS145199110-199508

main58905-30380-B1iJZS141,143,145..ROY,ROYG,ROYT199308-199508

main58905-30380-B1iGS141,JZS141,LS141..SALEX,SSL199308-199508

SHADOW GRAY,TRIM1#

main58905-30380-E1iJZS141,143,145..ROY,ROYG,ROYT199308-199508

main58905-30380-E1iGS141,JZS141,LS141..SALEX,SSL199308-199508

QUARTZ,TRIM4#

main58905-30380-J1iJZS141,143,145..ROY,ROYG199308-199508

DK.BLUE,TRIM8#

main58905-30380-J1iGS141,JZS141,LS141..SALEX,SSL199308-199508

main58905-30890-E0iJZS141,LS141..SSL199305-199307

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-30080iGS141,JZS141,143,145,LS141199110-199508

58917MAT, BOX BOTTOM, NO.2

main58917-30060iJZS141,143,145,LS141199110-199308

main58917-30060iGS141,JZS141,143,145,LS141199308-199508

main58917-30080iGS141,JZS141,143,145,LS141199308-199508

58923APANEL, CONSOLE REAR END

main58923-30080-B0iGS141,JZS141,143,145,LS141199110-199508

SHADOW GRAY,TRIM1#

sub58923-30080

main58923-30080-E0iJZS141,143,145,LS141..4FC199110-199508

QUARTZ,TRIM4#

sub58923-30080

main58923-30080-J0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

sub58923-30080

58924APANEL, CONSOLE REAR END, NO.2

main58924-30050-B0iGS141,JZS141,143,145,LS141199110-199508

SHADOW GRAY,TRIM1#

sub58924-30050

main58924-30050-E0iGS141,JZS141,143,145,LS141199110-199508

QUARTZ,TRIM4#

sub58924-30050

main58924-30050-J0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

sub58924-30050

58933GARNISH, CONSOLE REAR END PANEL

main58933-30050iGS141,JZS141,143,145,LS141199110-199508

58967ASPRING, CONSOLE DOOR STOPPER

main58967-30050iGS141,JZS141,143,145,LS141199110-199508

main58967-30090iGS141,JZS141,143,145,LS141199110-199508

58971LOCK, CONSOLE COMPARTMENT DOOR

main58971-30041iJZS141,143,145,LS141199110-199112

main58971-30070iGS141,JZS141,143,145,LS141199112-199508

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-30080iJZS147,149,UZS14#199110-199508

main58995-30090iGS141,JZS141,143,145,LS141199110-199508

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-30060iGS141,JZS141,143,145,LS141199110-199508

main58996-30070iUZS141199210-199308

main58996-30070iJZS147,149,UZS147..A,C199110-199508

827113H360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H360

9011906009

main90119-06009

9015950327

main90159-50327

9016450042

main90164-50042

9016750046

main90167-50046

9046806080

main90468-06080

9054102008B0

main90541-02008B0

9352054010

main93520-54010

9356013006

main93560-13006

9356755016

main93567-55016

29 parts on this diagram · 2 diagrams in section
