FLOOR PAN & LOWER BACK PANEL
57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57421APLATE, FLOOR SIDE RAIL, RH
57422PLATE, FLOOR SIDE RAIL, LH
57445REINFORCEMENT, NO.5 BODY MOUNTING, RH
57446REINFORCEMENT, NO.5 BODY MOUNTING, LH
57455ABRACKET, FRONT FLOOR CROSSMEMBER
57457CBRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT RH
57458MEMBER, FRONT FLOOR CROSS, NO.1
57459MEMBER, FRONT FLOOR CROSS, NO.2
57463MEMBER, CENTER FLOOR CROSS, NO.3
57464STRENGTH, CENTER FLOOR CROSSMEMBER
57467ABRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
57505AREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER
57652BMEMBER, REAR FLOOR CROSS, FRONT RH
57653BMEMBER, REAR FLOOR CROSS, FRONT LH
57654AMEMBER, REAR FLOOR CROSS, NO.3
57684ABRACKET, FUEL TANK MOUNTING, NO.2
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58028REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, NO.2
58111PAN, FRONT FLOOR
58114AREINFORCEMENT, FRONT FLOOR PANEL
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
FOR REAR FLOOR PAN
FOR CENTER FLOOR PAN
FOR FRONT FLOOR PAN
58136COVER, FRONT FLOOR HOLE
58136ACOVER, FRONT FLOOR SERVICE HOLE
58164ARETAINER, CONSOLE BOX MOUNTING
58171REINFORCEMENT, PARKING BRAKE BASE
58181BBRACKET, FRONT SEAT INSIDE MOUNTING, FRONT RH
58182BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT LH
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58208PAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH
58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH
58225HOLDER, REAR SEAT CUSHION
58241DGUSSET, WHEELHOUSE INNER, FRONT RH
58242DGUSSET, WHEELHOUSE INNER, FRONT LH
58271AREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3
58272BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.4
58274REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR, NO.1
58277CBRACKET, PARKING BRAKE CABLE GUIDE, NO.4
58281ACOVER, TRANSMISSION AUXILIARY
58301APANEL SUB-ASSY, REAR FLOOR
58302CBRACKET SUB-ASSY, REAR ABSORBER, RH
58303CBRACKET SUB-ASSY, REAR ABSORBER, LH
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58324BRACKET, FLEXIBLE HOSE
58337BREINFORCEMENT, NO.7 BODY MOUNTING
58338DREINFORCEMENT, TAIL END BODY MOUNTING
58367BRACKET, FUEL TUBE CLAMP
58368BBRACKET, FUEL TUBE, NO.2
58369ABRACKET, FUEL TUBE, NO.3
TYPE B
58369BBRACKET, FUEL TUBE, NO.3
58369GBRACKET, FUEL TUBE, NO.3
58408CSTAY SUB-ASSY, BATTERY SERVICE OPENING LID, FRONT
58605APANEL SUB-ASSY, FRONT FLOOR SILENCER, FRONT RH
58606APANEL SUB-ASSY, FRONT FLOOR SILENCER, FRONT LH
58607APANEL SUB-ASSY, FRONT FLOOR SILENCER, REAR RH
58608PANEL SUB-ASSY, FRONT FLOOR SILENCER, REAR LH
58637APANEL, REAR FLOOR SILENCER
58771CLAMP, JACK, NO.1
6101SIDE MEMBER
61685ABRACKET, REAR SEATBACK MOUNTING
9011505035
main90115-05035
9011901005
main90119-01005
9011906506
main90119-06506
9011911013
main90119-11013
9017605013
main90176-05013
9046312020
main90463-12020
9048036009
main90480-36009
9095001005
main90950-01005
9095001027
main90950-01027
9095001061
main90950-01061
9095001352
main90950-01352
9095001422
main90950-01422
9095001453
main90950-01453
9095001469
main90950-01469
9095001518
main90950-01518
9095001570
main90950-01570
9095001655
main90950-01655
9095001684
main90950-01684
9095006001
main90950-06001
9095901117
main90959-01117
9166640616
main91666-40616

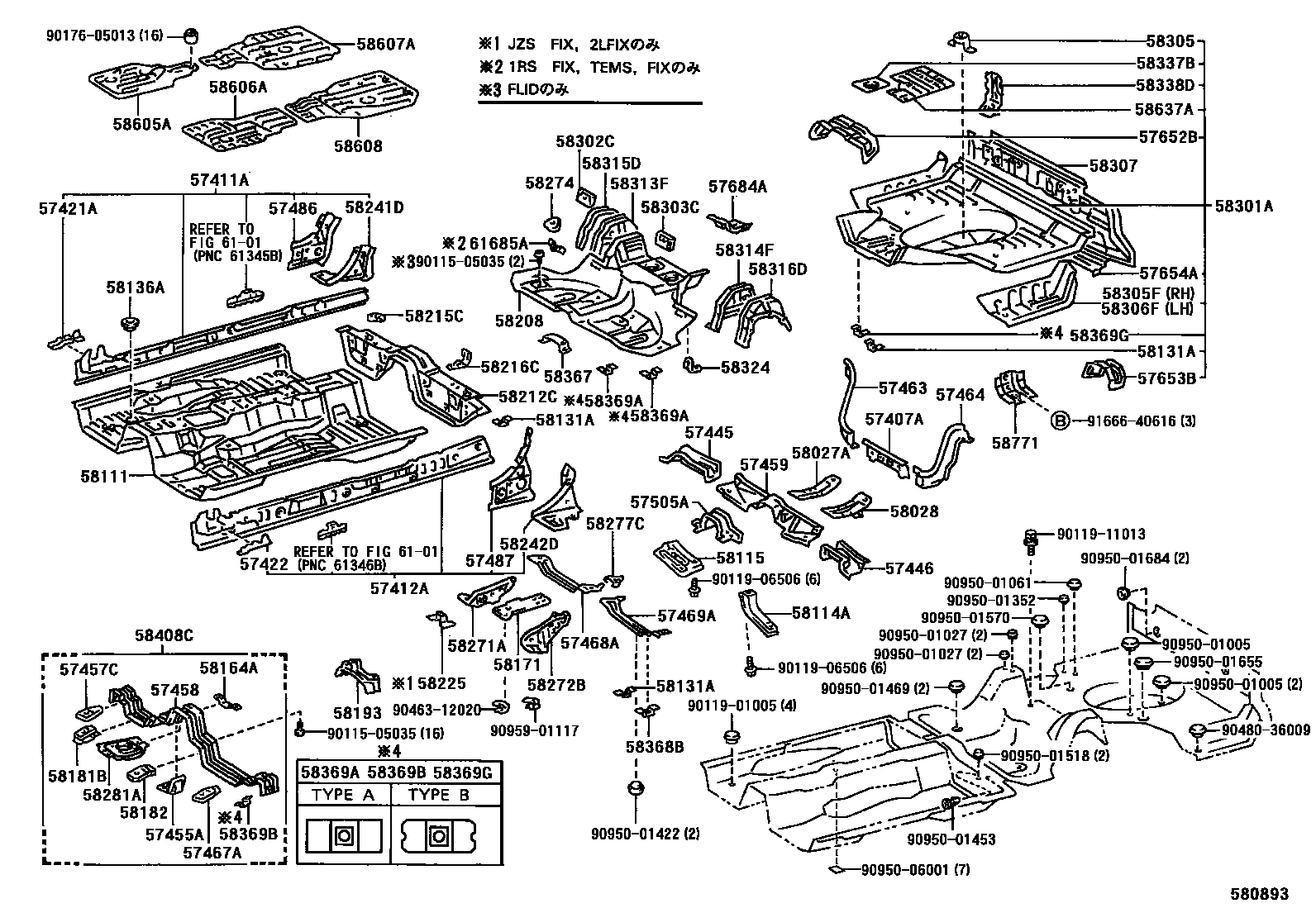

97 parts on this diagram · 2 diagrams in section
