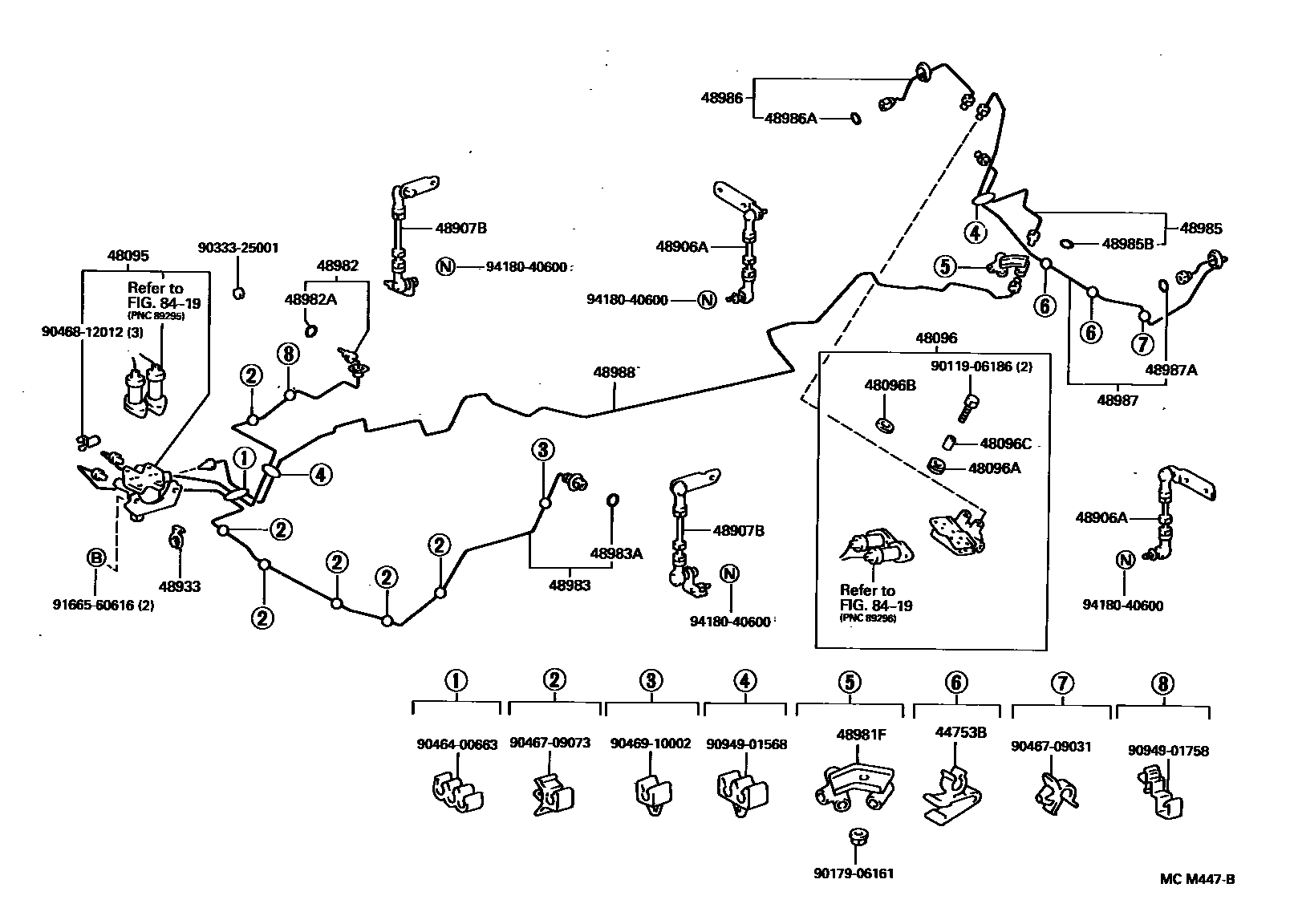

HEIGHT CONTROL (AUTO-LEVELER)

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1

44753BCLAMP, HEIGHT CONTROL TUBE, NO.1

main44753-24010×2iJZS149,UZS141199110-199206

48095VALVE SUB-ASSY, HEIGHT CONTROL, NO.1

main48095-30020iJZS149,UZS141,143,145199110-199508

main48095-30030iJZS145199110-199508

48096VALVE SUB-ASSY, HEIGHT CONTROL, NO.2

main48096-30030iJZS149,UZS141199110-199508

main48096-30040iJZS145199110-199508

main48096-30050iUZS143,145199210-199508

48096ABUSH, NO.2(FOR HEIGHT CONTROL VALVE)

main90385-08009×2iJZS149,UZS141,143,145199110-199508

48096BCUSHION, NO.2(FOR HEIGHT CONTROL VALVE)

main90541-06008iJZS149,UZS141,143,145199110-199508

48096CSPACER, NO.2(FOR HEIGHT CONTROL VALVE)

main90561-06011×2iJZS149,UZS141,143,145199110-199508

48906ALINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR

main48906-30020iJZS145199110-199508

main48906-30050iJZS149,UZS141,143199110-199508

main48906-30060iJZS149,UZS141,143199110-199508

main48906-30070iUZS145199210-199508

main48906-30080iUZS145199210-199508

48907BLINK SUB-ASSY, HEIGHT CONTROL SENSOR, FRONT

main48907-30011iJZS145199110-199508

main48907-30021iJZS145199110-199508

main48907-30050iJZS149,UZS141199110-199508

main48907-30060iJZS149,UZS141199110-199508

main48907-30070iUZS143,145199210-199508

main48907-30080iUZS143,145199210-199508

48933HOLDER, AIR CONNECTOR CLIP

main48933-30010×2iJZS145; JZS145,149,UZS141,143,145199110-199508

main48933-30020iJZS145199110-199508

48981TUBE, HEIGHT CONTROL, NO.1

main48982-30040iJZS149,UZS141,143,145199110-199508

main48982-30050iJZS145199110-199508

48981FWAY, NO.1(FOR HEIGHT CONTROL TUBE)

main90412-12035iJZS149,UZS141,143,145..B,C; JZS149..A199110-199508

main90415-10008iJZS149..A199110-199508

48982TUBE, HEIGHT CONTROL, NO.2

main48983-30061iJZS149,UZS141,143..B,C; JZS149..A199110-199508

main48983-30071iJZS149,UZS145..A,C199110-199508

main48983-30080iJZS145199110-199508

48982ARING, O(FOR HEIGHT CONTROL TUBE NO.2)

main90301-04004×4iJZS149,UZS141,143,145199110-199508

main90301-04006×2iJZS145199110-199508

48983TUBE, HEIGHT CONTROL, NO.3

main48984-30061iJZS149,UZS141,143,145199110-199508

48983ARING, O(FOR HEIGHT CONTROL TUBE NO.3)

main90301-04004×4iJZS149,UZS141,143,145199110-199508

48985TUBE, HEIGHT CONTROL, NO.5

main48985-24040iJZS149,UZS141,143,145199110-199508

main48985-30030iJZS145199110-199508

48985BRING, O(FOR HEIGHT CONTROL TUBE NO.5)

main90301-04006×2iJZS149,UZS141199110-199308

48986TUBE, HEIGHT CONTROL, NO.6

main48986-30010iJZS145199110-199508

main48986-30021iJZS149,UZS141,143,145199110-199508

48986ARING, O(FOR HEIGHT CONTROL NO.6 TUBE)

main90301-04004×4iJZS149,UZS141,143,145199110-199508

main90301-04006×2iJZS145199110-199508

48987TUBE, HEIGHT CONTROL, NO.7

main48987-30010iJZS145199110-199508

main48987-30021iJZS149,UZS141199110-199206

main48987-30022iJZS149,UZS141,143,145199206-199508

48987ARING, O(FOR HEIGHT CONTROL NO.7 TUBE)

main90301-04004×4iJZS149,UZS141,143,145199110-199508

main90301-04006×2iJZS145199110-199508

48988TUBE, HEIGHT CONTROL, NO.8

main48988-30010iJZS149,UZS141..B,C; JZS149..A199110-199210

main48988-30020iJZS149..A199110-199210

main48988-30030iUZS143,145199210-199508

8419ELECTRONIC MODULATED SUSPENSION

→ Go to FIG 84-19

9011906186

main90119-06186

9017906161

main90179-06161

9033325001

main90333-25001

9046400663

main90464-00663

9046709031

main90467-09031

9046709073

main90467-09073

9046812012

main90468-12012

9046910002

main90469-10002

9094901568

main90949-01568

9094901758

main90949-01758

9166560616

main91665-60616

9418040600

main94180-40600

35 parts on this diagram · 6 diagrams in section
