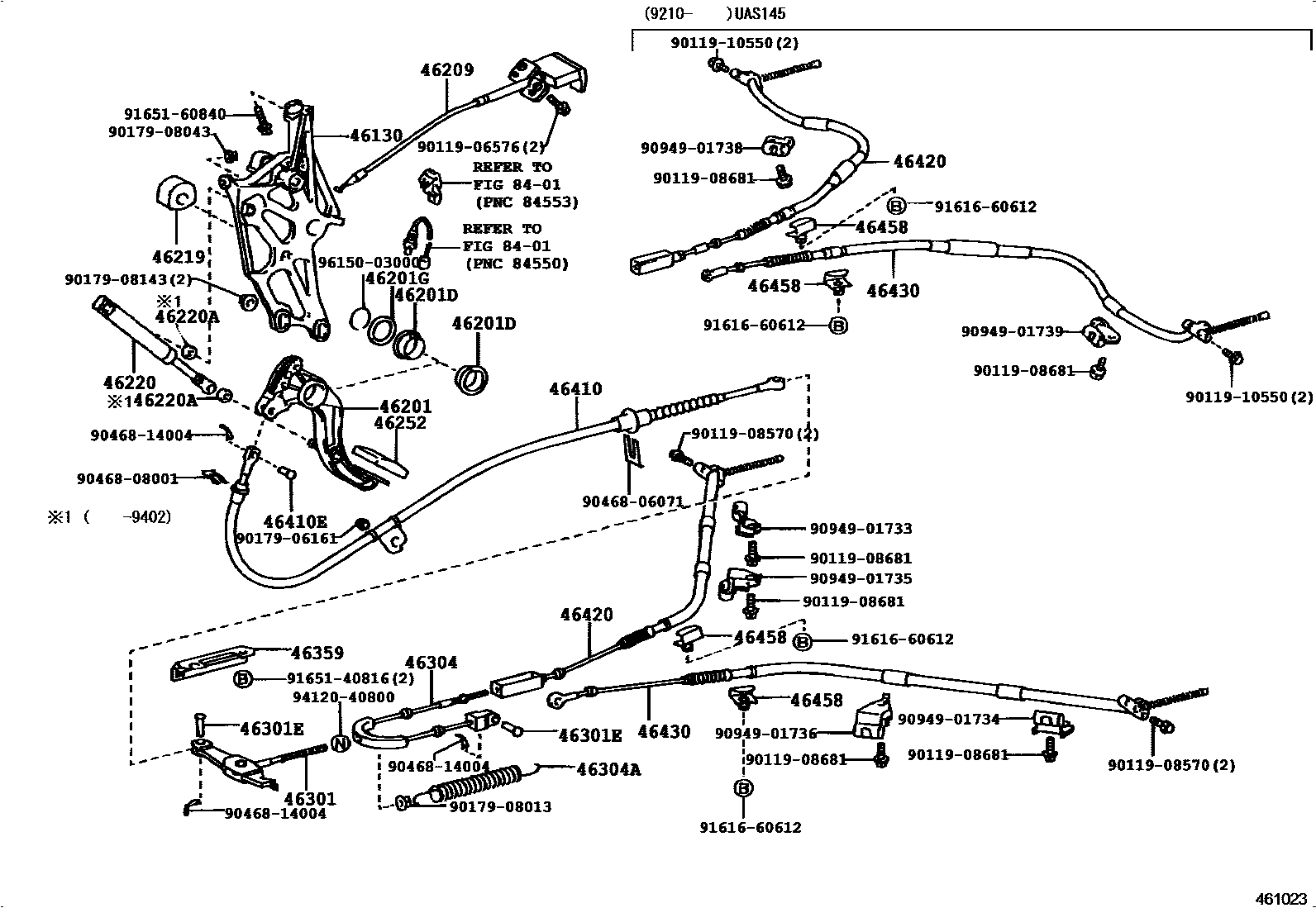

PARKING BRAKE & CABLE

0001 1 0002 1 0004 1 0006 1

46130BRACKET ASSY, PARKING BRAKE PEDAL

main46130-30130iJZS147,149,UZS14#199110-199508

main46130-30140-B0iJZS141,143,145,LS141199110-199308

SHADOW GRAY,TRIM1#

main46130-30140-B5iGS141,JZS141,143,145,LS141199308-199508

SHADOW GRAY,TRIM1#

main46130-30140-E0iJZS141,143,145,LS141199210-199308

QUARTZ,TRIM4#

main46130-30140-E4iGS141,JZS141,143,145,LS141199308-199508

DK.ROSE,TRIM4#

main46130-30140-J0iJZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199308

DARK BLUE,TRIM8#

main46130-30140-J4iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199308-199508

DK.BLUE,TRIM8#

46201PEDAL SUB-ASSY, PARKING BRAKE

main46201-30110iGS141,JZS141,143,145,LS141199110-199508

main46201-30120iJZS147,149,UZS14#199110-199508

46201DBUSH(FOR PARKING BRAKE PEDAL)

main90386-16022×2iGS141,JZS141,143,145,LS141199110-199508

main90386-30002iJZS147,149,UZS14#199110-199508

main90386-30003iJZS147,149,UZS14#199110-199508

46201GSPACER(FOR PARKING BRAKE PEDAL)

main90560-30010iJZS147,149,UZS14#199110-199508

46209CABLE SUB-ASSY, PARKING BRAKE RELEASE

main46209-30100-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main46209-30100-E0iJZS147,149,UZS14#199110-199508

DARK ROSE,TRIM4#

main46209-30100-J0iJZS147,149,UZS14#199408-199508

DARK BLUE,TRIM8#

main46209-30110-B0iGS141,JZS141,143,145,LS141199110-199508

SHADOW GRAY,TRIM1#

main46209-30110-E0iJZS141,143,145,LS141..4FC199110-199210

DARK ROSE,TRIM4#

main46209-30110-J0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199508

DARK BLUE,TRIM8#

46219STOPPER, PARKING PEDAL

main90541-07008iGS141,JZS141,143,145,LS141199110-199508

main90541-15013iJZS147,149,UZS14#199110-199508

46220ABSORBER ASSY, PARKING BRAKE PEDAL RETURN

main46220-30010iGS141,JZS14#,LS141,UZS14#199110-199508

46220ACUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER)

main90540-07010×2iGS141,JZS14#,LS141,UZS14#199110-199401

46252PAD, PARKING PEDAL

main46252-20010iGS141,JZS14#,LS141,UZS14#199110-199508

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-30230iJZS147,149,UZS14#199110-199508

main46301-30240iGS141,JZS141,143,145,LS141199110-199508

46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)

main90240-08059iJZS14#,LS141,UZS141199110-199210

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-30070iJZS147,149,UZS14#199110-199508

main46304-30080iGS141,JZS141,143,145,LS141199110-199508

46304ASPRING, TENSION(FOR PARKING BRAKE EQUALIZER)

main90507-22001iJZS147,149,UZS14#199110-199508

46359GUIDE, PARKING BRAKE INTERMEDIATE LEVER

main46359-30140iJZS147,149,UZS14#199110-199508

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-30520iJZS147,149,UZS14#199110-199508

main46410-30530iGS141,JZS141,143,145,LS141199110-199508

46410EPIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1)

main90240-08062iJZS147,149,UZS14#199110-199508

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-30410iJZS147,149,UZS141,143,147199110-199508

main46420-30430iGS141,JZS141,143,145,LS141199110-199508

main46420-30530iUZS145199210-199508

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-30050iJZS147,149,UZS141,143,147199110-199508

main46430-30070iGS141,JZS141,143,145,LS141199110-199508

main46430-30090iUZS145199210-199508

46458RETAINER, CABLE

main46458-30060×2iGS141,JZS14#,LS141,UZS14#199110-199508
