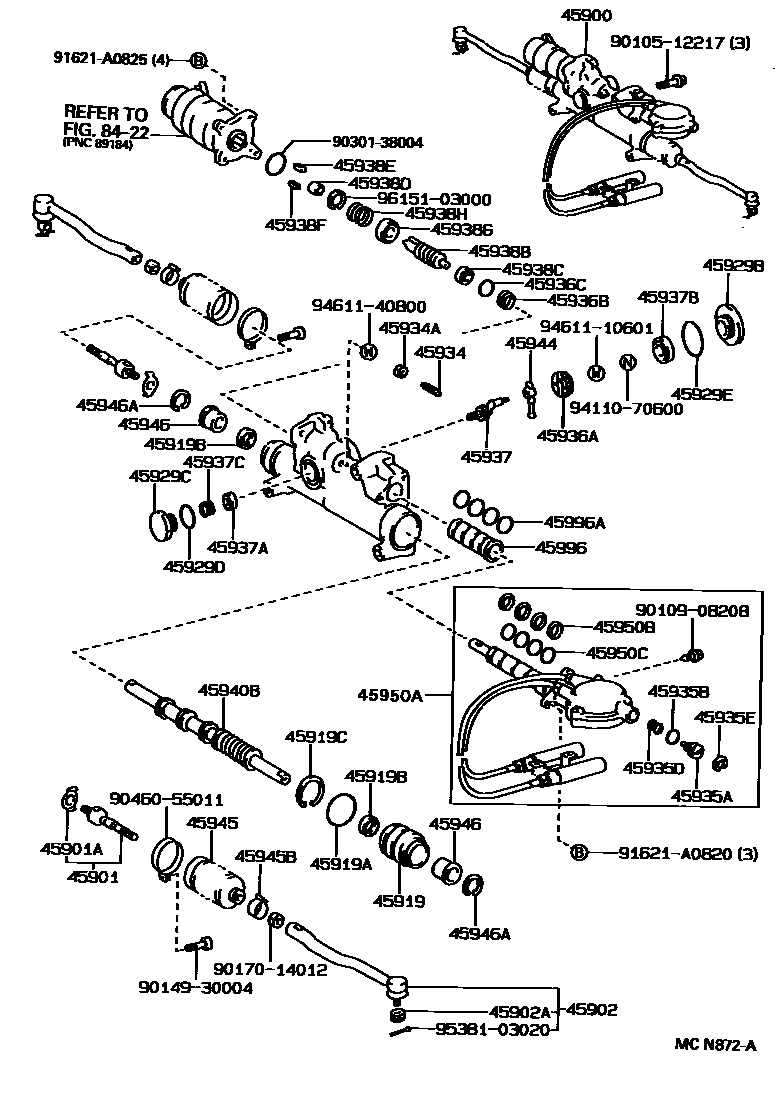

REAR STEERING GEAR (4WS)
45900LINK ASSY, REAR STEERING
45901END SUB-ASSY, REAR STEERING RACK
45901AWASHER, CLAW(FOR REAR STEERING GEAR ASSY)
45902END SUB-ASSY, REAR STEERING TIE ROD
45902ANUT, CASTLE(FOR REAR STEERING TIE ROD END)
45919STOPPER, REAR STEERING RETURN SPRING RETAINER
45919ARING, O(FOR REAR STEERING RETURN SPRING RETAINER STOPPER)
45919BSEAL, OIL(FOR STEERING RETURN SPRING RETAINER STOPPER)
45919CRING, SNAP(FOR STEERING RETURN SPRING RETAINER STOPPER)
45929BCAP, REAR STEERING VALVE CONTROL BEARING, NO.1
45929CCAP, REAR STEERING VALVE CONTROL BEARING, NO.2
45929DRING, O(FOR REAR STEERING VALVE CONTROL BEARING CAM NO.2)
45929ERING, O(FOR REAR STEERING VALVE CONTROL BEARING CAM NO.1)
45934BOLT, REAR STEERING NEUTRAL ADJUST
45934ANUT(FOR REAR STEERING NEUTRAL ADJUST BOLT)
45935ASTOPPER(FOR REAR STEERING CONTROL CAM BEARING)
45935BRING, O(FOR REAR STEERING CONTROL CAM BEARING STOPPER)
45935DSPRING(FOR REAR STEERING CONTROL CAM BEARING STOPPER)
45935ERING, SNAP(FOR REAR STEERING CONTROL CAM BEARING STOPPER)
45936ARETAINER, REAR STEERING CONTROL CAM BEARING, NO.1
45936BRETAINER, REAR STEERING CONTROL CAM BEARING, NO.2
45936CRING, O(FOR REAR STEERING CONTROL CAM BEARING RETAINER)
45937GEAR, REAR STEERING DRIVEN
45937ABEARING, RADIAL BALL, NO.2(FOR REAR STEERING DRIVEN GEAR)
45937BBEARING, RADIAL BALL, NO.1(FOR REAR STEERING DRIVE GEAR)
45937CSPRING, COMPRESSION(FOR REAR STEERING DRIVEN GEAR)
45938BGEAR, REAR STEERING DRIVE
45938CBEARING, RADIAL BALL, NO.1(FOR REAR STEERING DRIVEN GEAR)
45938DCOLLAR(FOR REAR STEERING DRIVE GEAR)
45938ECUSHION, NO.1(FOR REAR STEERING DRIVE GEAR)
45938FCUSHION, NO.2(FOR REAR STEERING DRIVE GEAR)
45938GBEARING, RADIAL BALL, NO.2(FOR REAR STEERING DRIVE GEAR)
45938HSPRING, COMPRESSION(FOR REAR STEERING DRIVE GEAR)
45940BSHAFT ASSY, REAR STEERING POWER CYLINDER
45944LEVER, REAR STEERING VALVE CONTROL
45945BOOT, REAR STEERING RELAY ROD
45945BCLIP(FOR REAR STEERING RELAY ROD BOOT)
45946STOPPER, REAR STEERING RELAY ROD
45946ARING, SNAP(FOR REAR STEERING RELAY ROD STOPPER)
45950ACAM ASSY, REAR STEERING CONTROL
45950BRING, O(FOR REAR STEERING CONTROL CAM)
45950CRING(FOR REAR STEERING CONTROL CAM)
45996LINER, REAR STEERING CONTROL VALVE SLEEVE
45996ARING, O(FOR REAR STEERING CONTROL VALVE SLEEVE LINER)
8422STEERING CONTROL SYSTEM
9010512217
main90105-12217
9010908208
main90109-08208
9014930004
main90149-30004
9017014012
main90170-14012
9030138004
main90301-38004
9046055011
main90460-55011
91621A0820
main91621-A0820
91621A0825
main91621-A0825
9411070600
main94110-70600
9461110601
main94611-10601
9461140800
main94611-40800
9538103020
main95381-03020
9615103000
main96151-03000
58 parts on this diagram · 1 diagram in section
