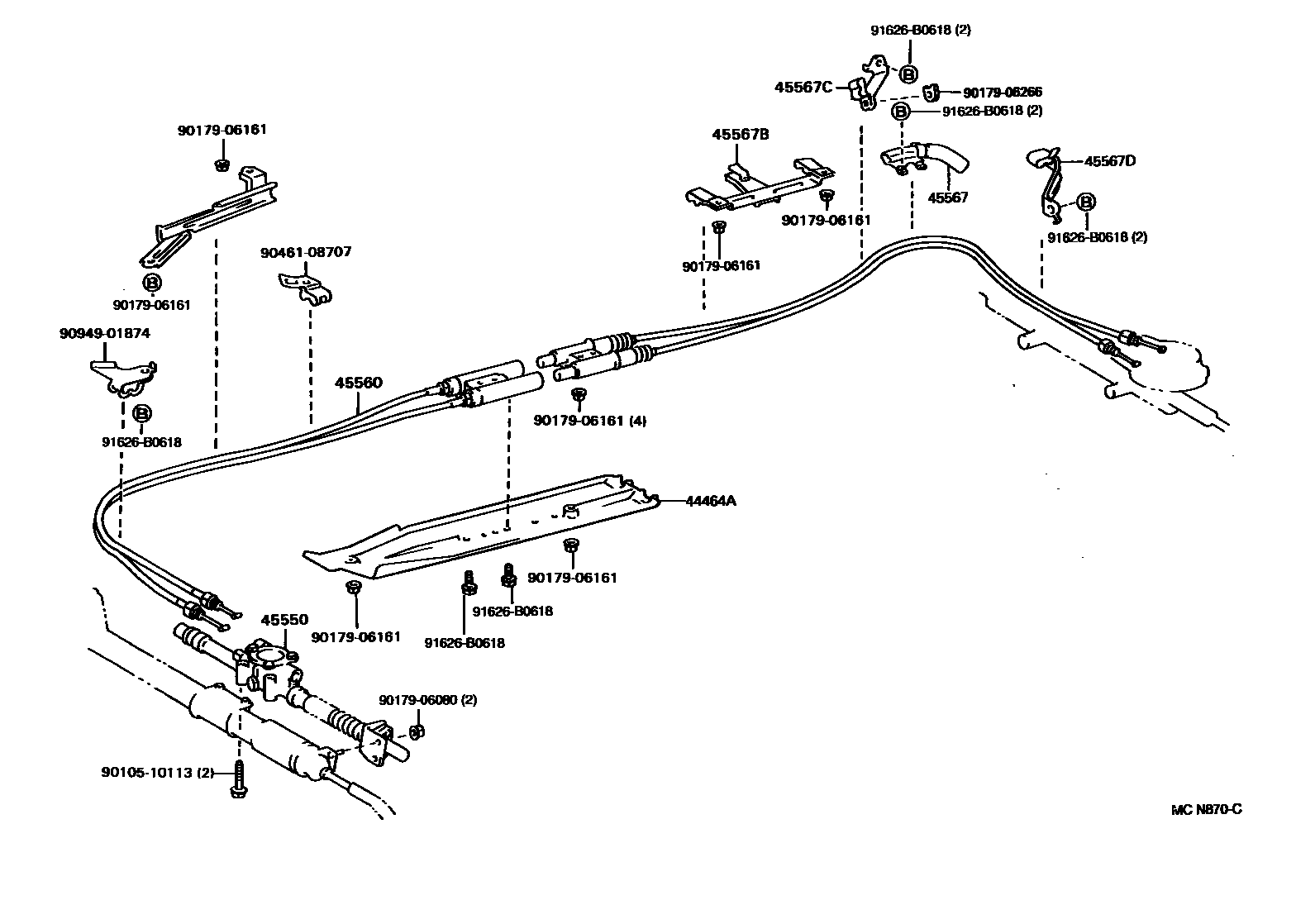

REAR STEERING CONNECTING PARTS (4WS)

0001 1 0002 1

44464APROTECTOR, REAR STEERING CONTROL TUBE, NO.1

main44464-30010iUZS145199210-199508

45550PULLEY ASSY, REAR STEERING CONTROL

main45550-30010iUZS145199210-199402

sub45550-30011

main45550-30011iUZS145199402-199508

45560CABLE ASSY, REAR STEERING CONTROL CAM

main45560-30010iUZS145199210-199508

45567BRACKET, REAR STEERING CONTROL CABLE, NO.1

main45567-30030iUZS145199210-199508

45567BBRACKET, REAR STEERING CONTROL CABLE, NO.3

main45567-30020iUZS145199210-199508

45567CBRACKET, REAR STEERING CONTROL CABLE, NO.4

main45567-24081iUZS145199210-199508

45567DBRACKET, REAR STEERING CONTROL CABLE, NO.5

main45567-30010iUZS145199210-199508

9010510113

main90105-10113

9017906080

main90179-06080

9017906161

main90179-06161

9017906266

main90179-06266

9046108707

main90461-08707

9094901874

main90949-01874

91626B0618

main91626-B0618

14 parts on this diagram · 2 diagrams in section
