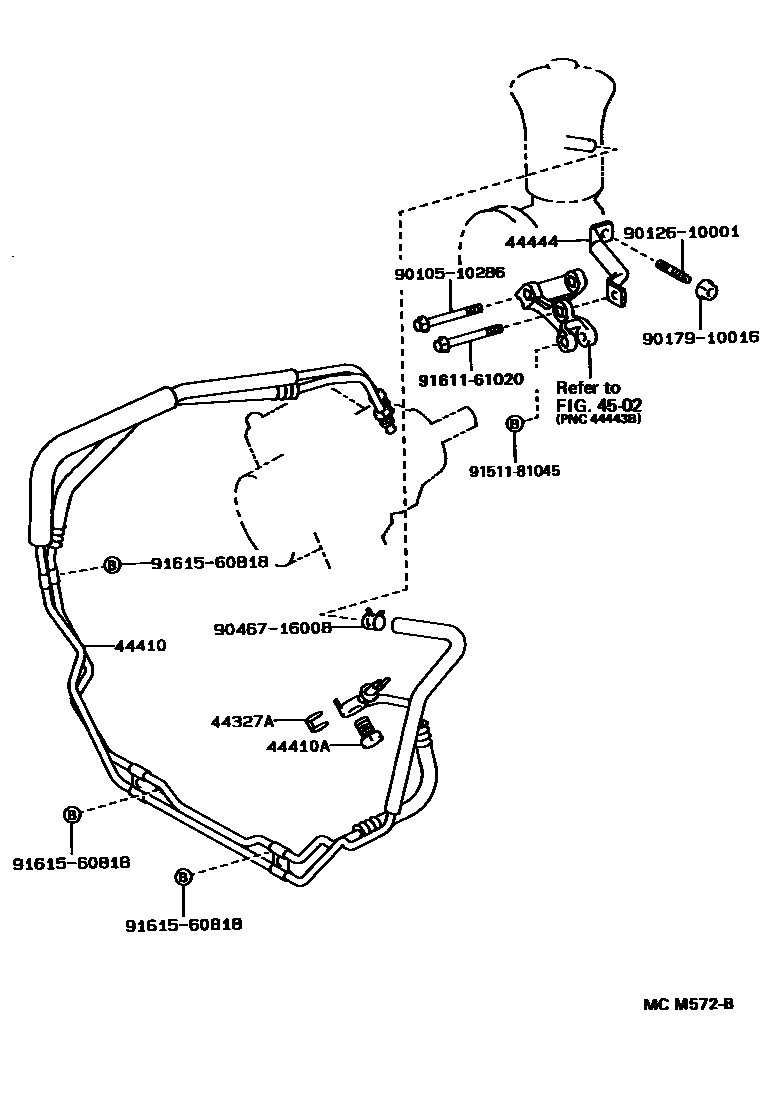

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iJZS143,145,147,149; LS141; UZS141199110-199308

main44327-26020iJZS141; JZS143,145,147,149199110-199308

main44327-30030×3iJZS143,145,147,149; LS141,UZS145; UZS141,147; UZS143199308-199508

main44327-30040iJZS141; JZS143,145,147,149199308-199508

44410TUBE ASSY, PRESSURE FEED

main44410-30081iLS141199110-199508

main44410-30160iJZS141199110-199311

main44410-30161iJZS141199311-199508

main44410-30170iGS141199308-199508

main44410-30230iJZS149199110-199112

main44410-30231iJZS147,149199112-199508

main44410-30240iUZS141199110-199112

main44410-30241iUZS141,147199112-199508

main44410-30270iJZS143,145199308-199311

main44410-30271iJZS143,145199311-199508

main44410-30300iUZS145199210-199508

main44410-30310iUZS143199210-199508

main44410-30470iJZS143,145199110-199308

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iLS141199110-199508

main90401-16013iJZS143,145,147,149; UZS141199110-199308

main90401-16014iJZS141; JZS143,145,147,149199110-199508

main96341-41603iJZS143,145,147,149; UZS141,147; UZS143,145199308-199508

44444STAY, PUMP, REAR

main44444-22090iJZS141199110-199307

main44444-30100iJZS143,145,147,149199110-199307

main44444-30110iUZS145199210-199508

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

9010510286

main90105-10286

9012610001

main90126-10001

9017910016

main90179-10016

9046716008

main90467-16008

9151181045

main91511-81045

9161161020

main91611-61020

9161560818

main91615-60818

9165160818

main91651-60818

13 parts on this diagram · 8 diagrams in section
