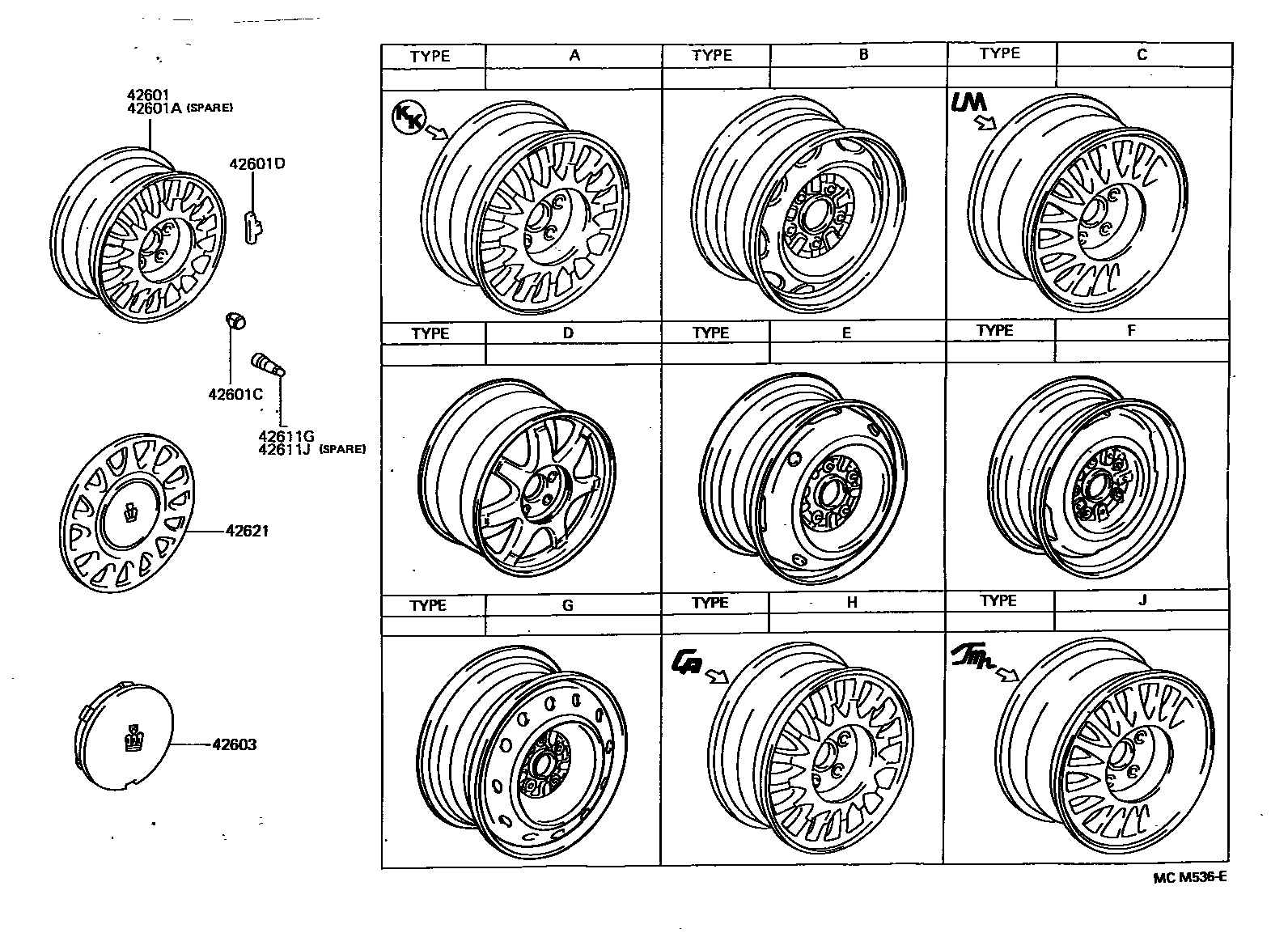

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-30690×4iGS141,JZS141,LS141..SALEX,SSL; JZS141,143,145..ROY,ROYG; JZS141,143..ROYT199308-199508

main42611-30700×4iGS141,JZS141,LS141..SALEX,SSL; JZS141,143,145..ROY,ROYG; JZS141,143..ROYT199308-199508

main42611-30710-01×4iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199308-199508

main42611-30710-03×4iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199308-199508

main42611-30740×4iJZS149,UZS141199110-199210

main42611-30751×4iJZS147,149,UZS141,147199402-199508

main42611-30760×4iUZS143,145199210-199401

main42611-30761×4iUZS143,145199401-199508

main42611-30810×4iJZS147,149,UZS141,147199210-199402

main42611-30811×4iJZS147,149,UZS141,147199402-199508

42601AWHEEL, DISC (FOR SPARE)

main42611-28210iJZS147,149,UZS141,147199110-199508

main42611-30500iGS141,JZS141,143,145,LS141199110-199508

main42611-30690iGS141,JZS141,LS141..SALEX,SSL; JZS141,143,145..ROY,ROYG; JZS141..ROYT; JZS143..ROYT199308-199508

main42611-30700iGS141,JZS141,LS141..SALEX,SSL; JZS141,143,145..ROY,ROYG; JZS141..ROYT; JZS143..ROYT199308-199508

main42611-30710-01iJZS141,LS141..ROY,SALEX,SSL199110-199308

main42611-30710-03iJZS141,LS141..ROY,SALEX,SSL199201-199308

main42611-30740iJZS149,UZS141199110-199210

main42611-30751iJZS147,149,UZS141,147199402-199508

main42611-30760iUZS143,145199210-199401

main42611-30761iUZS143,145199401-199508

main42611-30810iJZS147,149,UZS141,147199210-199402

main42611-30811iJZS147,149,UZS141,147199402-199508

main42611-50090iUZS143,145199210-199508

42601CNUT, HUB (FOR AXLE)

main90942-01007×20iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199308-199508

main90942-01062×20iGS141,JZS141,LS141..SALEX,SSL; JZS14#,UZS14#..A,B,C,ROY,ROYG; JZS141,143..ROYT199308-199508

main90942-01090×20iJZS141,LS141..ROY,SALEX,SSL; JZS143;JZS141,145..ROYG,ROYT199110-199303

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03017iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199308-199508

main90942-03020iJZS141,LS141..ROY,SALEX,SSL199110-199308

main90942-03022iJZS141,LS141..ROY,SALEX,SSL199110-199308

main90942-03025iJZS141,LS141..ROY,SALEX,SSL199110-199308

main90942-03027iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199308-199508

main90942-03029iJZS141,LS141..ROY,SALEX,SSL199110-199308

main90942-03031iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199308-199508

main90942-03041iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199308-199508

main90942-03098iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199308-199508

main90942-03099iJZS141,LS141..ROY,SALEX,SSL199110-199308

main90942-03100iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199308-199508

main90942-03101iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199308-199508

main90942-03102iJZS141,LS141..ROY,SALEX,SSL199110-199308

main90942-03108iJZS141,LS141..ROY,SALEX,SSL199110-199308

main90942-03109iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199308-199508

main90942-03146iGS141,JZS141,LS141..SALEX,SSL; JZS14#,UZS14#..A,B,C,ROY,ROYG; JZS141,143..ROYT199308-199508

main90942-03147iGS141,JZS141,LS141..SALEX,SSL; JZS14#,UZS14#..A,B,C,ROY,ROYG; JZS141,143..ROYT199308-199508

main90942-03148iJZS141,LS141..ROY,SALEX,SSL; JZS143;JZS141,145,147,149,UZS14#..A,B,C,ROYG,ROYT199110-199308

main90942-03149iGS141,JZS141,LS141..SALEX,SSL; JZS14#,UZS14#..A,B,C,ROY,ROYG; JZS141,143..ROYT199308-199508

main90942-03150iGS141,JZS141,LS141..SALEX,SSL; JZS14#,UZS14#..A,B,C,ROY,ROYG; JZS141,143..ROYT199308-199508

main90942-03151iGS141,JZS141,LS141..SALEX,SSL; JZS14#,UZS14#..A,B,C,ROY,ROYG; JZS141,143..ROYT199308-199508

main90942-03152iGS141,JZS141,LS141..SALEX,SSL; JZS14#,UZS14#..A,B,C,ROY,ROYG; JZS141,143..ROYT199308-199508

main90942-03153iGS141,JZS141,LS141..SALEX,SSL; JZS14#,UZS14#..A,B,C,ROY,ROYG; JZS141,143..ROYT199308-199508

main90942-03154iJZS141,LS141..ROY,SALEX,SSL; JZS143;JZS141,145,147,149,UZS14#..A,B,C,ROYG,ROYT199110-199308

main90942-03155iJZS141,LS141..ROY,SALEX,SSL; JZS143;JZS141,145,147,149,UZS14#..A,B,C,ROYG,ROYT199110-199308

main90942-03156iGS141,JZS141,LS141..SALEX,SSL; JZS14#,UZS14#..A,B,C,ROY,ROYG; JZS141,143..ROYT199308-199508

main90942-03157iJZS147,149,UZS14#199110-199508

main90942-03158iJZS147,149,UZS14#199110-199508

main90942-03159iJZS147,149,UZS14#199110-199508

main90942-03160iJZS147,149,UZS14#199110-199508

main90942-03161iJZS141,LS141..ROY,SALEX,SSL199110-199308

main90942-03167iGS141,JZS141,LS141..SALEX,SSL; JZS14#,UZS14#..A,B,C,ROY,ROYG; JZS141,143..ROYT199308-199508

main90942-03194iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199308-199508

main90942-03195iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199308-199508

main90942-03203iJZS141,LS141..ROY,SALEX,SSL199110-199308

main90942-03204iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199308-199508

main90942-03205iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199308-199508

main90942-03206iJZS141,LS141..ROY,SALEX,SSL199110-199308

main90942-03207iJZS141,LS141..ROY,SALEX,SSL199110-199308

main90942-03208iGS141,JZS141,LS141..SALEX,SSL; JZS14#,UZS14#..A,B,C,ROY,ROYG; JZS141,143..ROYT199308-199508

main90942-03209iGS141,JZS141,LS141..SALEX,SSL; JZS14#,UZS14#..A,B,C,ROY,ROYG; JZS141,143..ROYT199308-199508

main90942-03210iGS141,JZS141,LS141..SALEX,SSL; JZS14#,UZS14#..A,B,C,ROY,ROYG; JZS141,143..ROYT199308-199508

main90942-03211iJZS141,LS141..ROY,SALEX,SSL; JZS143;JZS141,145,147,149,UZS14#..A,B,C,ROYG,ROYT199110-199308

main90942-03212iGS141,JZS141,LS141..SALEX,SSL; JZS14#,UZS14#..A,B,C,ROY,ROYG; JZS141,143..ROYT199308-199508

main90942-03213iGS141,JZS141,LS141..SALEX,SSL; JZS14#,UZS14#..A,B,C,ROY,ROYG; JZS141,143..ROYT199308-199508

main90942-03214iGS141,JZS141,LS141..SALEX,SSL; JZS14#,UZS14#..A,B,C,ROY,ROYG; JZS141,143..ROYT199308-199508

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30160×4iJZS147,149,UZS141,147199110-199408

main42603-30190×4iGS141,JZS141,143,145,LS141199110-199508

main42603-30210×4iUZS143,145199210-199508

main42603-30270×4iJZS147,149,UZS141,147199408-199508

42611GVALVE (FOR TUBELESS TIRE)

main90942-05004×4iGS141,JZS141,143,145,LS141199110-199508

main90942-05009×4iJZS147,149,UZS14#199110-199508

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05004iGS141,JZS141,143,145,LS141199110-199508

main90942-05009iJZS143..ROYT199308-199508

42621CAP, WHEEL

main42621-30320×4iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199308-199508

8 parts on this diagram · 1 diagram in section
