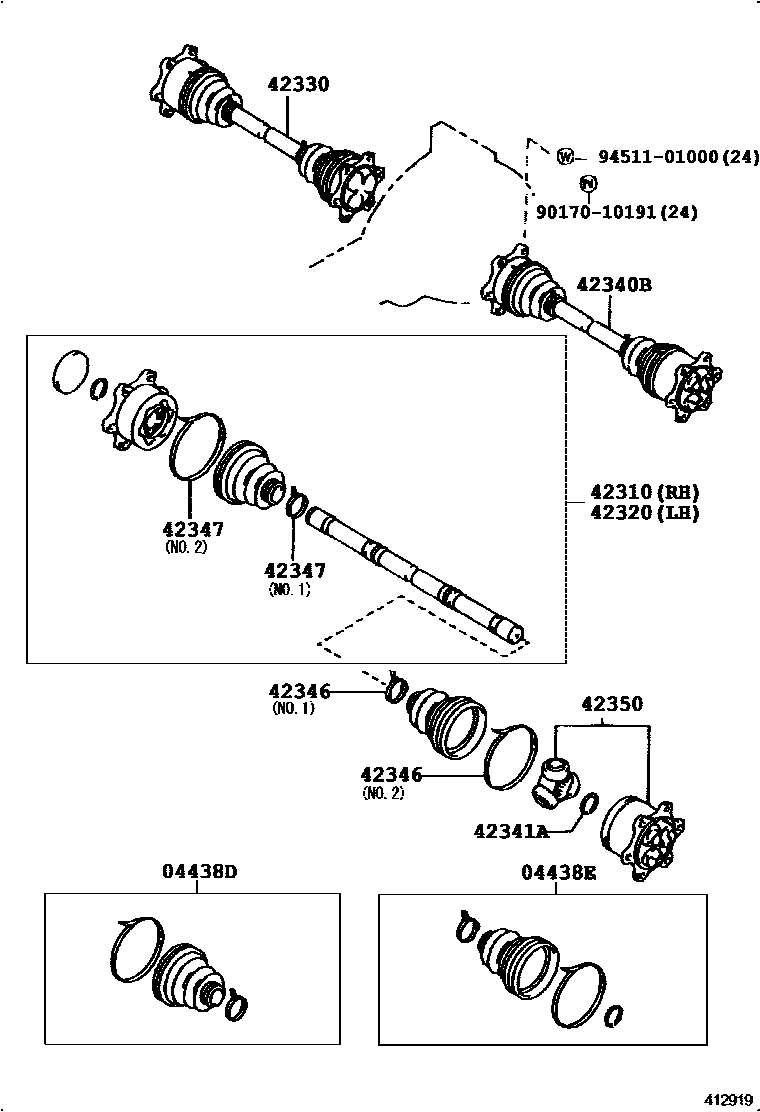

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1 0005 1

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04437-20010×2iGS141,LS141199110-199401

main04437-24010×2iJZS147,149..A199110-199303

main04437-24011×2iJZS147,149,UZS14#199308-199404

TYPE A

main04437-24030×2iJZS147,149,UZS14#199404-199508

sub04437-24031

main04437-24050×2iJZS147,149,UZS14#199110-199404

TYPE B

main04437-30030×2iJZS141,143,145199110-199508

main04438-28011×2iGS141,LS141199401-199508

sub04437-28021

04438EBOOT KIT, REAR DRIVE SHAFT OUTBOARD JOINT

main04437-14030×2iJZS141,143,145199110-199204

main04437-30021×2iGS141,LS141199110-199508

main04438-35011×2iJZS141,143,145199204-199508

sub04438-35012

42310SHAFT ASSY, REAR DRIVE INBOARD JOINT, RH

main42310-30010iJZS141,143,145199110-199508

main42310-30020iGS141,LS141199110-199508

42320SHAFT ASSY, REAR DRIVE INBOARD JOINT, LH

main42320-30010iJZS141,143,145199110-199508

main42320-30020iGS141,LS141199110-199508

42330SHAFT ASSY, REAR DRIVE, RH

main42330-24010iJZS147,149..A199110-199308

main42330-24020iJZS147199308-199508

main42330-24030iUZS141199210-199308

main42330-30020iJZS141,143,145199110-199508

main42330-30040iGS141,LS141199110-199508

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-24040iJZS147,149..A199110-199308

main42340-24050iJZS147,149..A199110-199308

main42340-24060iUZS141199210-199308

main42340-30020iJZS141,143,145199110-199508

main42340-30040iGS141,LS141199110-199508

42341ARING, SNAP (FOR REAR DRIVE SHAFT)

main90520-26028×2iGS141,JZS147,149,LS141,UZS14#199305-199508

main90520-27052×2iJZS147,149,UZS14#199110-199305

main90520-29028×2iJZS141,143,145199110-199508

42346CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-14010×2iLS141199110-199307

main42345-14020×2iGS141,LS141199110-199508

main42345-16030×2iGS141,LS141199307-199508

main90949-01221×2iJZS141,143,145199110-199508

main90949-01222×2iJZS141,143,145199110-199508

42347CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-16030×2iGS141,LS141199110-199508

main42345-16090×2iGS141,LS141199110-199508

main90949-01221×2iJZS141,143,145199110-199508

main90949-01290×2iJZS141,143,145199110-199508

42350JOINT ASSY, REAR DRIVE SHAFT OUTBOARD

main42350-30020×2iJZS141,143,145199110-199508

sub42360-30030

9017010191

main90170-10191

9451101000

main94511-01000

12 parts on this diagram · 5 diagrams in section
