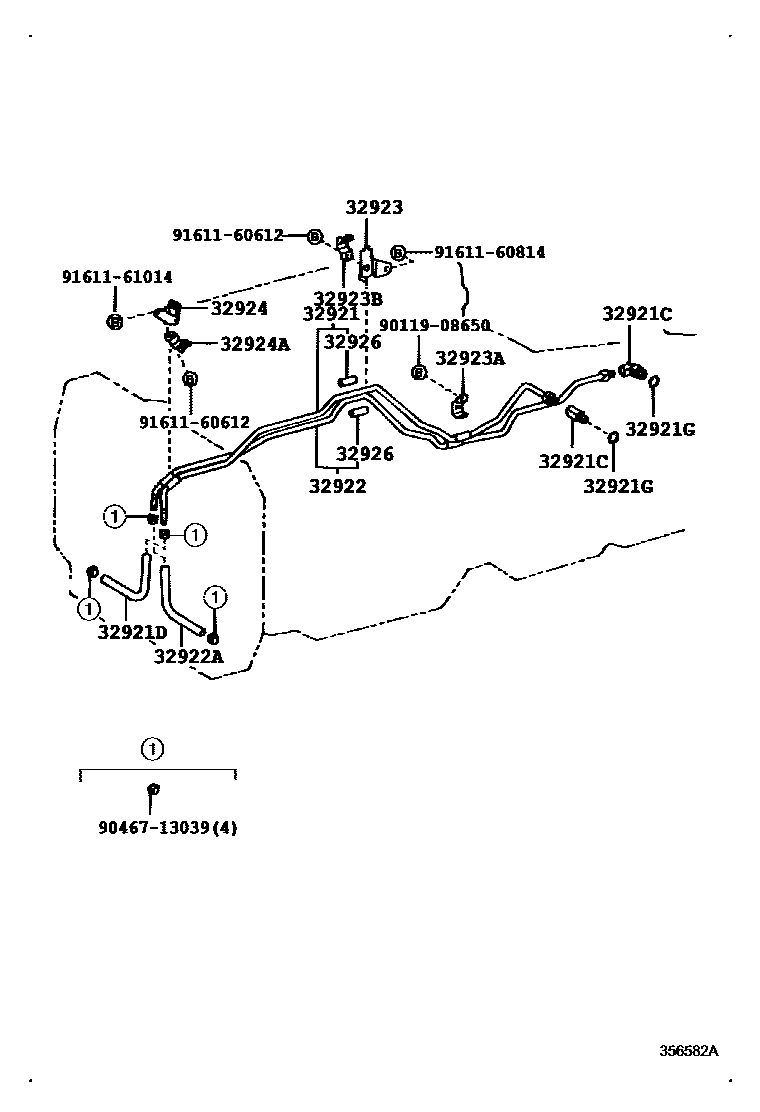

OIL COOLER & TUBE (ATM)

0001 1 0002 1 0003 1 0004 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-30380iGS141199308-199508

main32921-30510iUZS141199110-199308

main32921-30530iJZS147,149199110-199301

main32921-30531iJZS147,149199301-199508

main32921-30540iJZS143,145..4FC199110-199508

main32921-30550iJZS143..ROYT199110-199308

main32921-30560iLS141199110-199508

main32921-30570iJZS141199110-199508

main32921-30580iUZS143,145199210-199508

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iGS141199308-199508

main90404-16029iJZS14#,LS141,UZS14#199110-199508

INLET

main90407-14003iGS141199308-199508

main90407-14024iJZS143..ROYT199110-199308

INLET

main90407-14025iUZS141199110-199308

INLET

main90407-16009iJZS14#,LS141,UZS14#199110-199508

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-20191iJZS141199110-199508

main32941-30170iUZS14#199110-199508

sub32941-26170

main32941-30190iJZS147,149199110-199306

main32941-30230iJZS143,145199110-199508

main32941-30250iJZS147,149199306-199508

main32941-35121iLS141199110-199508

main90445-15048iGS141199308-199508

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iGS141199308-199508

main90301-11006iJZS14#,LS141,UZS14#199110-199508

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-30380iGS141199308-199508

main32922-30510iUZS141199110-199308

main32922-30530iJZS147,149199110-199301

main32922-30531iJZS147,149199301-199508

main32922-30540iJZS143,145199110-199508

main32922-30560iLS141199110-199508

main32922-30570iJZS141199110-199508

main32922-30580iUZS14#199210-199508

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-30051iGS141199308-199508

main32942-30090iJZS147,149,UZS14#199110-199508

main32942-30110iJZS143,145199110-199508

main90445-15014iJZS141199308-199508

main90445-15045iJZS141199110-199308

main90445-17103iLS141199110-199508

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-30161iJZS147,149199304-199308

main32924-30180iJZS141,143,145199110-199508

main32924-30190iJZS147,149199110-199508

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32929-30140iJZS14#199110-199508

main90462-12047iLS141199110-199508

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-30080iGS141199308-199508

main32923-30140iLS141199110-199508

main32923-50010iUZS14#199110-199508

main32929-22050iJZS14#199110-199508

main32929-30160iJZS147,149199304-199508

main32929-60010iJZS147,149199301-199304

32924CLAMP, OIL COOLER TUBE, NO.2

main32923-30160iJZS14#199110-199301

main32923-30161iJZS141,143,145199301-199508

main32923-30180iUZS14#199308-199410

sub32923-50030

main32923-50022iUZS141199110-199308

main32923-50030iUZS14#199410-199508

main32924-30090iLS141199110-199508

main32924-30100iGS141199308-199508

main32924-30190iJZS147,149199304-199308

main32924-50011iUZS143,145199210-199308

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main32929-22050iJZS141,143,145199110-199508

main32929-30160iJZS147,149199304-199508

main32929-60010iJZS147,149199301-199304

main90462-12047iLS141199110-199508

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-26010iLS141..TDEC199110-199508

main32926-26010iLS141..TDEC199110-199508

main32926-30011iGS141199308-199508

main32926-30020iLS141199110-199508

main32926-30030iJZS141,143,145199110-199508

main32926-30060iJZS147,149199301-199508

main32926-30060iJZS147,149199112-199304

main32926-30060iUZS143,145199210-199508

9011908650

main90119-08650

9046713039

main90467-13039

9161160612

main91611-60612

9161160814

main91611-60814

9161161014

main91611-61014

17 parts on this diagram · 4 diagrams in section
