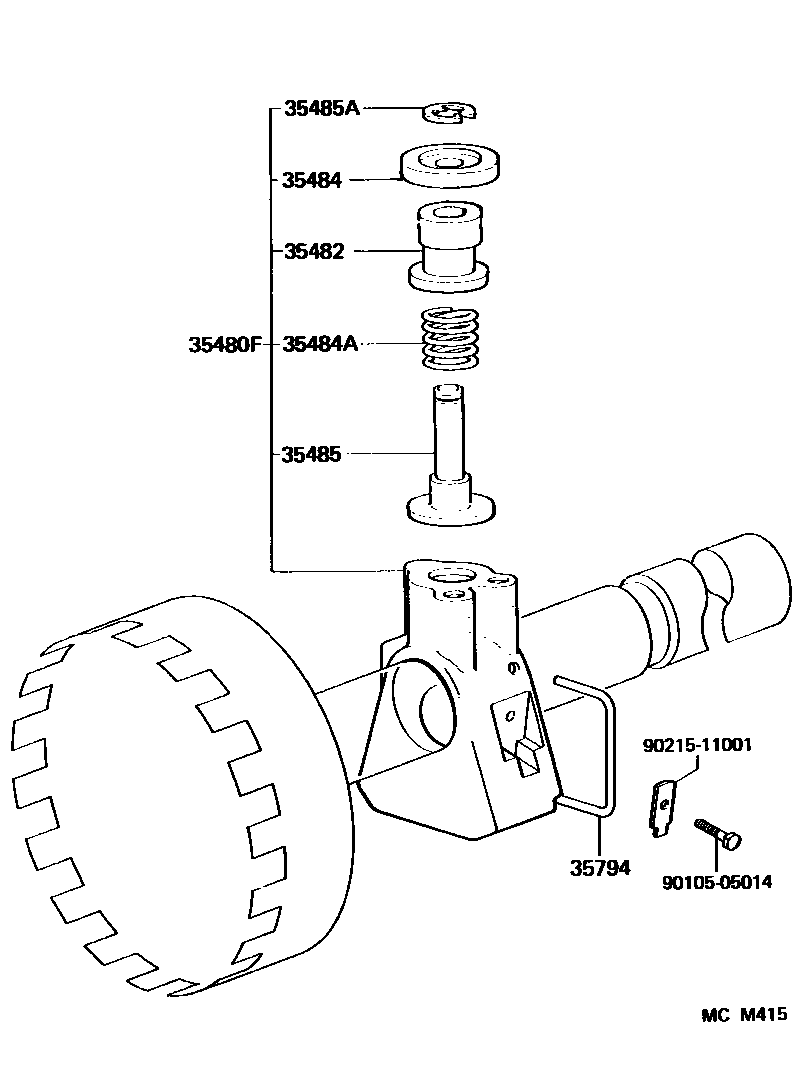

REAR OIL PUMP & GOVERNOR (ATM)

35480FBODY ASSY, GOVERNOR

main35480-30060iGS141199308-199508

35482VALVE, GOVERNOR

main35482-22010iGS141199308-199508

35484WEIGHT, GOVERNOR, OUTER

main35484-22010iGS141199308-199508

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09673iGS141199308-199508

35485SHAFT, GOVERNOR VALVE

main35485-22010iGS141199308-199508

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iGS141199308-199508

35794RING, GOVERNOR RETAINING

main35794-22010iGS141199308-199508

9010505014

main90105-05014

9021511001

main90215-11001

9 parts on this diagram · 1 diagram in section
