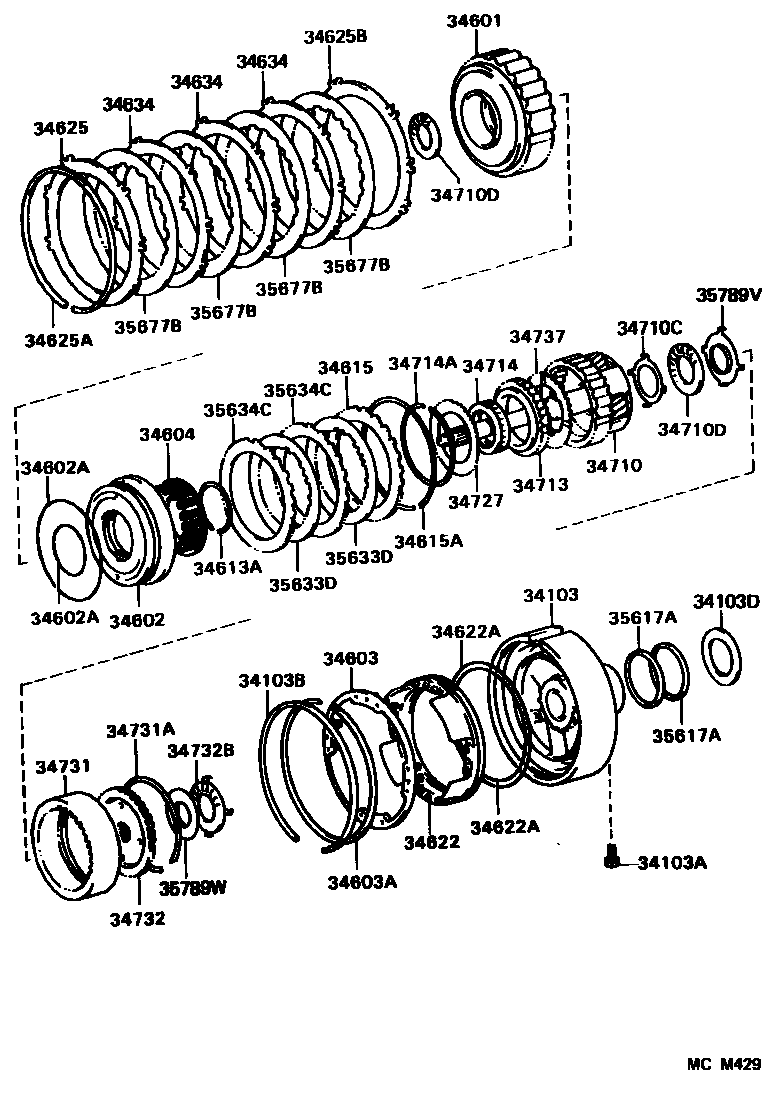

OVERDRIVE GEAR (ATM)

0001 1A340E,A341E,A341H 0002 1A350E 0003 1A42DL

34103SUPPORT SUB-ASSY, OVERDRIVE

main34103-30011iJZS141,LS141199110-199301

main34103-50010iJZS143,145,147,149,UZS14#199110-199301

34103ABOLT (FOR OVERDRIVE SUPPORT)

main90105-08065×2iJZS14#,LS141,UZS14#..4FC199110-199304

main90105-08281×2iJZS143..ROYT199110-199304

34103BRING, HOLE SNAP (FOR OVERDRIVE SUPPORT)

main90521-99033iJZS14#,LS141,UZS14#199110-199508

34103DRACE, THRUST BEARING (FOR OVERDRIVE SUPPORT REAR)

main35789-30090iJZS14#,LS141,UZS14#199110-199508

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-30022iGS141199308-199508

main34601-30030iJZS141,LS141199110-199508

main34601-30040iJZS143..ROYT199110-199505

main34601-30041iJZS143..ROYT199505-199508

main34601-50010iJZS143,145,147,149,UZS14#..4FC199110-199505

main34601-50030iJZS143,145,147,149,UZS14#..4FC199505-199508

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-30020iJZS14#,LS141,UZS14#199110-199508

main34602-30030iGS141199308-199508

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-57188iGS141199308-199508

main90301-65005iJZS14#,LS141,UZS14#199110-199508

main90301-99016iGS141199308-199508

main90301-99036iJZS14#,LS141,UZS14#199110-199508

34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-30010iJZS141,LS141199110-199301

main34603-50010iJZS14#,LS141,UZS14#199301-199508

34603ARING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING)

main90521-99031iJZS14#,LS141,UZS14#199110-199508

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-22010iGS141199308-199508

main34604-30010iJZS14#,LS141,UZS14#199110-199305

main34604-50010iJZS143,145,147,149,UZS14#..4FC199305-199308

34613ARING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SPRING)

main90520-58001iJZS14#,LS141,UZS14#199110-199508

34615FLANGE, OVERDRIVE CLUTCH

main34615-30020iJZS14#,LS141,UZS14#199110-199508

main34615-30030iJZS14#,LS141,UZS14#199110-199508

main34615-30040iJZS14#,LS141,UZS14#199110-199508

main34615-30050iJZS14#,LS141,UZS14#199110-199508

main34615-30060iJZS14#,LS141,UZS14#199110-199508

main34615-30070iJZS14#,LS141,UZS14#199110-199508

main35675-22010iGS141199308-199508

34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)

main90521-99001iJZS14#,LS141,UZS14#199110-199508

34622PISTON, OVERDRIVE BRAKE

main34622-30030iJZS141,LS141199110-199301

main34622-30040iGS141199308-199508

main34622-30070iJZS143,145,147,149199504-199508

main34622-30080iUZS14#199505-199508

main34622-35020iJZS14#,LS141199301-199406

main34622-50010iUZS14#199110-199505

main34622-60020iJZS141,LS141199504-199508

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99008iGS141199308-199508

main90301-99009iGS141199308-199508

main90301-99035iJZS141,LS141199110-199301

main90301-99037iJZS141,LS141199110-199301

main90301-99063iJZS14#,LS141,UZS14#199301-199508

main90301-99064iJZS14#,LS141,UZS14#199301-199508

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-26010iGS141199308-199508

main34625-30040iJZS14#,LS141,UZS141199110-199112

main34625-30050iJZS14#,LS141,UZS141199110-199112

main34625-30060iJZS14#,LS141,UZS141199110-199112

main34625-30070iJZS14#,LS141,UZS141199110-199112

main34625-30080iJZS14#,LS141,UZS141199110-199112

main34625-30090iJZS14#,LS141,UZS141199110-199112

main34625-30100iJZS14#,LS141,UZS141199110-199112

main34625-30120iJZS14#,LS141,UZS14#199112-199508

main34625-30130iJZS14#,LS141,UZS14#199112-199508

main34625-30140iJZS14#,LS141,UZS14#199112-199508

main34625-30150iJZS14#,LS141,UZS14#199112-199508

main34625-30160iJZS14#,LS141,UZS14#199112-199508

main34625-30170iJZS14#,LS141,UZS14#199112-199508

main34625-30180iJZS14#,LS141,UZS14#199112-199508

34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

main90521-99004iGS141199308-199508

main90521-99027iJZS14#,LS141,UZS14#199110-199508

34625BFLANGE, OVERDRIVE BRAKE, NO.2

main34625-30030iJZS14#,LS141,UZS141..4FC199110-199112

main34625-30110iJZS14#,LS141,UZS14#..4FC199112-199508

34634PLATE, OVERDRIVE BRAKE

main34634-30020×3iJZS14#,LS141..4FC; UZS141199110-199112

main34634-30021×3iJZS14#,LS141..4FC199112-199504

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-14011iGS141199308-199508

main34710-22030iJZS141,LS141199110-199504

main34710-30030iJZS141,LS141199504-199508

main34710-30090iJZS143,145,147,149..4FC; JZS143..ROYT199110-199508

main34710-50010iUZS14#199110-199508

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main34739-30031iGS141199308-199508

CTR

main34739-30041iGS141199308-199508

main35789-22010iGS141199308-199508

main35789-30050iJZS14#,LS141,UZS14#199110-199508

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-23012iGS141199308-199508

main90374-24001iGS141199308-199508

CTR

main90374-25005iJZS14#,LS141,UZS14#199110-199308

main90374-28008iJZS143,145,147,149,UZS14#199308-199504

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-30020iGS141199308-199508

main34713-32010iJZS14#,LS141,UZS14#199110-199508

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main35791-30030iGS141199308-199508

main35791-50010iJZS14#,LS141,UZS14#199110-199508

34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)

main90521-99028iJZS14#,LS141,UZS14#199110-199508

34727PLATE, RETAINING (FOR OVERDRIVE)

main34727-32010iJZS14#,LS141,UZS14#199110-199508

34731GEAR, OVERDRIVE PLANETARY RING

main34731-30030iJZS14#,LS141,UZS14#199110-199308

main34731-30040iUZS14#199308-199508

34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)

main90521-99024iJZS14#,LS141,UZS14#199110-199508

34732FLANGE, OVERDRIVE PLANETARY RING GEAR

main34732-22010iJZS14#,LS141..4FC199110-199308

main34732-50010iJZS143,UZS14#..C,ROYT199110-199308

34732BBEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANGE)

main90374-33002iJZS14#,LS141,UZS14#199110-199508

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-30020iGS141199308-199508

main34737-30030iJZS14#,LS141,UZS14#199110-199508

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-16010×2iGS141199308-199508

main35617-30020×2iJZS14#,LS141,UZS14#199110-199508

35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35633-14010×2iJZS14#,UZS14#199504-199508

main35633-30040×2iLS141199504-199508

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main34616-30010iJZS141,LS141; JZS143,145,147,149,UZS14#199110-199505

main34616-50010iJZS143,145,147,149,UZS14#199110-199505

main35634-30080×3iGS141199308-199508

35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)

main34633-30010×4iJZS141,LS141199110-199504

main34633-50010×4iJZS143,145,147,149..4FC; UZS14#199110-199508

35789VRACE, THRUST BEARING

main35789-30060iJZS14#,LS141,UZS14#199110-199508

35789WRACE, THRUST BEARING

main35789-22060iJZS14#,LS141,UZS14#199110-199508

37 parts on this diagram · 3 diagrams in section
