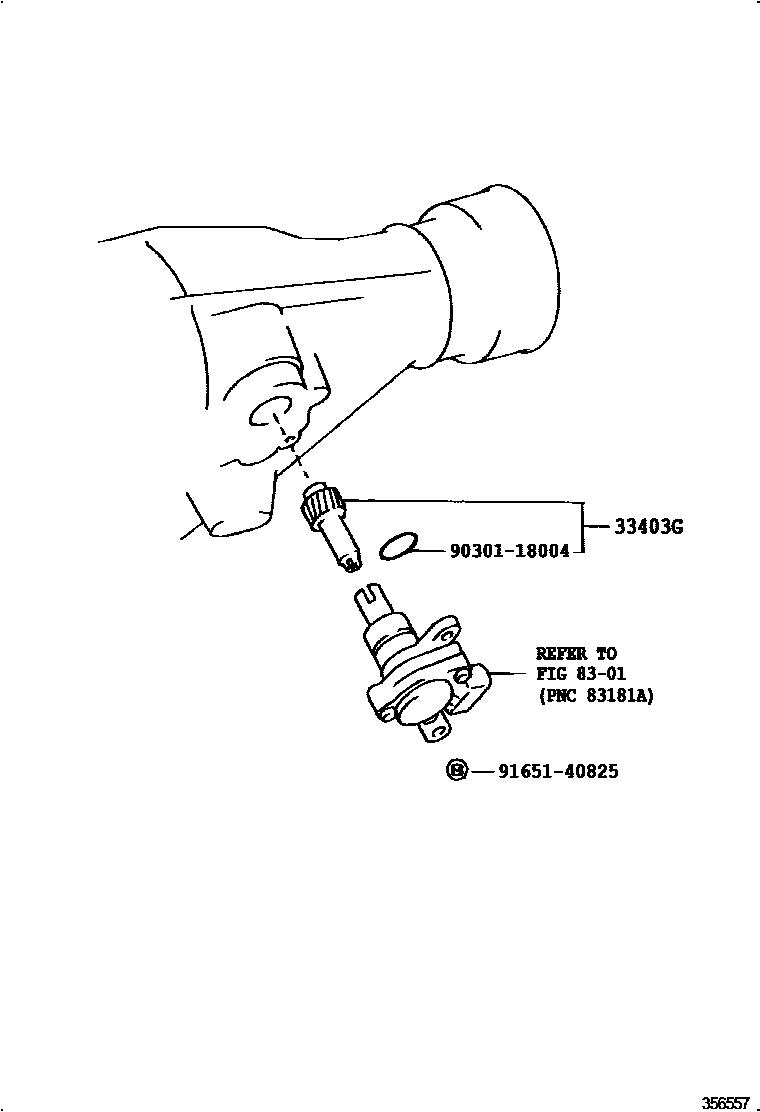

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A341E,A341H,A350E 0002 1A340E,A341E,A341H 0003 1A42DL

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33482-29205iGS141,JZS14#,LS141,UZS143,145199110-199508

main33482-39375iLS141199110-199508

main33482-39385iJZS141199110-199508

main33482-39395iGS141199308-199508

main33482-59025iUZS141,147199110-199508

8301METER

→ Go to FIG 83-01

9030118004

main90301-18004

9165140825

main91651-40825

4 parts on this diagram · 3 diagrams in section
