TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

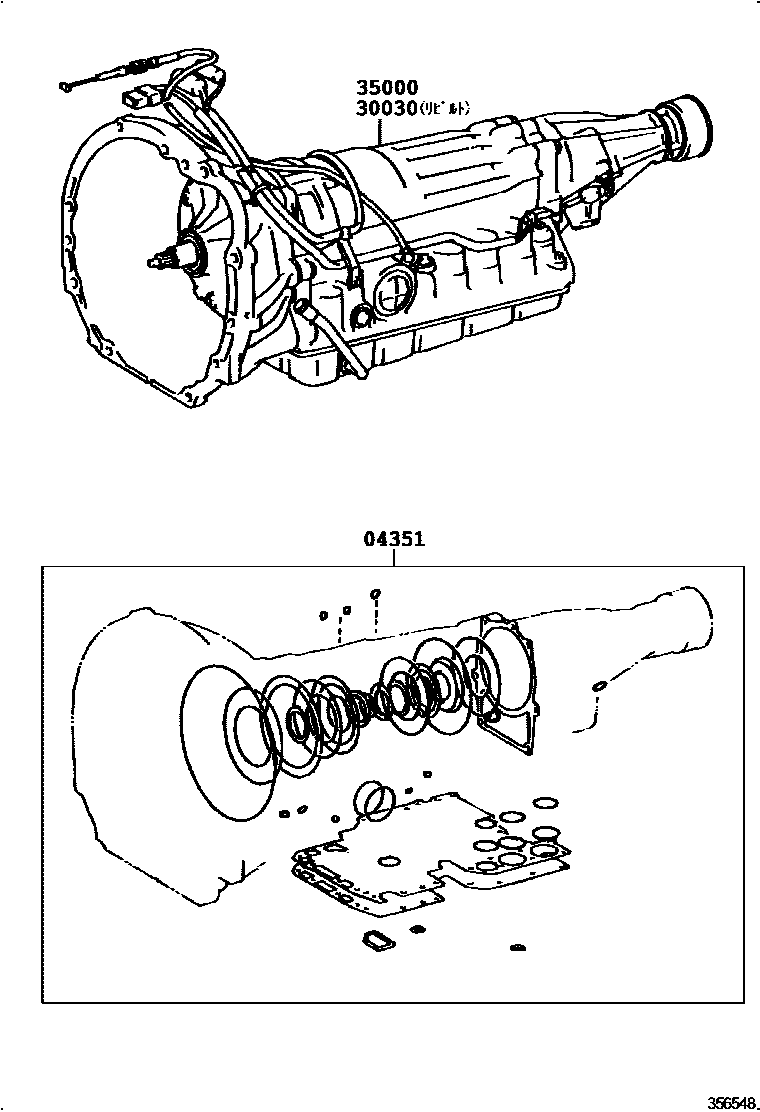

Parts diagram

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-14030i199308-199508

main04351-30093i199308-199508

main04351-30130i199110-199508

main04351-30150i199110-199508

main04351-30160i199110-199508

main04351-30180i199210-199508

main04351-30210i199308-199508

30030TRANSMISSION ASSY, REBUILT

main30030-3A670i199110-199308

main30030-3A690i199110-199308

main30030-3A700i199110-199210

main30030-3A710i199110-199210

main30030-3A741i199210-199308

main30030-3A750i199110-199308

main30030-3A760i199110-199308

main30030-3A790i199110-199308

main30030-3A800i199110-199308

main30030-3A830i199308-199508

main30030-3A880i199210-199308

main30030-3A890i199308-199508

main30030-3F010i199308-199508

main30030-3F020i199308-199508

main30030-3F030i199308-199508

main30030-3F060i199308-199508

main30030-3F070i199308-199508

main30030-3F110i199308-199508

main30030-3F120i199308-199508

main30030-3F130i199308-199508

main30030-3F140i199308-199508

35000TRANSMISSION ASSY, AUTOMATIC

main35000-3A670i199110-199308

main35000-3A690i199110-199308

main35000-3A700i199110-199210

main35000-3A710i199110-199210

main35000-3A741i199110-199210

main35000-3A750i199110-199308

main35000-3A760i199110-199308

main35000-3A790i199110-199308

main35000-3A800i199110-199308

main35000-3A830i199308-199508

main35000-3A880i199210-199308

main35000-3A890i199308-199508

main35000-3F010i199308-199508

main35000-3F020i199308-199508

main35000-3F030i199308-199508

main35000-3F060i199308-199508

main35000-3F070i199308-199508

main35000-3F110i199308-199508

main35000-3F120i199308-199508

main35000-3F130i199308-199508

main35000-3F140i199308-199508

3 parts on this diagram · 4 diagrams in section
