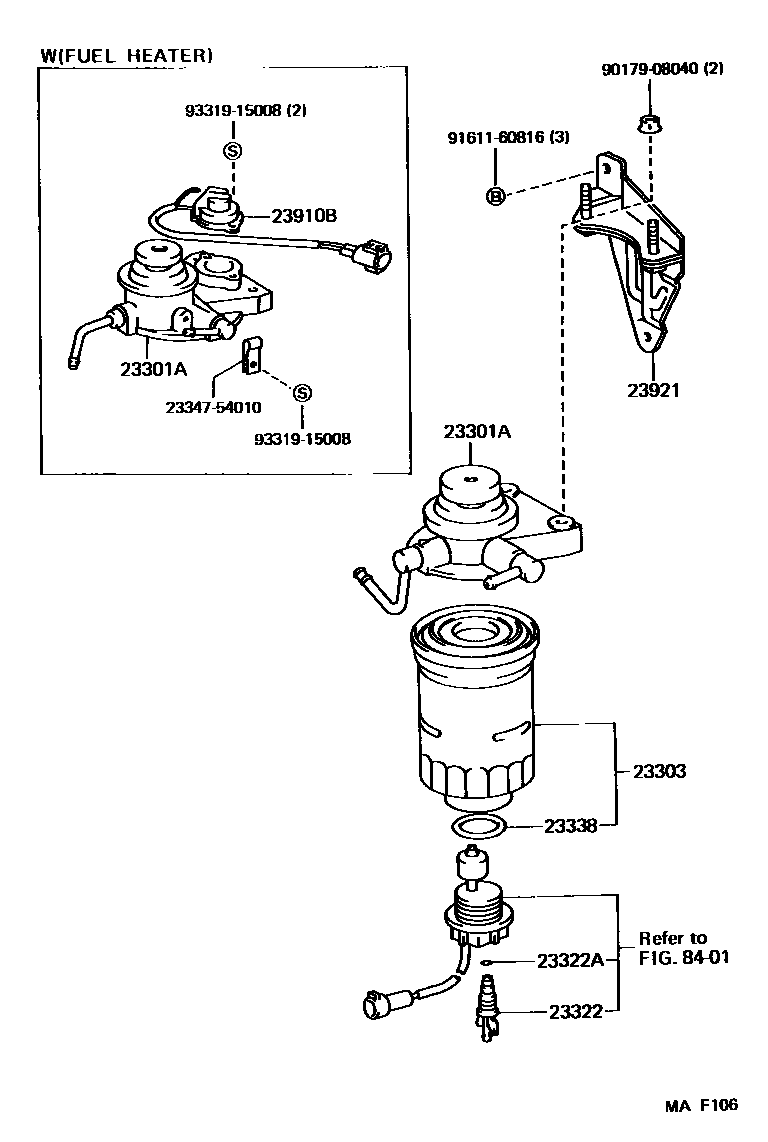

FUEL FILTER

23301ACAP ASSY, FUEL FILTER

main23301-54350i2LT#..LS141199110-199508

main23301-54570i2LT#..LS141199110-199508

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2LT#..LS141199110-199508

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i2LT#..LS141199110-199508

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2LT#..LS141199110-199508

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2LT#..LS141199110-199508

23910BHEATER ASSY, FUEL

main23910-54050i2LT#..LS141199110-199508

23921SUPPORT, FUEL FILTER

main23921-54240i2LT#..LS141199110-199508

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

2334754010CLIP, CORD

main23347-54010

9017908040

main90179-08040

9161160816

main91611-60816

9331915008

main93319-15008

12 parts on this diagram · 1 diagram in section
