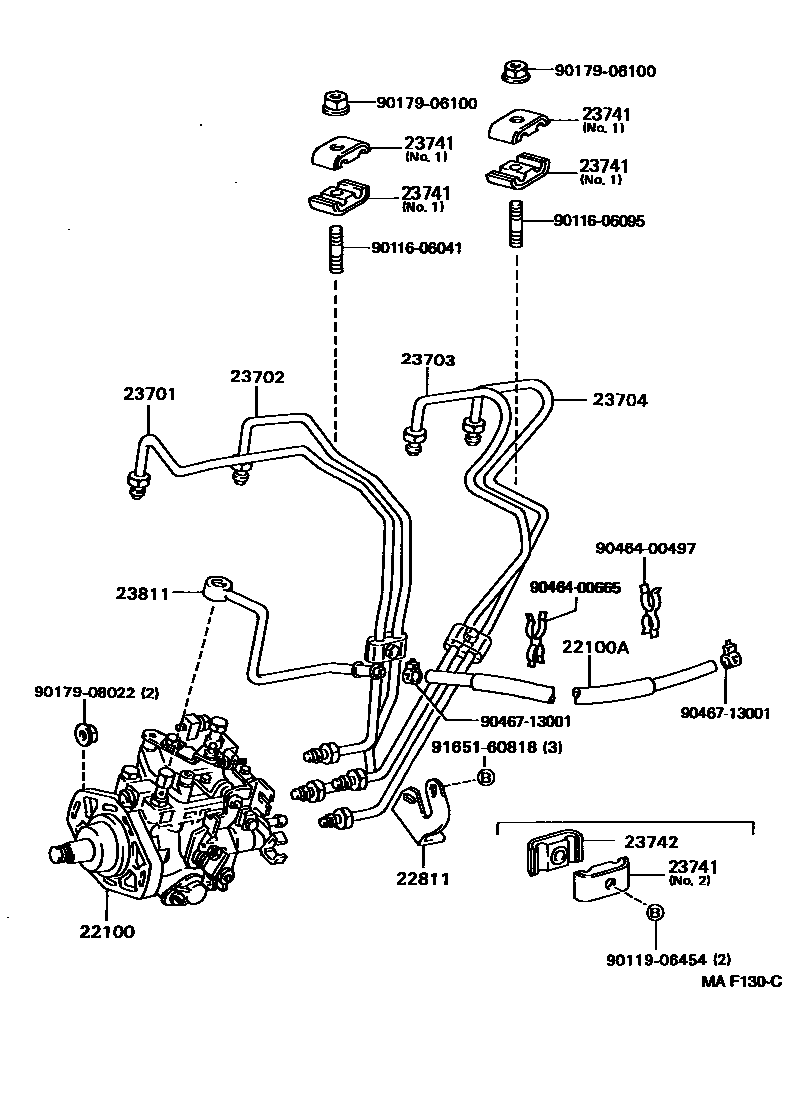

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-5B301i2LTHE..LS141199110-199206

sub22100-5B302

main22100-5B302i2LT#..LS141199206-199409

sub22100-5B303

main22100-5B303i2LTE..LS141199409-199508

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main90447-14011i2LT#..LS141199110-199508

22811STAY, INJECTION PUMP, NO.1

main22811-54050i2LT#..LS141199110-199508

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54120i2LT#..LS141199110-199312

sub23701-54130

main23701-54130i2LTE..LS141199312-199508

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54130i2LT#..LS141199110-199312

sub23702-54160

main23702-54160i2LTE..LS141199312-199508

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54100i2LT#..LS141199110-199508

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54100i2LT#..LS141199110-199508

23741CLAMP, INJECTION PIPE, NO.1

main23741-54010i2LT#..LS141199110-199508

main23741-56010i2LT#..LS141199110-199508

23742CLAMP, INJECTION PIPE, NO.2

main23742-54010i2LT#..LS141199110-199508

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54191i2LT#..LS141199110-199508

9011606041

main90116-06041

9011606095

main90116-06095

9011906454

main90119-06454

9017906100

main90179-06100

9017908022

main90179-08022

9046400497

main90464-00497

9046400665

main90464-00665

9046713001

main90467-13001

9165160818

main91651-60818

19 parts on this diagram · 1 diagram in section
