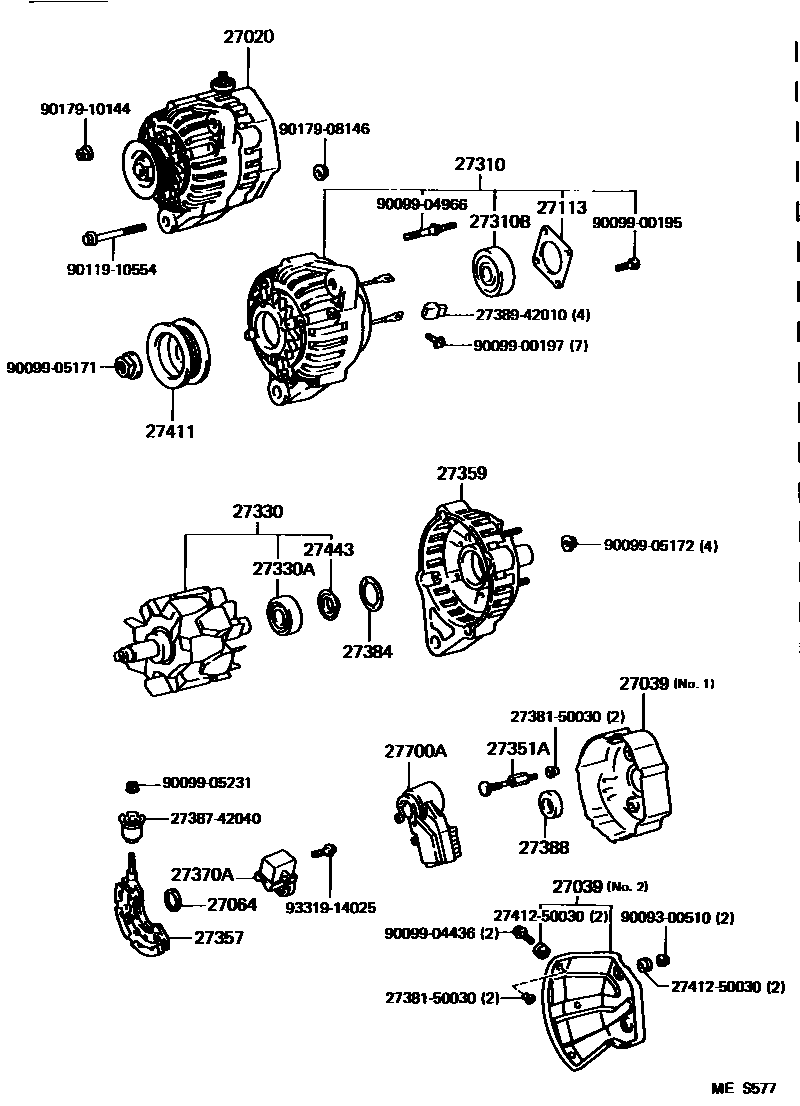

ALTERNATOR

0001 112V 110A 0002 112V 100A & 12V 110A 0004 112V 110A 0005 112V 70A 0006 112V 80A 0007 112V 80A & 12V 110A 0008 112V 70A

27020ALTERNATOR ASSY

main27060-46070i2JZGE..JZS147,149199110-199308

main27060-46090i1JZGE,2JZGE..JZS141,143,145199110-199308

sub27060-46100

main27060-46140i1JZGE,2JZGE..JZS141,143,145199308-199508

sub27060-46060

main27060-46210i2JZGE..JZS147,149199308-199508

main27060-50060i1UZFE..UZS141199110-199308

main27060-50100i1UZFE..UZS143,145199210-199508

main27060-50130i1UZFE..UZS141,147199308-199508

main27060-54070i2LTHE..LS141199110-199308

sub27060-54110

main27060-54240i2LTE..LS141199308-199508

sub27060-54170

main27060-70410i1GFE..GS141199308-199508

27039COVER, ALTERNATOR REAR END

main27039-16310i1JZGE,2JZGE,2LTHE..JZS141,143,145,LS141199110-199308

main27039-46120i2JZGE..JZS147,149199110-199308

main27039-46170i2JZGE..JZS147,149199308-199508

main27039-46190i1JZGE,2JZGE..JZS141,143,145199308-199508

sub27039-22050

main27039-50080i1UZFE..UZS141199110-199308

main27039-50090i1UZFE..UZS143,145199210-199508

sub27039-17230

main27039-55080i2LTE..LS141199308-199508

sub27039-70470

main27039-73020i1GFE..GS141199308-199508

sub27039-16380

main27041-46120i2JZGE..JZS147,149199110-199308

main27041-50030i1UZFE..UZS141199110-199308

27064SEAL, ALTERNATOR PLATE

main27064-42010i1JZGE,2JZGE,2LT#,1UZFE..JZS14#,LS141,UZS14#199110-199508

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-42010i1JZGE,2JZGE,1UZFE..JZS14#,UZS14#199110-199508

main27312-64130i2LT#..LS141199110-199508

main27312-70200i1GFE..GS141199308-199508

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-46080i1JZGE,2JZGE..JZS141,143,145199110-199508

main27310-46090i2JZGE..JZS147,149199110-199508

main27310-50030i1UZFE..UZS141,147199110-199508

main27310-50060i1UZFE..UZS143,145199210-199508

main27310-54470i2LT#..LS141199110-199508

main27310-70100i1GFE..GS141199308-199508

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10165i2LT#..LS141199110-199508

main90099-10178i1GFE..GS141199308-199508

main90099-10192i1JZGE,2JZGE,1UZFE..JZS14#,UZS14#199110-199508

27330ROTOR ASSY, ALTERNATOR

main27330-46080i1JZGE,2JZGE..JZS141,143,145199110-199508

main27330-46090i2JZGE,1UZFE..JZS147,149,UZS141,147199110-199508

main27330-50070i1UZFE..UZS143,145199210-199508

sub27330-20070

main27330-64190i2LT#..LS141199110-199508

main27330-72101i1GFE..GS141199308-199508

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i1GFE,2LT#..GS141,LS141199110-199508

main90099-10194i1JZGE,2JZGE,1UZFE..JZS14#,UZS14#199110-199508

27351ACOLLAR, ADJUSTING ALTERNATOR

main27351-50030i2JZGE,1UZFE..JZS147,149,UZS141199110-199308

L=26

sub90099-05274

main27351-50040i2JZGE,1UZFE..JZS147,149,UZS141199110-199308

L=25.2

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-46090i2JZGE..JZS147,149199110-199508

main27357-46130i1JZGE,2JZGE..JZS141,143,145199110-199508

main27357-50080i1UZFE..UZS141,147199110-199508

main27357-55080i2LT#..LS141199110-199508

main27357-63020i1GFE..GS141199308-199508

main27357-74170i1UZFE..UZS143,145199210-199508

27359FRAME, ALTERNATOR RECTIFIER END

main27359-46080i1JZGE,2JZGE..JZS141,143,145199110-199504

sub27359-46290

main27359-46100i2JZGE..JZS147,149199110-199508

main27359-46290i1JZGE,2JZGE..JZS141,143,145199504-199508

main27359-50030i1UZFE..UZS14#199110-199508

main27359-54420i2LT#..LS141199110-199508

main27359-70260i1GFE..GS141199308-199508

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i1GFE..GS141199308-199508

main27370-75060i1JZGE,2JZGE,2LT#,1UZFE..JZS14#,LS141,UZS14#199110-199508

27384WASHER

main27384-50030i1JZGE,2JZGE,2LT#,1UZFE..JZS14#,LS141,UZS14#199110-199508

27388COVER, ALTERNATOR BRUSH

main27388-42010i1JZGE,2JZGE,2LT#,1UZFE..JZS14#,LS141,UZS14#199110-199508

27411PULLEY, ALTERNATOR

main27411-43200i1UZFE..UZS143,145199210-199508

main27411-46080i1JZGE,2JZGE..JZS141,143,145199110-199508

main27411-46090i2JZGE..JZS147,149199110-199508

main27411-50030i1UZFE..UZS141,147199110-199508

main27411-70261i1GFE..GS141199308-199508

27443COVER, ALTERNATOR BEARING

main27443-63020i1GFE,1JZGE,2JZGE,2LT#,1UZFE..GS141,JZS14#,LS141,UZS14#199110-199508

27700AREGULATOR ASSY, GENERATOR

main27700-10061i2LTHE..LS141199110-199201

sub27700-54050

main27700-35040i1GFE..GS141199308-199508

main27700-46030i1JZGE,2JZGE,1UZFE..JZS14#,UZS141199110-199308

sub27700-72090

main27700-46050i1UZFE..UZS143,145199307-199508

main27700-46060i1JZGE,2JZGE..JZS14#199308-199508

main27700-54050i2LTHE..LS141199201-199308

sub27700-76020

main27700-54060i2LTE..LS141199308-199508

sub27700-50030

main27700-74030i1UZFE..UZS143,145199210-199307

2738150030SUPPORT, TERMINAL, ALTERNATOR

main27381-50030

2738742040INSULATOR, TERMINAL

main27387-42040

2738942010INSULATOR, TERMINAL

main27389-42010

2741250030COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-50030

9009300510

main90093-00510

9009900195

main90099-00195

9009900197

main90099-00197

9009904436

main90099-04436

9009904966

main90099-04966

9009905171

main90099-05171

9009905172

main90099-05172

9009905231

main90099-05231

9011910554

main90119-10554

9017908146

main90179-08146

9017910144

main90179-10144

9331914025

main93319-14025

33 parts on this diagram · 7 diagrams in section
