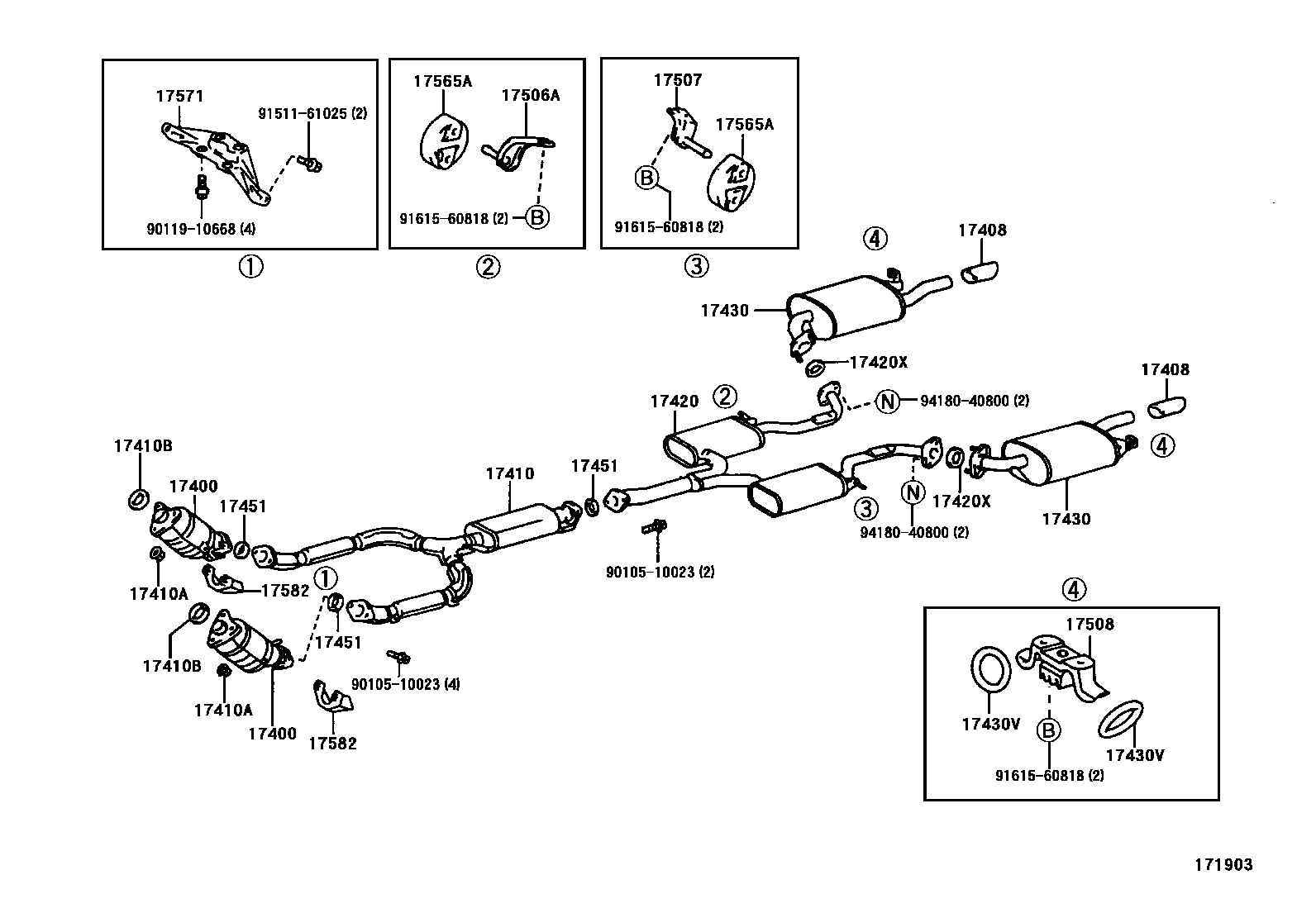

EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
17408BAFFLE SUB ASSY, EXHAUST TAILPIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
main90179-10070×3i1GFE,1JZGE,2LT#..GS141,JZS141,LS141; 1UZFE..UZS141,147; 2JZGE,1UZFE..JZS143,145,147,149,UZS143,145199110-199508
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17451GASKET, EXHAUST PIPE
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17582BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER
9010510023
main90105-10023
9011910668
main90119-10668
9151161025
main91511-61025
9161560818
main91615-60818
9418040800
main94180-40800
21 parts on this diagram · 7 diagrams in section
