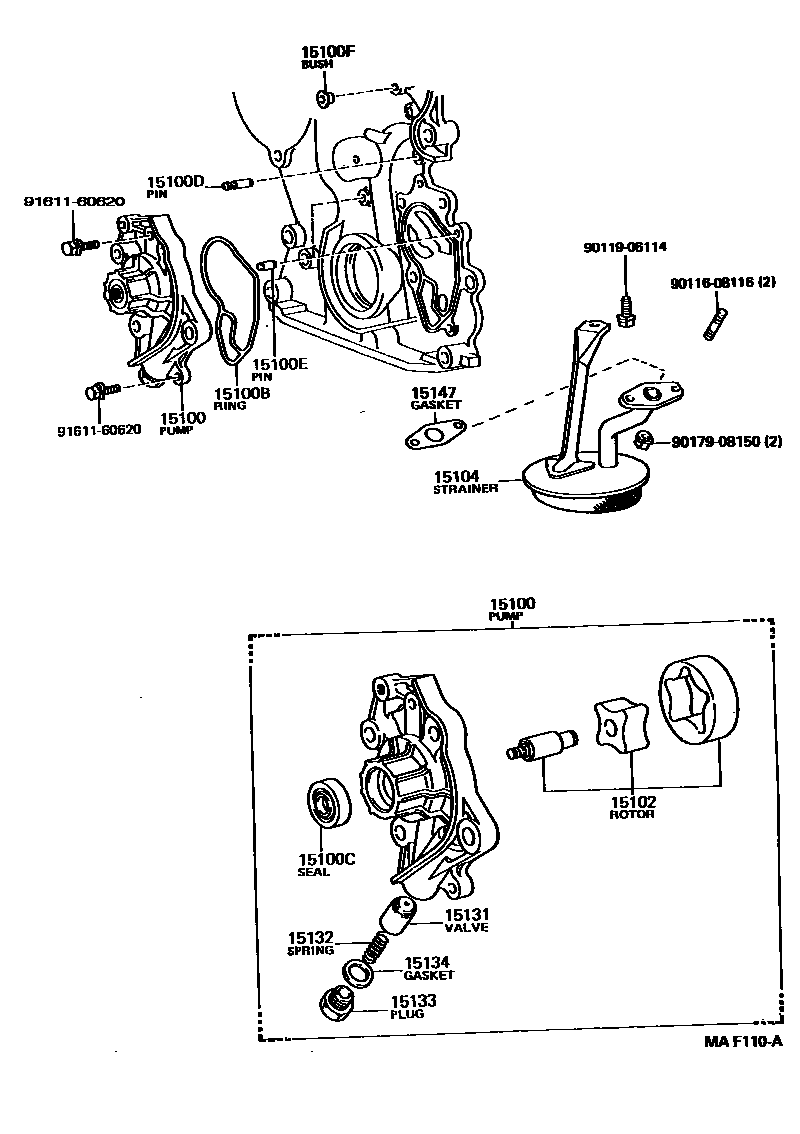

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0006 1

15100PUMP ASSY, OIL

main15100-46040i1JZGE,2JZGE..JZS14#199110-199304

main15100-46041i1JZGE,2JZGE..JZS14#199304-199508

main15100-50020i1UZFE..UZS14#199110-199312

main15100-50021i1UZFE..UZS14#199312-199409

main15100-50022i1UZFE..UZS14#199409-199508

main15100-70030i1GFE..GS141199308-199508

15100BRING, O(FOR OIL PUMP)

main15188-70010i1GFE..GS141199308-199508

main96721-24025i1UZFE..UZS14#199110-199508

15100CSEAL(FOR OIL PUMP)

main90029-21005i1GFE..GS141199308-199508

main90311-43004i1UZFE..UZS14#199110-199508

15100DPIN(FOR OIL PUMP SET)

main15182-70010i1GFE..GS141199308-199508

15100EPIN, STRAIGHT (FOR OIL PUMP SET)

main15181-70010×2i1GFE..GS141199308-199508

15100FBUSH (FOR OIL PUMP)

main90029-38302i1GFE..GS141199308-199508

15102ROTOR SET, OIL PUMP

main15102-70011i1GFE..GS141199308-199508

15104STRAINER SUB-ASSY, OIL

main15104-46010i2JZGE..JZS149199110-199205

main15104-46011i2JZGE..JZS147,149199205-199308

main15104-46020i1JZGE,2JZGE..JZS141,143,145199110-199508

main15104-46060i2JZGE..JZS147,149199308-199508

main15104-50021i1UZFE..UZS141,147199308-199508

main15104-50040i1UZFE..UZS141199110-199308

main15104-50090i1UZFE..UZS143,145199210-199508

main15104-54033i2LT#..LS141199110-199508

main15104-70060i1GFE..GS141199308-199508

15131VALVE, OIL PUMP RELIEF

main15131-17010i1JZGE,2JZGE..JZS14#199304-199508

main15131-24010i1GFE..GS141; 1UZFE..UZS14#199110-199508

main15131-46040i1JZGE,2JZGE..JZS14#199110-199304

main15131-54010i2LT#..LS141199110-199508

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i1GFE..GS141199308-199508

main15132-46020i1JZGE,2JZGE..JZS14#199110-199508

main15132-54010i2LT#..LS141199110-199508

main15132-62010i1UZFE..UZS14#199110-199508

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1JZGE,2JZGE..JZS14#199110-199508

main15133-20010i1GFE..GS141199308-199508

main15133-54010i2LT#..LS141199110-199508

15134GASKET, OIL PUMP RELIEF VALVE

main15134-17010i1JZGE,2JZGE..JZS14#199110-199508

main15134-70030i1GFE..GS141199308-199508

15147GASKET, OIL STRAINER

main15147-46010i1JZGE,2JZGE..JZS14#199110-199508

main15147-50010i1UZFE..UZS14#199110-199508

main15147-70021i1GFE..GS141199308-199508

9011608116

main90116-08116

9011906114

main90119-06114

9017908150

main90179-08150

9161160620

main91611-60620

17 parts on this diagram · 5 diagrams in section
