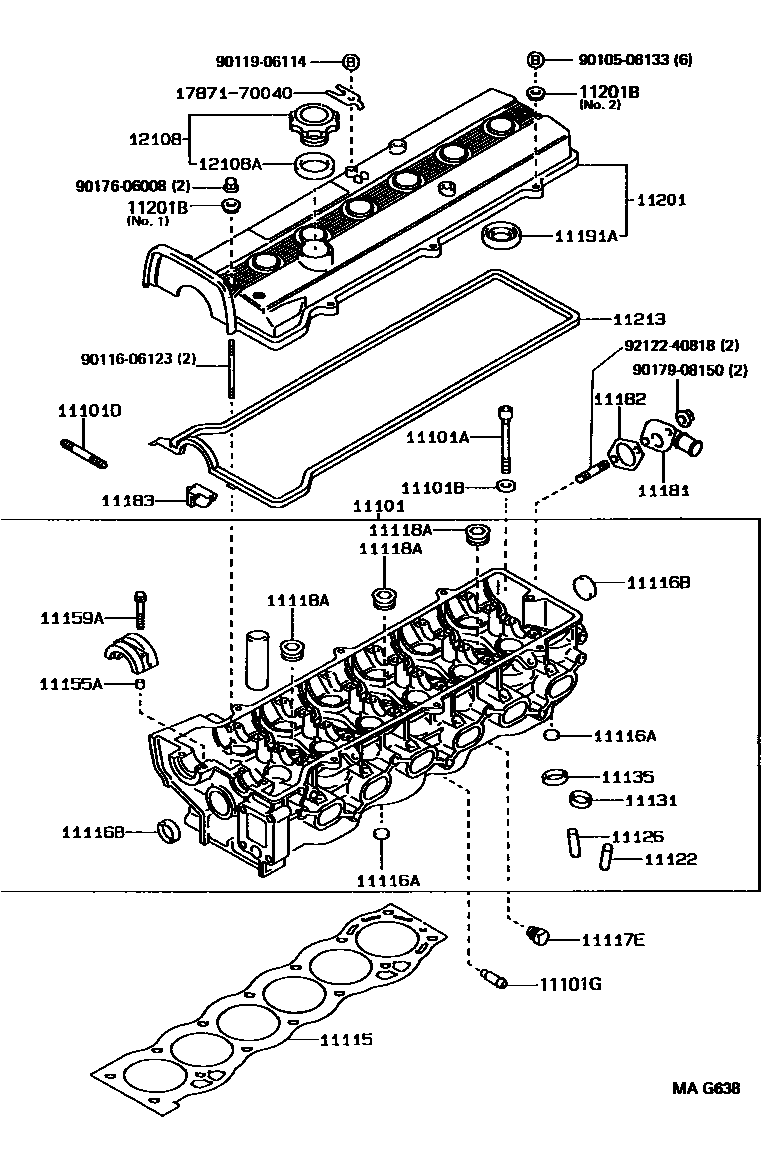

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-49317
sub11101-49318
sub11101-49337
sub11101-54141
sub11101-59145
sub90913-02106
sub90919-15444
sub90919-15445
sub90919-15446
sub90919-15447
sub90919-15448
sub90919-15449
sub90919-15450
sub90919-15451
11101ABOLT(FOR CYLINDER HEAD SET)
11101DBOLT, STUD(FOR WATER OUTLET)
11101GUNION(FOR CYLINDER HEAD)
11116APLUG, TIGHT, NO.1
11116BPLUG, TIGHT, NO.2
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11118APLUG, STRAIGHT, NO.1
11135SEAT, EXHAUST VALVE
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11181PLATE, CYLINDER HEAD, REAR
11182GASKET, CYLINDER HEAD REAR PLATE
11183PLUG, SEMICIRCULAR
11191AGASKET(FOR SPARK PLUG TUBE)
11201COVER SUB-ASSY, CYLINDER HEAD
INTAKE SIDE
sub11201-46031
sub11202-46010
sub11219-46011
sub11229-46010
sub11239-46010
sub11249-46010
sub90105-06166
sub90179-06288
sub90210-07001
RH
EXHAUST SIDE
sub11202-46010
sub11201-46031
sub11219-46011
sub11229-46010
sub11239-46010
sub11249-46010
sub90105-06166
sub90179-06288
sub90210-07001
EXHAUST SIDE
sub11210-54021
sub11210-54022
sub11210-54041
sub11210-54042
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
12108AGASKET(FOR OIL FILLER CAP)
1787170040STAY, AIR CONNECTOR
main17871-70040
9010506133
main90105-06133
9011606123
main90116-06123
9011906114
main90119-06114
9017606008
main90176-06008
9017908150
main90179-08150
9212240818
main92122-40818
33 parts on this diagram · 4 diagrams in section
