ENGINE OVERHAUL GASKET KIT

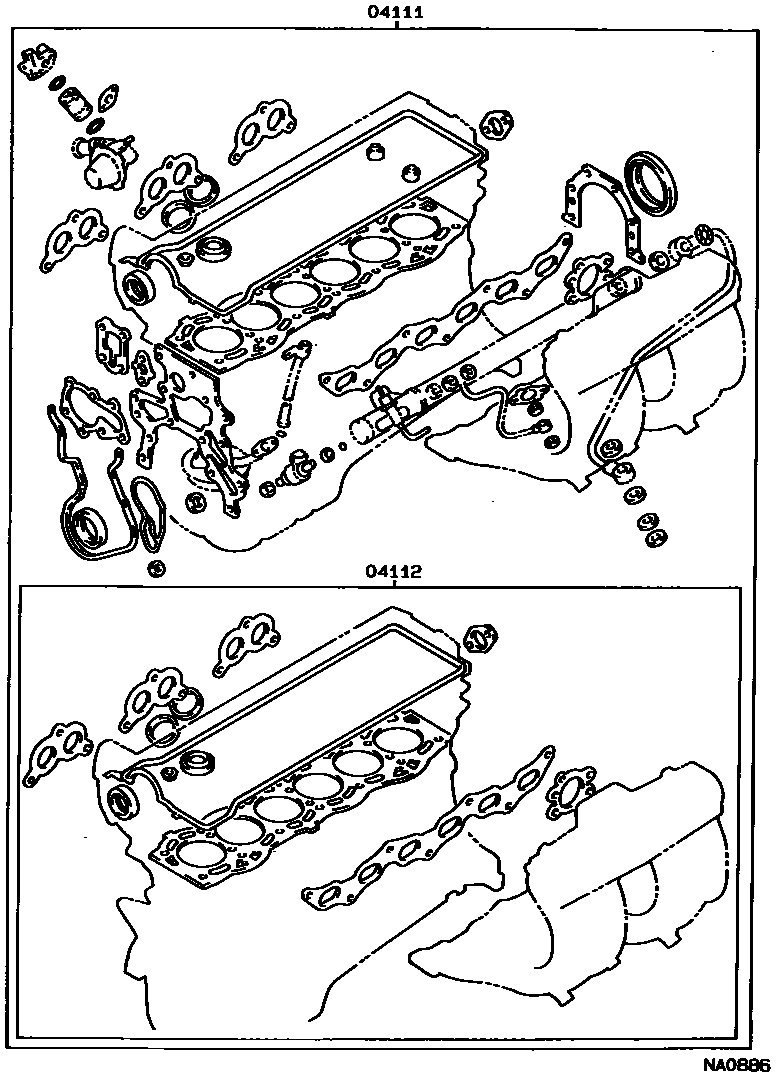

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-46021i199110-199210

main04111-46022i199210-199304

main04111-46024i199304-199306

main04111-46025i199306-199508

main04111-46060i199110-199210

main04111-46061i199210-199304

main04111-46063i199304-199306

main04111-46064i199306-199508

main04111-50060i199110-199408

main04111-50062i199408-199508

main04111-50080i199210-199408

main04111-50082i199408-199508

main04111-54103i199110-199508

main04111-70061i199308-199311

main04111-70062i199311-199508

04112GASKET KIT, ENGINE VALVE GRIND

main04112-46020i199110-199210

main04112-46021i199210-199304

main04112-46023i199304-199306

main04112-46024i199306-199508

main04112-46060i199110-199210

main04112-46061i199210-199304

main04112-46063i199304-199306

main04112-46064i199306-199508

main04112-50060i199110-199408

main04112-50062i199408-199508

main04112-50080i199210-199408

main04112-50082i199408-199508

main04112-54101i199110-199508

main04112-70061i199308-199508

2 parts on this diagram · 4 diagrams in section
